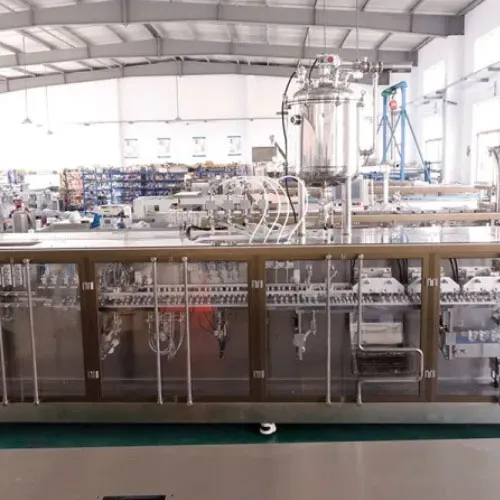

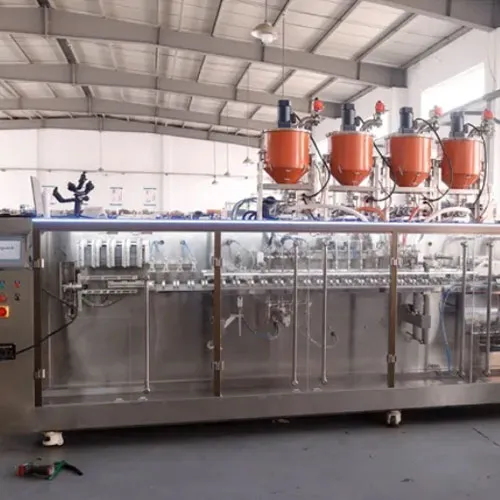

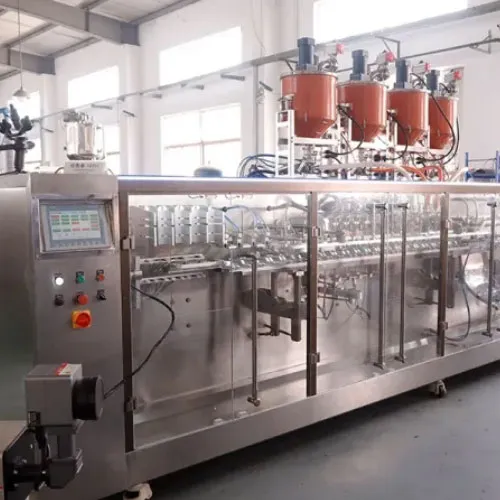

Premade Pouch Packaging Machine, 4-Nozzle Filling-400QG

When I design a premade pouch packaging machine, I do not look at the filling speed alone. I look at the whole packaging process: how the empty pouch is fed, how reliably it opens, how the product enters, how the pouch is sealed, and what happens after the finished pouch leaves the machine.

That is exactly how I approach our Premade Pouch Packaging Machine, 4-Nozzle Filling-400QG.

The 400QG is a premade pouch filling and sealing solution built for customers who need higher filling productivity while still working with finished pouches. Instead of forming a pouch from roll film during production, I use an already-made pouch and automate the steps that come after it: pouch feeding, opening, filling, optional air removal or nitrogen flushing, heat sealing, coding, and finished pouch discharge.

The biggest difference in this model is its 4-nozzle filling configuration. Four filling positions allow the machine to handle the filling process more efficiently than a single-nozzle setup when the product and target production requirements are suitable for multi-nozzle filling.

At Shanghai Huacheng Packing Machinery Company, also known as Huapack, we have focused on pouch packaging machinery since 2015. We are based in Songjiang District, Shanghai, and bring R&D, manufacturing, sales, and technical service together under one operation. I use that experience to design the machine around the customer's actual pouch, product, filling weight, and production target instead of treating every packaging project as a standard machine order.

1. What Makes the 400QG Different?

A premade pouch packaging machine sounds simple until you put a real product into a real pouch.

A pouch may be thin, flexible, glossy, laminated, zippered, or fitted with a spout. The product may be a free-flowing granule, fine powder, liquid, thick paste, or small piece. These materials do not behave the same way, so the machine needs to be configured around the actual application.

With the Premade Pouch Packaging Machine, 4-Nozzle Filling-400QG, I start with a finished pouch. The machine does not need to make the pouch from a roll of film. This is useful for manufacturers that already purchase printed premade pouches from a packaging supplier.

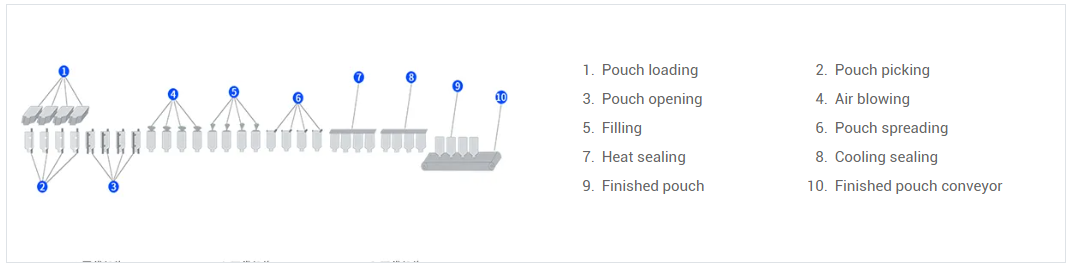

The normal working sequence is:

1. The operator loads finished empty pouches into the automatic pouch magazine.

2. The pouch feeder separates and transfers pouches into the machine.

3. The machine grips and positions each pouch.

4. The pouch mouth is opened for filling.

5. The product is dosed through the four-nozzle filling system.

6. Optional vacuum or nitrogen functions can be added when the application requires them.

7. The pouch mouth is prepared for sealing.

8. The sealing station applies controlled heat and pressure.

9. A coding unit can print production information when required.

10. The finished pouch is discharged to the next conveyor or packaging process.

That sequence removes a large amount of repetitive manual work. More importantly, it gives me a controlled process where each pouch follows the same basic path.

PMMI's 2025 packaging machinery research identifies automated changeovers, servo-driven systems, and machines that can handle different packaging formats as important areas of packaging machinery development. The same report notes that machinery users are looking for practical solutions to improve efficiency while dealing with workforce challenges. :contentReference[oaicite:0]{index=0}

For me, the lesson is quite practical: automation should make the operator's job easier without making the machine unnecessarily difficult to understand.

Source: Comparison based on standard packaging-machine process structures and PMMI's 2025 packaging machinery industry research. PMMI identifies automation, flexible equipment, and practical plant-floor efficiency as important industry considerations. :contentReference[oaicite:1]{index=1}

2. How I Run the Four-Nozzle Filling Process

The four-nozzle configuration is the part of the 400QG that I pay particular attention to during project design.

Four nozzles do not automatically mean that every product should run four times faster. That would be an irresponsible way to specify packaging equipment. Actual output depends on filling weight, product flow, pouch dimensions, filling method, product characteristics, machine cycle time, and other production conditions.

What the four-nozzle configuration gives me is the ability to fill multiple pouches during the filling stage of a machine cycle when the selected configuration and product allow it.

Step 1: Automatic pouch feeding

The process starts with finished empty pouches. The operator places them into the pouch magazine, and the automatic pouch feeder moves them into the machine.

Flexible pouches can be surprisingly difficult to handle. Two bags with the same dimensions may behave differently because of film thickness, surface friction, zipper structure, stiffness, or the way they were produced.

That is why I always prefer to test the actual pouch.

If the pouch feeder is not stable, everything after it becomes harder. The filling nozzles may not enter the pouch correctly, the product can miss the opening, and the sealing position may shift.

Step 2: Pouch opening

Once the pouch reaches the filling position, the machine opens the pouch mouth.

This sounds like a small step, but it is important. The pouch needs enough opening for the product to enter without touching the seal area unnecessarily.

For powder, dust control becomes important. For liquid and paste products, nozzle position and product cut-off matter. For granules, the shape and size of individual particles can affect how smoothly they enter the pouch.

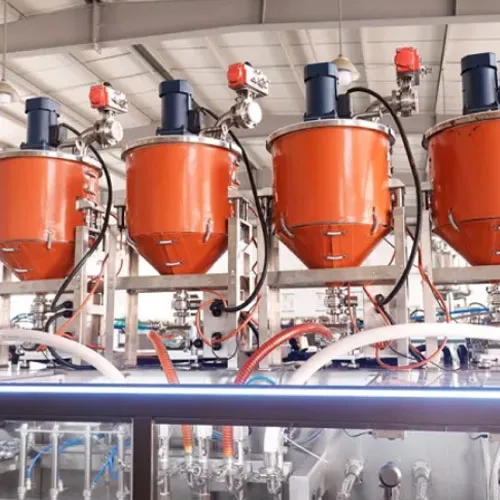

Step 3: Four-nozzle filling

Now the four filling nozzles perform their main job.

The exact dosing technology depends on what is being packed. I may use a weighing system for granules, an auger system for powder, or a pump-based system for liquid and paste products.

I never select the filler simply because a product belongs to a certain industry.

For example, “food powder” is not one single material. A protein powder, herbal powder, seasoning powder, and milk powder can have very different flow behavior. Likewise, a thin sauce and a thick cosmetic gel may both be called liquids, but their filling requirements can be very different.

My first questions are therefore practical:

• What is the product?

• What is the target filling weight?

• How does it flow?

• Is it dusty, sticky, oily, or foamy?

• Does it contain particles?

• What is the required production output?

• What pouch structure will be used?

Once I know these details, I can work backward to the filling system.

Step 4: Sealing

After filling, the pouch moves to the sealing station.

The sealing process uses controlled heat and pressure to close the pouch. I pay attention to temperature, pressure, dwell time, pouch material, and the cleanliness of the sealing area.

A perfect seal is not created by temperature alone.

If product gets onto the sealing surface, even a well-adjusted heater cannot solve the problem by itself. If the pouch material is not suitable for the selected sealing conditions, the result can also be poor.

This is why I treat pouch testing and sealing tests as part of machine configuration rather than as an afterthought.

3. Features I Think Matter on the Factory Floor

Four-nozzle filling for suitable higher-output applications

The 400QG is designed around a four-nozzle filling configuration. When the product, pouch, and dosing system are suitable, multiple pouches can be filled during the same production cycle.

This is particularly useful when the filling process would otherwise become the main bottleneck.

PLC touchscreen control

I use a PLC-based control system with a touchscreen interface so the operator can monitor and adjust the machine from one central point.

A good HMI should not feel like a puzzle. The operator needs access to the important production settings, alarms, machine status, and adjustment functions without having to search through complicated controls.

This becomes even more important when a factory has several operators or when new staff need to learn the equipment.

Servo-driven machine movements

Servo mechanisms help coordinate repeated machine movements with controlled positioning.

For a pouch machine, timing is important. The pouch must arrive at the correct station before the next action begins. The filling nozzles must move into the correct position. The sealing system must operate after filling. The finished pouch must then leave the machine without interfering with the next cycle.

That is why I consider coordinated motion more important than simply adding more mechanical functions.

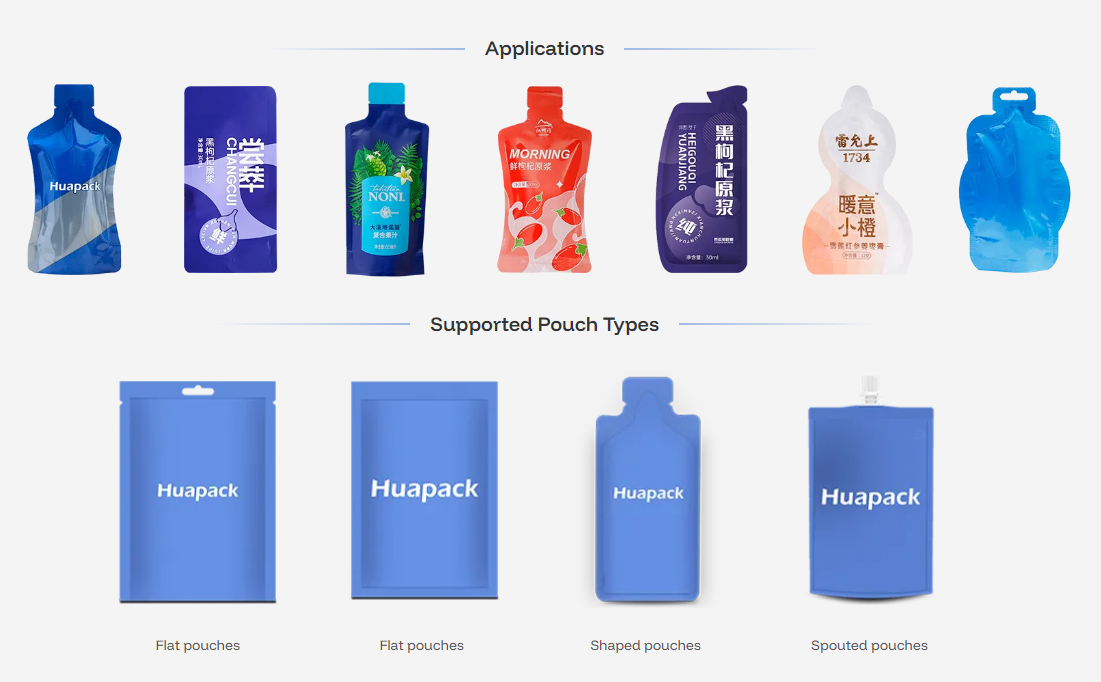

Flexible pouch formats

Depending on the actual configuration and pouch test, the machine can be adapted for different premade pouch structures, including:

• Stand-up pouches

• Zipper pouches

• Spout pouches

• Aluminum foil flat pouches

• Other suitable custom premade pouches

I use the word “suitable” intentionally. Pouch compatibility needs to be confirmed with the real bag.

Optional functions

Depending on the project, I can integrate functions such as:

• Vacuum

• Nitrogen flushing

• Date and batch coding

• Additional conveying

• Checkweighing

• Inspection equipment

• Downstream packaging equipment

Not every customer needs all of these functions. I prefer to include only what solves a real production requirement.

Source: The engineering comparison is based on the stated 400QG configuration and practical packaging-machine design principles. PMMI's industry research specifically identifies servo-driven systems, automated changeovers, versatile machines, and practical automation as important packaging machinery developments. :contentReference[oaicite:2]{index=2}

4. How I Match the 400QG to Different Products

The four-nozzle system is only useful when the product can be dosed in a controlled and repeatable way.

This is where I spend a lot of time with customers before final machine selection.

Source: Product examples and dosing approaches are practical application references, not guaranteed machine configurations. Final selection should be confirmed through product and pouch testing.

For food applications, I also separate packaging-machine capability from food-contact compliance.

The U.S. FDA explains that food-contact substances can include components of food packaging and processing equipment, and that their regulatory status depends on intended use. FDA also considers food type and conditions of use, such as hot filling, refrigerated storage, frozen storage, or room-temperature storage. :contentReference[oaicite:3]{index=3}

So if a customer is packaging food for the U.S. market, I do not simply say, “The machine is FDA approved.” That statement would be too broad. The actual pouch materials, food-contact components, intended use, and regulatory requirements need to be evaluated for the specific application.

5. Industries Where I Would Consider the 400QG

Food and snack packaging

The machine can be used for suitable food products such as nuts, seasonings, snack foods, seeds, sauces, and other products that work with premade pouches.

For retail products, the finished pouch itself can be an important part of the product presentation. A well-printed stand-up pouch or zipper bag can provide a clean shelf appearance while allowing the brand to use different package sizes for different SKUs.

Dairy and nutrition products

Powdered dairy products, nutritional powders, and selected health-food products can be packaged in suitable premade pouches.

For powder applications, I pay close attention to bulk density, dust, flowability, and whether the powder tends to bridge inside the hopper.

Pharmaceutical and health products

Suitable herbal granules, dietary powders, and medical nutrition products can be considered for premade pouch packaging.

However, pharmaceutical projects require more than simply selecting a filling machine. Hygiene, cleaning, materials, production environment, validation, and destination-market regulations all need to be discussed before the final configuration is confirmed.

Personal care and cosmetics

Liquid personal-care products, gels, creams, and other suitable materials can be packed into stand-up or spout pouches.

For thick products, the pump and nozzle become especially important. If the product keeps dripping after the fill cycle, the sealing area can become dirty and create a sealing problem.

Pet food

Pet treats, dry food products, powders, and selected semi-moist products can be packed into suitable premade pouches.

Product size matters here. A small dry granule behaves differently from a large irregular pet treat, so the feeding and dosing system should be selected accordingly.

Agricultural and hardware products

Seeds, selected agricultural products, screws, clips, fasteners, and other small components can also use premade pouch packaging.

For small hardware, counting may be more useful than weighing in some applications. Again, I start with the actual product.

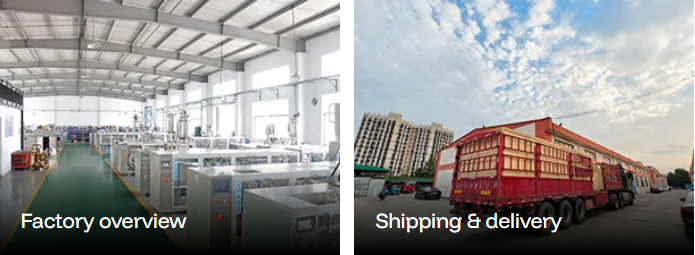

6. How I Approach Manufacturing and Testing

At Huapack, we combine R&D, manufacturing, sales, and technical service in one operation. I see this as an important advantage because the machine should not be designed by one team and understood by another only after delivery.

Our starting point is the customer's production requirement.

I look at the pouch size, pouch material, product characteristics, filling weight, target capacity, available factory space, required functions, and future production plans.

Then we build the machine configuration around those conditions.

During commissioning, I want to see the complete packaging cycle, not just an empty machine running quickly.

We check pouch feeding, opening, positioning, four-nozzle filling, sealing, discharge, control logic, and optional functions. If the product is available, I prefer to run it through the actual filling system.

This is particularly important for difficult products.

Suppose a powder fills well at the beginning but starts bridging after continuous operation. That is a real production issue. Suppose a sauce fills accurately but leaves a string at the nozzle. That can affect the seal. Suppose the pouch feeder works with one pouch material but slips with another. These are exactly the kinds of details that a factory trial can reveal.

PMMI's research also points to workforce and operator challenges in packaging plants. Its 2025 workforce research discusses machine-embedded HMIs, operator training, remote OEM support, and targeted automation as ways manufacturers are trying to reduce skills gaps. :contentReference[oaicite:4]{index=4}

That is why I care about controls and service as much as the mechanical structure. A machine should not only run; the people using it should be able to understand and maintain it.

7. Why I Recommend a Complete Line Approach When Needed

Not every customer needs a complete packaging line. Sometimes the right answer is simply the 400QG with a suitable feeding and discharge arrangement.

But larger projects may need much more.

Huapack can work on complete pouch packaging solutions covering automated weighing, pouch filling, sealing, conveying, coding, inspection, and downstream packaging.

For example, a complete project may include:

• Product feeding equipment

• Automatic weighing or dosing

• Premade pouch feeder

• Four-nozzle filling system

• Vacuum or nitrogen flushing

• Heat sealing

• Date and batch coding

• Checkweighing

• Metal detection or other inspection equipment where required

• Finished pouch conveying

• Cartoning or case packing

I do not automatically recommend every item. The line should reflect the customer's production process.

If a customer expects to add more SKUs next year, I want to know that before we design the machine. If a customer plans to add automatic cartoning later, I want to consider the discharge arrangement today.

That kind of planning can prevent an expensive redesign later.

PMMI's packaging machinery research shows that buyers are increasingly focused on practical efficiency, versatile equipment, automation, and machines that fit existing production environments. :contentReference[oaicite:5]{index=5}

For me, that is a good way to look at equipment investment: build for today's production, but leave a sensible path for tomorrow.

8. FAQ About the Premade Pouch Packaging Machine, 4-Nozzle Filling-400QG

What is the Premade Pouch Packaging Machine, 4-Nozzle Filling-400QG?

It is an automatic premade pouch filling and sealing machine designed to handle finished pouches and automate pouch feeding, opening, product filling, sealing, and finished pouch discharge. The 400QG uses a four-nozzle filling configuration.

Why use four filling nozzles?

Four nozzles allow multiple pouches to be filled during the filling stage when the product and machine configuration are suitable. This can improve filling productivity compared with a single-nozzle arrangement, but actual output must be confirmed through product testing and complete machine-cycle analysis.

Can the 400QG use stand-up pouches?

Yes, suitable stand-up pouches can be considered. The actual pouch dimensions, material, stiffness, opening structure, and other details should be tested before final confirmation.

Can it handle zipper pouches?

Yes, suitable zipper pouches can be used. The zipper position and pouch stiffness can affect feeding and opening, so I recommend testing the actual finished pouch.

Can it pack spout pouches?

Suitable spout pouches can be considered, depending on the machine configuration and pouch design. Spout position, pouch dimensions, and filling method need to be checked during the engineering stage.

Can the machine fill powder?

Yes. A suitable powder dosing system can be integrated. The correct system depends on powder density, flowability, particle size, dust level, filling weight, and required output.

Can the machine fill liquid and paste?

Yes. Suitable liquid and paste products can be filled using an appropriate pump and nozzle configuration. Viscosity, foaming, temperature, particles, and nozzle cut-off behavior should be evaluated.

Can I add nitrogen flushing?

Yes. Nitrogen flushing can be configured for applications where controlled gas replacement is required. The actual process should be tested with the product and pouch because gas flow, headspace, sealing, and storage conditions all affect the final package.

Can vacuum packaging be added?

Yes. A vacuum function can be integrated for suitable products and pouch structures. The required vacuum level and process should be determined through testing rather than selected only from a general specification.

Can I change between different SKUs?

Yes. The 400QG is designed for flexible premade pouch production. Changeover requirements depend on the pouch sizes, product types, filling weights, and machine configuration involved.

What should I provide when asking for a quotation?

I recommend sending the product name, product sample information, target filling weight, desired output, pouch type, pouch dimensions, pouch material, and required functions.

If possible, send us actual empty pouches and product samples. This gives us a much better basis for checking pouch feeding, opening, filling, sealing, and the appropriate four-nozzle configuration.

Can Huapack design a complete packaging line?

Yes. We provide both standalone premade pouch machines and complete pouch packaging solutions. Depending on the project, we can integrate weighing, filling, sealing, coding, conveying, inspection, and downstream packaging equipment.

Build the 400QG Around Your Real Production

I see the Premade Pouch Packaging Machine, 4-Nozzle Filling-400QG as more than a machine with four filling nozzles. Its real value comes from how the pouch handling, filling system, control system, sealing process, and downstream equipment work together.

For manufacturers moving from manual pouch filling to automation, it can reduce repetitive pouch handling. For established factories, the four-nozzle configuration can provide a practical route to higher filling productivity when the product and process are suitable. For brands with several pouch formats and SKUs, the premade pouch approach can also provide useful production flexibility.

But I do not want to promise a production number before understanding your product. A machine that performs well with free-flowing granules may need a completely different filling solution for fine powder or thick paste.

That is why I start every project with the actual product and pouch.

Send me your product, filling weight, pouch size, target output, pouch material, and required functions. If you can also provide empty pouches and product samples, we can evaluate the complete process and develop the 400QG configuration around your production conditions.

Whether you need a 4-nozzle premade pouch packaging machine, automatic premade pouch filling machine, premade pouch filling and sealing machine, or a complete automatic pouch packaging line, Huapack can work with you from pouch handling to final sealing and line integration.
