When I choose a Premade Pouch Packaging Machine, I do not simply look at the machine speed. I first look at the pouch itself, the product being filled, the required filling volume, the sealing method, and the production target. These details have a direct effect on packaging stability, filling accuracy, and daily operating cost.

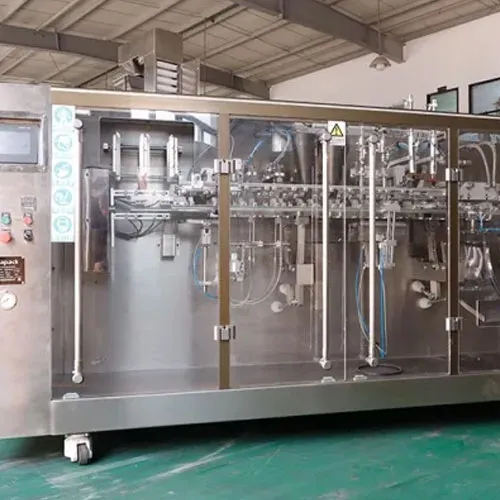

That is why I developed the Servo Driven Premade Pouch Packaging Machine, 2-Nozzle Filling-330DG around a practical production idea: use an automated system to pick up finished pouches, open them, fill the product, seal them, code them when needed, and discharge the finished packages with as little manual handling as possible.

Unlike a rollstock machine, this equipment works with premade pouches. The pouch has already been made before it enters the machine. My job is to make the feeding, opening, filling, sealing, and discharge process stable and repeatable.

The 330DG uses a servo-driven control system and a two-nozzle filling configuration. It can be configured for suitable granular, powder, liquid, and paste products. Depending on the product and pouch format, the filling system can be matched to the required dosing method.

At Shanghai Huacheng Packing Machinery Company (Huapack), I have focused on pouch packaging machinery since 2015. We are based in Songjiang District, Shanghai, and integrate research and development, manufacturing, sales, and technical service under one operation.

Our solutions cover food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, pet food, and other compatible applications. I can supply the 330DG as a standalone machine or integrate it into a larger automated packaging line.

1. What Is the Servo Driven Premade Pouch Packaging Machine?

A premade pouch packaging machine is designed to handle pouches that have already been formed. These pouches can include stand-up pouches, flat pouches, zipper pouches, spouted pouches, and other formats when the machine configuration supports them.

This gives the customer an important advantage: the pouch appearance is largely decided before the filling process. Printed graphics, pouch shape, zipper position, opening style, and other package details can be controlled during pouch manufacturing.

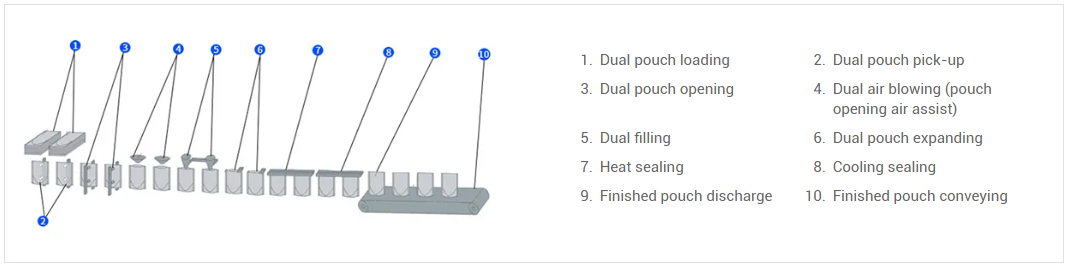

With the 330DG, I automate the main steps that happen after the premade pouch reaches the packaging machine.

1. Pouch loading: Premade pouches are placed into the pouch magazine.

2. Pouch picking: The machine picks individual pouches automatically.

3. Pouch opening: The pouch is opened and prepared for filling.

4. Filling: Two filling nozzles deliver the product according to the selected filling system.

5. Sealing: The pouch opening is sealed after filling.

6. Coding: A coding system can add date, batch, barcode, or other information.

7. Discharge: Finished pouches are transferred to the next production stage.

The key point is that the machine does not need to form the pouch from film. Instead, it concentrates on accurate pouch handling and product filling.

Source: Huapack product and application information supplied for this product page. The table compares packaging process concepts; actual machine capabilities depend on the final configuration.

For manufacturers that already purchase high-quality printed pouches, the premade pouch system can be a very practical choice.

2. How I Run the 330DG Premade Pouch Filling Process

The packaging process starts with the pouch magazine. Operators load a stack of premade pouches into the machine, and the automatic pouch handling system feeds individual bags into the production cycle.

The first important job is accurate pouch picking. If two pouches are picked together, the next station cannot work correctly. Sensors and mechanical handling systems therefore play an important role in keeping the pouch flow stable.

After picking, the pouch is transferred to the opening station. The machine needs to open the pouch enough for the filling nozzles to enter without damaging the pouch material.

Once the pouch is ready, the two-nozzle filling system delivers the product. The actual dosing technology depends on the material.

For granular products, I may use a weighing system. For powders, a screw or other suitable dosing method may be selected. For liquids, a pump-based filling system may be appropriate. Thick pastes may require a different pump or piston-type filling solution.

After filling, the pouch moves to the sealing station. This step sounds simple, but it is one of the most important parts of the whole process.

The product should stay inside the pouch and away from the sealing area. The sealing temperature, pressure, and time need to match the pouch film. If the conditions are not correct, the seal may be weak, wrinkled, contaminated, or damaged.

Finally, the finished pouch is discharged. From there, it can move to inspection, secondary packaging, cartoning, or case packing equipment.

Source: Huapack product process description supplied for the 330DG. Specific sensors, filling devices, and optional stations depend on the final customer configuration.

3. Why I Use Servo Control on the 330DG

Servo control is one of the main reasons I use this design for automated premade pouch packaging.

In simple terms, a servo system allows the control system to manage motor position and speed with feedback. This makes repeated machine movements easier to synchronize.

For a premade pouch machine, accurate movement matters in several places.

The pouch must arrive at the filling position correctly. The filling nozzles need to enter the pouch without hitting the film. The pouch must stay stable while it is being filled. After filling, it needs to move into the sealing station at the right time.

If these actions are not synchronized, production can become unstable.

The servo-driven design allows important parameters to be adjusted digitally. Depending on the configuration, operators can adjust machine speed, pouch positioning, filling parameters, and other settings through the control interface.

This is particularly useful for manufacturers that handle different pouch sizes or several products.

Source: Huapack technical product information supplied for the 330DG. Servo-control benefits described here refer to intended machine operation; actual performance depends on the complete mechanical and electrical configuration.

I do not claim that servo control alone solves every packaging problem. The pouch material, filling product, mechanical design, sensors, sealing system, and operator settings all affect the final result.

What servo control gives me is better control over the machine movements. That becomes especially valuable when the packaging process needs to repeat the same motion thousands of times.

4. What Products Can I Package With the 330DG?

The 330DG can be configured for different products, but I always select the filling system according to the material instead of trying to use one filling method for everything.

Granular Products

Nuts, grains, seeds, snacks, pet food, coffee beans, and other free-flowing granular products can be suitable for premade pouch packaging. A weighing system can be selected according to the required filling weight and product behavior.

Powder Products

Seasonings, powdered food ingredients, detergent powders, nutrition powders, organic fertilizer, and other compatible powders can be packaged with a suitable powder filling system.

Powders need special attention because they do not all behave in the same way. Some powders flow easily, while others stick together or create dust. Density and particle size can also change filling behavior.

Liquid Products

Juice, sauces, liquid nutrition products, cleaning liquids, and personal care liquids can be filled into compatible premade pouches with the correct filling system.

Thin liquids and thick liquids require different filling approaches. Product viscosity, foaming, temperature, and filling volume all need to be considered.

Paste Products

Products such as thick sauces, creams, and pastes may require a pump or piston-based filling system. Before confirming the configuration, I recommend testing the actual product because sticky materials can behave very differently from water-like liquids.

Source: Huapack application information supplied for its pouch packaging solutions. Actual product suitability and filling accuracy should be verified through product testing.

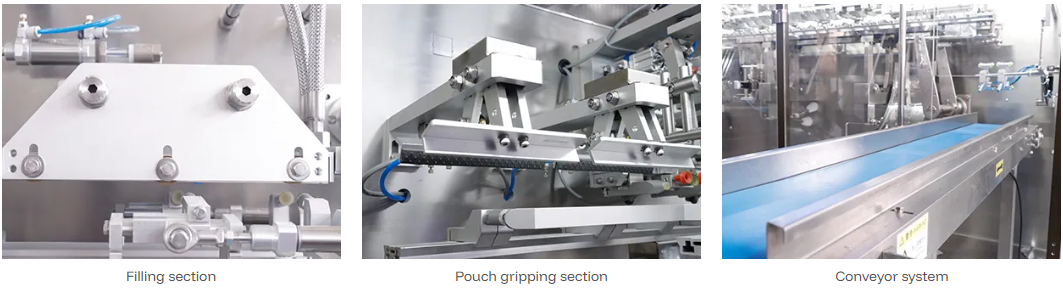

5. Main Features I Focus On in Daily Production

Automatic premade pouch handling: The machine automatically picks and transfers individual pouches, reducing repetitive manual handling.

Two-nozzle filling: Two filling nozzles provide an efficient filling configuration for suitable products and production requirements.

Full servo drive: Key machine movements are controlled through servo motors and the control system, helping the different stations stay synchronized.

Digital parameter adjustment: Important machine settings can be adjusted through the HMI, making format changes easier to manage.

Multiple pouch formats: The machine can be configured for applicable flat pouches, stand-up pouches, zipper pouches, and other premade pouch designs.

Stable sealing: The sealing system is designed to produce a clean and secure closure when the correct pouch material and process parameters are used.

Optional coding: Date, batch number, barcode, QR code, and other production information can be added through a suitable coding system.

Easy line integration: The machine can be connected to weighing, feeding, conveying, inspection, cartoning, and other packaging equipment.

Lower manual involvement: Automated pouch handling and filling can reduce repetitive labor and help improve the cleanliness and organization of the packaging area.

6. How I Select the Right Premade Pouch Configuration

I always start with the pouch.

That may sound obvious, but premade pouches come in many different forms. A flat pouch behaves differently from a stand-up pouch. A zipper pouch has a different opening structure. A gusseted pouch may need additional support during handling.

I therefore need to know the pouch width, height, thickness, material structure, opening size, zipper position if applicable, and filling volume.

Then I look at the product.

Is it powder, granule, liquid, or paste? Does it contain particles? Is it dusty? Does it foam? Is it sticky? Does it need special product-contact materials?

Finally, I look at the production target.

If the customer has a small production requirement, the machine may be configured differently from a factory running several shifts per day. The number of filling stations, feeding equipment, inspection devices, conveyors, and secondary packaging machines can all affect the final line.

At Huapack, I can design the 330DG premade pouch packaging machine around these factors.

During manufacturing, I pay attention to the pouch feeding mechanism, servo system, filling components, sensors, sealing unit, control cabinet, HMI, safety devices, and machine frame.

I also consider maintenance. Operators need to clean the machine, check moving components, change products, and replace wear parts. A design that is easy to inspect and operate can save time over the long term.

For customers who need a complete system, the 330DG can become one part of a turnkey packaging line. Upstream equipment can prepare and feed the product, while downstream equipment can inspect, convey, carton, or case-pack the finished pouches.

7. Why I Choose Huapack for Premade Pouch Packaging

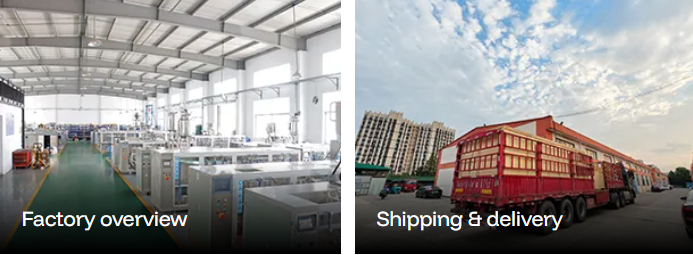

Shanghai Huacheng Packing Machinery Company was established in 2015. From the beginning, our focus has been pouch packaging machinery.

We integrate R&D, manufacturing, sales, and technical service under one operation. For me, this is important because packaging projects do not end when a machine leaves the factory.

A successful project starts with the right technical discussion. Then comes machine design, manufacturing, testing, installation, commissioning, operator training, and after-sales service.

Our experience covers automated weighing, pouch filling, sealing, and complete line integration. This allows me to think beyond one machine when the customer needs a larger solution.

I also understand that every product behaves differently.

A nut may need a multihead weighing system. A powder may need screw dosing. A liquid may need a pump. A thick paste may require another type of filling method.

So I do not recommend equipment only from a product name. I want to know how the actual product behaves.

The same applies to pouches. I want to see the actual pouch or at least detailed specifications before finalizing the machine. This helps me check pouch stiffness, opening behavior, dimensions, film structure, and sealing requirements.

For customers looking for an Automatic Premade Pouch Packaging Machine, my goal is to provide a system that is practical for everyday production rather than simply filling a specification sheet.

8. Frequently Asked Questions

What is a premade pouch packaging machine?

A premade pouch packaging machine uses pouches that have already been manufactured. The machine automatically picks, opens, fills, seals, and discharges the pouches. It does not form the pouch from roll film during the filling process.

What is the advantage of premade pouches?

Premade pouches give manufacturers greater freedom in pouch design. They can be produced with custom graphics, zippers, special shapes, gussets, spouts, and other features before they reach the filling machine.

What products can the 330DG package?

The machine can be configured for suitable granules, powders, liquids, pastes, and other materials. Typical applications include food, snacks, nuts, pet food, nutrition products, personal care products, agricultural materials, and compatible industrial products.

What does the two-nozzle filling system do?

The two-nozzle configuration provides two filling points in the machine cycle. It can improve filling efficiency for suitable products. Actual output depends on filling volume, product characteristics, dosing method, pouch size, and machine settings.

Can I use zipper pouches?

Yes, the machine can be configured for applicable premade zipper pouch formats. The exact pouch dimensions, zipper structure, opening size, and material should be confirmed before final machine configuration.

Can I use stand-up pouches?

Yes. Applicable premade stand-up pouches can be handled when their dimensions and structure match the selected machine configuration.

Can the machine fill liquid products?

Yes, with an appropriate liquid filling system. Product viscosity, foaming, filling volume, temperature, and material compatibility should be checked before selecting the final filling equipment.

Can the 330DG handle powder products?

Yes. A suitable powder filling system can be integrated. Powder flowability, density, particle size, and dust behavior should be considered during machine selection.

Can I change pouch sizes?

Yes, within the applicable machine range. Some changes can be made through digital parameters, while other pouch formats may require mechanical adjustments or change parts.

Can I add a date coding system?

Yes. A suitable coding system can be integrated to print production dates, batch numbers, barcodes, QR codes, and other required information.

Can Huapack provide a complete packaging line?

Yes. Huapack can provide solutions that include automated weighing, product feeding, pouch filling, sealing, conveying, inspection, and secondary packaging. The final system is designed according to the product, pouch format, production capacity, and factory layout.

Build Your Premade Pouch Packaging Solution With Huapack

The Servo Driven Premade Pouch Packaging Machine, 2-Nozzle Filling-330DG is designed for manufacturers that want to automate the filling and sealing of finished premade pouches.

With servo-driven machine movement, automatic pouch handling, two-nozzle filling, digital parameter adjustment, sealing, coding options, and line integration capabilities, the 330DG provides a flexible platform for modern pouch packaging operations.

I always recommend choosing the machine based on the actual product and pouch rather than simply selecting a machine by its model number. Filling volume, product flow, pouch dimensions, pouch material, sealing requirements, and production capacity all matter.

If you are searching for a servo driven premade pouch packaging machine, automatic premade pouch filling machine, premade pouch filling and sealing machine, Servo Premade Pouch Packing Machine, 2-nozzle premade pouch filling machine, or automatic premade bag packaging equipment, send me your product details, pouch samples or specifications, filling weight or volume, and target capacity.

I can help you evaluate the 330DG configuration, select the appropriate filling method, and develop a packaging solution around your real production conditions.

Huapack — focused on pouch packaging machinery, from individual machines to complete automated packaging lines.

Product Information Source

Product-specific descriptions and comparative information in this page are based on the Huapack company and product information supplied for this content. Final technical specifications, production speed, pouch dimensions, filling capacity, utility requirements, and optional configurations should be confirmed with Huapack according to the customer's product, pouch material, and production requirements.
