# Premade Pouch Packaging Machine, 1-Nozzle Filling-330NG

When a customer asks me for a pouch packaging machine, I usually start with one simple question: What product are you packing, what pouch are you using, and what output do you need? I ask this because a packaging machine is not really about the machine alone. The pouch material, product behavior, filling method, sealing temperature, bag size, and production speed all affect the final result.

Our Premade Pouch Packaging Machine, 1-Nozzle Filling-330NG is designed for companies that already use finished, printed pouches and want to automate the whole packing process. Instead of making a pouch from roll film, the machine takes a ready-made pouch, opens it, fills it, seals it, and sends the finished package to the next stage.

That makes it a practical choice for food, dairy, nutrition products, pharmaceuticals, personal care, agrochemicals, pet food, and many other products. It can handle different pouch styles, including stand-up pouches, zipper pouches, spout pouches, and aluminum foil flat pouches. Depending on the product and packaging requirement, we can also integrate functions such as vacuum, nitrogen flushing, and coding.

I designed this model around a common production need: stable automatic pouch packaging without making the production line unnecessarily complicated. For manufacturers with multiple SKUs, different pouch sizes, or changing products, flexibility is often just as important as speed.

1. What the 330NG Premade Pouch Packaging Machine Actually Does

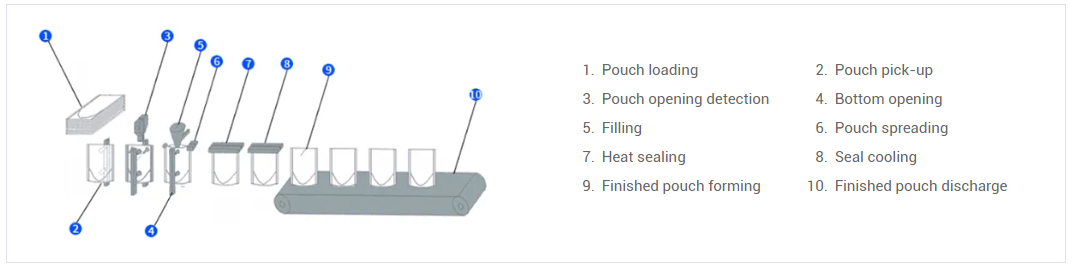

The working idea is straightforward. The operator loads a stack of finished pouches into the bag magazine. The machine then handles the pouches step by step through a series of automatic stations.

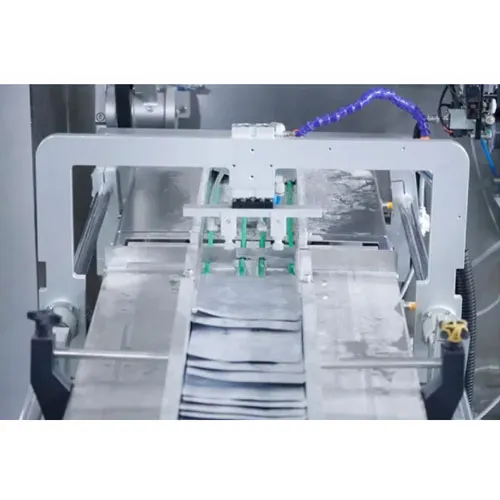

1. Bag picking: The machine takes one premade pouch from the magazine.

2. Bag transfer: The pouch is moved into the working position.

3. Bag opening: The opening mechanism separates the front and back layers.

4. Filling: The selected filling system sends the product into the pouch through one filling nozzle.

5. Optional gas treatment: Vacuum or nitrogen flushing can be added when the product requires it.

6. Heat sealing: The pouch mouth is sealed under controlled pressure and temperature.

7. Coding: Date, batch number, or other production information can be printed when required.

8. Finished pouch discharge: The sealed package leaves the machine for inspection, cartoning, or other downstream processes.

This is the main difference between a premade pouch packing machine and a vertical form-fill-seal machine. A form-fill-seal system starts with roll film and creates the bag during production. Our 330NG starts with a finished pouch that has already been printed and formed.

For brands that care about printed graphics, this can be a major advantage. The pouch artwork is already finished before it reaches the machine, so there is no film forming process that changes the printed layout. The result is a cleaner-looking retail package and a simpler changeover when switching between printed pouch designs.

Source: Packaging machinery categories and industry applications are summarized from PMMI's 2024 State of the Industry research and packaging machinery taxonomy. :contentReference[oaicite:0]{index=0}

2. Why I Use a 1-Nozzle Filling Design

One filling nozzle may sound simple, but for many applications, simple is exactly what the production line needs.

The 1-nozzle filling system gives us a direct path from the product dosing system into the pouch. It is suitable for many granular, powder, liquid, paste, and small-piece products, provided the filling system is selected according to the actual material.

I do not recommend choosing a filler based only on the package weight. The physical behavior of the product matters much more. A free-flowing powder behaves differently from a sticky paste. Granules behave differently from a liquid. A product with irregular particles can also require a different dosing method.

For this reason, when we design a complete pouch packaging solution, we look at factors such as:

• Product density and flowability

• Particle size and shape

• Moisture and stickiness

• Target filling weight or volume

• Required production capacity

• Pouch dimensions

• Pouch material and sealable layer

• Whether dust control is required

• Whether oxygen reduction is important

• Whether the product needs special handling

This approach helps prevent a common mistake: buying a machine that looks suitable in a catalog but performs poorly when the actual product reaches the filling station.

For example, nuts may require a weighing system, powder may need an auger filler, liquid may need a pump-based system, and thick sauce may require a different pump and nozzle arrangement. The pouch machine provides the automatic bag-handling and sealing platform, while the filling unit is matched to the material.

3. Main Features I Focus on During Machine Design

Our 330NG uses a PLC control system with a touchscreen interface. Instead of relying on complicated manual adjustments, the operator can monitor and set the main operating parameters from the control panel.

The machine also uses multiple servo-driven mechanisms. Servo control gives us better control over movement, timing, and positioning. This is particularly useful when the machine has to coordinate bag picking, transfer, opening, filling, and sealing in a continuous cycle.

Flexible pouch compatibility

The machine can be configured for several common premade pouch styles, including:

• Stand-up pouches

• Zipper pouches

• Spout pouches

• Flat aluminum foil pouches

• Other customized premade pouch structures subject to testing

This flexibility is important for brands that do not want to use one packaging format for every product. A snack product may use a zipper stand-up pouch, while a liquid product may require a spout pouch. The packaging equipment should be able to support the business strategy rather than limit it.

Optional vacuum and nitrogen flushing

Some products are sensitive to oxygen. In these cases, we can add vacuum or nitrogen flushing according to the packaging process.

These functions should not be treated as a universal solution for shelf life. The correct gas system depends on the product, pouch material, headspace, sealing quality, and storage conditions. We therefore recommend testing the complete packaging process rather than assuming that nitrogen flushing alone will solve an oxygen-related problem.

Easy SKU changes

Many modern factories do not produce one product all day, every day. They may produce several flavors, weights, pouch sizes, or brands on the same line.

That is why I pay attention to changeover. The machine structure and control system are designed to support convenient specification changes. The exact changeover procedure depends on the pouch dimensions, filling system, and configuration, but the goal is always the same: reduce unnecessary adjustment work and get the next SKU running quickly.

4. Technical Advantages: Where the Machine Creates Value

When I talk about machine performance with customers, I do not focus only on a speed number. Real production performance includes stable bag handling, filling accuracy, sealing quality, changeover time, maintenance, and how well the machine works with the rest of the line.

Source: The categories above reflect practical packaging-machine engineering considerations and the investment priorities identified by PMMI, including automation, flexibility, maintenance, integration and quality. :contentReference[oaicite:1]{index=1}

One detail I always stress is sealing. A pouch can be filled accurately and still fail as a finished package if the seal is poor.

Seal quality depends on more than temperature. The pouch film structure, sealing layer, pressure, contact time, product contamination around the seal area, and machine condition all matter. That is why we do not treat the sealing temperature shown on a pouch-film datasheet as a universal machine setting. Actual parameters should be confirmed through testing.

For food and other regulated applications, the pouch itself also needs to be suitable for the intended product. In the United States, FDA explains that the regulatory status of a food-contact material depends on the substances used in that material and their intended conditions of use. :contentReference[oaicite:2]{index=2}

In other words, the machine and the packaging material are two different parts of the compliance picture. We can help customers evaluate the machine configuration, but the final responsibility for selecting compliant packaging materials remains with the product manufacturer and its material suppliers.

5. Which Industries Can Use the 330NG?

I built this type of Automatic Premade Pouch Packaging Machine around a wide range of products because pouch packaging is no longer limited to snacks.

Food and snacks

Typical applications include nuts, seeds, chips, seasoning, dried food, candy, instant food ingredients, sauces, and other packaged foods. Zipper pouches can be especially useful for products where consumers open and close the package more than once.

Dairy and nutrition products

Powders and nutrition products often require accurate dosing and careful sealing. The filling equipment can be matched to the powder characteristics, while the pouch system handles the bag opening, filling, sealing and discharge process.

Pharmaceutical and health products

Applications can include selected herbal granules, nutritional powders, and other products suitable for pouch packaging. For pharmaceutical applications, the final machine configuration should be determined by the product, cleanability requirements, production environment and applicable regulations.

Personal care and cosmetics

Liquid, gel, cream and paste products can be packed into suitable premade pouches. Spout pouches are useful when controlled pouring or dispensing is part of the product design.

Pet food

Pet treats, dry products, powders and selected semi-moist products can use pouch packaging. The exact filling method depends on particle size, product density and whether the product is free-flowing.

Agrochemicals and seeds

Seeds, powders and selected agricultural products can also be packed using suitable pouch structures. For chemical products, the pouch material and machine components must be selected according to the chemical properties and safety requirements.

Small hardware products

Small screws, fittings, accessories and other lightweight parts can be packed in premade pouches when the product and pouch dimensions are suitable. In these cases, the filling system may need to be designed around piece counting, weighing, or controlled feeding.

Source: Application categories are based on the end-user sectors identified in PMMI packaging machinery research, including food, pharmaceuticals, personal care, agriculture and other industrial segments. :contentReference[oaicite:3]{index=3}

6. How We Manufacture and Configure the Machine

As a pouch packaging machinery manufacturer, I do not believe that manufacturing should stop at assembling mechanical parts. The more important question is whether every part works together as a system.

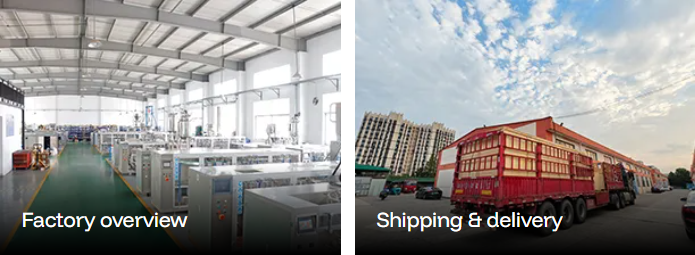

Our operation in Songjiang District, Shanghai combines research and development, manufacturing, sales, and technical service. Since establishing the company in 2015, we have focused specifically on pouch packaging machinery and related automation solutions.

During a project, we first look at the customer's actual production conditions. We need to understand the pouch, product, target weight, required capacity, packaging environment and downstream process. From there, we select the appropriate filling method and machine configuration.

The manufacturing process includes mechanical component preparation, frame and station assembly, electrical installation, PLC and servo programming, machine adjustment, filling and sealing tests, and final commissioning.

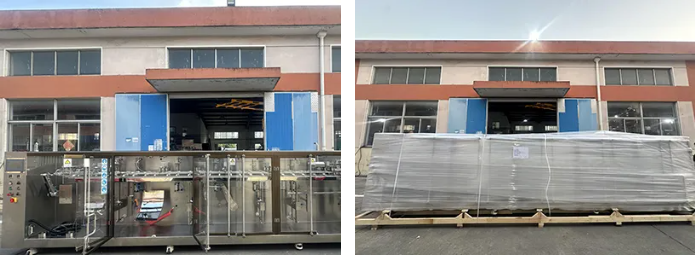

Before shipment, I prefer to test the machine with the customer's actual pouch and product whenever possible. This is important because packaging machines do not operate in an ideal catalog environment. Real products have dust, moisture, different particle sizes, different flow rates and different pouch tolerances.

For example, a pouch that looks identical on paper may open differently because of differences in film stiffness or friction. A powder may fill differently when its moisture changes. A liquid may behave differently after temperature changes. These details become obvious during testing.

Our goal is therefore not simply to make the machine run once. We want the machine to produce a stable package under the customer's actual conditions.

7. Why I Recommend Huapack for Premade Pouch Packaging

There are many companies selling pouch packing machines. I believe the real difference is what happens before and after the machine order.

We focus only on pouch packaging machinery, so our work is centered on premade pouch handling, filling, sealing, and complete pouch packaging lines. This allows us to work from the packaging process rather than treating the machine as a standalone product.

Our customers may need a simple automatic pouch filling and sealing machine. Others may need weighing, feeding, coding, nitrogen flushing, vacuum packaging, inspection, conveying, cartoning, or a complete turnkey packaging line.

We can build the solution around that requirement.

I also believe communication is part of engineering. If the product is difficult to fill, the pouch is unusual, or the production target is ambitious, it is better to identify the problem before manufacturing than after installation.

For this reason, our technical discussions normally cover four basic questions:

1. What exactly is the product?

2. What pouch format and dimensions will be used?

3. What filling weight and production capacity are required?

4. What processes are needed before and after pouch sealing?

Once these points are clear, we can decide whether the 330NG is suitable as a standalone machine or whether it should be integrated into a larger system.

This approach also matches a wider trend in packaging machinery. PMMI's recent research highlights flexibility, automation, maintenance, digital tools, quality, and supplier support as important areas for packaging operations. :contentReference[oaicite:4]{index=4}

8. FAQ About the Premade Pouch Packaging Machine 1-Nozzle Filling-330NG

What is a premade pouch packaging machine?

A premade pouch packaging machine automatically handles finished pouches. It picks up the pouch, opens it, fills the product, seals the opening, and discharges the finished package. Unlike roll-film machines, it does not form the pouch from film during the packaging process.

What pouch types can the 330NG handle?

The machine can be configured for common pouch styles such as stand-up pouches, zipper pouches, spout pouches, and aluminum foil flat pouches. The exact compatible size and structure should be confirmed through sample testing before ordering.

What products can be packed?

The system can be used for many granular, powder, liquid, paste and small-piece products. The filling system must be selected according to the product's physical properties. One nozzle does not mean one universal filling method.

Can the machine pack liquid products?

Yes. Liquid and paste applications can be supported when the appropriate pump, valve and nozzle system is selected. Viscosity, particle content, foaming behavior and filling volume should be considered before final configuration.

Can I add nitrogen flushing or vacuum packaging?

Yes. Vacuum and nitrogen flushing can be integrated according to the product and pouch requirements. We recommend testing the actual pouch and product because gas treatment performance depends on the entire packaging system.

Can the machine handle different SKUs?

Yes. The machine is designed for flexible pouch production and convenient format changes. The exact changeover process depends on pouch dimensions, filling equipment and machine configuration.

Does the machine include a filling system?

The 330NG is a pouch packaging platform with a 1-nozzle filling configuration. The exact dosing equipment should be selected according to whether you are packing powder, granules, liquid, paste, or another product.

Can Huapack design a complete packaging line?

Yes. We provide more than standalone pouch machines. We can develop complete packaging solutions covering feeding, weighing or dosing, pouch handling, filling, sealing, coding, conveying and downstream integration according to the production requirement.

What information should I send before requesting a quotation?

I recommend sending your product name, product sample or photos, filling weight, pouch dimensions, pouch material, pouch type, target capacity, required functions, and any existing upstream or downstream equipment. If possible, send several empty pouches and product samples for testing.

Build the Pouch Packaging Process Around Your Product

The Premade Pouch Packaging Machine, 1-Nozzle Filling-330NG is not intended to be a one-size-fits-all machine. Its value comes from how well the pouch handling, filling, sealing, control system and optional functions match the actual production process.

If you already use printed premade pouches and want to move from manual or semi-automatic packing to a more stable automatic process, this machine is a practical starting point. It supports multiple pouch formats, different product types, flexible SKU production, and optional functions such as vacuum, nitrogen flushing and coding.

At Huapack, we can also go one step further. If you are planning a complete pouch packaging line, we can work with you from product testing and pouch evaluation through filling-system selection, machine configuration, line integration, commissioning and technical support.

Send us your product details, pouch size, filling weight and target capacity. I can then help you determine whether the 330NG configuration is suitable for your application and what additional equipment may be needed for a complete automatic premade pouch packaging line.
