1. My Approach to Shaped Pouch Packaging

When I look at a pouch packaging project, I do not start by asking how many bags a machine can pack in one minute. I first ask a few basic questions: What product are you filling? What pouch are you using? What is the filling weight or volume? How many bags do you need to produce each day? And how often do you need to change products?

These questions matter because flexible packaging is not a one-size-fits-all job. A powder behaves differently from a liquid. A stand-up pouch needs different handling from a flat pouch. A zipper pouch has different requirements from a simple three-side-seal bag.

Our Rollstock Shaped Pouch Packaging Machine, 1-Nozzle Filling-180SY/180NY/240NY is designed around this practical idea. It provides an automated way to handle shaped or premade pouches, fill them with the required product, seal them, and send the finished packs to the next stage.

In our supplied product configuration, the machine can automatically complete pouch loading, pouch opening, product filling, sealing, and finished pouch discharge. Instead of asking operators to repeatedly open bags, hold them in place, fill them, and seal them by hand, I use the machine to organize these repetitive steps into one controlled process.

The machine can work with different pouch formats, including applicable stand-up pouches, zipper pouches, flat-bottom pouches, spouted pouches, and other shaped flexible bags. The exact pouch range depends on the final machine configuration and pouch dimensions.

The 180SY, 180NY, and 240NY models belong to the same product family. I select the suitable configuration according to pouch dimensions, product characteristics, filling requirements, and production needs rather than choosing a model based only on its name.

At Shanghai Huacheng Packing Machinery Company, also known as Huapack, we have focused on pouch packaging machinery since 2015. Based in Songjiang District, Shanghai, we combine research and development, manufacturing, sales, and technical service under one operation.

For me, that combination is important because a packaging machine should work in a real factory, not just look good in a brochure. The machine needs to be easy to operate, practical to maintain, stable during production, and suitable for the product and pouch being used.

2. How the 180SY/180NY/240NY Packaging Process Works

The working process is fairly straightforward. The operator or upstream system supplies the finished pouches, and the machine takes care of the repetitive packaging operations.

1. Pouch loading: Finished pouches are placed into the pouch magazine or feeding area.

2. Pouch picking: The machine separates and picks individual pouches.

3. Pouch transfer: The pouch moves to the correct working position.

4. Pouch opening: The pouch mouth is opened before filling.

5. Product filling: One filling nozzle delivers the product into the pouch.

6. Pouch sealing: The filled pouch moves into the sealing station.

7. Finished pouch discharge: The sealed pouch is transferred to the conveyor or next production process.

This sequence sounds simple, but each step needs to be synchronized. If a pouch is not picked correctly, the following station has nothing to work with. If the pouch is not opened properly, the filling nozzle cannot enter correctly. If product gets onto the sealing area, the final seal can be affected.

That is why I treat pouch handling, filling, and sealing as one complete system rather than three separate functions.

Source: Huapack product information supplied for the 180SY/180NY/240NY product family. The actual mechanical configuration can vary according to pouch type, product, and customer requirements.

Because I work with flexible pouches, I also pay close attention to pouch material. A soft pouch can behave very differently from a rigid container. The machine needs to grip, open, move, and position the bag without causing unnecessary deformation.

3. One-Nozzle Filling: Simple When the Application Fits

The 180SY/180NY/240NY uses a one-nozzle filling configuration. I consider this a practical choice when one filling point can meet the required production target.

The filling mechanism itself should be selected according to the material. There is no universal filling system that is perfect for every product.

For free-flowing granular products, a weighing or volumetric dosing system may be appropriate. Powder products may require screw dosing or another controlled powder filling method. Thin liquids may work well with a pump-based system, while thicker sauces and pastes may require a piston or suitable positive-displacement filling system.

In other words, I design the filling part around the product rather than forcing every product into the same filling method.

Source: Huapack application information supplied for pouch packaging systems. The final filling technology should be confirmed through product testing and engineering evaluation.

I strongly recommend product testing before the final machine configuration is confirmed. This is especially important for products that are sticky, dusty, foamy, oily, or difficult to flow.

For example, two seasoning powders may look almost identical but behave differently during dosing. One may flow easily while another may stick to the screw or form a bridge inside the hopper.

The same applies to liquids. A water-like product and a thick sauce are both liquids, but they need very different filling control.

4. What Makes a Shaped Pouch Machine Different?

Shaped pouches are attractive because they can give a product a more distinctive appearance. They can stand on a shelf, include a zipper, use special contours, or incorporate other features that are difficult to achieve with a simple flat bag.

But the attractive shape also creates a handling challenge.

When I handle a shaped pouch, I need to think about its width, height, bottom structure, opening position, zipper, gusset, material stiffness, and overall shape. A machine that handles one pouch perfectly may need adjustments when the pouch dimensions change.

That is why the Rollstock Shaped Pouch Packaging Machine should be configured around the actual pouch samples or drawings.

The machine can be designed to work with applicable premade pouch formats. The pouch is already produced before it reaches the packaging machine, so the operator does not need to install a film-forming system simply to create the bag during filling.

This is particularly useful for companies that purchase printed pouches from flexible packaging suppliers.

Source: Huapack supplied product information. Pouch compatibility must be verified against actual pouch samples, dimensions, materials, and machine configuration before production.

5. Main Features I Build Into the Packaging Solution

Automatic Pouch Handling

The machine handles the repeated work of picking and positioning pouches. This reduces the amount of manual contact with the package and product.

Flexible Filling Options

I can match the filling mechanism to different materials, including powders, granules, liquids, and sauces. The goal is not simply to make the product enter the pouch, but to achieve stable and repeatable filling.

Reliable Sealing

The sealing system closes the filled pouch after the product has been dispensed. Clean sealing surfaces and correct temperature, pressure, and dwell-time settings are important for a good seal.

Compact Machine Structure

A compact layout helps reduce unnecessary floor space and makes the equipment easier to arrange in a production workshop.

Easy Product Changeover

Many manufacturers today run more than one product. I therefore pay attention to parameter adjustment and practical changeover procedures. The exact changeover time depends on the pouch design, filling system, product, and machine configuration.

Reduced Manual Contact

Automated pouch feeding and filling can reduce repetitive operator contact with the product. This can help improve production cleanliness, especially in food and other hygiene-sensitive applications.

Production Line Integration

The machine can be connected to upstream feeding or weighing equipment and downstream conveying, inspection, cartoning, or other packaging equipment when required.

These features are useful, but I always remind customers that machine performance depends on the complete production system. A pouch machine cannot compensate for an unsuitable pouch, unstable product feeding, or an incorrectly selected filling system.

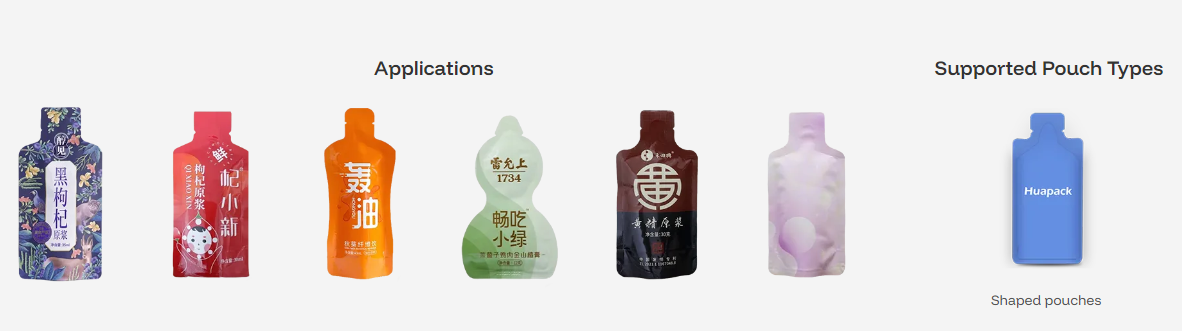

6. Where I Recommend the 180SY/180NY/240NY

The application range is broad because the machine can be paired with different filling systems and pouch formats.

Food Packaging

Food producers can use suitable configurations for snacks, seasoning products, grains, prepared foods, and other compatible products. Stand-up and zipper pouches can also provide a convenient retail format.

Condiments and Sauces

Sauces and other viscous products can be filled into suitable flexible pouches when the filling system is correctly matched to viscosity and product behavior.

Personal Care and Household Products

Suitable detergents, cleaning products, liquid personal care products, and other compatible materials can be packed into flexible pouches. Product-contact materials should be selected according to the formulation.

Pharmaceutical and Health Applications

Compatible powders and liquid products can be considered for pharmaceutical and health-related packaging. For regulated products, the complete packaging process must also meet the applicable production and hygiene requirements.

Agricultural Products

Seeds, feed, organic fertilizer, and other agricultural materials can be packaged using an appropriate dosing system.

Chemical and Industrial Materials

Selected chemical raw materials, additives, plastic particles, powders, and other compatible industrial products can also be considered. For dusty or corrosive materials, I pay extra attention to sealing, dust control, product-contact materials, and cleaning requirements.

Source: Huapack product and application information supplied for this product page. Application suitability depends on the actual product formulation, pouch material, filling range, hygiene requirements, and final machine configuration.

7. How I Select Between 180SY, 180NY, and 240NY

I do not recommend selecting a model simply because one number is larger than another. The correct model depends on the pouch and production requirement.

For a proper evaluation, I normally need the pouch width, pouch height, pouch opening dimensions, pouch material, pouch structure, filling weight or volume, product type, and target output.

If the customer has a physical pouch sample, that is even better. A sample allows us to look at the actual bag rather than relying only on a drawing.

Source: Huapack product information supplied for the 180SY/180NY/240NY model family. Specific machine dimensions, pouch ranges, speeds, filling ranges, and utilities should be confirmed in the final technical specification.

This approach prevents a common mistake in packaging equipment purchasing: buying a machine based on a general specification and only later discovering that the actual pouch does not run as expected.

I would rather spend more time checking the pouch before the order than spend more time solving compatibility problems after installation.

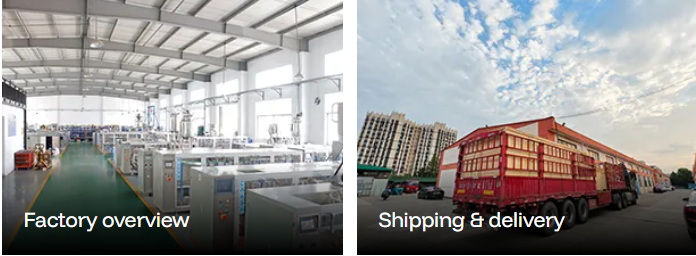

8. Manufacturing, Testing, and Why I Choose Huapack

A packaging machine is only as good as its weakest working part. That is why I look at the complete machine instead of focusing on one headline feature.

At Huapack, our work covers research and development, machine manufacturing, sales, and technical service. Our dedicated focus is pouch packaging machinery, including pouch filling, weighing, sealing, and complete packaging line integration.

During machine development and assembly, I pay attention to the machine frame, pouch feeding mechanism, opening system, filling equipment, sealing unit, electrical controls, sensors, safety components, and product-contact areas.

Mechanical parts need to move smoothly. Sensors need to provide reliable feedback. The filling system needs to match the product. The sealing station needs to suit the pouch material.

Just as important, the operator needs to understand the machine.

A good industrial machine should not require an engineer standing beside it every minute. Operators should be able to understand the basic controls, make normal parameter adjustments, perform routine cleaning, and identify common problems.

Before delivery, I recommend testing the machine with the actual pouch and product whenever possible. This allows us to check pouch feeding, pouch opening, filling behavior, sealing performance, and finished pouch quality under realistic conditions.

For customers with larger production requirements, we can also consider complete line integration. The pouch packaging machine may be connected with automatic weighing, product feeding, conveyors, checkweighing, metal detection, coding, cartoning, or other equipment.

This is where our experience with pouch packaging becomes useful. Instead of looking at one machine in isolation, I can look at the entire packaging flow.

Our goal is simple: build a packaging system that fits the customer's product, pouch, capacity, and working environment.

9. Frequently Asked Questions

What is a rollstock shaped pouch packaging machine?

The product name refers to a shaped pouch packaging solution within the 180SY/180NY/240NY product family. The supplied configuration is designed around automated handling, filling, sealing, and discharge of compatible shaped or premade pouches. The exact pouch input method should be confirmed with Huapack based on the final configuration.

Does the machine make pouches from film?

The supplied product description focuses on using finished packaging bags rather than producing the pouch on the machine. The customer provides pre-made pouches, and the machine performs pouch loading, opening, filling, sealing, and discharge.

What pouch formats can it handle?

Applicable stand-up pouches, zipper pouches, flat-bottom pouches, spouted pouches, and other shaped flexible pouches can be considered. Actual compatibility depends on pouch dimensions, construction, opening design, and machine configuration.

What products can the machine fill?

It can be configured for compatible powders, granules, liquids, sauces, and other materials. The filling mechanism must be selected according to product characteristics.

Is the machine suitable for food packaging?

Yes. Food applications such as snacks, seasonings, grains, and prepared food products can be considered. The actual configuration should be selected according to product characteristics and applicable hygiene requirements.

Can I use it for liquid products?

Yes, when the machine is equipped with a suitable liquid filling system. Viscosity, foaming, filling volume, temperature, and product-contact materials should be considered.

Can it fill powder?

Yes. A suitable powder dosing system can be integrated. Powder density, flowability, particle size, dust level, and filling range should be evaluated before finalizing the machine.

Can the machine fill sauces?

Yes, suitable sauces and pastes can be considered. Thick or sticky products may require a suitable piston or pump-based filling system.

What does 1-nozzle filling mean?

It means the machine uses one product filling nozzle. This configuration is suitable when one filling station can meet the customer's required production capacity and filling process.

Can the machine be connected to a complete packaging line?

Yes. Huapack can integrate pouch filling and sealing with upstream feeding or weighing systems and downstream conveying, inspection, cartoning, or other packaging equipment according to project requirements.

How do I choose between 180SY, 180NY, and 240NY?

I recommend providing the pouch dimensions, pouch sample or drawing, product type, filling weight or volume, and required output. We can then evaluate the suitable model and configuration.

Can Huapack test my product before ordering?

Product and pouch testing is strongly recommended, especially for powders, sticky products, thick liquids, unusual pouch shapes, or demanding filling requirements. Testing helps confirm the filling method and pouch handling performance before final production.

Choose a Shaped Pouch Packaging Machine Based on Your Real Production Needs

The Rollstock Shaped Pouch Packaging Machine, 1-Nozzle Filling-180SY/180NY/240NY is designed for manufacturers that want to automate the handling, filling, sealing, and discharge of flexible shaped pouches.

For me, its biggest value is flexibility. The same basic packaging concept can be adapted to different product types and pouch formats by selecting the right feeding and filling configuration.

It can be considered for food, snacks, seasonings, grains, household products, personal care products, pharmaceuticals, agricultural materials, feed, chemical products, plastic particles, and other compatible applications.

More importantly, I do not recommend buying the machine based only on a model name or a claimed production speed. The best packaging solution starts with the actual pouch and product.

If you are looking for a shaped pouch packaging machine, automatic premade pouch filling machine, 1-nozzle pouch filling and sealing machine, automatic Shaped Pouch Filling Machine, stand-up pouch packaging machine, zipper pouch filling machine, or flexible pouch packaging equipment, send us your pouch sample or drawing together with your product information and target capacity.

I can then help evaluate the 180SY, 180NY, and 240NY options and develop a configuration that fits your actual production process.

Huapack focuses on pouch packaging machinery—from individual pouch machines to complete automated packaging lines.

Product information source: Huapack company and product information supplied for this page. Technical specifications not explicitly provided above, including exact output, pouch dimensions, filling range, machine dimensions, power consumption, and utility requirements, should be confirmed in the final technical specification before purchase.
