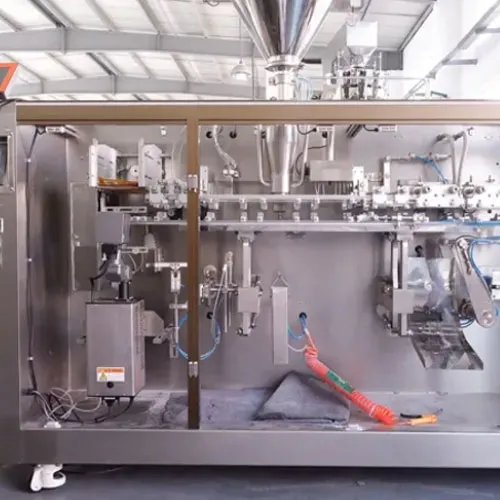

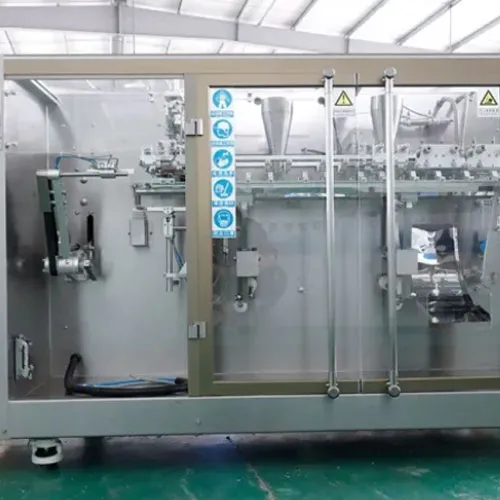

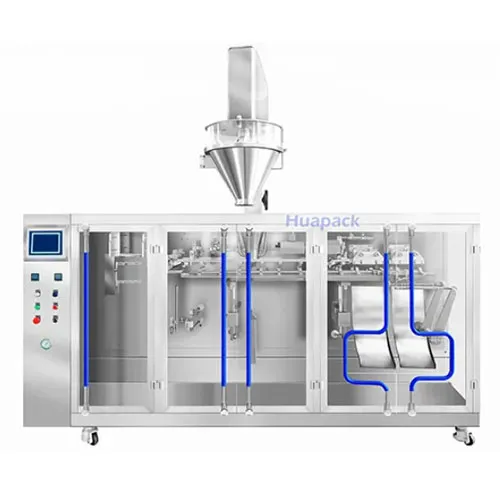

Premade Pouch Packaging Machine, 1-Nozzle Filling-180NG

When I help a customer choose a premade pouch packaging machine, I do not start by asking how impressive the machine looks. I start with a much simpler question: What are you actually putting into the pouch?

That answer affects almost everything. The product decides the filling method. The pouch decides how the feeding and opening stations should work. The target output decides how the complete line should be arranged. If these three things are matched properly, the machine becomes much easier to run in daily production.

Our Premade Pouch Packaging Machine, 1-Nozzle Filling-180NG is designed around this practical idea. Instead of using roll film and making a pouch during the packaging process, I use a finished premade pouch. The machine automatically takes the pouch, opens it, fills the product through a single nozzle, seals it, and sends the finished package to the next stage.

This makes the 180NG a useful option for manufacturers looking for an automatic premade pouch packing machine, 1-nozzle pouch filling machine, or automatic pouch filling and sealing machine for flexible packaging production.

At Shanghai Huacheng Packing Machinery Company, also known as Huapack, we have focused on pouch packaging machinery since 2015. Our operation is based in Songjiang District, Shanghai, and combines R&D, manufacturing, sales, and technical service. We work with food, dairy, nutrition, pharmaceutical, personal care, agricultural, pet food, and other product manufacturers.

1. Why I Use the 180NG for Premade Pouch Packaging

The main difference between a premade pouch machine and a roll-film packaging machine is easy to understand.

With roll film, the packaging machine receives a continuous film roll and forms the pouch during production. With our premade pouch packaging machine, the pouch is already made and printed before it reaches the machine.

I find this especially useful for brands that care about finished pouch appearance, printed graphics, zipper structures, spouts, or several different pouch designs.

The 180NG is built around a simple production sequence:

1. I load the finished empty pouches into the pouch magazine.

2. The automatic pouch feeder picks and transfers the pouch.

3. The machine opens the pouch.

4. The product is filled through the 1-nozzle filling system.

5. Vacuum or nitrogen flushing can be added when required.

6. The pouch mouth is heat-sealed.

7. A coding system can be integrated when production information is required.

8. The finished pouch is discharged for inspection or the next packaging stage.

There is nothing complicated about the basic idea. The difficult part is making every step happen in the right position and at the right time.

A flexible pouch can move differently from a rigid container. Two pouches with the same dimensions may behave differently if their film thickness, surface friction, zipper structure, or stiffness is different. This is why I prefer to evaluate the actual pouch rather than rely only on dimensions written on a specification sheet.

Source: PMMI, State of the Industry 2025. PMMI's industry research covers packaging machinery investment, automation, flexible machinery, workforce issues, and packaging-line requirements. :contentReference[oaicite:0]{index=0}

For a company that already buys printed finished pouches, this approach can make a lot of sense. The pouch artwork is completed before production, so I can concentrate the machine's work on pouch handling, filling, sealing, and product presentation.

2. How the 1-Nozzle 180NG Works on the Production Floor

I prefer to explain a packaging machine by following the product through the actual production process. It is easier to understand, and it also makes potential problems easier to find.

Automatic pouch feeding

The process starts with a stack of empty premade pouches. The operator places the pouches into the feeding magazine, and the automatic pouch feeder takes them into the machine one by one.

This removes a repetitive manual operation. Instead of having someone pick up every pouch, position it, and wait for the next filling cycle, the machine handles this repeated movement automatically.

But automatic pouch feeding is not simply a matter of moving bags forward. Flexible pouches can stick together, bend, slide, or change position depending on their material and surface.

For example, a thin laminated pouch may behave differently from a thicker aluminum foil pouch. A zipper pouch can also behave differently around the zipper area. A spout pouch has another shape and weight distribution.

That is why I like to test the real pouch whenever possible.

Pouch opening

After the pouch is picked and positioned, the machine opens the pouch mouth.

This step creates the space needed for filling. It also helps keep the product away from the sealing area.

For a clean package, I want the pouch to remain stable while the product enters. If the pouch opening is poor, filling can become messy, especially with powders, liquids, sticky products, or products that contain small particles.

One-nozzle product filling

The 180NG uses a single-nozzle filling configuration. The exact dosing equipment is selected according to the product.

I do not believe that one filling method is suitable for every material.

Free-flowing granules may work well with a weighing or volumetric dosing system. Fine powder may need an auger filler. Liquid products may need a pump. Thick sauces, creams, and gels can require a different pump and nozzle arrangement.

So when a customer tells me, “We need 100 grams per pouch,” I ask another question: “What exactly are those 100 grams?”

Product density, particle size, viscosity, moisture, temperature, flowability, and stickiness can all affect the filling process.

Vacuum and nitrogen options

Some products need the air inside the pouch to be reduced or replaced. For these applications, we can configure the machine with vacuum or nitrogen flushing.

I do not describe nitrogen flushing as a universal solution for shelf life. The final result depends on the product, pouch material, headspace, gas process, sealing quality, and storage conditions.

The correct approach is to test the complete package.

Heat sealing

After filling, the pouch moves to the sealing station. The pouch mouth is closed using controlled heat and pressure.

In real production, sealing temperature is only one part of the equation. I also look at the sealant layer of the pouch, pressure, dwell time, film thickness, pouch alignment, and whether any product has reached the sealing area.

A good sealing process should be repeatable, not just successful on one test pouch.

Finished pouch discharge

Once the pouch is sealed, it leaves the machine and can move to a conveyor, date coder, inspection system, Checkweigher, cartoner, or other downstream equipment.

This gives the automatic premade pouch filling machine a clear job: take a finished empty pouch and turn it into a filled, sealed package without requiring an operator to complete each individual bag by hand.

3. The Features I Consider Most Important in Daily Production

When I look at a machine for actual factory use, I care less about how many functions can be listed on a brochure and more about whether the functions are useful every day.

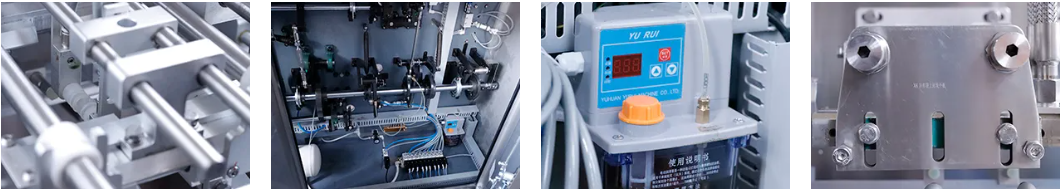

PLC touchscreen control

The 180NG uses a PLC control system and touchscreen interface. The operator can monitor machine operation and adjust relevant production parameters through the HMI.

I like this arrangement because the main information is kept in one place. An operator should be able to understand the normal machine status without having to become a controls engineer.

Servo-driven movement

Multiple servo mechanisms are used to coordinate machine movements. Accurate movement matters when the pouch must be picked, transferred, opened, filled, and sealed in a fixed sequence.

Servo control also gives us more flexibility when setting the machine for different pouch formats.

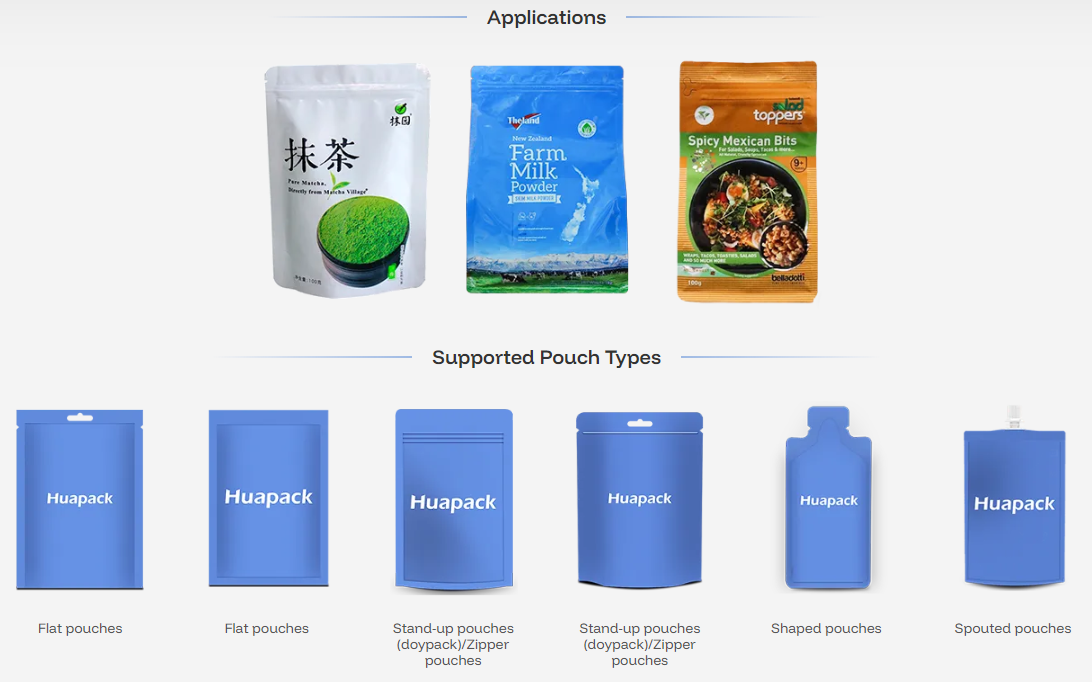

Flexible pouch formats

Depending on the final configuration and pouch test, the 180NG can be used with common premade pouch styles such as:

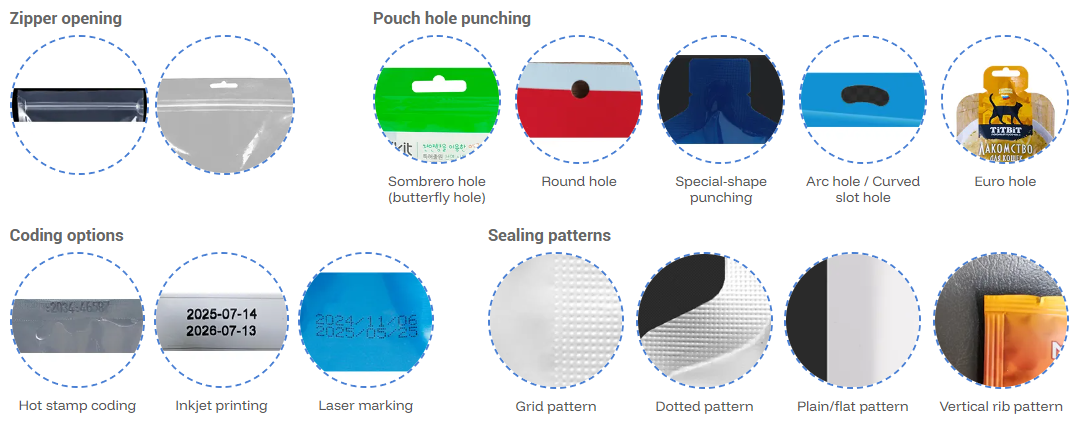

• Stand-up pouches

• Zipper pouches

• Spout pouches

• Aluminum foil flat pouches

• Other suitable customized premade pouches

I intentionally use the word “suitable.” Pouch compatibility is not determined only by width and height.

Film stiffness, thickness, surface friction, zipper position, spout location, opening design, pouch tolerances, and material structure can all influence feeding and sealing.

Multi-SKU production

Many customers do not run one product all day anymore. They may produce several flavors, several filling weights, or several pouch designs on the same line.

For this type of production, flexible changeover matters. I want the operator to be able to move from one suitable pouch specification to another without turning every product change into a long engineering project.

Source: The comparison points above reflect practical packaging-machine engineering considerations. PMMI's 2025 industry report highlights automated changeovers, servo-driven systems, versatile packaging formats, workforce challenges, and practical efficiency improvements as important industry topics. :contentReference[oaicite:1]{index=1}

PMMI reported that the U.S. packaging machinery market reached $11.3 billion in sales in 2024, with a forecast growth rate of 2.2% for 2025. Its report also identifies automated changeovers, servo-driven systems, and versatile machines as areas of ongoing innovation. :contentReference[oaicite:2]{index=2}

For me, that reinforces a simple point: packaging equipment needs to be flexible enough to deal with real production changes, not just perform well under one fixed demonstration condition.

4. How I Match the Filling System to Different Products

The 180NG is a pouch handling and packaging platform, but the filling system is where the product itself becomes important.

I would not recommend the same dosing technology for a bag of nuts and a bag of thick cream. They may both be filled into the same pouch format, but their behavior inside the hopper and nozzle can be completely different.

Source: Application examples are based on common industrial pouch-filling practices. The final filling technology should be confirmed through product testing because products in the same category can behave very differently.

Before I finalize a filling configuration, I normally want to know the target filling weight, product density, particle size, viscosity, temperature, moisture, flowability, and required output.

If the product is difficult, I would rather run a test than make a guess.

This is especially important for powder and paste. Fine powder can create dust or bridge inside the hopper. Thick paste can drip from the nozzle or pull a string after filling. A sauce can foam. Nuts and other pieces can have different individual weights.

These are not problems that can be solved simply by increasing machine speed.

5. Where I See the 180NG Being Used

The 180NG premade pouch packing machine can be configured for a wide range of applications because finished pouches are available in many shapes, sizes, materials, and closure styles.

Food and snacks

Food manufacturers can use premade pouches for nuts, seasonings, sauces, snacks, dried foods, seeds, and similar products.

A zipper pouch can be useful for products that consumers open and close more than once. A stand-up pouch can provide shelf presence, while an aluminum foil flat pouch can be useful when a compact format and barrier structure are required.

For food projects, I also make an important distinction between the packaging machine and the packaging material. FDA explains that food-contact substances are regulated according to their intended use, and food-contact conditions can include different temperatures, food types, storage conditions, and processing conditions. :contentReference[oaicite:3]{index=3}

So I do not simply call a machine “FDA compliant” because it is used to package food. The actual pouch material, machine-contact components, product, and intended market need to be evaluated for the specific application.

Dairy and health nutrition

Nutrition powders, selected dairy products, and health-food ingredients can be packed into suitable premade pouches.

Powder characteristics are particularly important here. A powder that flows freely may require a different setup from a powder that is dusty or difficult to discharge.

Medical nutrition and pharmaceuticals

Selected herbal granules, dietary powders, medical nutrition products, and other suitable products can use pouch packaging.

For pharmaceutical applications, I recommend discussing hygiene, cleanability, contact materials, production environment, validation, and applicable regulations before finalizing the equipment. A general packaging machine should not automatically be treated as suitable for every pharmaceutical application.

Personal care and cosmetics

Liquid cleansers, shampoo, conditioner, gels, creams, and similar products can be packed into suitable stand-up or spout pouches.

For these products, pump selection and nozzle cut-off are often more important than simply choosing a higher packaging speed.

Pet food

Pet treats, dry products, powders, and selected semi-moist products can use stand-up or zipper pouches.

The filling method depends on the product size and behavior. Large pieces and small granules may require different feeding arrangements.

Seeds and agricultural products

Seeds and selected agricultural products can be packed in flat or stand-up pouches. For agrochemical products, I recommend checking chemical compatibility between the product, pouch material, and machine-contact components before production.

Small hardware parts

Screws, clips, fittings, fasteners, and other small components can also be packed in premade pouches. Depending on the application, the filling process can use counting or weighing.

6. How I Build and Test the 180NG at Huapack

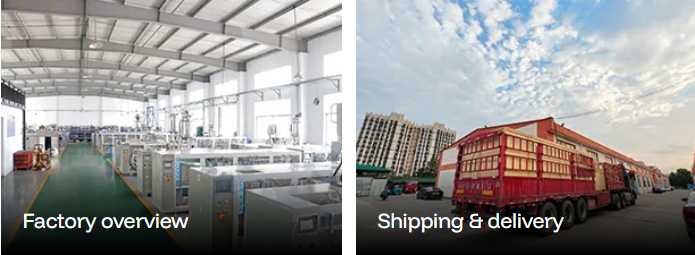

We established Shanghai Huacheng Packing Machinery Company in 2015, and our operation is based in Songjiang District, Shanghai. Our work covers R&D, manufacturing, sales, and technical service, with a clear focus on pouch packaging machinery.

For me, manufacturing quality is not simply about assembling a machine correctly. I want to know whether the complete system can perform the packaging cycle in the correct order.

Our engineering process starts with the customer's actual requirements. I look at the product, pouch, target weight, capacity, pouch format, required functions, and factory layout.

Then we select the appropriate filling method and machine configuration.

During assembly and commissioning, we check the mechanical system, electrical system, PLC controls, servo movements, pouch feeding, pouch opening, filling, sealing, and discharge.

I pay special attention to how one station affects the next.

For example, a filling problem may actually begin with pouch positioning. A sealing problem may actually begin with product reaching the seal area. A pouch-feeding problem may actually come from the pouch material rather than the feeder itself.

This is why I prefer complete process testing instead of checking each station separately.

When the customer can provide actual empty pouches and product samples, I can make the testing much more meaningful. This is especially useful for unusual products, special pouch structures, or difficult filling materials.

For food packaging, I also keep regulatory responsibility clear. FDA notes that the regulatory status of a food-contact material depends on the substances that make up the material and their intended use. :contentReference[oaicite:4]{index=4}

In other words, the machine supplier, pouch supplier, product manufacturer, and final application all have different responsibilities. I prefer to make this clear rather than make a broad compliance claim that does not fit every project.

7. Why I Work with Customers on the Complete Packaging Line

Sometimes a customer only needs a pouch filling machine. In other projects, the pouch machine is one part of a much larger system.

A complete line may include product feeding, weighing, filling, pouch handling, nitrogen flushing, coding, inspection, checkweighing, conveying, cartoning, case packing, and other downstream equipment.

Huapack can work on both standalone equipment and complete pouch packaging lines.

I also like to discuss future production before the machine is built. If a customer expects to add more SKUs, another pouch size, an inspection system, or automatic cartoning later, it is better to know that during the original design.

PMMI's recent industry research shows why this matters. Its 2025 report highlights automation, workforce constraints, flexible packaging machinery, automated changeovers, and aftermarket support as important concerns for packaging machinery users. :contentReference[oaicite:5]{index=5}

For me, the lesson is simple: automation should solve a real production problem.

I do not want to add a function just because it sounds advanced. I want the function to make the line easier to operate, more stable, more flexible, or easier to expand.

That is how I approach the 180NG.

8. FAQ About the Premade Pouch Packaging Machine, 1-Nozzle Filling-180NG

What is a premade pouch packaging machine?

A premade pouch packaging machine uses finished pouches instead of roll film. It automatically feeds the pouch, opens it, fills the product, seals the pouch, and discharges the finished package.

What is the role of the automatic pouch feeder?

The automatic pouch feeder stores empty finished pouches and transfers them into the packaging cycle one by one. It reduces repetitive manual pouch placement and supports continuous production.

What does 1-nozzle filling mean?

It means the product enters each pouch through one filling nozzle. The dosing system connected to the nozzle can be selected according to the product type and filling requirements.

What pouch types can the 180NG use?

Depending on the machine configuration and actual pouch test, the 180NG can be used with stand-up pouches, zipper pouches, spout pouches, aluminum foil flat pouches, and other suitable premade pouch formats.

Can the machine pack powder?

Yes. A suitable powder dosing system can be integrated. Powder density, particle size, flowability, dust, and filling weight should be evaluated before selecting the final filler.

Can it fill liquid and paste products?

Yes. Suitable liquid and paste products can be filled with an appropriate pump and nozzle system. Viscosity, foaming, temperature, particle content, and filling volume can affect the final configuration.

Can I add nitrogen flushing?

Yes. Nitrogen flushing can be integrated when required. The actual gas process should be tested with the product and pouch because headspace, gas flow, sealing, and storage conditions all influence the result.

Can I add vacuum packaging?

Yes. A vacuum function can be configured for suitable products and pouch structures. The required vacuum process should be determined through testing.

Can I add a date coder?

Yes. Coding equipment can be integrated to print production dates, expiry dates, batch numbers, QR codes, or other required information, depending on the selected coder.

Is the 180NG suitable for multiple SKUs?

Yes. The machine is intended for flexible premade pouch production. Different pouch sizes, products, and filling weights may require different adjustments, so I recommend testing the full SKU range before finalizing the configuration.

Can Huapack provide a complete pouch packaging line?

Yes. We can provide standalone pouch packaging machinery or complete systems covering feeding, weighing, filling, pouch handling, sealing, coding, conveying, inspection, and downstream packaging.

What information should I send before requesting a quotation?

I recommend sending the product name, product characteristics, target filling weight, required output, pouch type, pouch dimensions, pouch material, and required functions.

If possible, I also recommend sending actual product samples and empty pouches. This lets us evaluate the pouch feeding, opening, filling, sealing, and overall machine configuration much more accurately.

Build the 180NG Around the Product You Actually Pack

The Premade Pouch Packaging Machine, 1-Nozzle Filling-180NG is built around a straightforward production goal: take a finished empty pouch and automate the repetitive work needed to turn it into a filled and sealed product.

Automatic pouch feeding, pouch opening, one-nozzle filling, PLC touchscreen control, servo-driven movement, heat sealing, optional vacuum or nitrogen flushing, coding, and flexible pouch handling make it a practical platform for many premade pouch applications.

But I do not believe that one standard machine setting can work perfectly for every product. The best result comes from matching the pouch handling, filling technology, sealing parameters, and line design to the real production conditions.

That is why I prefer to start with your product rather than with a machine catalog.

Send me your product details, pouch dimensions, filling weight, target capacity, and required functions. If you can provide empty pouch and product samples as well, we can evaluate the actual feeding, opening, filling, sealing, and integration requirements.

Whether you need an automatic premade pouch packing machine, 1-nozzle pouch filling machine, automatic pouch filling and sealing machine, or a complete premade pouch packaging line, Huapack can develop the configuration around your actual production requirements.
