When I select a Premade Pouch Packaging Machine, I do not start with speed alone. I first look at the product, pouch size, filling volume, pouch material, sealing requirements, and expected production output. These details tell me whether a machine will be practical for everyday production, not just good on paper.

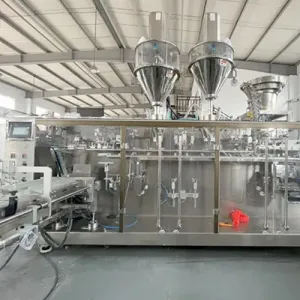

Our Servo Driven Premade Pouch Packaging Machine, 1-Nozzle Filling-240NG/280NG is designed for manufacturers that use finished premade pouches and want to automate pouch loading, opening, filling, sealing, coding, and finished pouch discharge.

The main difference between this machine and a rollstock pouch machine is simple: I do not form the pouch from a roll of film during the packaging process. Instead, the machine handles pouches that have already been made. This makes it a useful choice for manufacturers that want printed pouches, zipper pouches, stand-up pouches, flat pouches, and other compatible designs.

The 240NG/280NG uses a servo-driven control system and a single-nozzle filling configuration. This design is especially suitable for applications where a single filling point is enough for the required product and production target.

Depending on the material, I can configure a suitable filling method for granules, powders, liquids, pastes, and other compatible products. The final filling system is selected according to product flow, density, viscosity, filling volume, and other real production conditions.

At Shanghai Huacheng Packing Machinery Company (Huapack), we have focused on pouch packaging machinery since 2015. We are based in Songjiang District, Shanghai, and integrate research and development, manufacturing, sales, and technical service under one operation.

Our pouch packaging solutions cover food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, pet food, and compatible industrial applications. I can provide the 240NG/280NG as an individual machine or integrate it into a complete automated packaging line.

1. What Is the 240NG/280NG Premade Pouch Packaging Machine?

The Servo Driven Premade Pouch Packaging Machine is an automated system for filling and sealing finished flexible pouches.

The pouch is produced before it enters the packaging machine. It may already have its printed artwork, zipper, gusset, special shape, or other package features.

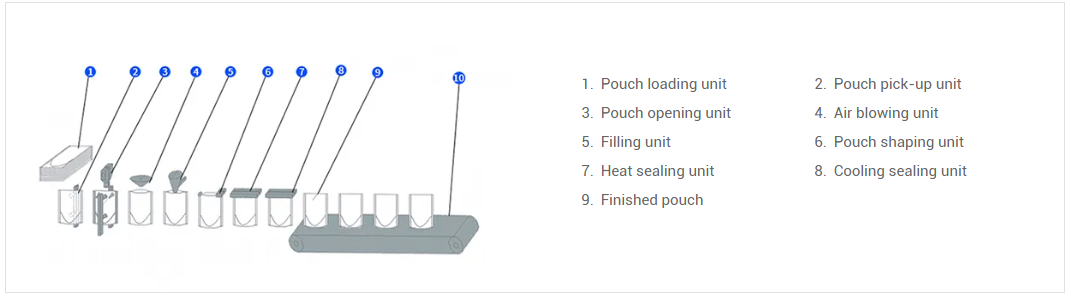

Once the pouches are loaded into the machine magazine, the automated system handles the main packaging steps:

1. Pouch loading: Premade pouches are placed into the pouch magazine.

2. Pouch picking: The machine separates and picks individual pouches.

3. Pouch transfer: The pouch is moved into the correct filling position.

4. Pouch opening: The pouch mouth is opened for filling.

5. Product filling: The single filling nozzle delivers the selected product.

6. Sealing: The pouch is sealed after filling.

7. Coding: Optional coding equipment can print dates, batch numbers, barcodes, or QR codes.

8. Discharge: The finished pouch is transferred to the next production stage.

Because the machine works with premade pouches, I can focus the equipment design on reliable pouch handling and filling rather than pouch forming.

Source: Huapack product and application information supplied for this product page. The table compares general packaging concepts; actual machine functions depend on the final configuration.

For manufacturers that already have a reliable premade pouch supplier, this type of machine can be a straightforward way to move from manual pouch filling to automated production.

2. How the Single-Nozzle Filling System Works

The 240NG/280NG uses one filling nozzle. At first glance, that may look simpler than a two-nozzle or four-nozzle machine, and in one sense it is.

But I do not see a single nozzle as a weakness. It can be a practical choice when the required filling volume, product type, pouch size, and target production capacity fit a single filling station.

The filling system is selected according to the product.

For granular products, a weighing or suitable volumetric dosing system may be used. For powder products, screw dosing can be considered. For liquids, a pump-based system may be suitable. Thick pastes may need a piston or other suitable filling method.

The product needs to reach the pouch cleanly and accurately. The nozzle should enter the pouch opening correctly, dispense the required amount, and move away without causing product to contaminate the sealing area.

Source: Huapack application information supplied for its pouch packaging systems. Actual filling method and filling accuracy should be confirmed through product testing.

I always recommend testing the actual product before finalizing the filling system. A product name alone cannot tell me how it will behave inside a filling machine.

For example, two powders can have the same nominal weight but very different flow behavior. One may flow freely, while another may bridge, stick, or produce a lot of dust.

The same is true for liquids. Water-like liquids and thick sauces require very different filling approaches.

3. Why I Use Servo Control for Premade Pouch Handling

Premade pouches may look simple, but flexible bags can be surprisingly difficult to handle consistently.

The pouch needs to be picked one at a time. It needs to arrive at the filling position in the correct orientation. The opening needs to be accessible to the filling nozzle. After filling, the pouch must move into the sealing position without unnecessary movement.

This is where the servo-driven design helps.

A servo motor uses feedback to control position and speed. In practical terms, this means I can manage machine movements more precisely and coordinate different stations within the production cycle.

The control system can be used to adjust important parameters digitally. Depending on the final configuration, operators can adjust machine speed, pouch movement, filling timing, and other production settings through the HMI.

Source: Huapack technical product information supplied for the 240NG/280NG. Actual performance depends on the complete machine configuration, pouch material, filling system, and operating conditions.

I do not treat servo control as a replacement for good mechanical design. The machine still needs reliable sensors, stable pouch handling, proper sealing, suitable filling equipment, and correct operating parameters.

The servo system simply gives me better control over repeated machine movement. For continuous production, that control can make a real difference.

4. Where I Use the 240NG/280NG

The 240NG/280NG is suitable for many applications where a single-nozzle filling configuration meets the production requirement.

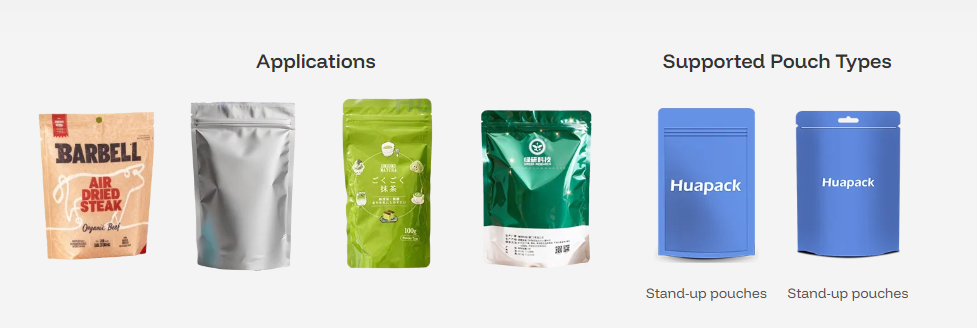

Food and Snack Packaging

Premade pouches are a natural fit for snacks, nuts, grains, seasoning, dried foods, and other compatible food products.

The pouch can be supplied with printed graphics and may include a zipper or easy-open feature. This gives the finished package a clean retail appearance without requiring the filling machine to create the pouch.

Pet Food Packaging

Dry pet food and pet treats can be filled into suitable premade pouches. Resealable zipper designs can be useful for products that consumers use over several days.

Nutrition and Health Products

Powdered nutrition products and other compatible health products can be packaged with a suitable dosing system. Product flow, density, and filling accuracy need to be checked during equipment selection.

Personal Care Products

Suitable liquids, powders, creams, and other personal care materials can be considered for premade pouch packaging. Product-contact parts should be selected according to the actual material.

Agricultural Products

Seeds, feed, organic fertilizer, and other compatible agricultural materials can be packed in premade pouches. The filling system depends on whether the product is granular, powdered, or liquid.

Industrial Materials

Plastic particles, compatible chemical additives, industrial powders, and selected building-material products can also be considered. For industrial applications, I pay particular attention to dust, particle size, material compatibility, and pouch strength.

5. Main Features of the Servo Driven Premade Pouch Machine

Automatic pouch picking: The machine automatically separates and picks individual premade pouches, reducing repetitive manual handling.

Single-nozzle filling: One filling nozzle provides a straightforward filling configuration for suitable products and production targets.

Servo-driven operation: Key machine movements are controlled through servo technology to improve synchronization and positioning.

Digital parameter adjustment: Operators can adjust important production settings through the control interface.

Flexible pouch compatibility: The machine can be configured for applicable flat pouches, stand-up pouches, zipper pouches, and other premade pouch formats.

Stable sealing: The sealing system is designed to produce a secure closure when the pouch material and process parameters are properly matched.

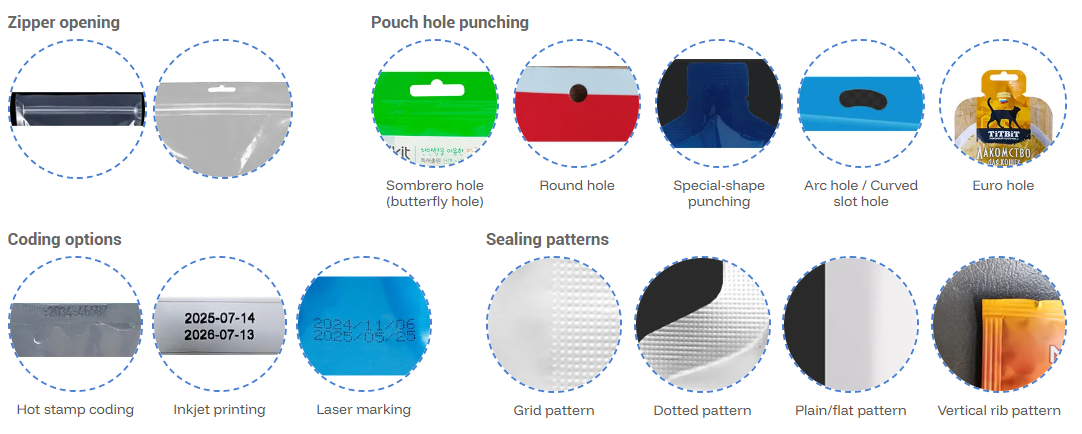

Optional coding: Date, batch information, barcode, QR code, and other production information can be printed with a suitable coding device.

Reduced labor requirements: Automated pouch handling and filling reduce repetitive manual work and can improve production consistency.

Line integration: The machine can be connected with upstream product feeding or weighing systems and downstream conveying, inspection, cartoning, or case-packing equipment.

6. 240NG vs. 280NG: How I Approach Model Selection

The 240NG and 280NG belong to the same premade pouch packaging machine family, but the correct model should be selected according to the required pouch dimensions and production conditions.

I do not recommend choosing between the two models simply by looking at the model number. The actual pouch size, opening dimensions, filling volume, pouch material, product characteristics, and target capacity should be checked first.

Source: Huapack model information supplied for the 240NG/280NG product family. Exact pouch dimensions, output, filling range, and technical specifications should be confirmed with Huapack before ordering.

For me, the most important thing is not whether one model sounds bigger than the other. It is whether the machine matches the pouch that will actually run through it.

If possible, I ask customers to provide pouch samples or detailed pouch drawings. I can then evaluate the pouch opening, width, height, material structure, zipper position, and other important details.

7. How I Build the Machine Around Real Production Requirements

At Huapack, I do not see a packaging machine as a simple combination of motors, sensors, and metal parts.

The whole process has to work together.

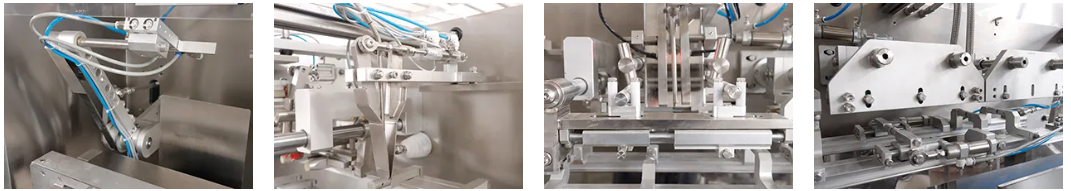

The pouch magazine needs to feed bags smoothly. The picking mechanism must separate individual pouches. The transfer system needs to keep the pouch in the correct position. The filling nozzle needs to enter the pouch without damaging it. The sealing unit must match the pouch material.

During manufacturing, I pay attention to the machine frame, pouch handling mechanism, servo system, sensors, filling equipment, sealing components, electrical cabinet, HMI, safety devices, and product-contact parts.

I also pay attention to cleaning and maintenance.

Packaging machines work in real factories, not laboratories. Operators need to clean them, change products, inspect moving parts, and occasionally replace wear components.

If an important area is difficult to reach, routine maintenance can take longer. That is why I consider operator access when developing the machine configuration.

Before final delivery, I recommend testing the machine with actual pouch samples and, when possible, the customer's real product.

This is especially important for filling applications. A product may behave differently from what its name suggests. A “powder” can be free-flowing or sticky. A “liquid” can be thin or very thick.

Testing allows me to confirm whether the filling method, nozzle, pouch opening, sealing conditions, and machine settings work together properly.

8. Why Choose Huapack for Premade Pouch Packaging?

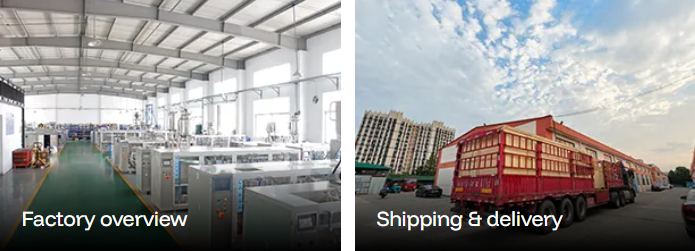

Shanghai Huacheng Packing Machinery Company was established in 2015, with a dedicated focus on pouch packaging machinery.

We integrate research and development, manufacturing, sales, and technical service under one operation. This gives me a direct connection between engineering decisions, machine production, and customer requirements.

Our experience covers automated weighing, pouch filling, sealing, and complete packaging line integration.

That matters when the customer needs more than a standalone pouch filler.

For example, a food manufacturer may need an automatic weighing machine before the pouch filler. A powder manufacturer may need a controlled screw feeder. A high-volume producer may need downstream checkweighing, metal detection, conveying, cartoning, or case packing.

I can build the packaging system around those requirements instead of forcing the customer to connect unrelated machines themselves.

My approach is practical: understand the product, understand the pouch, understand the production target, and then select the machine configuration.

I also understand that machine support continues after installation. Operators may need training, parameter guidance, maintenance advice, or help with production adjustments.

For that reason, our technical service is part of the packaging solution rather than an afterthought.

9. Frequently Asked Questions

What is a servo driven premade pouch packaging machine?

It is an automated machine that handles finished premade pouches. The machine picks, opens, fills, seals, and discharges the pouches, while servo technology controls important machine movements.

What does 1-nozzle filling mean?

It means the machine uses one filling nozzle. This provides a simple and practical filling configuration for applications where one filling point meets the required production capacity.

What products can the 240NG/280NG package?

Depending on the filling system, the machine can package compatible granules, powders, liquids, pastes, and other materials. Food, pet food, nutrition, personal care, agriculture, and industrial applications can be considered.

Can the machine package stand-up pouches?

Yes, applicable premade stand-up pouches can be handled when their dimensions and structure match the machine configuration.

Can I use zipper pouches?

Yes. The machine can be configured for suitable premade zipper pouches. Pouch width, height, opening size, zipper position, and material should be confirmed before final configuration.

Can the machine fill powder?

Yes. A suitable powder dosing system can be integrated. The powder's density, flowability, particle size, and dust behavior should be evaluated before selecting the final system.

Can I use the machine for liquid products?

Yes, with a suitable liquid filling system. Viscosity, foaming, filling volume, product temperature, and product-contact materials should be considered.

Can thick paste products be filled?

Yes, when a suitable paste filling system is selected. Thick products may require a piston or specialized pump system, and product testing is recommended.

What is the difference between the 240NG and 280NG?

They are different models within the same servo-driven premade pouch packaging family. The correct choice depends on pouch dimensions, filling requirements, production capacity, and other technical conditions. Final specifications should be confirmed with Huapack.

Can the machine add date and batch coding?

Yes. A compatible coding system can be integrated for production dates, batch numbers, barcodes, QR codes, and other required information.

Can Huapack provide a complete pouch packaging line?

Yes. Huapack can integrate weighing, feeding, pouch filling, sealing, conveying, inspection, cartoning, and other equipment according to the customer's product and production requirements.

Build Your Premade Pouch Packaging Solution With Huapack

The Servo Driven Premade Pouch Packaging Machine, 1-Nozzle Filling-240NG/280NG is designed for manufacturers that want a practical automated solution for filling and sealing finished premade pouches.

Its servo-driven movement, automatic pouch handling, single-nozzle filling configuration, digital parameter adjustment, sealing system, optional coding, and packaging line integration capabilities make it suitable for a wide range of pouch packaging applications.

I see the biggest advantage of this machine in its straightforward design. When the product, pouch format, filling volume, and production target fit a single-nozzle configuration, there is no need to make the system more complicated than necessary.

If you are searching for a servo driven premade pouch packaging machine, automatic premade pouch filling machine, 1-nozzle premade pouch filling machine, premade pouch filling and sealing machine, Servo Premade Pouch Packing Machine, or automatic premade bag packaging equipment, send me your product information, pouch dimensions or samples, filling weight or volume, and target production capacity.

I can help you evaluate the 240NG/280NG configuration, select a suitable filling method, and develop a pouch packaging solution based on your actual production conditions.

Huapack — focused on pouch packaging machinery, from individual machines to complete automated packaging lines.
