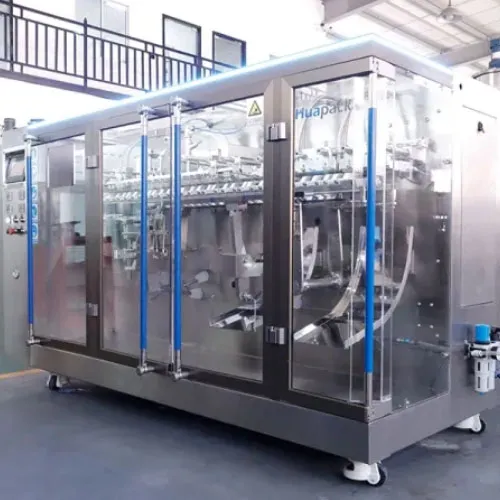

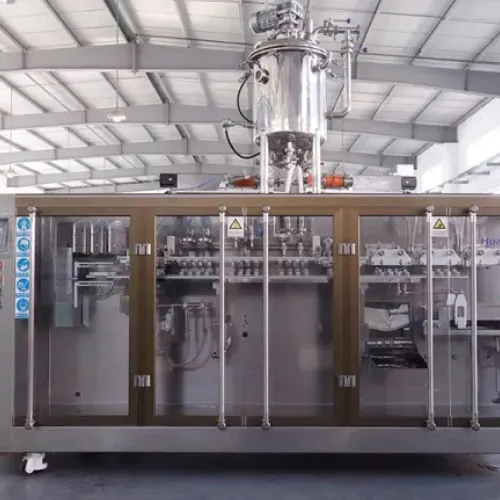

Premade Pouch Packaging Machine, 2-Nozzle Filling-240DG

When I help a customer choose a premade pouch packaging machine, I do not look at the machine model first. I start with the product, pouch, filling weight, and expected output. These four points usually tell me much more than a simple request such as “I need an automatic pouch packing machine.”

For manufacturers looking for a compact and flexible solution, our Premade Pouch Packaging Machine, 2-Nozzle Filling-240DG is designed around this exact idea. It takes finished premade pouches and automatically carries out pouch feeding, pouch opening, product filling, optional vacuum or nitrogen flushing, heat sealing, coding, and finished pouch discharge.

The two-nozzle filling configuration is especially useful when a customer wants better filling productivity without moving immediately to a much larger packaging system. Depending on the product and filling method, the two nozzles can work within the same filling cycle, helping us build an efficient automatic premade pouch filling line.

At Shanghai Huacheng Packing Machinery Company, or Huapack, we have focused on pouch packaging machinery since 2015. Our operation in Songjiang District, Shanghai combines research and development, manufacturing, sales, and technical service. We design pouch packaging solutions for food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, pet food, and other industries.

What I like about this type of machine is its flexibility. The pouch is already printed and formed before it enters the machine, so the packaging line can focus on handling, filling, sealing, and quality rather than making the bag from roll film.

1. Why I Use a Premade Pouch Machine for Flexible Packaging

A premade pouch packaging machine is different from a form-fill-seal machine. With form-fill-seal equipment, the machine starts with a roll of flexible film and forms the pouch during production. With our 240DG, the pouch is already made.

This difference is important for brands that use different pouch designs or several SKUs.

For example, a food company may have one printed pouch for almonds, another for mixed nuts, and another for seasoning. The pouches can be produced separately and then supplied to the packaging machine for automated filling and sealing.

I normally explain the complete process in a simple sequence:

1. The operator loads finished premade pouches into the pouch magazine.

2. The automatic pouch feeder picks an individual pouch.

3. The pouch is transferred into the correct working position.

4. The machine opens the pouch.

5. The product is filled through the two filling nozzles.

6. Vacuum or nitrogen flushing can be performed when required.

7. The pouch moves to the heat-sealing station.

8. The pouch mouth is sealed with controlled heat and pressure.

9. A coding system can print production information when required.

10. The finished pouch is discharged to the next process.

There is no complicated story here. The machine simply takes over the repeated work that would otherwise require several operators.

But simple does not mean easy to engineer.

Flexible pouches can bend, stick together, wrinkle, or change shape depending on the material and pouch construction. A powder can create dust. A liquid can drip. A thick paste can string from the nozzle. These small details can affect the whole production line.

That is why I always recommend testing the actual pouch and product before confirming the final configuration.

Source: Huapack engineering comparison based on the supplied product configuration and standard pouch-packaging machine structures. Actual machine suitability depends on the product, pouch construction, and production requirements.

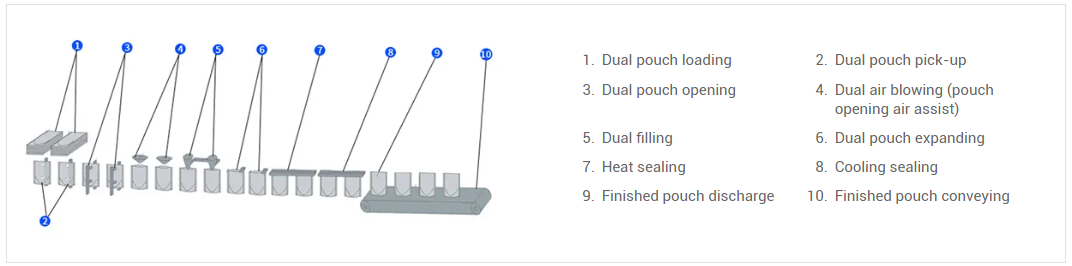

2. How the 2-Nozzle Filling-240DG Works

The working process is built around several stations. Each station has one job, and the machine coordinates them through its control system and servo mechanisms.

Automatic pouch feeding

Production starts with the finished pouches in the pouch magazine.

The automatic feeder separates and transfers the pouches into the machine. This is much more consistent than asking an operator to pick up and position every pouch manually throughout an entire shift.

However, pouch feeding is not simply a matter of adding a suction cup. Pouch thickness, surface friction, stiffness, zipper design, pouch shape, and even the printing surface can influence how easily the pouches separate.

When I receive samples, I pay attention to this point because a pouch that works perfectly by hand may behave differently when hundreds or thousands of pieces are fed automatically.

Pouch opening

After the pouch reaches its station, the machine opens it before filling.

The pouch needs to remain stable during this step. The opening also needs to be large enough for the filling nozzle to enter correctly.

This becomes particularly important when working with flexible bags. If the pouch mouth is not opened properly, the product may touch the pouch wall or sealing area. That can create problems later.

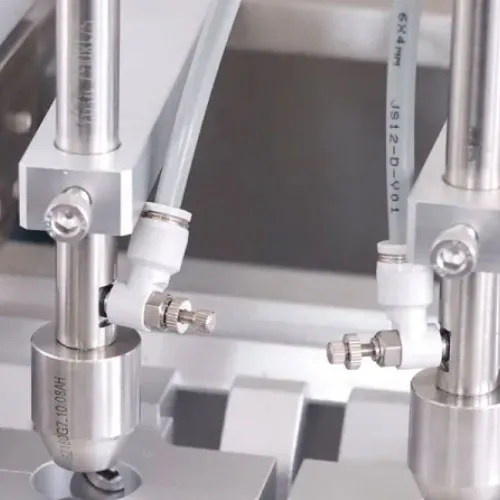

Two-nozzle filling

The 240DG is configured with two filling nozzles.

For a suitable product, the two-nozzle arrangement allows the machine to fill two pouches within the filling stage. This can improve productivity compared with a single-nozzle configuration.

But I always make one clarification: two nozzles do not automatically mean exactly twice the total machine output.

The complete production cycle includes pouch feeding, opening, filling, sealing, and discharge. The actual output is affected by product behavior, pouch size, filling weight, dosing method, and sealing time.

For granular products, we may consider a weighing system. For powders, an auger-based dosing system may be more suitable. Liquids can require pump filling, while thick pastes may need a different pump and nozzle arrangement.

Optional vacuum or nitrogen flushing

Some customers need more than simple filling and sealing.

For suitable applications, we can configure vacuum or nitrogen flushing. The purpose and setting depend on the product, pouch material, headspace, storage conditions, and customer requirements.

I do not recommend adding these functions just because they are available. If the product does not need them, there may be little reason to make the machine more complicated.

Heat sealing

After filling, the pouch moves to the sealing station.

The sealing jaws apply heat and pressure to close the pouch. The final result depends on several factors, including the pouch film structure, temperature, pressure, sealing time, and cleanliness of the pouch mouth.

A good seal is not simply “hot enough.” Too little heat can create a weak seal, while excessive heat can damage some flexible packaging materials.

Finished pouch discharge

Once sealing is complete, the finished pouch is discharged from the machine.

From here, I can design the machine to work with downstream equipment such as conveyors, Checkweighers, inspection systems, carton packing equipment, or other packaging machinery.

3. Main Features I Focus on in the 240DG

Two filling nozzles

The most obvious feature is the two-nozzle filling arrangement.

It gives manufacturers an efficient way to handle suitable filling applications while keeping the machine layout practical. For companies that have outgrown manual filling but do not need a very large packaging line, this can be a useful middle step.

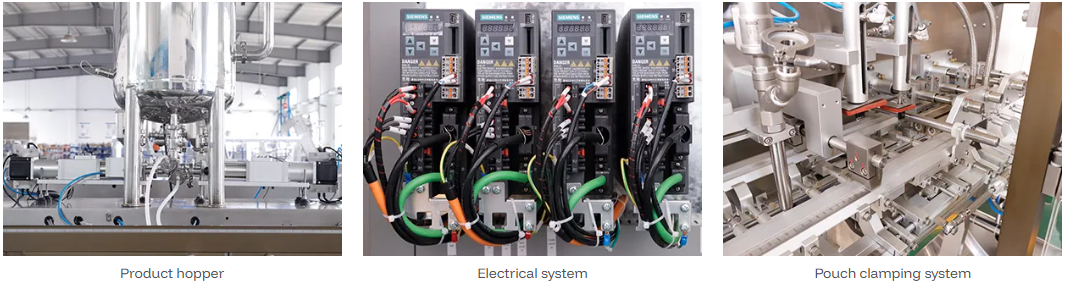

PLC touchscreen control

We use a PLC-based touchscreen control system so the operator can manage machine functions and production parameters from a central interface.

I prefer simple controls. An operator should be able to understand the machine status without having to read a complicated technical manual every few minutes.

The touchscreen can also make recipe and parameter management more convenient when several products are packed on the same machine.

Servo-driven movement

Several machine movements need accurate timing.

The pouch has to reach the right position before opening. The filling nozzle needs to move at the correct moment. The pouch then needs to travel to the sealing station without disturbing the filling process.

Servo mechanisms help us control these movements with greater precision and repeatability.

Multiple pouch formats

Depending on the final configuration and actual pouch testing, the machine can be adapted for suitable:

• Stand-up pouches

• Zipper pouches

• Spout pouches

• Aluminum foil flat pouches

• Other customized premade pouches

The key phrase here is “depending on the final configuration.” I would rather test a real pouch than promise compatibility based only on a picture.

Flexible production for multiple SKUs

Many brands do not produce just one product anymore.

They may have several flavors, different filling weights, different pouch designs, or different product sizes. Premade pouches are useful in this situation because the printed package can be prepared separately.

Changeover requirements still depend on the pouch dimensions and product. But with suitable machine design, multiple SKUs can be handled more conveniently than a system designed for one fixed product only.

Optional coding

Date, batch, expiry, and other production information can be added through an integrated coding system when required.

The correct coding method depends on the pouch surface, printing requirements, line speed, and information that needs to be marked.

Source: Huapack product configuration and engineering description supplied for the 240DG model. Performance depends on the final machine configuration and actual production conditions.

4. Matching the Filling Method to the Product

This is where my experience becomes especially important.

A packaging machine should not be selected only by pouch dimensions. The product inside the pouch can be even more important.

Consider two products that both require a 100-gram pouch. One may be dry nuts. The other may be fine nutritional powder. The target weight is the same, but the filling technology is completely different.

Source: Huapack engineering application classification. The listed filling methods are general selection examples; the final dosing system should be confirmed after testing the customer's actual material.

For granular products, I check particle size, shape, bulk density, and flow. A large irregular nut behaves differently from a small round seed.

For powders, I check whether the powder flows freely or tends to form a bridge in the hopper. Dust control can also become important because powder around the pouch mouth can affect sealing.

For liquids, I look at viscosity and foaming. A thin liquid may continue dripping after filling, while a thick sauce may require a stronger pumping system.

For pastes, the filling nozzle and shut-off action become very important. Nobody wants a beautiful pouch with product smeared across the sealing area.

This is why product testing is not an optional extra from my point of view. It is part of choosing the right machine.

5. Where I See the 240DG Being Used

Food and snack packaging

The food industry is one of the most common applications for premade pouch packaging.

Suitable products include nuts, snacks, seasonings, dried food, seeds, sauces, and other granular, powder, liquid, or paste products.

The premade pouch format also gives brands a lot of freedom with printing and package design. The finished printed pouch enters the machine directly, so the artwork is not created during the filling process.

Health nutrition and dietary products

Nutrition powders, selected dietary products, herbal powders, and other suitable health products can be packaged using the appropriate filling system.

For these applications, filling accuracy, product cleanliness, dust control, and pouch sealing are important considerations.

Pharmaceutical and medical nutrition packaging

Selected pharmaceutical and medical nutrition products can also use premade pouches.

However, pharmaceutical packaging should never be treated as an ordinary food project. The required hygiene level, contact materials, cleaning procedures, production environment, validation, and destination-market regulations need to be defined before equipment is finalized.

Personal care and cosmetics

We can design suitable pouch filling solutions for products such as cleansers, creams, gels, lotions, and other personal-care formulations.

Here, the filling material often has a higher viscosity than water. That changes the pump, nozzle, filling speed, and shut-off requirements.

Pet food

Pet treats, dry pet food, powders, and selected semi-moist products can be considered for different pouch formats.

For irregular treats, I pay close attention to product size and feeding behavior. The right filling system must prevent product jams while still meeting the required filling quantity.

Seeds, agrochemicals, and small hardware

Seeds and selected agricultural products can be packaged into premade pouches using a suitable dosing system.

Small hardware components are another interesting application. Screws, clips, fittings, and similar parts can sometimes be counted instead of weighed, depending on the customer's packaging method.

6. How We Engineer and Manufacture the Machine

At Huapack, our work does not stop when a customer sends a machine name.

We first want to understand the production requirement.

• What product are you filling?

• What is the target filling weight?

• What output do you need?

• What is the pouch size?

• What is the pouch material?

• Does the pouch have a zipper or spout?

• Do you need vacuum or nitrogen flushing?

• Do you need date and batch coding?

• How many SKUs will you run?

• Will the machine connect to other equipment?

Once these points are clear, we can determine the suitable filling system and machine configuration.

During manufacturing, mechanical assembly, electrical installation, control-system integration, and machine debugging all need to work together. A pouch packaging machine is not simply a metal frame with a filling nozzle attached to it.

Every station must work with the next one.

The pouch feeder must deliver the pouch correctly. The opening station must prepare the pouch for filling. The filling system must deliver the required product quantity. The sealing station must create a stable closure. The discharge system must transfer the finished pouch without damaging it.

We also consider the customer's future production plans.

If a company currently has three SKUs but expects to have ten later, I would rather know that before the machine is designed. It may influence pouch handling, changeover arrangements, recipe management, or line integration.

For complete projects, we can integrate the premade pouch packaging machine with weighing, feeding, filling, sealing, coding, inspection, conveying, checkweighing, and downstream packaging systems.

This approach helps us move from “buying a machine” to building a complete pouch packaging operation.

7. Why I Choose Huapack for Premade Pouch Packaging

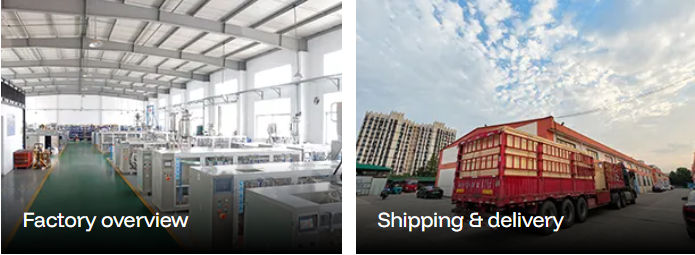

Shanghai Huacheng Packing Machinery Company was established in 2015. Since then, our work has stayed focused on pouch packaging machinery.

We combine R&D, manufacturing, sales, and technical service within one organization. For me, this matters because packaging projects often involve many small technical decisions.

A customer may ask for a pouch filling machine, but the real requirement could be a complete automated line.

They may need a weighing system before the pouch machine. They may need nitrogen flushing because of the product. They may need a checkweigher after sealing. They may want automatic carton packing later.

If I only sell a standalone machine, I may solve one part of the problem while creating another.

That is why we also provide complete line integration and turnkey packaging solutions.

Our engineers can develop the system around:

• Product characteristics

• Pouch format

• Filling weight

• Required production capacity

• Number of SKUs

• Optional functions

• Factory layout

• Downstream equipment

I also believe that a good machine should be practical for the operator.

More buttons do not necessarily mean better equipment. The machine needs to be understandable, adjustable, and maintainable in the real factory environment.

That is the approach we take with the Premade Pouch Packaging Machine, 2-Nozzle Filling-240DG.

8. FAQ About the Premade Pouch Packaging Machine, 2-Nozzle Filling-240DG

What is the Premade Pouch Packaging Machine, 2-Nozzle Filling-240DG?

It is an Automatic Premade Pouch Packaging Machine designed to feed finished pouches, open them, fill products through two filling nozzles, seal the pouches, and discharge the finished packages.

What is the benefit of two filling nozzles?

For suitable products and pouch formats, two nozzles allow the filling process to handle two pouches within the same filling stage. This can increase filling productivity compared with a single-nozzle system.

Does two-nozzle filling mean double production capacity?

Not necessarily. Total output depends on the complete machine cycle, including pouch feeding, opening, filling, sealing, and discharge. Product characteristics and pouch size also affect the final production rate.

What types of premade pouches can the machine use?

Depending on the final configuration and sample testing, the machine can work with suitable stand-up pouches, zipper pouches, spout pouches, aluminum foil flat pouches, and other customized premade pouch formats.

Can the 240DG fill powders?

Yes. Suitable powder products can be considered with an appropriate dosing system. The powder's flowability, density, particle size, dust level, and target filling weight need to be checked first.

Can it fill liquid products?

Yes. Liquid products can be handled with an appropriate pump and filling nozzle configuration. Viscosity, foaming, dripping, and filling accuracy should be evaluated before final selection.

Can it package thick sauces and creams?

Yes, for suitable applications. Thick products may require a specific pump and nozzle system. The filling and shut-off process should be tested to keep the pouch sealing area clean.

Can I package nuts and snacks?

Yes. Nuts, snacks, seeds, seasoning, and other suitable granular products can be considered. A weighing or other appropriate dosing system can be selected according to the material.

Can the machine use vacuum packaging?

Yes. Vacuum functionality can be added when required by the product and pouch application.

Can nitrogen flushing be added?

Yes. Nitrogen flushing can be configured for suitable applications where controlled gas replacement or headspace conditions are required.

Can I add a coding machine?

Yes. Coding equipment can be integrated for date, batch number, expiry information, or other required production marks.

Is the 240DG suitable for multi-SKU production?

Yes. The premade pouch format is well suited to flexible production. Different pouch sizes and products may require parameter changes, component adjustments, or changeover procedures depending on the application.

What information should I send before requesting a quotation?

I recommend sending the product name, product characteristics, target filling weight, required output, pouch type, pouch dimensions, pouch material, and any optional functions you need.

Actual product and pouch samples are even better. They allow us to evaluate feeding, opening, filling, sealing, and discharge under more realistic conditions.

Can Huapack provide a complete packaging line?

Yes. We provide both standalone premade pouch packaging machines and complete pouch packaging solutions. Depending on the project, we can integrate weighing, feeding, filling, sealing, nitrogen flushing, coding, inspection, conveying, checkweighing, and downstream packaging equipment.

Build the 240DG Around Your Real Production Needs

I see the Premade Pouch Packaging Machine, 2-Nozzle Filling-240DG as a practical choice for manufacturers who want automated premade pouch filling and sealing with a two-nozzle configuration.

It is suitable for a wide range of products, but I do not recommend choosing the machine based on the model name alone. The best configuration comes from the actual product, pouch, filling weight, production target, and packaging process.

That is how we approach machine selection at Huapack.

We start with your product. We look at the pouch. We check the filling requirement. We consider the production target. Then we design the equipment around the complete process.

If you are searching for an automatic premade pouch packaging machine, 2-nozzle pouch filling machine, premade pouch filling and sealing machine, automatic pouch packing machine for multiple SKUs, or a complete premade pouch packaging line, we can discuss the configuration according to your actual application.

Send us your pouch dimensions, product information, filling weight, target output, and required functions. If you can provide product and pouch samples, we can evaluate the process more accurately and recommend a practical 240DG configuration.

Source note: Product-specific information in this page is based on the Huapack 240DG configuration and the technical information supplied for this product. Comparison tables are engineering comparisons prepared from the supplied machine information and standard packaging-machine operating principles. Actual capacity, filling accuracy, pouch compatibility, sealing performance, and final configuration should be confirmed through product and pouch testing before purchase.
