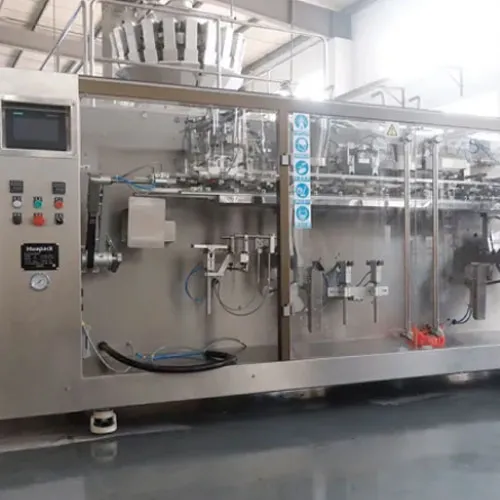

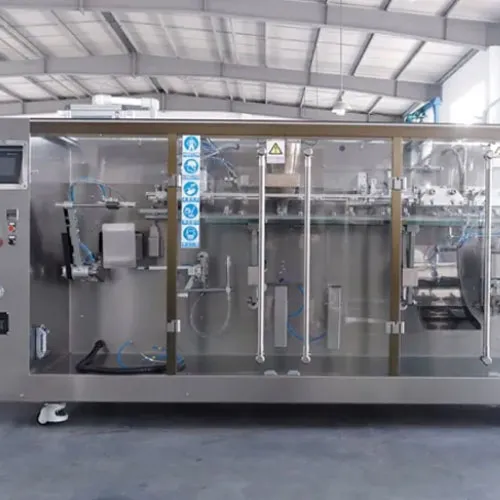

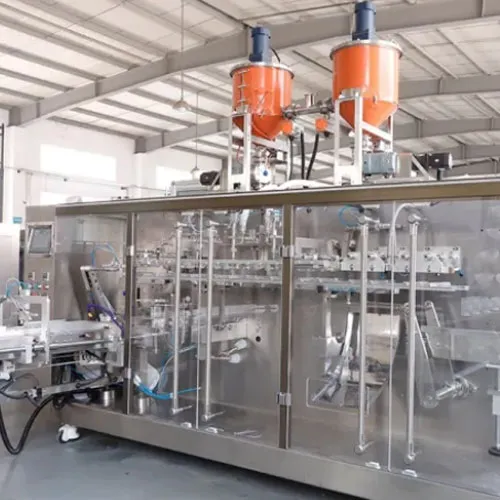

Premade Pouch Packaging Machine, 1-Nozzle Filling-240NG-F

When I select a pouch packaging machine for a customer, I do not begin with a speed figure on a brochure. I begin with the product, the pouch, and the production plan. Those three things tell me whether the equipment will be useful on a real factory floor.

Our Premade Pouch Packaging Machine, 1-Nozzle Filling-240NG-F is built for manufacturers that use finished, printed pouches and want to automate the packing process. Instead of starting with a roll of film and forming the pouch on the machine, I start with the finished pouch. The machine automatically feeds the pouch, opens it, fills the product, handles optional air treatment, heat-seals the opening, and discharges the finished package.

This makes the 240NG-F premade pouch packaging machine a practical choice for food, nutrition, pharmaceuticals, personal care, pet food, agriculture, and selected industrial products. It can work with common pouch formats such as stand-up pouches, zipper pouches, spout pouches, and aluminum foil flat pouches, subject to the actual pouch design and testing.

At Shanghai Huacheng Packing Machinery Company, or Huapack, we have focused on pouch packaging machinery since 2015. Our R&D, manufacturing, sales, and technical service teams operate from Songjiang District, Shanghai. I see this combination as important because a good packaging project is rarely just about one machine. It is about making pouch feeding, filling, sealing, and the rest of the line work together.

1. Why I Use a Premade Pouch System for Flexible Production

A premade pouch machine works in a different way from a roll-film form-fill-seal machine. The pouch has already been formed and printed before it enters our equipment.

That difference gives manufacturers more freedom when they want attractive retail packaging or several pouch styles. The printed artwork is already on the finished pouch, and the machine's job is to handle that pouch carefully while completing the filling and sealing process.

For the operator, the process is straightforward:

1. Load finished pouches into the pouch magazine.

2. Automatically pick and transfer each pouch.

3. Open the pouch mouth.

4. Fill the product through the selected one-nozzle filling system.

5. Add vacuum or nitrogen flushing when required.

6. Heat-seal the pouch.

7. Print production information if a coder is installed.

8. Discharge the finished pouch to the next process.

It sounds simple, but I know from machine design that the first step can affect every step after it. If the pouch is not picked correctly, the transfer position changes. If the pouch is not opened properly, filling becomes difficult. If product reaches the sealing area, even a good sealing system can have trouble.

That is why I treat pouch handling as a serious engineering part of the complete packaging process.

Source: PMMI, State of the Industry 2025. PMMI's report covers packaging machinery categories, machinery shipments, automation investment, sustainability, workforce issues, and packaging-line requirements. :contentReference[oaicite:0]{index=0}

I would particularly recommend a premade pouch system when a brand has already invested in printed pouches or wants several packaging designs. The machine does not need to form the bag from roll stock, so the process can focus on reliable bag handling, filling, and sealing.

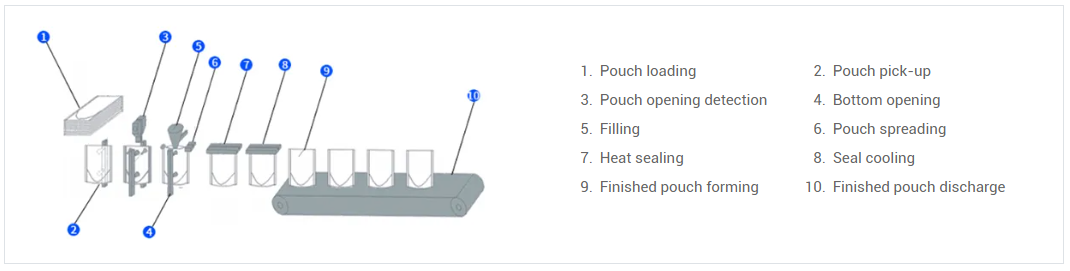

2. How the 240NG-F Turns an Empty Pouch into a Finished Product

I prefer to explain the machine according to its actual production sequence. That makes it easier for operators, purchasing teams, and engineers to understand what they are buying.

Automatic pouch feeding

The operator places a stack of empty premade pouches into the pouch magazine. The automatic pouch feeding mechanism then takes the bags into the working cycle.

This removes a repetitive manual task. An operator no longer needs to pick up and position every individual pouch. The machine handles the repeated movement while the operator can focus on material supply, production monitoring, quality checks, and other work.

But pouch feeding is not simply about moving a bag forward. Pouches can have different film thicknesses, surface friction, stiffness, zipper structures, and spouts. A pouch that is easy to handle by hand may still require careful adjustment on an automatic feeder.

For that reason, I prefer actual pouch samples when evaluating a project.

Pouch opening

After feeding, the machine positions the pouch and opens its mouth. This creates the space needed for the filling nozzle.

Good opening is important because the product should enter the pouch rather than splash, scatter, or collect around the seal area. This becomes especially important with powder, sticky products, and liquids.

One-nozzle filling

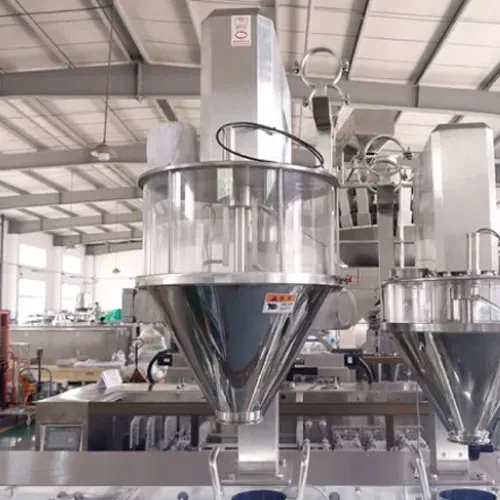

The 240NG-F uses a 1-nozzle filling configuration. The filling equipment connected to the nozzle is selected according to the product.

I do not use the same filling method for every product. A free-flowing granule may work well with weighing or volumetric dosing. Fine powder may need an auger-type filler. Liquid products can require a pump. Thick paste may require a different pump and nozzle arrangement.

This is why I ask customers more than just the target weight. Product density, particle size, viscosity, moisture, temperature, flowability, and product behavior can all affect the correct filling system.

Optional air treatment

For products that need reduced oxygen exposure or a specific internal atmosphere, the machine can be configured with vacuum or nitrogen flushing.

I always recommend looking at the whole package when using these functions. Gas flushing does not work in isolation. The result can depend on the product, pouch structure, headspace, gas flow, sealing quality, and storage conditions.

Heat sealing

After filling, the pouch moves to the sealing station. The sealing jaws close the pouch under controlled heat and pressure.

In practical production, I never treat sealing temperature as the only setting that matters. The pouch's sealant layer, pressure, dwell time, film thickness, alignment, and possible product contamination can all affect seal quality.

So if a customer changes pouch material, I recommend testing the new pouch instead of simply copying the old sealing parameters.

Finished pouch discharge

Once sealing is completed, the finished package leaves the machine. It can then move to a conveyor, coding station, inspection system, Checkweigher, cartoner, or another downstream process.

This gives the automatic premade pouch filling machine a simple but complete job: start with an empty finished pouch and end with a filled and sealed package.

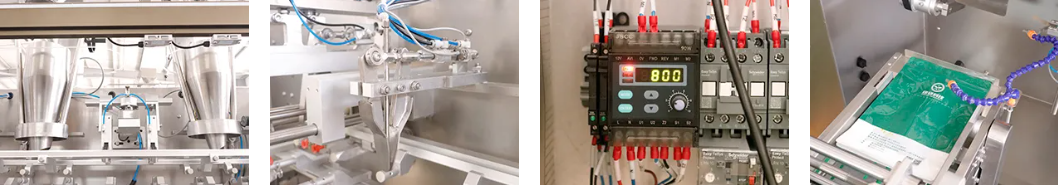

3. What I Look for in the Machine Before It Enters Production

A packaging machine may look good when it is new and clean in a showroom. Real production is different. The machine may run for hours, handle different pouch batches, process several SKUs, and work with products that do not behave exactly the same every day.

That is why I pay attention to a few practical areas.

PLC touchscreen operation

The 240NG-F uses a PLC control system with a touchscreen interface. The operator can monitor the machine and adjust relevant operating parameters from the HMI.

I want the control system to be understandable. Operators should not need to be automation engineers just to check the machine status or make normal production adjustments.

Servo-controlled movement

Multiple servo mechanisms help coordinate machine movements. Accurate positioning is useful when the pouch must be picked, transferred, opened, filled, and sealed in the correct sequence.

Servo control also gives us more flexibility when setting the machine for different pouch formats.

Common pouch compatibility

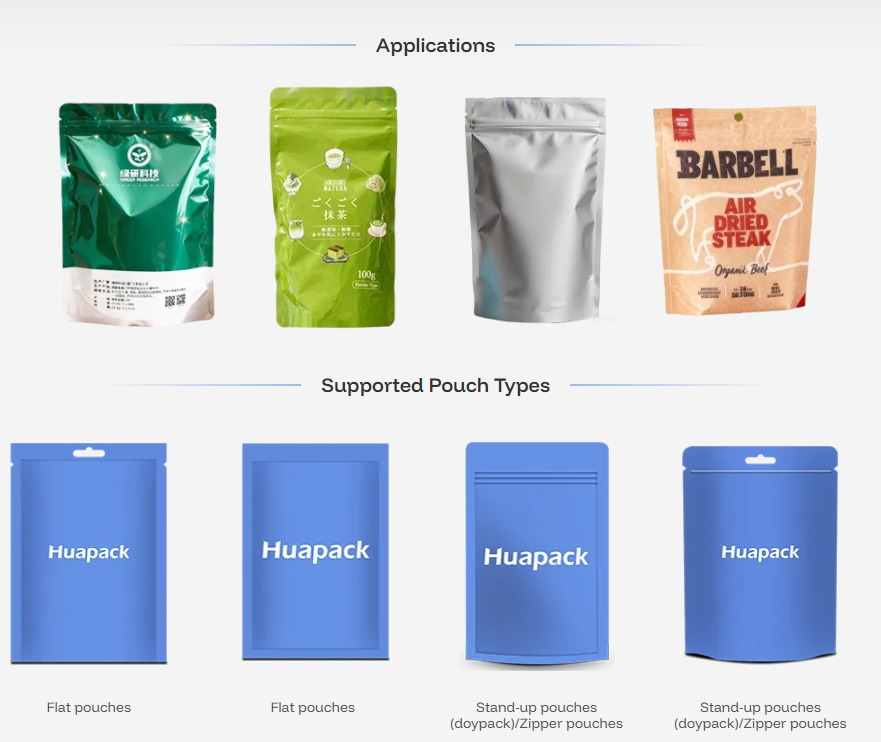

The machine can be configured for several pouch styles, including:

• Stand-up pouches

• Zipper pouches

• Spout pouches

• Aluminum foil flat pouches

• Other suitable customized premade pouch structures

I deliberately say “suitable” because pouch compatibility cannot be decided from bag width and height alone. Film stiffness, thickness, friction, zipper location, spout position, opening shape, and pouch tolerances can all change the way the machine behaves.

Flexible SKU changeover

Many factories no longer produce one product for an entire shift. They may change flavors, weights, pouch designs, or product types several times a day.

The 240NG-F is designed for flexible production, with adjustments made according to the selected pouch and filling configuration. My goal is to keep format changes practical and repeatable instead of making every new SKU feel like a new machine installation.

Source: The comparison criteria reflect practical packaging-machine engineering considerations. PMMI's 2025 industry research specifically discusses automated changeovers, servo-driven systems, versatile packaging machines, labor challenges, and practical efficiency improvements. :contentReference[oaicite:1]{index=1}

This is also where I see a clear difference between buying a machine for a brochure specification and buying one for production. The first approach asks, “How fast can it run?” The second asks, “How reliably can it produce the package I actually sell?”

4. Choosing the Right Filling System for Different Products

The pouch machine handles the bag. The filling system handles the product. These two parts have to match.

For example, if I am packing a free-flowing granule, I may recommend weighing or volumetric dosing. If I am filling a fine powder, I need to think about dust, flowability, density, and whether the powder bridges inside the hopper.

For liquid products, pump selection matters. A thin liquid and a thick cream should not automatically use the same pump or nozzle. Foaming can also change the filling process.

Source: These are engineering application examples based on common pouch-filling practices. The final dosing method should be confirmed through product testing because two products in the same category can behave very differently.

When I discuss a new project with a customer, I normally want to know:

• Target filling weight or volume

• Product density

• Particle size, if applicable

• Viscosity, if applicable

• Product temperature

• Moisture or stickiness

• Target production capacity

• Required filling accuracy

• Whether dust, foam, or dripping is a concern

If the product is unusual, I would rather test it than guess.

The same principle applies to the pouch. I like to test the real pouch because the actual film structure can affect feeding, opening, filling clearance, and sealing.

5. Industries and Products I Can Support with the 240NG-F

The flexibility of premade pouch packaging makes this machine useful in many different industries. The exact configuration changes according to the product and pouch.

Food and snack packaging

Food manufacturers can use premade pouches for nuts, seeds, seasoning, snacks, sauces, dried ingredients, and other suitable products.

A zipper pouch can be useful when consumers need to open and close the package more than once. A flat aluminum foil pouch can be suitable when barrier performance and a compact format are important.

For food packaging, I also separate the machine question from the material-compliance question. The machine can fill and seal the pouch, but the pouch material itself must be appropriate for the intended food and conditions of use. FDA explains that food-contact substances are regulated according to their intended use, and its guidance includes different food types and conditions such as refrigerated, frozen, room-temperature, hot-filled, and sterilized applications. :contentReference[oaicite:2]{index=2}

Dairy and health nutrition

Nutrition powders, selected dairy products, and health-food ingredients can be packaged in suitable premade pouches. Powder behavior is particularly important when choosing the filling system.

Medical nutrition and pharmaceutical products

Selected medical nutrition products, herbal granules, dietary powders, and other suitable products can use pouch packaging. For regulated pharmaceutical applications, I recommend designing the machine around the required hygiene, cleanability, validation, and regulatory conditions rather than treating a general food machine as automatically suitable.

Personal care and cosmetics

Shampoo, conditioner, liquid cleansers, creams, gels, and similar products can be packed in suitable stand-up or spout pouches. The pump and nozzle should match the product's viscosity and flow characteristics.

Pet food

Pet treats, dry pet food, powders, and selected semi-moist products can be packed into zipper or stand-up pouches. Particle size and feeding behavior need to be considered before choosing the dosing unit.

Seeds and agricultural products

Seeds and selected agricultural products can be packaged in flat or stand-up pouches. For agrochemical products, I recommend checking the chemical compatibility of the pouch material and machine-contact components before finalizing the equipment.

Small hardware components

Screws, clips, fittings, fasteners, and other small parts can also be packed in premade pouches. Depending on the product, counting or weighing can be used for dosing.

These applications also fit the broader direction of packaging automation. PMMI reported that the U.S. packaging machinery market reached $11.3 billion in sales in 2024, with a forecast of 2.2% growth for 2025. Its 2025 report highlights automated changeovers, servo-driven systems, versatile machines, labor challenges, and practical plant-floor efficiency as important issues for machinery buyers. :contentReference[oaicite:3]{index=3}

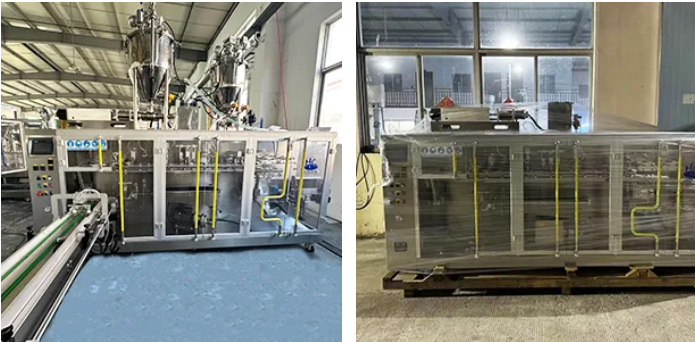

6. How I Manufacture, Commission, and Test the 240NG-F

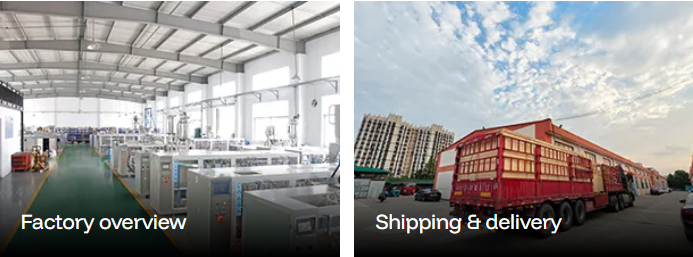

We are based in Songjiang District, Shanghai, and our operation combines R&D, manufacturing, sales, and technical service. Since 2015, our main focus has been pouch packaging machinery.

When I talk about manufacturing quality, I do not mean only that the machine has been assembled correctly. I want the complete machine to perform the whole packaging cycle in the right order.

Our project normally begins with the application itself. We look at the product, pouch, target capacity, filling weight, required functions, and line arrangement.

Then we select the filling method and machine configuration. Mechanical assembly and electrical installation are followed by PLC programming, servo setup, pouch feeding adjustment, filling tests, sealing tests, and overall commissioning.

I pay particular attention to the interaction between stations.

For example, a filling problem may actually begin with pouch positioning. A sealing problem may actually begin with excessive product around the pouch mouth. A feeding problem may be caused by the pouch material rather than the feeder itself.

That is why I prefer to check the entire process rather than adjust one station in isolation.

Whenever possible, we test with the customer's actual pouch and product. This is especially useful when the product is dusty, sticky, viscous, fragile, irregular, or difficult to feed.

For food applications, I also make an important distinction: the packaging machine and the food-contact packaging material are separate compliance questions. FDA states that the overall regulatory status of a food-contact material depends on the individual substances that make up the material and their intended use. :contentReference[oaicite:4]{index=4}

So I do not make a blanket claim that a machine is automatically “FDA compliant” simply because it is used for food packaging. The actual pouch material, machine-contact materials, intended food, and market requirements must be evaluated for the specific project.

7. Why I Build the Machine as Part of a Larger Packaging Solution

Sometimes a customer needs only one machine. Sometimes that one machine is actually the first step toward a complete packaging line.

A typical project may eventually include a product feeder, weighing or dosing system, premade pouch machine, nitrogen flushing, date coder, checkweigher, metal detector, conveyor, cartoner, case packer, or other downstream equipment.

That is why we do not limit our work to standalone pouch filling machines. Huapack can provide complete pouch packaging lines and turnkey projects according to product characteristics, pouch format, required capacity, and factory layout.

I also consider future expansion during the initial design. If a customer expects to add more SKUs, another pouch size, a checkweigher, or automatic cartoning later, I want to know that before the first machine is built.

This approach is consistent with what packaging machinery buyers are dealing with today. PMMI's current industry research points to automation, workforce constraints, flexible machinery, aftermarket support, and practical efficiency as important purchasing considerations. Its 2025 report also notes that buyers are looking for solutions that fit existing plant footprints and are easier to operate and maintain. :contentReference[oaicite:5]{index=5}

For me, this means technology should have a job. If a function does not improve the actual production process, I do not want to add it just because it looks impressive on a specification sheet.

My goal is a pouch packaging line that is stable enough for daily production, flexible enough for changing SKUs, and clear enough for operators to manage.

8. FAQ About the Premade Pouch Packaging Machine, 1-Nozzle Filling-240NG-F

What is a premade pouch packaging machine?

A premade pouch packaging machine uses finished pouches instead of roll film. It automatically feeds the pouch, opens it, fills the product, seals the pouch, and discharges the finished package.

What does the automatic pouch feeding system do?

The pouch feeder stores finished empty pouches and automatically transfers them into the packaging process. This reduces repetitive manual pouch loading and helps create a continuous production cycle.

What does 1-nozzle filling mean?

It means one filling nozzle is used to introduce the product into the pouch. The actual dosing equipment can be selected according to whether the product is a powder, granule, liquid, paste, or small piece.

What pouch types can the 240NG-F handle?

The machine can be configured for stand-up pouches, zipper pouches, spout pouches, aluminum foil flat pouches, and other suitable premade pouch structures. The final compatibility should be confirmed with actual pouch samples.

Can I use the machine for powder?

Yes. The machine can be configured for powder products with a suitable dosing system. Powder density, flowability, dust, particle size, and target weight should be evaluated before choosing the filler.

Can it fill liquid and paste?

Yes. Suitable liquid and paste products can be filled with an appropriate pump and nozzle system. Viscosity, foaming, temperature, product particles, and filling volume can affect the final design.

Can I add nitrogen flushing?

Yes. Nitrogen flushing can be integrated when the product and packaging process require it. The final gas-treatment process should be confirmed through testing because package headspace and sealing performance also matter.

Can I add vacuum packaging?

Yes. A vacuum function can be added for suitable products and pouch structures. The actual vacuum level and process should be determined through testing.

Can I add a date coder?

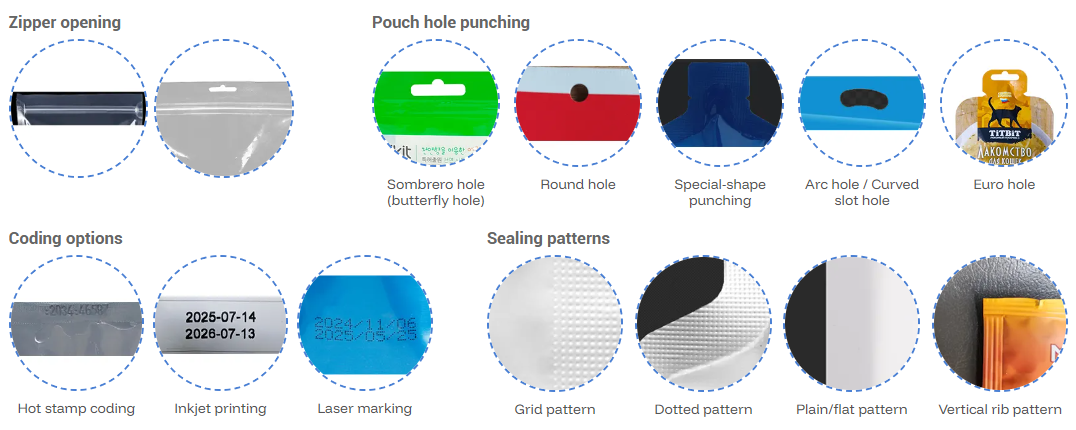

Yes. Coding equipment can be integrated to print production dates, expiry dates, batch numbers, or other production information.

Is the 240NG-F suitable for multiple SKUs?

Yes. The machine is designed for flexible pouch production. Different pouch sizes and products may require different adjustments, so I recommend testing the complete SKU range before finalizing the configuration.

Can Huapack design the complete packaging line?

Yes. We can provide standalone pouch machines or complete packaging lines covering feeding, weighing, filling, pouch handling, sealing, coding, conveying, inspection, and downstream packaging according to the project.

What information should I send for a machine quotation?

I recommend sending the product name, product characteristics, target filling weight, required capacity, pouch type, pouch dimensions, pouch material, and required functions. If possible, send actual product samples and empty pouches. This gives us a much better basis for recommending the machine configuration.

Build the 240NG-F Around the Product You Actually Pack

The Premade Pouch Packaging Machine, 1-Nozzle Filling-240NG-F is designed around a simple production idea: start with a finished pouch and automate the repetitive work needed to turn it into a filled, sealed product.

Automatic pouch feeding, pouch opening, one-nozzle filling, PLC touchscreen control, servo-driven movement, heat sealing, optional vacuum or nitrogen flushing, coding, and flexible pouch formats give manufacturers a practical platform for automated premade pouch packaging.

But I do not believe that one standard setting can work for every product. The right result comes from matching the pouch-handling system, filling technology, sealing process, and line layout to the actual application.

That is the approach I take at Huapack.

Send me your product information, pouch dimensions, filling weight, target output, and required functions. If you can also provide empty pouch and product samples, we can evaluate the feeding, opening, filling, sealing, and integration requirements more accurately.

Whether you need an automatic premade pouch packing machine, a 1-nozzle pouch filling machine, an automatic pouch filling and sealing machine, or a complete premade pouch packaging line, I can work with you to build the configuration around your real production needs.
