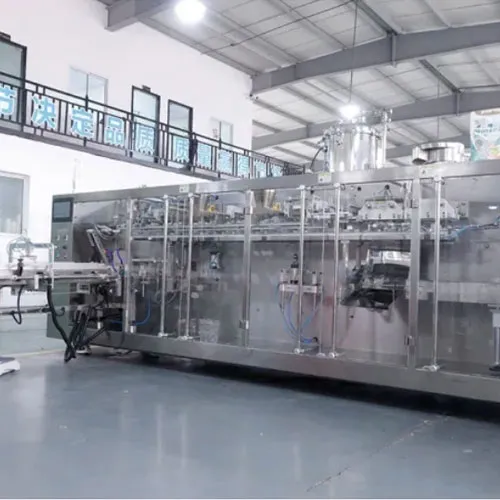

Premade Pouch Packaging Machine, 1-Nozzle Filling-280NG

When I evaluate a premade pouch packaging project, I do not look at the machine speed first. I start with three things: the product, the pouch, and the production target. These three points tell me much more about whether a packaging machine will work well in a real factory.

Our Premade Pouch Packaging Machine, 1-Nozzle Filling-280NG is designed for manufacturers that already use finished pouches and want to automate the packing process. Instead of feeding roll film and making the pouch on the machine, I use the finished printed pouch directly. The machine automatically picks the pouch, opens it, fills the product, handles optional air treatment, heat-seals the opening, and sends out the finished bag.

This design is useful when a brand wants attractive printed packaging, several pouch sizes, or frequent SKU changes without giving up automatic production. The 280NG can be configured for common pouch formats such as stand-up pouches, zipper pouches, spout pouches, and aluminum foil flat pouches. Depending on the material, I can also integrate suitable weighing or dosing equipment, vacuum, nitrogen flushing, coding, conveying, and downstream packaging equipment.

At Shanghai Huacheng Packing Machinery Company, or Huapack, we have focused on pouch packaging machinery since 2015. Our operation is based in Songjiang District, Shanghai, where R&D, manufacturing, sales, and technical service work together. For me, that matters because a pouch machine is not just a frame, motor, and control cabinet. It is a complete process, and every station has to work with the next one.

1. Why I Designed the 280NG Around Premade Pouches

A finished pouch gives a packaging brand something that roll film cannot provide in quite the same way: the pouch is already formed and printed before it reaches the machine.

The operator does not need to form the bag from film. Instead, the premade pouch packing machine focuses on handling the finished pouch correctly. This makes the process especially attractive for brands that care about printed graphics, pouch shape, zipper features, spouts, or several packaging formats.

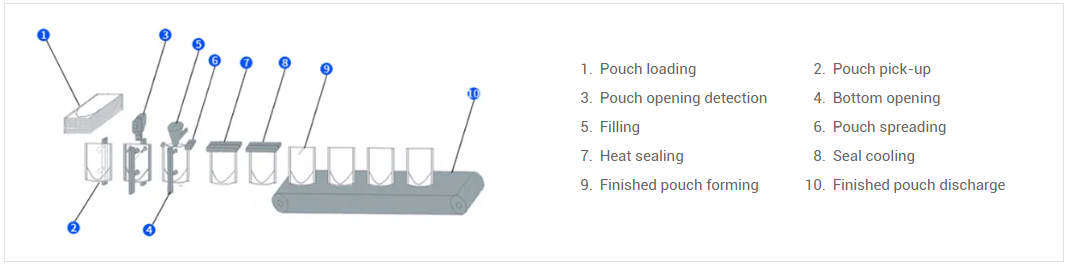

The basic production sequence is simple:

1. The operator loads finished pouches into the pouch magazine.

2. The machine picks one pouch at a time.

3. The pouch is transferred to the working station.

4. The pouch mouth is opened.

5. The product is filled through the selected filling system.

6. Vacuum or nitrogen flushing can be added when required.

7. The pouch is heat-sealed.

8. The finished pouch is discharged to the next process.

That sounds easy, but reliable pouch handling is where much of the real engineering work happens. Pouches are flexible. They can stick together, bend, slide differently, or behave differently when the film structure changes.

A thin laminated pouch may behave differently from a thicker aluminum foil pouch. A zipper pouch has another layer of complexity because the zipper area changes the way the bag opens and travels through the machine. A spout pouch has its own balance and positioning requirements.

For that reason, I do not recommend choosing a machine simply because the pouch dimensions appear to match a catalog specification. I prefer to test the actual pouch.

Source: PMMI, State of the Industry 2025. PMMI's industry research tracks packaging machinery by machine type and application and identifies flexibility, automation, and practical plant-floor performance as important purchasing considerations.

For a manufacturer that has already invested in printed premade pouches, the difference is practical. The pouch artwork is already finished. The machine only needs to handle the bag carefully and complete the filling and sealing process.

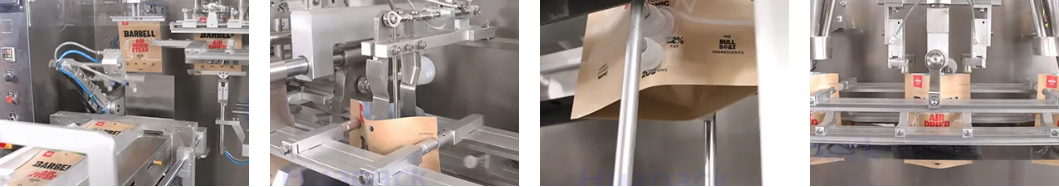

2. How the 1-Nozzle 280NG Works From Empty Pouch to Finished Package

I like to explain the machine from the operator's point of view because that is how the equipment is used every day.

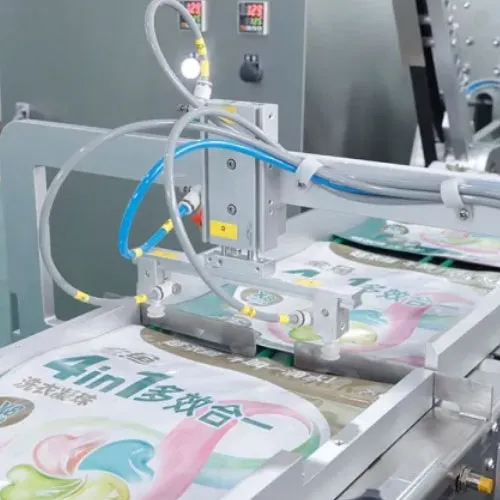

Automatic pouch loading and feeding

The operator places a stack of finished pouches into the pouch magazine. The automatic feeding mechanism then picks the bags and moves them into the packaging sequence.

This removes one of the most repetitive manual jobs from the line. Instead of an operator picking and positioning every pouch, the machine takes care of the repeated feeding action.

Pouch opening

Once the pouch reaches the correct station, the machine opens the bag mouth. This step is more important than it may look. The filling nozzle needs a clear path into the pouch, and the pouch needs to stay in position while the product enters.

If the bag opening is unstable, the filling process can become messy. Product may touch the inside of the pouch incorrectly or reach the seal area. That is why I treat pouch opening and pouch feeding as part of the filling system, not as separate problems.

One-nozzle product filling

The 280NG uses a 1-nozzle filling configuration. The actual dosing unit can be selected according to the product.

Granules, powder, liquid, paste, and small pieces do not behave in the same way. A free-flowing seasoning may need a weighing system. A fine powder may require an auger-type dosing solution. A liquid may need a pump. A thick cream can require a different pump and nozzle design.

So when I discuss the 280NG with a customer, I do not simply ask, “How many grams?” I also ask, “What is the product like?”

Optional vacuum or nitrogen treatment

Some products need special handling of the air inside the pouch. Depending on the application, we can integrate vacuum or nitrogen flushing.

I do not treat nitrogen flushing as a magic answer for shelf life. The result depends on the product, pouch structure, headspace, gas process, sealing performance, and storage conditions. Actual testing is the right way to establish the required process.

Heat sealing

After filling, the pouch moves to the sealing station. The sealing jaws close the pouch mouth with controlled heat and pressure.

A good seal is not created by temperature alone. The sealing layer of the pouch film, temperature, pressure, dwell time, product contamination, and pouch alignment all matter.

This is one reason I prefer commissioning with real pouches. A sealing parameter that works well on one laminated structure may not be the correct setting for another.

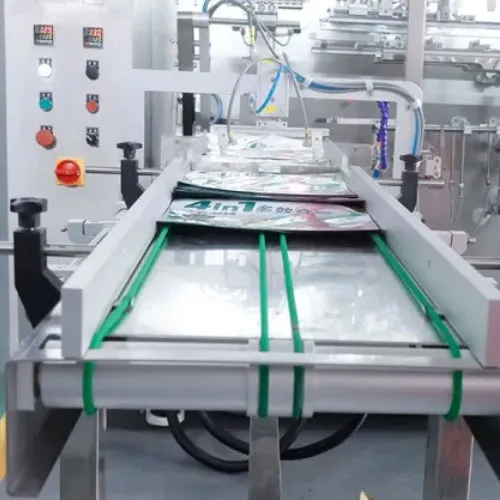

Finished pouch discharge

After sealing, the finished pouch is discharged from the machine. Depending on the production line, it can then move to coding, inspection, checkweighing, cartoning, or other downstream equipment.

3. What Makes the 280NG Practical for Multi-SKU Production?

One of the biggest changes I see in modern packaging is the need to produce more than one product on the same line.

A factory may have five flavors, three pouch sizes, several filling weights, or different brands for different customers. In that situation, flexibility is not a nice extra. It is part of the production requirement.

PLC touchscreen control

The 280NG uses a PLC control system with a touchscreen. The operator can monitor the machine and adjust relevant operating parameters through the HMI.

I prefer this type of control because it keeps the main operating information in one place. An operator can see what the machine is doing instead of relying on separate manual controls scattered around the equipment.

Servo-driven machine movements

Multiple servo mechanisms coordinate important machine movements. Servo control is useful when pouch transfer, opening, filling, and sealing need to happen at accurate positions and times.

It also gives us more flexibility when adjusting the machine for different pouch formats.

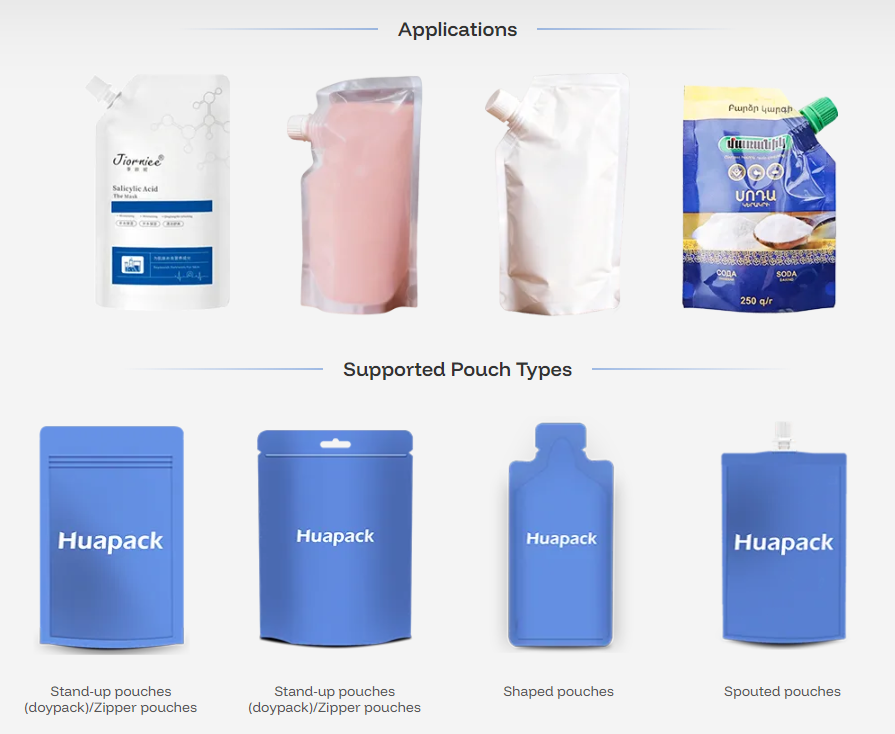

Flexible pouch formats

The 280NG can be configured for several common premade pouch styles, including:

• Stand-up pouches

• Zipper pouches

• Spout pouches

• Aluminum foil flat pouches

• Other suitable customized pouch structures after testing

I always use the phrase “after testing” deliberately. Pouch compatibility is affected by more than width and height. Film thickness, friction, stiffness, zipper position, spout design, pouch opening, and material layers can all change machine behavior.

Easy specification changes

The machine is intended to support flexible pouch production and convenient format changes. The exact changeover procedure depends on the selected pouch dimensions and machine configuration.

For a factory with many SKUs, I would rather have a slightly more flexible machine than one optimized for only one bag size. The best choice depends on the customer's actual production plan.

Source: The comparison criteria reflect packaging-machine engineering practice and the purchasing priorities reported by PMMI. Its 2025 industry report specifically highlights automated changeovers, servo-driven systems, versatile machines, operator challenges, and practical efficiency improvements.

4. Matching the 1-Nozzle Filling System to the Product

This is where I usually spend more time with customers than they expect.

A pouch machine can handle the bag, but the filling system has to handle the product. If the dosing method is wrong, the machine may still run, but the actual production result will not be good enough.

Source: Application categories are engineering examples based on common pouch filling methods. Final filler selection should be confirmed through product and pouch testing rather than selected from product names alone.

For example, a powder can look simple but become difficult when it is very fine, dusty, or prone to bridging. A thick sauce may require a controlled shut-off so that product does not drip into the sealing area. Nuts may need a weighing system because individual pieces can have different sizes and weights.

That is why I ask customers for more than a product name. I want to know the target filling weight, density, particle size, viscosity, temperature, moisture, and required production capacity whenever those factors are relevant.

For a new project, I also prefer product and pouch samples. A short test can tell us more than several pages of specifications.

5. Where the Premade Pouch Packaging Machine Fits Best

The 280NG can be used in many industries because premade pouches are now available in a wide range of sizes, materials, closures, and designs.

Food and snack packaging

Food applications include nuts, seasoning, sauces, snacks, dried foods, seeds, and other suitable products. Zipper pouches are useful when the consumer needs to open and close the package repeatedly.

For food products, I also pay attention to the package material and intended use. The machine can provide the filling and sealing process, but food-contact compliance belongs to the complete packaging system and the applicable regulations. FDA explains that food-contact substances are regulated according to their intended use and that authorized uses can depend on the specific material and conditions of use.

Dairy and nutrition products

Nutrition powders, selected dairy products, and health food ingredients can be packed into suitable premade pouches. Powder behavior is the key point when selecting the dosing system.

Pharmaceutical and medical nutrition

Selected herbal granules, dietary powders, medical nutrition products, and other suitable products can use pouch packaging. The final machine configuration should be based on the required production environment, cleaning method, materials, validation needs, and applicable regulations.

Personal care and cosmetics

Liquid cleansers, shampoo, conditioner, gel, cream, and similar products can be packed into suitable pouches. A spout pouch can be useful where the customer wants controlled dispensing.

Pet food

Pet treats, dry products, powders, and selected semi-moist products can use stand-up or zipper pouches. Product particle size and feeding behavior should be considered when selecting the dosing system.

Seeds and agricultural products

Seeds and selected agricultural materials can be packed in flat or stand-up pouches. When chemicals are involved, I recommend checking pouch-material compatibility and the suitability of machine-contact parts before production.

Small hardware and components

Screws, clips, fittings, fasteners, and other small pieces can also be packaged in premade pouches. Depending on the product, the filling process may use counting, weighing, or controlled feeding.

These applications fit the broader direction of the packaging machinery industry. PMMI reported that U.S. packaging machinery sales reached $11.3 billion in 2024, with a 2.2% growth forecast for 2025. The same report points to automated changeovers, servo-driven systems, versatile machinery, and practical efficiency as important areas of development.

6. How I Build and Test the 280NG at Huapack

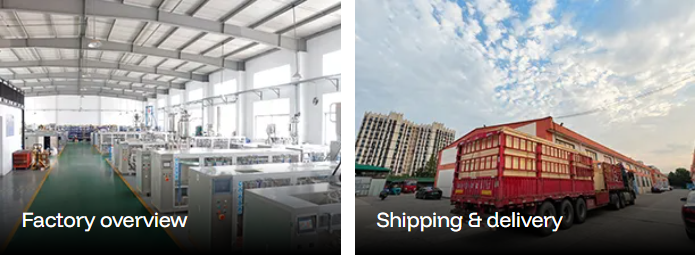

Our company is based in Songjiang District, Shanghai. Since 2015, we have concentrated on pouch packaging machinery and related automation solutions.

When I say “manufacturing,” I mean more than putting components together. I want to know whether the machine can perform the whole packaging cycle properly.

Our project process starts with the customer's actual production requirements. We examine:

• Product characteristics

• Pouch type and dimensions

• Pouch material

• Target filling weight

• Required output

• Required sealing method

• Need for vacuum or nitrogen flushing

• Coding requirements

• Upstream and downstream equipment

• Available factory space and line layout

After that, we select the machine configuration and filling system. The manufacturing stage includes mechanical assembly, electrical installation, PLC programming, servo adjustment, pouch-feeding setup, filling tests, sealing tests, and complete machine commissioning.

I pay particular attention to the sequence of operations. A problem at the beginning of the process usually creates another problem later.

If the pouch feeder picks bags inconsistently, the filling station cannot compensate for that. If the pouch does not open correctly, filling becomes unstable. If product reaches the seal area, even a well-adjusted sealing station can struggle.

So I prefer to test from the first station to the last rather than testing each machine section as an isolated component.

When customers can provide their actual product and empty pouches, we can use them for testing. This is especially valuable for products with unusual flow behavior or pouches with special structures.

For food packaging projects, I also remind customers that the packaging machine itself does not determine whether the final package meets food-contact regulations. FDA states that the regulatory status of a food-contact material depends on the individual substances that make up the material and their intended conditions of use.

That is why I separate machine performance from packaging-material compliance. Both need to be checked.

7. Why I Recommend Huapack for Your Pouch Packaging Project

There are many pouch packaging machine suppliers. For me, the real difference is not simply the machine body. It is the engineering support around the machine.

At Huapack, we focus specifically on pouch packaging. Our experience covers pouch feeding, filling, sealing, weighing, pouch-format changes, and complete line integration.

Some customers only need a standalone automatic premade pouch filling machine. Others need a complete system with product feeding, weighing, filling, nitrogen flushing, coding, inspection, conveying, cartoning, or other downstream processes.

We can work on both types of projects.

I also prefer to think about future production. If a customer plans to add more SKUs next year, the machine should not be selected only for today's single pouch size. If a customer expects to connect a Checkweigher or cartoner later, the current line layout should leave room for integration.

PMMI's latest research also points toward practical automation, easier operation, workforce challenges, flexible machinery, and aftermarket support as important industry concerns. In its 2025 report, PMMI specifically notes that buyers are looking for practical solutions that improve efficiency while dealing with labor and cost pressures.

That matches my own approach. I do not want to add technology simply because it sounds advanced. I want every function on the machine to solve a real production problem.

8. FAQ About the Premade Pouch Packaging Machine, 1-Nozzle Filling-280NG

What is a premade pouch packaging machine?

A premade pouch packaging machine uses finished pouches rather than roll film. It automatically picks the pouch, opens it, fills the product, seals it, and discharges the finished package.

What is the purpose of the automatic pouch feeder?

The automatic pouch feeder stores empty pouches and feeds them into the machine one by one. It reduces repetitive manual pouch placement and helps maintain a continuous packaging process.

What does “1-nozzle filling” mean?

It means the machine uses one filling nozzle to introduce the product into each pouch. The dosing technology connected to that nozzle can be selected according to the product, such as granules, powder, liquid, paste, or small pieces.

What pouch types can the 280NG handle?

The machine can be configured for stand-up pouches, zipper pouches, spout pouches, aluminum foil flat pouches, and other suitable premade pouch structures. Compatibility should be confirmed with actual pouch samples.

Can I pack powder with this machine?

Yes. Powder products can be packed when the correct powder dosing system is selected. Powder density, flowability, dust level, particle size, and target weight should be considered during configuration.

Can I pack liquid and paste products?

Yes. Liquid and paste products can be handled with suitable pumps and nozzles. Viscosity, foaming, temperature, particle content, and filling volume can affect the final configuration.

Can I use vacuum or nitrogen flushing?

Yes. Vacuum and nitrogen flushing can be integrated when required. The correct process depends on the product, pouch, headspace, required oxygen level, and sealing performance.

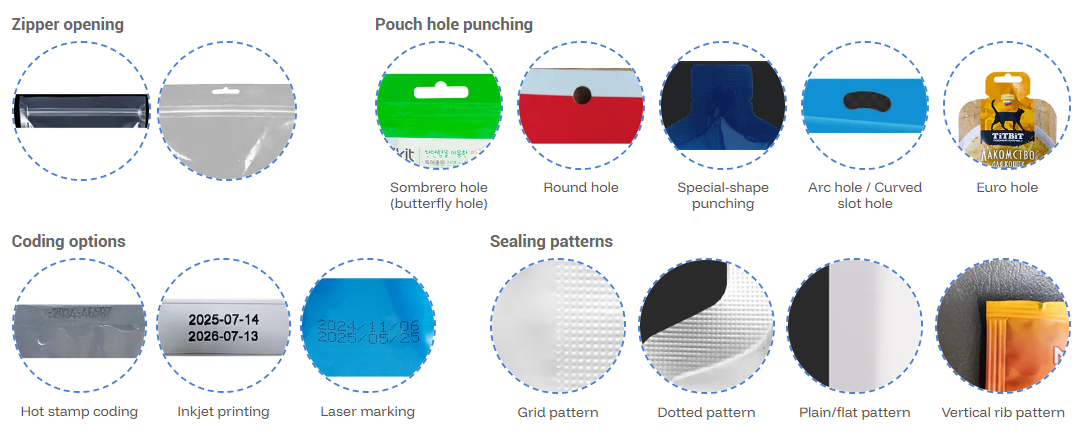

Can I add a date coder?

Yes. Coding equipment can be integrated to print production dates, expiry dates, batch numbers, or other required information.

Is the 280NG suitable for several SKUs?

Yes. The machine is designed with flexible pouch production in mind. Different pouch sizes and products may require different adjustments and filling configurations, so the actual changeover process should be confirmed for your specific SKUs.

Can Huapack provide a complete pouch packaging line?

Yes. We can provide standalone pouch packaging machines as well as complete lines involving feeding, weighing, filling, sealing, coding, conveying, inspection, cartoning, and other suitable equipment.

What should I provide when asking for a quotation?

I recommend sending the product name, product characteristics, filling weight, target capacity, pouch type, pouch dimensions, pouch material, required functions, and any existing equipment. If possible, send actual product and empty pouch samples. That allows us to make a much more useful recommendation.

Build the 280NG Around Your Real Production

The Premade Pouch Packaging Machine, 1-Nozzle Filling-280NG is designed for a straightforward production goal: take finished pouches and turn them into accurately filled, properly sealed products with less repetitive manual work.

Its automatic pouch feeding, PLC touchscreen control, servo-driven mechanisms, flexible pouch compatibility, one-nozzle filling configuration, optional vacuum or nitrogen functions, coding capability, and convenient format changes make it suitable for many flexible pouch applications.

But I do not believe there is one machine setting that works perfectly for every product. The best result comes from matching the pouch handling system and filling technology to the actual product.

That is why our approach at Huapack starts with your production rather than our catalog.

Send me your product details, pouch dimensions, filling weight, target output, and required functions. If you can provide empty pouches and product samples, even better. We can then evaluate the pouch feeding, opening, filling, sealing, and line-integration requirements and determine whether the 280NG is the right configuration for your project.

Reference sources: PMMI, State of the Industry 2025 and related 2025 packaging machinery market information; U.S. Food and Drug Administration, information on food-contact substances, food-contact materials, and conditions of use. These sources are used only for industry and regulatory context; actual machine performance and regulatory suitability must be confirmed for the specific product, pouch, and destination market.
