Premade Pouch Packaging Machine with Automatic Pouch Feeder

When I look at a pouch packaging project, I do not start with the machine speed. I start with the pouch, the product, and the way the customer actually produces today. A packaging machine can look impressive in a catalog, but if it picks two pouches at once, struggles to open a stiff bag, spills powder around the seal, or takes too long to change between SKUs, the machine is not doing its real job.

That is why I developed the Premade Pouch Packaging Machine with Automatic Pouch Feeder around a very practical idea: take finished printed pouches, feed them automatically, fill them accurately, seal them cleanly, and move the finished bags to the next process with as little manual work as possible.

Our machine is designed for manufacturers that use premade pouches rather than roll film. It can be configured for stand-up pouches, zipper pouches, spout pouches, aluminum foil flat pouches, and other suitable pouch structures. Depending on the product, I can also integrate filling, vacuum, nitrogen flushing, coding, conveying, and other functions.

At Shanghai Huacheng Packing Machinery Company, or Huapack, we have focused on pouch packaging machinery since our establishment in 2015. We combine R&D, manufacturing, sales, and technical service in Songjiang District, Shanghai. More importantly, we design the machine around the customer's actual product and production target rather than simply selling a standard box of mechanical parts.

1. Why an Automatic Pouch Feeder Matters More Than It Looks

The automatic pouch feeder is one of the most important parts of this packaging system. It may sound like a simple mechanism, but reliable pouch feeding is the first condition for reliable pouch packaging.

With manual loading, an operator has to take one pouch, place it in position, and repeat the action again and again. That creates a simple problem: people do not move exactly the same way every time. Pouch position can change, feeding speed can vary, and operator fatigue becomes a factor during a long shift.

Our automatic pouch feeder takes finished pouches from the pouch magazine and sends them into the packaging process in a controlled sequence. The machine then coordinates pouch pickup, transfer, opening, filling, sealing, and discharge.

This is especially useful when production runs for many hours or when the customer has several product SKUs to pack during the same day.

I also pay attention to the pouch itself. A premade pouch is not always an easy object to handle. Different film structures have different stiffness, friction, thickness, and surface properties. A zipper pouch behaves differently from a simple flat pouch. A spout pouch has a different center of gravity. A multilayer aluminum foil pouch may feel quite different from a soft laminated pouch.

So, when we receive a project, I prefer to test the actual pouches instead of making assumptions from a drawing alone.

Source: PMMI, State of the Industry 2024, which covers packaging machinery categories, automation investment, flexible packaging, and end-user applications.

For a brand using high-quality printed pouches, this difference is important. The artwork is already printed and the pouch is already formed. The packaging machine does not need to create the bag from roll film, so the production process is built around handling the finished package correctly.

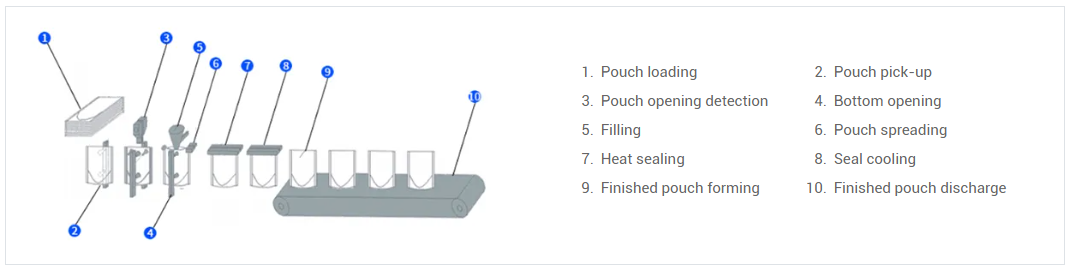

2. How Our Premade Pouch Packaging Machine Works

The complete process is quite easy to understand. I like explaining it this way because operators do not need a complicated engineering background to understand what the machine is doing.

Step 1: Pouch loading

The operator places a stack of empty premade pouches into the automatic pouch feeder. The magazine keeps the pouches organized and ready for feeding.

Step 2: Automatic pouch picking

The feeding mechanism picks a pouch and transfers it to the working station. The control system coordinates the movement so the pouch reaches the correct position before the next operation starts.

Step 3: Pouch opening

The machine opens the pouch mouth so the filling system can enter the bag. This sounds simple, but it is a critical step. If the pouch does not open properly, filling can become messy and the product may reach the sealing area.

Step 4: Product filling

The selected dosing system fills the product into the pouch. Different materials need different filling methods.

For example, I would not use exactly the same dosing system for free-flowing granules, fine powder, liquid sauce, thick cream, and irregular small parts. Product density, viscosity, particle size, flowability, and target weight all matter.

Step 5: Optional vacuum or nitrogen flushing

If the product requires reduced oxygen exposure or a particular atmosphere inside the pouch, we can add vacuum or nitrogen flushing. The correct method depends on the product and pouch structure.

Step 6: Heat sealing

After filling, the pouch moves to the sealing station. The sealing jaws apply the required heat and pressure to close the pouch mouth.

I always treat sealing as a complete process rather than simply setting a temperature. Seal performance depends on the pouch film, sealing layer, pressure, dwell time, temperature, and whether product has contaminated the seal area.

Step 7: Coding and discharge

Date coding, batch coding, or other marking systems can be integrated according to the project. The finished pouch is then discharged to a conveyor or the next machine.

In this way, the automatic premade pouch packing machine creates a continuous process from empty pouch to finished package.

3. The Features I Consider Most Important in Real Production

A good packaging machine should make daily work easier. That sounds obvious, but it is easy to forget when comparing machines by specifications alone.

PLC touchscreen control

Our machine uses a PLC-based control system with a touchscreen interface. The operator can monitor machine operation and adjust relevant settings through the control panel.

For a production operator, I want the controls to be clear enough that normal adjustments do not require an engineer standing beside the machine all day.

Servo-driven movement

Multiple servo mechanisms help coordinate the machine's different movements. Servo control allows accurate positioning and timing between pouch feeding, transfer, opening, filling, and sealing.

This becomes particularly useful when the machine is running different pouch sizes or when several movements must happen in a precise sequence.

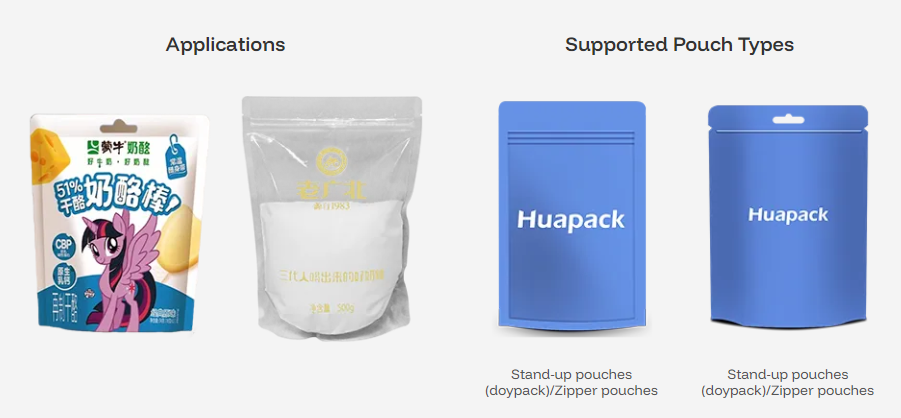

Multiple pouch formats

The system can be configured for several common pouch types:

• Stand-up pouches

• Zipper pouches

• Spout pouches

• Aluminum foil flat pouches

• Other suitable customized premade pouch structures

I do not recommend promising compatibility with every pouch simply because the pouch looks similar. Pouch dimensions, opening style, film stiffness, zipper position, spout design, and material structure can all affect feeding and opening. Sample testing is the safer way to confirm compatibility.

Flexible filling options

The machine can be matched with different filling technologies for powders, granules, liquids, pastes, and selected block or piece products.

This is one reason I prefer to discuss the product before quoting the machine. The packaging system should be built around the product instead of forcing the product into a fixed filling method.

Convenient SKU changeover

Modern factories often produce several SKUs on the same line. A machine that works well for one pouch but takes a long time to change to another can become a bottleneck.

Our machine is designed with flexible production in mind. The exact changeover steps depend on pouch size and machine configuration, but the objective is to make format adjustment straightforward and repeatable.

Source: Engineering factors summarized from packaging-machine practice and PMMI's State of the Industry 2024 research, which identifies automation, flexibility, quality, sanitation, and lifecycle support as important areas for packaging operations.

4. Choosing the Right Filling Method for Your Product

When a customer tells me, “I need a pouch packing machine,” I usually ask what is going inside the pouch before talking about the filling system.

That is because product behavior controls the filling process.

Source: Product/filling categories are presented as engineering application examples for pouch packaging; the final dosing method must be confirmed through product testing.

For example, nuts are usually free-flowing but have irregular shapes. Powder may create dust during filling. A thick cream can hold onto the nozzle after filling. A liquid may foam if it is handled too aggressively.

These are not small details. They can affect filling accuracy, cleanliness, production speed, and seal quality.

That is why our engineering process starts with the actual material. If possible, I prefer to receive product samples and empty pouches before finalizing the machine configuration.

5. Where I See This Machine Working Best

The premade pouch packaging machine with automatic pouch feeder is useful across a wide range of industries because the pouch itself can be customized for different products and brand positions.

Food and snack packaging

Food manufacturers can use the machine for nuts, seeds, snacks, seasonings, sauces, dried foods, and similar products. A zipper stand-up pouch can provide convenient resealing, while a flat pouch can be used where a compact format is preferred.

Dairy and nutrition

Nutrition powders, selected dairy products, and health food ingredients can be packed into suitable premade pouches. For powder applications, the filling system needs to match the powder's density and flow behavior.

Pharmaceutical and health products

Selected herbal granules, dietary powders, and other suitable health products can use premade pouch packaging. For pharmaceutical production, the machine configuration must be matched to the customer's hygiene, cleanability, validation, and regulatory requirements.

Personal care and cosmetics

Shampoo, conditioner, liquid cleanser, gel, cream, and other personal-care products can be packed in suitable pouches. Spout pouches are particularly useful when the consumer needs to pour or dispense the product.

Pet food

Pet treats, dry food, powders, and other suitable pet products can be packed using zipper and stand-up pouches. The feeding system should be selected according to product size and flow characteristics.

Seeds and agrochemical products

Seeds and selected agricultural products can be packed in suitable premade bags. For agrochemicals, I recommend checking chemical compatibility of the pouch material and machine-contact parts before production.

Small hardware

Screws, fittings, clips, accessories, and other small components can also be packed into pouches. Depending on the product, counting or weighing may be used as the dosing method.

The wider packaging market is moving toward more automation and line upgrades. PMMI reported that U.S. packaging machinery shipments reached $10.9 billion in 2023, up 5.8% from 2022, while its 2025 report continues to track automation, machinery shipments, imports, exports, parts, and services. These figures do not represent the market for this specific machine, but they show why automated packaging equipment remains an active investment area.

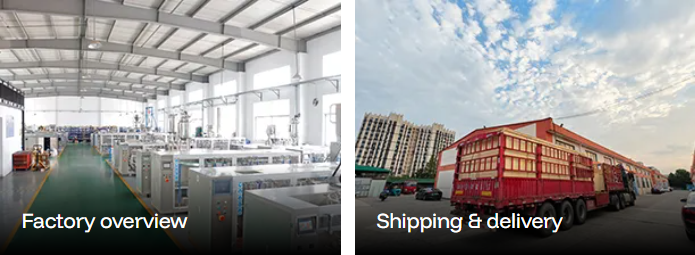

6. How We Build and Test the Machine at Huapack

We are based in Songjiang District, Shanghai, and our operation brings R&D, manufacturing, sales, and technical service together. Since 2015, our focus has been pouch packaging machinery.

From my perspective, manufacturing quality is not just about whether the machine can be assembled. It is about whether the complete system behaves properly after assembly.

Our work begins with understanding the customer's packaging requirement. We look at the pouch type, pouch dimensions, product characteristics, target weight, production capacity, and required functions.

Then we select the suitable machine configuration and filling solution. Mechanical assembly, electrical installation, PLC programming, servo setup, pouch feeding adjustment, filling tests, and sealing tests follow.

During commissioning, I pay particular attention to the first few steps of the process. If pouch feeding is unstable, there is no point trying to optimize filling speed. If the pouch does not open properly, filling accuracy will not solve the problem. If product reaches the sealing area, even a well-designed sealing station can struggle.

So we work through the process from the beginning.

Whenever possible, we test using the customer's actual pouches and product. This helps us identify practical issues that are difficult to see from drawings or product photographs.

For food applications, customers should also evaluate the pouch material separately for the intended product and market. The FDA explains that food-contact substances are regulated according to their intended use and that the regulatory status of a food-contact material depends on the substances used to make it. In other words, choosing a packaging machine does not by itself establish regulatory compliance for the final package.

That distinction is important, and I would rather explain it clearly than make an overly broad compliance claim.

7. Why Work With Us for an Automatic Premade Pouch Packaging Line?

I do not think buying a packaging machine should end when the machine leaves the factory.

A customer may start with one automatic pouch packaging machine and later need a weighing system, feeder, nitrogen flushing unit, date coder, metal detector, Checkweigher, conveyor, cartoner, or other downstream equipment. If the first machine was never designed with those future requirements in mind, expansion can become difficult.

That is why we approach pouch packaging as a system.

At Huapack, we can provide standalone pouch packaging machines as well as more complex packaging lines and turnkey projects. We can work around the product characteristics, pouch format, capacity requirement, and available factory space.

Our focus on pouch packaging also gives us a practical advantage: we spend our engineering effort on the problems that matter to pouch production—feeding, opening, filling, sealing, format changes, and line integration.

PMMI's recent industry research identifies automation and digital tools, workforce and aftermarket service, sustainable materials and regulatory alignment, and quality and sanitation among the major focus areas for packaging machinery users and suppliers. That matches what we see in real projects: customers want a machine that can run today, but they also want support when production changes later.

For us, technical service is therefore part of the machine solution, not an afterthought.

8. FAQ: Premade Pouch Packaging Machine with Automatic Pouch Feeder

What is a premade pouch packaging machine?

It is an automatic packaging machine that uses finished pouches instead of roll film. The machine feeds the pouch, opens it, fills the product, seals it, and discharges the finished package.

What does the automatic pouch feeder do?

The automatic pouch feeder stores and picks empty premade pouches, then transfers them into the packaging process in sequence. It reduces repetitive manual pouch placement and helps create a continuous automatic workflow.

What pouch types can the machine handle?

Depending on the machine configuration and testing results, it can handle stand-up pouches, zipper pouches, spout pouches, aluminum foil flat pouches, and other suitable premade pouch structures.

Can I use different pouch sizes?

Yes. The machine can be configured for different pouch specifications, and the appropriate changeover procedure depends on the pouch dimensions and machine configuration. I recommend testing every important pouch format before placing a final order.

What products can be packed?

The machine can be matched with suitable filling systems for granules, powders, liquids, pastes, and selected small-piece products. The filling method should be selected based on actual product behavior.

Can I add nitrogen flushing?

Yes. Nitrogen flushing can be integrated when the product and pouch require it. The correct gas flow, flushing method, headspace, pouch structure, and sealing process should be confirmed through testing.

Can I add vacuum packaging?

Yes. A vacuum function can be included when appropriate. The final result depends on the pouch material, product, required residual air level, and sealing process.

Can the machine print production information?

Yes. Coding equipment can be integrated for information such as production dates, expiry dates, batch numbers, or other required marks.

Is the machine suitable for food packaging?

Yes, the machine can be configured for food pouch applications. However, food-contact compliance depends on the materials and components used in the complete packaging system and the destination-market requirements. The FDA provides specific guidance and databases for food-contact substances and their intended uses.

How do I know whether this machine is suitable for my product?

Send us the product details, pouch type, pouch dimensions, target filling weight, required output, and any special requirements. If possible, send product samples and empty pouches. We can then evaluate the feeding, filling, opening, and sealing process before confirming the configuration.

Let Us Build the Pouch Process Around Your Product

I see the Premade Pouch Packaging Machine with Automatic Pouch Feeder as more than a bag-filling machine. It is the center of a packaging process that connects pouch feeding, opening, filling, sealing, coding, conveying, and potentially the rest of the production line.

For a company using printed premade pouches, this approach offers a practical way to automate repetitive packaging work while keeping the flexibility needed for multiple pouch styles and SKUs.

Our job at Huapack is to make that process fit your real production conditions. If you are packing nuts, powder, sauce, cream, pet food, nutrition products, seeds, small hardware, or another suitable product, I recommend starting with the product and pouch rather than starting with a machine specification sheet.

Send me your product information, pouch sample or dimensions, filling weight, target capacity, and required functions. From there, we can evaluate the automatic pouch feeder, filling method, pouch handling, sealing configuration, optional functions, and whether you need a standalone machine or a complete pouch packaging line.

Source references for the comparative information in this page: PMMI, State of the Industry 2024 and State of the Industry 2025; U.S. Food and Drug Administration, Food Packaging & Other Substances that Come in Contact with Food, Determining the Regulatory Status of Components of a Food Contact Material, and Food Types & Conditions of Use for Food Contact Substances.
