1. How I Approach Zipper Stand-Up Pouch Packaging

A good packaging machine should solve a production problem, not create another one. In my experience, the first questions are quite practical: What product are we filling? What pouch size is required? Is the product a sauce, snack, powder, liquid, or another material? What film structure will be used? How important is zipper performance? And how many bags does the customer need to produce each day?

The Zipper Stand-Up Pouch HFFS Packaging Machine is designed around this type of production thinking. Instead of loading finished pouches, the machine starts with a roll of flexible packaging film. The film moves through the machine horizontally, where it is formed into the required pouch structure before filling and sealing.

The 130SZ, 180SZ, 240SZ and 280SZ configurations provide different equipment options for production projects. I would normally select the final configuration after checking the required pouch dimensions, filling volume, film structure, product behavior, and target output. This is important because a machine should not be selected simply because a number looks attractive on a specification sheet.

The machine is especially useful when a manufacturer wants a clean, repeatable way to produce zipper stand-up pouches from rollstock. The stand-up format gives the finished package a stable base, while the zipper gives consumers a convenient way to open and close the package.

Source: Equipment characteristics are based on the machine configuration supplied for this product. Packaging seal performance should be validated with the actual film and product. ASTM F88/F88M-23 describes seal-strength testing for flexible barrier materials and identifies seal strength as a useful measure for process validation and control. ASTM International.

2. How the Zipper Stand-Up Pouch HFFS Machine Works

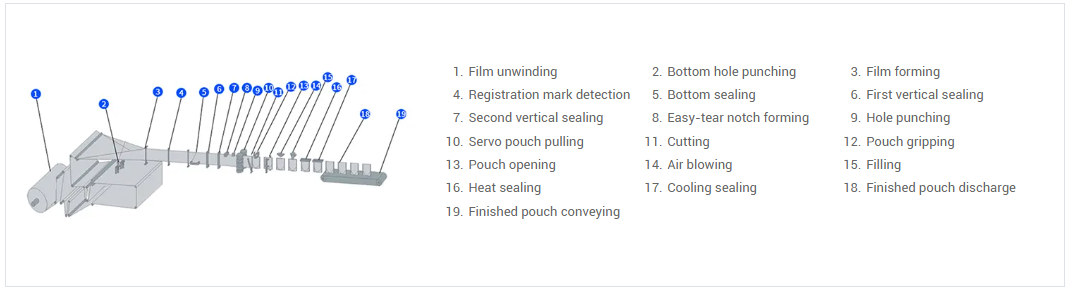

The working process is easier to understand than it may sound. I usually explain it as a series of simple steps: film feeding, pouch forming, zipper positioning, filling, heat sealing, cutting, and finished pouch discharge.

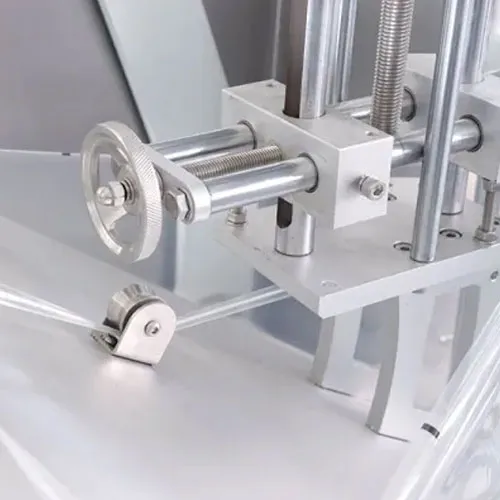

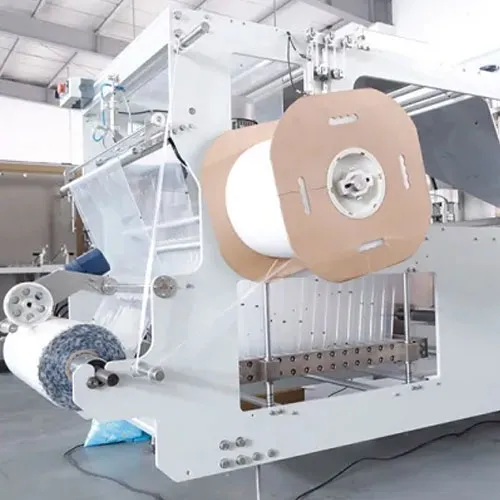

First, the rollstock film is installed on the film feeding section. The film is then guided through the machine at a controlled speed. Accurate film movement is important because even a small position error can affect the pouch shape, printed pattern alignment, zipper location, or sealing area.

Next comes pouch forming. The machine changes the flat film into the required pouch structure. For a stand-up pouch, the bottom construction is especially important because it helps the finished package remain upright after filling.

The zipper is another key part of the process. A zipper pouch is not simply a normal pouch with a zipper added afterward. The zipper needs to be positioned correctly and integrated into the packaging structure so that it can work properly after sealing and cutting.

Once the pouch is ready for filling, the single filling nozzle introduces the product into the pouch. The filling system can be matched to the product being handled. Depending on the material, different dosing methods may be considered for liquids, sauces, pastes, powders, or other products.

After filling, the machine completes the heat-sealing process. The sealing temperature, pressure, and contact time need to work together. I never recommend choosing sealing parameters by machine settings alone. The actual film structure, thickness, sealant layer, product contamination, and production speed all affect the final result.

Finally, the pouch is cut and discharged. The result is a finished zipper stand-up pouch that can move to inspection, coding, secondary packaging, or another downstream process.

Source: Process stages are based on the supplied HFFS machine configuration. Seal-strength evaluation principles are referenced from ASTM F88/F88M-23. ASTM notes that seal strength can be used for process validation, capability, and control.

3. What I Like About the Machine: Practical Features That Matter

The biggest advantage of this machine is that it combines several packaging steps into one automated system. For a factory, that means fewer manual handling points and a more organized production flow.

Rollstock Film Instead of Premade Bags

The machine starts from rollstock rather than requiring operators to load individual premade pouches. This is useful for continuous production because the packaging material can be fed directly into the forming section.

Stand-Up Pouch Format

Stand-up pouches are popular because they are easy to display and convenient to handle. For many food, household, personal care, and industrial products, the format gives manufacturers a good balance between appearance, function, and packaging efficiency.

Integrated Zipper Packaging

The zipper provides a resealable feature that can be useful for products consumed over several occasions. Snacks, dry foods, powders, and some household products can benefit from this type of package.

Single-Nozzle Filling

The 1-nozzle filling arrangement is designed for applications where one filling point is appropriate. This keeps the filling layout straightforward and can make operation easier for products that do not require multiple dosing streams.

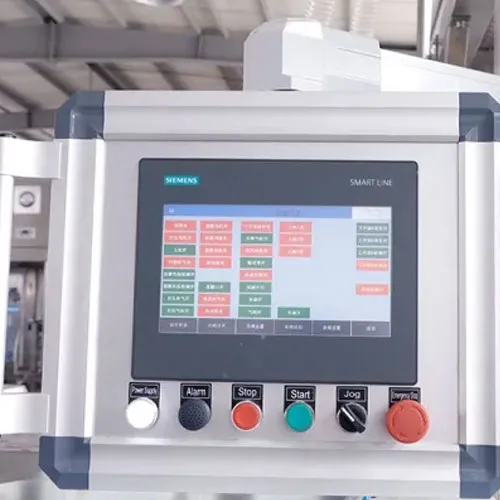

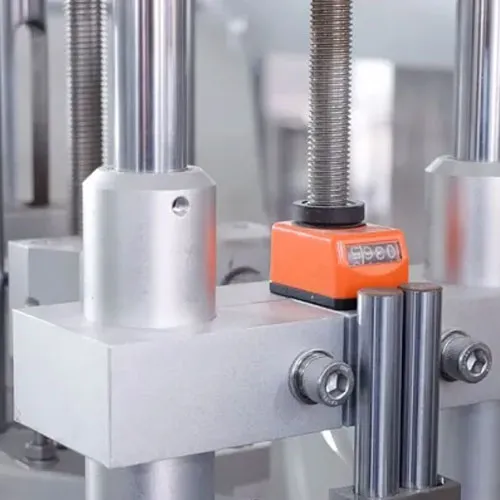

Digital and Adjustable Operation

I also focus on adjustability because real factories rarely run just one product forever. Pouch dimensions, filling amounts, film materials, and production requirements can change. A flexible control system makes those changes easier to manage.

Optional Functions

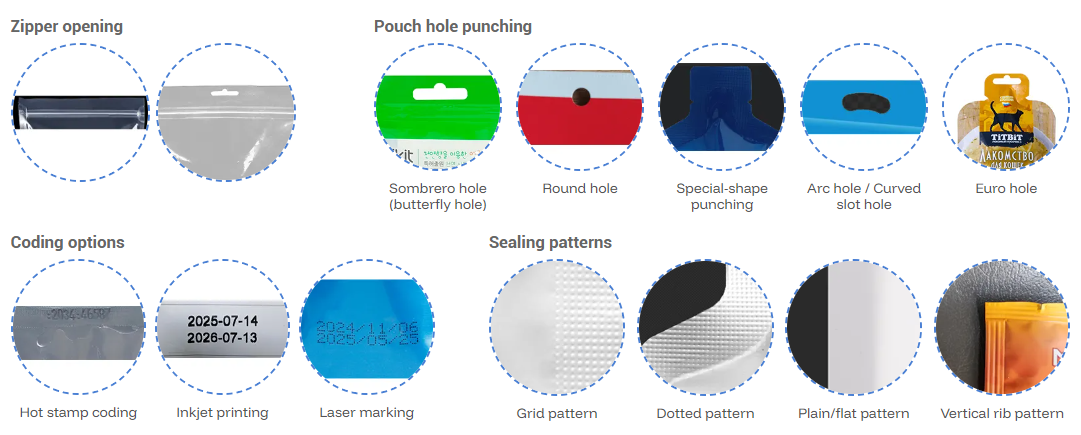

Depending on the project, the packaging system can be developed with additional functions such as coding, film registration, exhaust arrangements, or connection to upstream and downstream equipment. The exact configuration should be confirmed according to the final packaging process rather than added simply for the sake of having more features.

4. Film Selection and Sealing: Where Real Packaging Quality Starts

In my view, one of the most important parts of a pouch packaging project is often overlooked: the relationship between the machine and the packaging film.

The machine can be well built, but if the film structure is not suitable for the product or sealing process, the final package may still have problems. Depending on the product, customers may consider PE-based structures, laminated films, metallized films, aluminum-containing laminates, or other flexible packaging structures.

Source: ASTM International maintains a range of flexible packaging standards covering seal strength, thickness, hot tack, barrier performance, leak testing, and related properties. See ASTM Committee F02 materials and standards. ASTM packaging standards.

Seal quality is not something I judge only by looking at the finished pouch. A pouch may look perfect but still have insufficient seal strength. On the other hand, an unnecessarily strong seal may make opening difficult for the consumer. ASTM F88/F88M-23 specifically recognizes seal strength as a measurable characteristic related to package integrity and process control. :contentReference[oaicite:0]{index=0}

That is why I recommend testing actual production samples. We can adjust the machine according to the real film, product, pouch dimensions, and required production conditions instead of relying on theoretical settings.

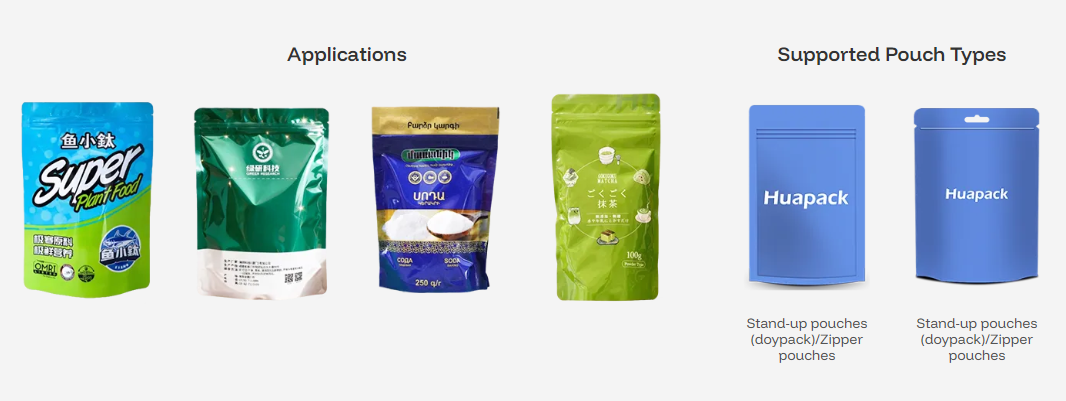

5. Where I Would Use This Zipper Stand-Up Pouch Packaging Machine

The machine is suitable for many products because the filling section can be matched to different materials. Still, every product has its own behavior, so I prefer to evaluate the material before confirming the final configuration.

Food and Snack Packaging

Zipper stand-up pouches are a natural fit for snacks, nuts, dried foods, grains, seasoning products, and similar goods. The resealable feature can be useful when consumers do not use the entire package in one sitting.

Sauces and Liquid Products

With an appropriate filling system, the packaging concept can also be considered for sauces, liquid food products, and other fluid materials. In these applications, the filling nozzle and product-contact components need to be selected carefully to reduce dripping and contamination around the seal.

Daily Chemical Products

Household and personal care products can also use flexible stand-up packaging. Examples may include cleaning products, selected washing products, and other liquid or powder materials where flexible packaging makes sense.

Industrial and Agricultural Products

Depending on the material and packaging regulations, flexible pouches can also be used for agricultural products, industrial powders, additives, small materials, and other non-food goods. For chemical products, compatibility between the product and the packaging material must always be confirmed before production.

Source: Application examples are based on Huapack's stated pouch packaging applications and should be confirmed against the customer's specific product, packaging material, and regulatory requirements.

6. How I Build the Machine Around a Real Production Line

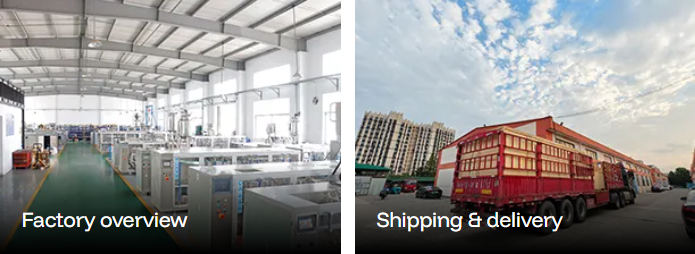

At Shanghai Huacheng Packing Machinery Company, also known as Huapack, we have been focused on pouch packaging machinery since our establishment in 2015. Our work covers research and development, manufacturing, sales, and technical service.

I believe this matters because packaging equipment should not be treated as an isolated machine. A customer may already have a weighing system, conveyor, metal detector, Checkweigher, coding machine, carton packing machine, or other equipment. The new HFFS machine needs to fit into that production environment.

For the Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling-130SZ/180SZ/240SZ/280SZ, I would start with the product and packaging requirements. From there, we can determine the pouch structure, film characteristics, filling method, sealing requirements, coding needs, and line connection points.

Our manufacturing process focuses on mechanical structure, electrical control, filling integration, film handling, sealing, and final machine testing. Before delivery, the machine should be checked against the agreed production requirements. For customers with special products, sample testing is particularly useful because it allows us to see how the actual material behaves.

We can also support projects beyond a single packaging machine. Huapack develops complete pouch packaging lines and turnkey projects when the application calls for them. This allows us to work from pouch handling and filling through final sealing and downstream packaging.

I prefer this approach because it gives the customer one clear technical direction instead of forcing different suppliers to solve separate parts of the same packaging problem.

7. Why I Recommend This HFFS Solution for the Right Application

I would not say that one packaging machine is perfect for every factory. That would not be realistic. What I can say is that this zipper stand-up pouch HFFS packaging machine is a strong option when the production goal is to make resealable stand-up pouches continuously from rollstock.

• Continuous rollstock operation: the machine forms pouches directly from packaging film.

• Integrated packaging process: forming, filling, sealing, and cutting are combined into one production flow.

• Zipper pouch capability: designed around the popular resealable stand-up pouch format.

• 1-nozzle filling: suitable for single-product filling applications with an appropriate dosing system.

• Flexible material selection: can be developed around suitable PE, laminated, aluminum-containing, or other film structures.

• Adjustable operation: pouch and process parameters can be configured according to the actual production requirement.

• Line integration: can be designed to connect with upstream and downstream equipment.

• Wide application range: suitable for selected food, household, agricultural, and industrial products.

Most importantly, I do not treat the machine model number as the end of the discussion. The correct solution comes from matching the machine to the product, pouch, film, filling system, and production target.

That is also why we can provide customized pouch packaging machinery rather than only standard equipment. Our goal is to help customers build a packaging system that is stable today and can still make sense when production requirements change later.

8. FAQ: Zipper Stand-Up Pouch HFFS Packaging Machine

Q1. What is a zipper stand-up pouch HFFS packaging machine?

It is a horizontal form fill seal packaging machine designed to produce stand-up pouches from rollstock film. For this configuration, the process includes pouch forming, zipper integration, filling through one nozzle, heat sealing, cutting, and finished pouch discharge.

Q2. Does this machine use premade pouches?

No. The machine is designed for rollstock operation. It forms the pouch during the packaging process, so operators do not need to feed individual finished pouches into the main packaging cycle.

Q3. What products can be packed?

Depending on the filling system, the machine can be used for products such as snacks, nuts, grains, seasonings, sauces, powders, household products, agricultural materials, and selected industrial products. We recommend testing the actual product before final equipment selection.

Q4. Can the machine handle different pouch sizes?

The machine can be configured and adjusted for different pouch requirements within its designed working range. The exact pouch dimensions should be confirmed with us before ordering because pouch size, zipper structure, film width, and filling volume all affect the final configuration.

Q5. What packaging films can be used?

Suitable film structures may include PE-based films, laminated flexible films, metallized structures, and aluminum-containing laminates, depending on the product and packaging requirements. We need to check the actual film structure before confirming sealing parameters.

Q6. How do you check sealing quality?

We recommend checking both appearance and measurable seal performance. ASTM F88/F88M is one recognized method for measuring seal strength of flexible barrier materials. The actual acceptance criteria should be defined according to the package, product, film, and application. :contentReference[oaicite:1]{index=1}

Q7. Can the machine be connected to a complete packaging line?

Yes. Huapack develops pouch packaging lines as well as individual machines. Depending on the project, the HFFS machine can be integrated with weighing, conveying, coding, inspection, secondary packaging, and other equipment.

Q8. Why should I test my product before purchasing?

Because products behave differently. Powders can create dust, sauces can drip, sticky products can affect sealing, and fragile products may need gentle handling. A product test helps us select the filling method and machine settings based on real production conditions rather than assumptions.

Q9. What information should I provide for a quotation?

I normally recommend providing the product name, product characteristics, filling weight or volume, pouch dimensions, pouch drawing or sample, film structure, desired zipper type, expected production capacity, and any existing upstream or downstream equipment. With this information, we can evaluate the machine configuration more accurately.

Q10. Can you provide a complete turnkey solution?

Yes. Huapack can provide more than a standalone pouch packaging machine. We can develop complete packaging systems according to product characteristics, pouch format, capacity, and factory requirements, including integration with related equipment where required.

Final Thoughts from My Packaging Engineering Perspective

The Zipper Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling-130SZ/180SZ/240SZ/280SZ is built for manufacturers who want to produce resealable stand-up pouches directly from rollstock. Its value comes from combining pouch forming, filling, heat sealing, and cutting into one organized production process.

But the machine itself is only one part of successful pouch packaging. Film selection, zipper design, filling behavior, seal temperature, product characteristics, pouch dimensions, and production targets all need to work together. That is the approach I take when developing a packaging solution.

At Huapack, I work with customers to understand the real production requirement first and then build the equipment configuration around it. Whether the project needs one HFFS machine or a complete automated pouch packaging line, our focus remains the same: stable operation, practical automation, consistent packaging quality, and a solution that makes sense for the customer's actual factory.
