1. Why I Developed This Spouted Stand-Up Pouch Packaging Machine

When I work on a pouch packaging project, I do not look at the machine alone. I start with the product, pouch material, filling volume, pouch shape, production target, and the way the package will be used after it leaves the factory. This approach is especially important for a Spouted Stand-Up Pouch HFFS Packaging Machine, because a spouted pouch has more parts to control than a simple flat pouch.

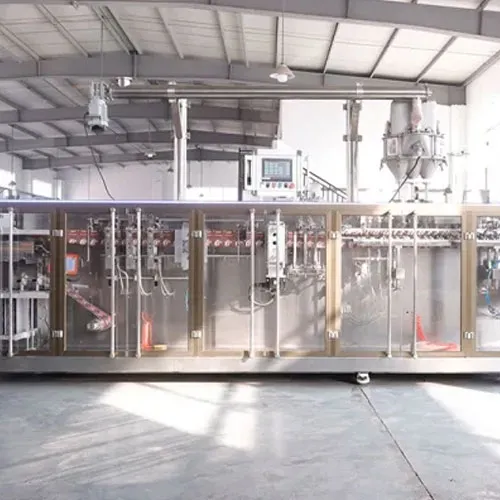

Our Spouted Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling – 240SDP/280SDP/330SDP combines horizontal film forming, product filling, spout pouch processing, heat sealing, cutting, and finished-pouch discharge in one automated system. I designed the machine around the needs of manufacturers that want flexible pouch production without giving up stable operation.

The 240SDP, 280SDP, and 330SDP configurations are intended for different production and pouch-size requirements. The final working range depends on the pouch dimensions, film construction, product characteristics, filling quantity, and selected configuration. For this reason, I always recommend checking the actual pouch sample and product before confirming a machine model.

The two-nozzle filling system is another important part of the design. It gives me more flexibility when setting up liquid or paste filling applications. Depending on the material, the filling system can be configured to suit products such as sauces, beverages, detergents, nutritional liquids, and other compatible fluid materials.

At Shanghai Huacheng Packing Machinery Company (Huapack), our main focus is pouch packaging machinery. We have been developing and manufacturing pouch packaging equipment since 2015, covering pouch forming, filling, sealing, weighing, handling, and complete line integration.

In practical terms, I see this machine as more than a filler. It is a complete pouch-making and filling platform. The film enters as rollstock, the pouch is formed, the spout structure is processed, the product is filled, the pouch is sealed, and the finished package is discharged automatically.

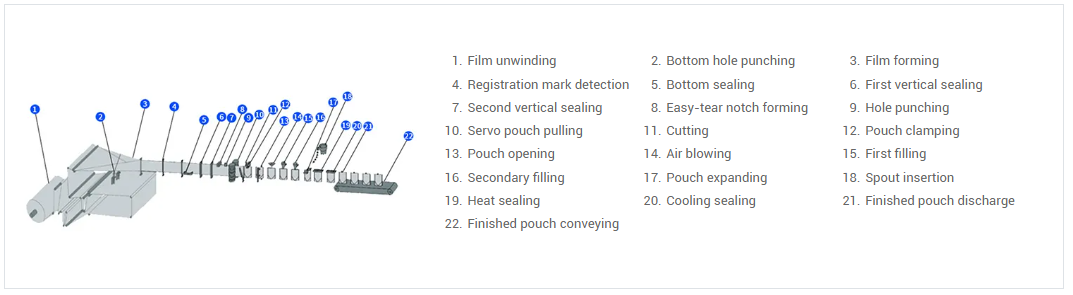

2. How the Spouted Pouch HFFS Packaging Process Works

The basic process is straightforward, but each step needs to be controlled carefully. The machine starts with rollstock packaging film. The film is guided into the forming section, where its movement and position are controlled before the pouch is created.

For a spouted stand-up pouch, the spout area requires accurate positioning. The pouch material, spout, filling position, and sealing area all need to match. If the pouch is not positioned correctly, even a good filling system cannot produce a consistently attractive package.

Once the pouch structure is prepared, the filling stage begins. The two filling nozzles deliver the required amount of product into the pouch. For liquid products, I pay particular attention to flow behavior, foaming, dripping, and the position of the filling nozzle. These details directly affect cleanliness and sealing quality.

After filling, the pouch passes through the heat-sealing process. The sealing system creates a tight seal around the package. Temperature, pressure, and sealing time need to be adjusted according to the actual film structure. I never recommend using the same sealing settings for every packaging material.

The final stage is cutting and discharge. Once the pouch has passed the required sealing process, the finished pouch is separated and transferred to the next stage. Depending on the production line, conveying, coding, inspection, or other equipment can be added.

Source: Huapack product engineering information supplied for the 240SDP/280SDP/330SDP product family. Actual machine configuration and process sequence may vary according to pouch structure and filling requirements.

3. Main Features I Focus On During Machine Design

Servo-Controlled Machine Movement

Servo-driven movement gives me more precise control over film feeding, pouch positioning, and machine timing. Operators can adjust important parameters digitally, which makes it easier to handle different pouch specifications.

For a manufacturer running several pouch sizes, this matters. Instead of relying heavily on manual adjustment, the operator can use programmed parameters as part of the changeover process.

Horizontal Form Fill Seal Layout

The horizontal structure provides a controlled path for the packaging film. It is suitable for applications where accurate film movement, pouch forming, filling, and sealing need to happen in a continuous sequence.

Two-Nozzle Filling System

The two-nozzle filling configuration is designed for suitable liquid and paste applications. It can help support production efficiency while maintaining controlled filling. The exact filling method should always be selected according to viscosity, density, foaming, temperature, and filling volume.

Adjustable Pouch Parameters

Different products often require different pouch sizes and filling quantities. I therefore design the machine with adjustable operating parameters so customers can make practical changes during production.

Reliable Heat Sealing

A pouch is only useful if it stays sealed. The heat-sealing system therefore receives special attention during machine commissioning. The correct combination of temperature, pressure, and dwell time depends on the packaging film.

Optional Functions

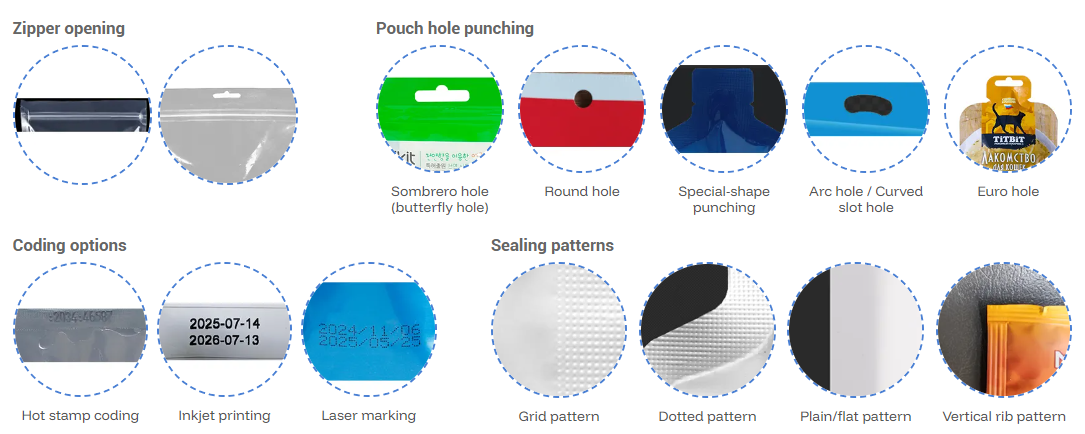

Depending on the production requirement, the machine can be considered for additional functions such as coding, punching, air removal, conveying, inspection, and integration with upstream or downstream equipment.

4. What Makes a Spouted Stand-Up Pouch Different?

A spouted stand-up pouch combines two useful features: the package can stand upright, and the spout provides a convenient way to pour or dispense the product.

For consumers, this can make liquid products easier to use. For manufacturers, however, the package introduces several extra production points that must be controlled. The spout position, pouch shape, filling point, seal area, and package strength all need to work together.

This is why I treat spouted pouch packaging as a complete packaging process rather than simply adding a filling nozzle to an ordinary pouch machine.

Source: Huapack packaging-format classification based on the pouch applications supplied for this product family. Final suitability depends on pouch material, product characteristics, and machine configuration.

For liquid and semi-liquid products, the spouted format can be especially practical. Products such as sauces, honey, liquid nutrition products, detergents, cleaning liquids, and certain personal care products can benefit from this package style when the filling system and pouch material are correctly selected.

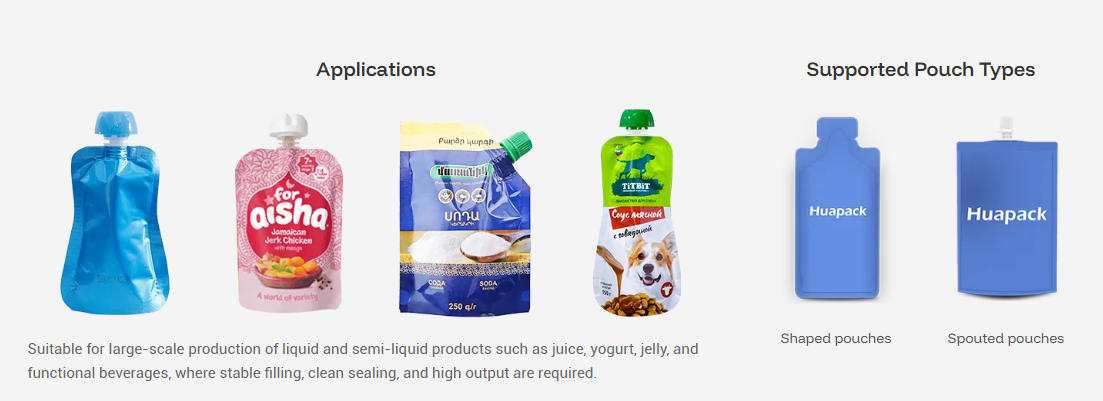

5. Applications Across Food, Household, Personal Care and Industrial Products

I designed this automatic spouted pouch packaging machine for a wide range of compatible products. Food packaging is one of the most common application areas.

For food manufacturers, the machine can be configured for products such as sauces, juice, honey, yogurt-type products, liquid seasonings, and other suitable fluid or semi-fluid foods. The exact filling system depends on the product's flow characteristics.

In the household chemical sector, spouted pouches can be used for compatible detergents, cleaning liquids, and other fluid products. The pouch format can reduce the need for rigid containers while offering a convenient dispensing method.

Personal care manufacturers may also use this type of packaging for suitable shampoos, conditioners, liquid cleansers, creams, and other products. Here, viscosity and foaming behavior become important when selecting the filling system.

For agriculture and industrial products, the machine can also be considered for compatible liquid fertilizers, agricultural nutrients, lubricants, pigment slurries, and other fluid materials.

Source: Huapack application engineering information supplied with the product brief. Actual product compatibility must be verified through product, film, filling, and sealing tests.

I always recommend testing the real product. A thin liquid, thick sauce, foaming detergent, and high-viscosity cream may all look like “liquid products” on paper, but they behave very differently inside a filling system.

6. How I Manufacture and Commission the Machine

At Huapack, our work covers research and development, manufacturing, sales, and technical service. When we build a pouch packaging machine, I pay attention to both the individual components and the way the complete system behaves.

The film path is checked for stable movement. Forming components are matched with the required pouch structure. Filling nozzles are positioned according to the pouch and product. Sealing parts are adjusted according to the film construction.

During commissioning, I do not only check whether the machine starts and stops. I look at the actual finished pouch. Is the pouch shape correct? Is the spout positioned properly? Is there product around the seal? Is the filling volume consistent? Does the seal remain stable during continuous operation?

These checks help us identify problems before the equipment enters the customer's production environment.

We also consider how the machine will connect with other equipment. A pouch packaging system may include product preparation, storage, pumping, filling, pouch handling, coding, inspection, conveying, and final packing. When required, our engineering team can design a complete packaging line rather than supplying only one machine.

This is particularly useful for customers who are expanding production. A machine should solve today's packaging requirement while leaving reasonable room for future automation.

7. Why I Recommend Huapack for Custom Pouch Packaging Projects

Shanghai Huacheng Packing Machinery Company was established in 2015 and is based in Songjiang District, Shanghai. Our business is focused on pouch packaging machinery, which allows us to build experience around a relatively clear technical field instead of trying to cover every type of packaging equipment.

Our experience includes different pouch formats, filling methods, sealing systems, weighing equipment, pouch handling, and complete packaging-line integration.

For me, one of the biggest advantages is the ability to look at the complete production process. A customer may come to us asking for a spouted stand-up pouch HFFS machine, but the real requirement could involve product feeding, liquid storage, pumping, filling, coding, inspection, conveying, and final carton packing.

In such cases, I prefer to understand the complete process before recommending equipment. This helps avoid a common problem in packaging projects: buying a machine that works on its own but does not fit well with the rest of the production line.

We can also develop functional customization according to product characteristics, pouch formats, and production capacity. Options are selected based on actual requirements rather than simply adding features for the sake of a longer specification list.

For overseas customers, our goal is to provide practical technical support from machine selection through commissioning and production. We understand that the machine needs to be useful on the factory floor, not just look good in a quotation.

8. FAQ: Spouted Stand-Up Pouch HFFS Packaging Machine

What does HFFS mean?

HFFS stands for Horizontal Form Fill Seal. The machine forms pouches from rollstock film, fills the product, seals the package, and cuts the finished pouch in a horizontal process.

What products can this spouted pouch packaging machine fill?

The machine can be configured for suitable liquid and paste products. Examples may include sauces, juice, honey, detergents, liquid nutrition products, personal care liquids, and other compatible materials. The filling system should be selected according to viscosity, flow behavior, foaming, temperature, and filling quantity.

What is the purpose of the two filling nozzles?

The two-nozzle configuration provides a flexible filling arrangement for suitable products and production requirements. The exact filling method and performance depend on the selected pump or dosing system and the product being packaged.

What are the 240SDP, 280SDP, and 330SDP models?

They represent different machine configuration and working-width classes within the product series. The actual pouch range and production performance depend on pouch dimensions, film structure, filling volume, product properties, and machine configuration. We recommend confirming these parameters before final model selection.

Can I use different pouch sizes?

Yes, the machine can be configured for different pouch specifications within its applicable range. The practical pouch-size range depends on the machine model, forming structure, film width, spout design, and other configuration details.

Can the machine add date printing?

Yes. Coding and printing equipment can be considered as an optional part of the packaging line. The appropriate coding technology depends on the film surface, printing information, production speed, and required print quality.

Can the machine be connected to other production equipment?

Yes. Huapack can design pouch packaging systems that connect with upstream and downstream equipment. Depending on the project, this may include product feeding, weighing, filling, coding, inspection, conveying, and final packing systems.

What information do I need to provide for a quotation?

I recommend sending your pouch dimensions or sample, pouch material if known, spout specification, product name, filling volume, target production capacity, and any special functions you need. If possible, providing the actual product sample makes filling-system selection much more accurate.

Final Thoughts: Building a Spouted Pouch Line Around the Real Product

For me, the best Spouted Stand-Up Pouch HFFS Packaging Machine is not simply the machine with the largest number on a speed sheet. It is the machine that matches the product, pouch, filling requirement, sealing material, production target, and factory layout.

Our 2-Nozzle Filling 240SDP/280SDP/330SDP series is designed around that principle. It combines rollstock film feeding, horizontal pouch forming, spouted stand-up pouch production, two-nozzle filling, heat sealing, cutting, and finished-pouch discharge.

For food, household chemicals, personal care products, agricultural liquids, and suitable industrial materials, this format can provide a practical combination of convenient dispensing and automated production.

I also know that every product behaves differently. That is why I recommend testing the actual product and packaging material before final machine configuration. A small amount of testing can reveal filling behavior, sealing requirements, pouch stability, and other details that specifications alone cannot show.

If you are looking for an Automatic Spouted Pouch Filling Machine, horizontal HFFS Pouch Packaging Machine, or complete spouted stand-up pouch packaging line, contact Huapack with your product and pouch details. We can review your requirements and develop a packaging solution around your actual production needs.
