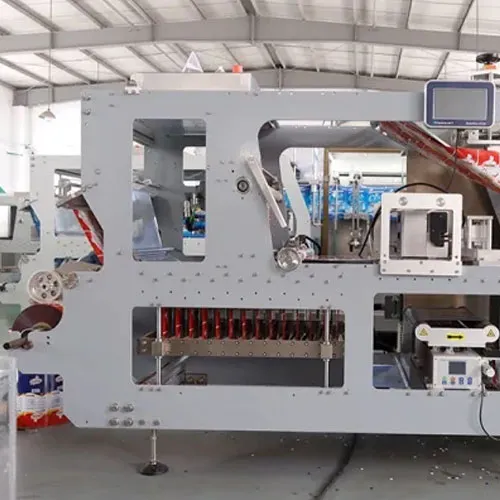

1. What Makes This Stand-Up Pouch HFFS Machine Different?

In plain English, HFFS means Horizontal Form Fill Seal. The machine takes packaging film from a roll and moves it through the machine horizontally. Along the way, the film becomes a pouch, the product is filled, the pouch is sealed, and the finished pack is cut.

I like this process because it keeps several jobs inside one automated system. The factory does not need to make large quantities of empty pouches first and then move them to another machine for filling. Instead, the pouch is formed as part of the packaging cycle.

For a stand-up pouch, the package is designed to sit upright after filling. Depending on the product and pouch structure, this format can offer a convenient package for food, personal care, nutrition, pharmaceutical, pet food, and other products.

Flexible packaging can use plastic film, aluminum foil, paper, or combinations of these materials. The final film structure is normally selected according to the required barrier, strength, sealing, product protection, and package appearance. The Flexible Packaging Association describes flexible packaging as a format that can be engineered around different material structures and performance needs. ([flexpack.org](https://www.flexpack.org/sustainability?utm_source=chatgpt.com))

From my point of view, the biggest benefit is not just automation. It is control. I can control how the film moves, how the pouch is formed, how the product is filled, how the seal is made, and where the pouch is cut.

Source: PMMI, 2019 Flexible Packaging Market Assessment. PMMI discusses flexible packaging formats, stand-up pouches, automation, equipment flexibility, and machinery investment. The table above is a simplified process comparison based on these industry characteristics and is not a universal productivity claim. ([pmmi.org](https://www.pmmi.org/report/2019-flexible-packaging-market-assessment?utm_source=chatgpt.com))

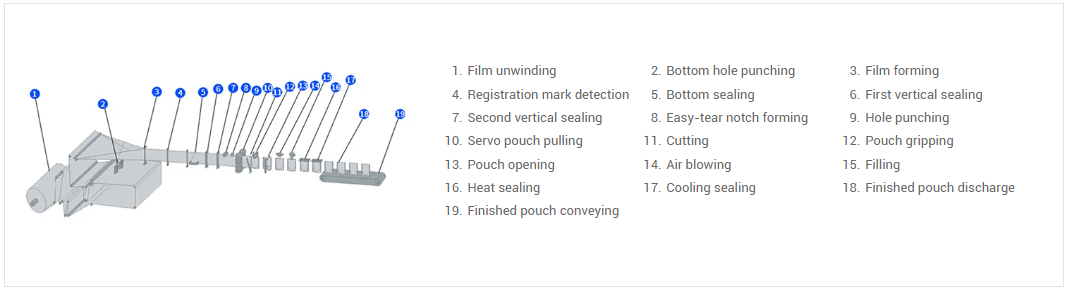

2. How I Run the 1-Nozzle Stand-Up Pouch Packaging Process

I usually explain the machine process in five steps. Once customers see the sequence, the whole system becomes much easier to understand.

Step 1: I Start with Roll Film

The flexible packaging film is installed on the film-feeding section. The machine pulls the film forward under controlled conditions. Stable film feeding is important because poor film tracking can affect pouch size, artwork position, sealing, and cutting.

Step 2: I Form the Pouch

The forming section shapes the film into the required stand-up pouch structure. The exact tooling and forming arrangement depend on pouch dimensions, film characteristics, and the final pouch design.

Step 3: I Fill the Product

The product enters the pouch through the 1-nozzle filling system. This configuration is useful when one filling point can meet the required output and filling conditions.

I always look at the product before selecting the filling system. A thin liquid, thick cream, powder, product with small particles, and foamy liquid can all behave very differently. The filling nozzle and dosing method should therefore match the product instead of simply copying another machine configuration.

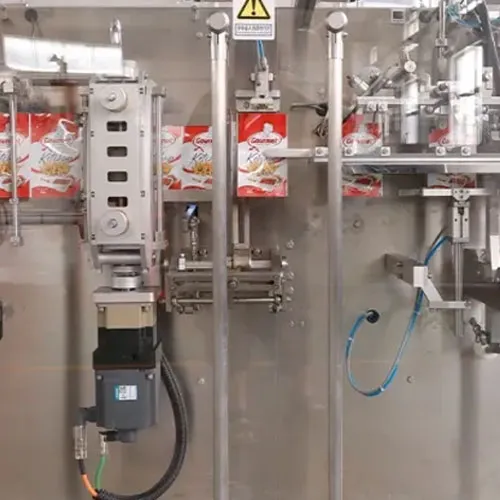

Step 4: I Seal the Pouch

After filling, the pouch enters the heat-sealing section. The sealing system applies controlled heat and pressure to create the required seal. Film construction is important here because different sealant layers can need different temperature and sealing conditions.

Step 5: I Cut and Discharge the Finished Pouch

Once the pouch is sealed, the cutting section separates it from the continuous film structure. The finished stand-up pouch can then be sent to inspection, coding, secondary packaging, or another automated production stage.

The overall process is simple: roll film in, finished stand-up pouch out. The engineering challenge is making every step work smoothly with the actual product and film.

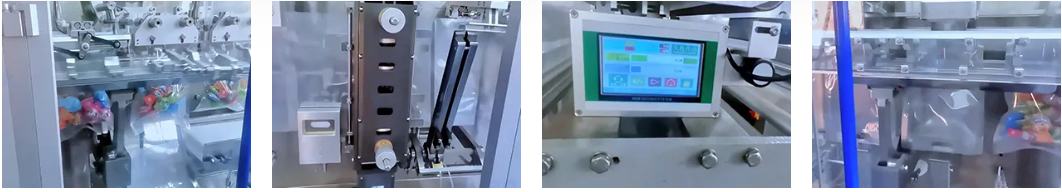

3. Main Features I Build into the Machine

1-Nozzle Filling for Straightforward Automated Production

I use one filling nozzle when the product and production target can be handled effectively by a single filling point. This keeps the filling structure relatively simple while still allowing automatic operation.

For customers with moderate production requirements or products that need careful filling control, this can be a sensible balance between automation and machine complexity.

Roll-Film HFFS Production

Because the machine starts from roll film, pouch forming becomes part of the automatic packaging process. This removes the need to purchase and manually load finished empty pouches for the basic packaging operation.

Intelligent Temperature Control

Heat sealing is one of the areas I pay the most attention to. A strong pouch seal depends on more than temperature alone. Heat, pressure, dwell time, film structure, and machine speed all interact.

The intelligent temperature-control system helps maintain the selected sealing conditions during production. I still recommend testing the actual film because no control system can replace proper material selection.

Color-Mark Tracking

If the packaging film has printed artwork, the color-mark tracking system can help the machine identify the registration mark and control film positioning. This is important when logos, text, graphics, or other printed information need to remain in the correct location on every pouch.

Support for Different Flexible Films

Depending on the application, I can work with suitable PE film, laminated film, and aluminum foil-based flexible structures. The actual material must be confirmed through testing because film thickness, layer structure, friction, stiffness, and sealing behavior can affect machine performance.

Multiple Model Options

The 130S, 180S, 240S, and 280S configurations provide different options for pouch dimensions and project requirements. I use these model choices to help match the machine to the customer's production target rather than treating them as four completely separate machines.

Easy Integration with a Larger Production Line

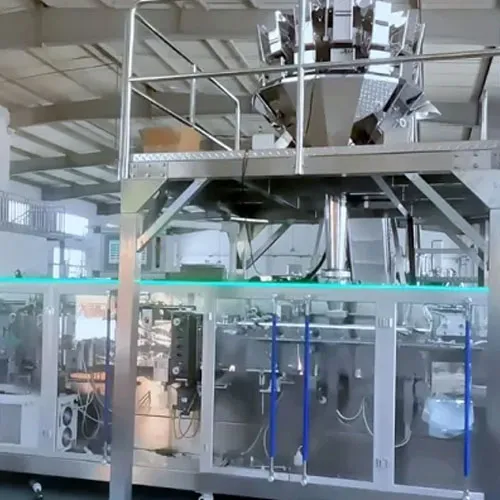

I can also design the machine to connect with other packaging equipment. Depending on the product, a complete line may include feeding, weighing, dosing, filling, pouch handling, inspection, coding, conveying, and secondary packaging.

4. Film Selection Matters More Than Many Buyers Expect

If you ask me what causes many pouch packaging problems, I will often mention the film. The machine may be mechanically correct, but if the film is not suitable, production can still become unstable.

Different films can have different sealant layers, stiffness, friction, thickness, barrier properties, and heat response. Even films that look similar can behave differently on the same machine.

That is why I prefer to evaluate the actual film before final machine configuration. I look at how it feeds, forms, seals, and cuts. If the film is printed, I also check registration and artwork positioning.

Source: Flexible Packaging Association. FPA identifies plastic film, aluminum foil, paper, and combinations of these materials as flexible packaging structures and discusses their use for barrier, strength, sealing, and product protection. ([flexpack.org](https://www.flexpack.org/sustainability?utm_source=chatgpt.com))

I also separate material suitability from regulatory suitability. For food packaging, for example, the film and its components need to meet the requirements of the intended market. The U.S. FDA explains that food-contact substances can include materials used in food packaging and packaging components that contact food. ([fda.gov](https://www.fda.gov/food/food-ingredients-packaging/food-packaging-other-substances-come-contact-food-information-consumers?utm_source=chatgpt.com))

So when I discuss a “compatible film,” I mean a film that has been evaluated for the intended machine and product application, not simply a material name printed on a specification sheet.

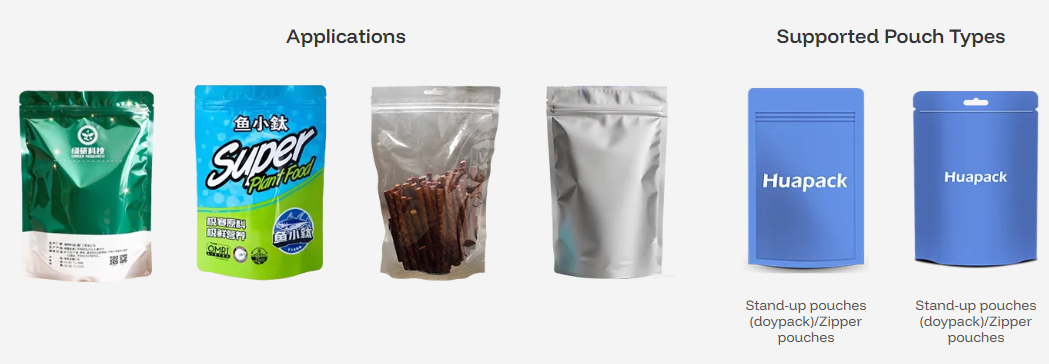

5. Industries and Products I Can Package with This Machine

I have designed pouch packaging solutions for several industries, and stand-up pouches can be useful in many of them. The important point is that the filling system and packaging material must match the product.

Food and Sauce Products

Sauces, seasonings, ready-to-eat products, snacks, and other suitable food products can be packaged in stand-up pouches. The format is practical for products where convenient handling and efficient use of flexible material are important.

Dairy and Nutrition

Suitable dairy products, health nutrition products, and medical nutrition products can be considered. I normally pay close attention to hygiene, filling temperature, viscosity, product sensitivity, and cleaning requirements when developing these projects.

Personal Care

Shampoo, conditioner, body wash, lotions, creams, facial-care products, and other suitable personal-care formulations can use stand-up pouch packaging. The filling method depends on how thick or fluid the product is.

Pharmaceutical and Medical Applications

Certain pharmaceutical powders, medical consumables, and other compatible products can use flexible pouch packaging. For regulated applications, I make a clear distinction between supplying packaging equipment and guaranteeing regulatory compliance. The complete packaging process may require specific material selection, validation, documentation, and quality controls.

ISO 11607-1 and ISO 11607-2 provide requirements and process considerations for packaging systems used with terminally sterilized medical devices, including requirements related to materials, sterile barrier systems, and forming, sealing, and assembly processes. ([iso.org](https://www.iso.org/standard/70799.html?utm_source=chatgpt.com))

Pet Food

Suitable wet or semi-liquid pet food products can also be considered for flexible pouch packaging. The correct filling and sealing setup depends on the product formula and pouch specification.

Agrochemical and Industrial Products

Selected agrochemical formulations, industrial powders, small components, desiccants, and other compatible products can be packaged using flexible formats when the product, material, and machine construction are properly matched.

PMMI research also identifies food, beverage, personal care, and other consumer applications as important areas for packaging machinery and flexible packaging development, while convenience and automation continue to influence packaging choices. ([pmmi.org](https://www.pmmi.org/report/2019-flexible-packaging-market-assessment?utm_source=chatgpt.com))

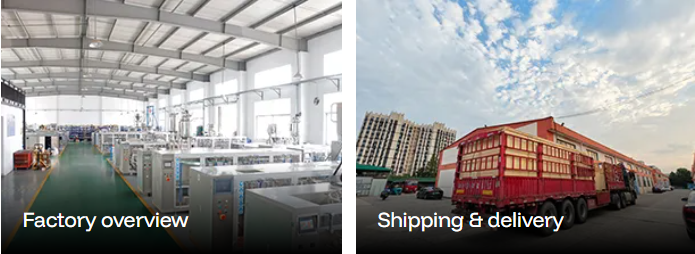

6. How I Manufacture and Test the Machine at Huapack

Shanghai Huacheng Packing Machinery Company, known as Huapack, was established in 2015 in Songjiang District, Shanghai. We bring R&D, manufacturing, sales, and technical service together in one operation. Our main focus is pouch packaging machinery.

I think this specialization makes a difference. Pouch packaging may look simple from the outside, but film movement, filling, sealing, cutting, registration, and changeover all have to work together. Small problems in one section can affect the entire production line.

When I start a project, I collect the customer's product information and packaging requirements first. I want to know the pouch dimensions, filling quantity, product characteristics, film structure, target capacity, printing requirements, and whether the machine needs to connect with other equipment.

Our engineers then work on the mechanical and control configuration. During assembly, we check the installation and alignment of the film-feeding system, forming components, filling system, sealing parts, sensors, cutting section, and control system.

Before delivery, I prefer to test the machine under conditions that are as close as possible to actual production. Running an empty machine is useful, but it does not tell the whole story. Real film and real product are much more informative.

Source: Huapack's product engineering and manufacturing approach described for this pouch packaging machine. For applicable medical packaging projects, process-development and validation principles should also be considered in accordance with relevant standards such as ISO 11607-2. ([iso.org](https://www.iso.org/standard/70800.html?utm_source=chatgpt.com))

7. Why I Choose Huapack for Stand-Up Pouch Packaging Projects

I do not see the packaging machine as a standalone box of metal and electronics. It is part of a production system. This is especially important when a customer is planning a new factory line or increasing production capacity.

At Huapack, we specialize in pouch packaging machinery and have experience covering automated weighing, pouch filling, sealing, pouch handling, and complete line integration. This gives me a wider view when designing a machine solution.

If the customer only needs an automatic stand-up pouch HFFS machine, we can focus on the required machine. If the customer needs a complete packaging line, we can also develop a solution around product feeding, weighing or dosing, filling, sealing, inspection, conveying, and final packaging.

I also understand that a machine needs to work for operators. A machine that is technically advanced but difficult to adjust or maintain can create problems on the factory floor. That is why I consider access, changeover, control, cleaning, service, and spare-parts requirements during the project.

Our manufacturing base in Shanghai allows us to keep R&D, production, sales, and technical service connected. When a project requires customization, the engineering discussion can happen directly with the team responsible for the machine.

PMMI's packaging machinery research highlights automation, flexibility, workforce requirements, sustainability, quality, sanitation, and lifecycle considerations as important factors in packaging equipment investment. ([pmmi.org](https://www.pmmi.org/report/state-of-the-industry-2025?utm_source=chatgpt.com))

For me, this means the best machine is not simply the one with the highest theoretical speed. It is the one that can produce the customer's pouch consistently, fit the available space, work with the selected material, and remain practical for everyday production.

Frequently Asked Questions About the 1-Nozzle Stand-Up Pouch HFFS Machine

1. What is a stand-up pouch HFFS packaging machine?

It is an automatic horizontal form-fill-seal machine that uses roll film to make stand-up pouches. It combines pouch forming, product filling, heat sealing, and cutting into one automated process.

2. What is the purpose of the 1-nozzle filling system?

The 1-nozzle filling system provides one controlled filling point. It is suitable when the product characteristics and required production output can be handled effectively by one nozzle.

3. What products can this machine package?

Depending on the filling system, the machine can be configured for suitable liquids, semi-liquids, pastes, powders, and other products. Product viscosity, flow behavior, particle content, foaming, temperature, and filling accuracy should be evaluated before the final configuration is selected.

4. Can the machine use laminated film?

Yes, suitable laminated films can be considered. PE-based structures and aluminum foil laminates can also be used when their construction matches the machine, pouch design, product, and sealing requirements.

5. Does it support printed film?

Yes. The color-mark tracking system can help control the position of printed film during pouch production. The actual registration performance depends on the film printing and registration marks as well as machine setup.

6. What are the 130S, 180S, 240S, and 280S models?

They are model options within the stand-up pouch HFFS machine family. The correct selection depends on pouch dimensions, filling volume, film width, product characteristics, and target capacity. I recommend confirming these details before choosing a model.

7. Can I change pouch sizes?

The machine can be configured for specific pouch sizes, and changeover options can be considered for factories producing multiple SKUs. The practical changeover method depends on the pouch design, tooling, and machine configuration.

8. Can Huapack provide a complete packaging line?

Yes. Huapack can supply standalone pouch packaging machinery or develop a larger turnkey packaging system. Depending on the project, this may include weighing, feeding, filling, sealing, pouch handling, inspection, conveying, and downstream packaging.

9. How do I request the correct machine configuration?

I recommend sending the product information, pouch width and height, filling volume or weight, film structure and thickness if available, pouch drawing or sample, target output, and any special requirements such as printing, zipper, spout, or other pouch features.

10. Can the machine be customized for my factory?

Yes. I can develop the machine around the actual product, pouch format, production capacity, film, factory layout, and automation requirements. Customization is especially useful when the standard configuration does not fully match the customer's production process.

Final Thoughts: I Match the Machine to the Production, Not the Other Way Around

The Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling-130S/180S/240S/280S is designed for factories that want a reliable automated solution for producing stand-up pouches from roll film. By combining forming, filling, heat sealing, and cutting in one horizontal packaging process, the machine can simplify production and reduce unnecessary manual pouch handling.

The 1-nozzle filling design is a practical choice when one filling point can meet the product and capacity requirements. The intelligent temperature-control system, color-mark tracking, flexible film compatibility, and model options give me the tools to build a packaging solution around different production conditions.

But I always come back to the same point: the machine should fit the product. A sauce, cream, powder, nutrition product, pet food, or industrial material may need a different filling and sealing approach. The right machine is the one that works with those real conditions.

At Huapack, I combine pouch packaging machine manufacturing with technical service and complete-line engineering. Whether you need a standalone automatic stand-up pouch packaging machine or a complete HFFS pouch packaging line, I can start from your product and work toward the right machine configuration.

If you are searching for a 1-nozzle stand-up pouch filling machine, automatic stand-up pouch HFFS machine, stand-up pouch form fill seal machine, or automatic pouch filling and sealing equipment, send me your product details, pouch size, film information, filling volume, and target output.

I will help you evaluate whether the 130S, 180S, 240S, or 280S configuration is the right starting point for your production line.
