1. What This Spouted Stand-Up Pouch HFFS Machine Does

I built this type of Horizontal Form Fill Seal Machine around one simple idea: let one automated system handle as much of the pouch-making process as possible. The machine takes flexible film from a roll and continuously moves it through the forming, filling, sealing and cutting stages.

For the spouted stand-up pouch format, the pouch is formed in a controlled horizontal process and prepared for filling through a nozzle. The integrated 1-nozzle filling system is designed for applications where one filling point is suitable for the target product and production requirement. After filling, the pouch is heat sealed and cut into an individual finished package.

From my experience, this is especially useful when a factory wants to reduce unnecessary manual handling. Operators do not need to prepare large quantities of empty pre-made pouches before production. Instead, the machine works from rollstock and produces the pouch as part of the packaging cycle.

Flexible packaging is commonly made from paper, plastic film, aluminum foil, or combinations of these materials, and pouches are one of the major flexible packaging formats. The Flexible Packaging Association also points to resource efficiency, protection and lightweight construction as important characteristics of flexible packaging.

Source: PMMI, Flexible Packaging Market Assessment and PMMI research on packaging machinery trends. The table summarizes process differences rather than claiming a universal productivity advantage.

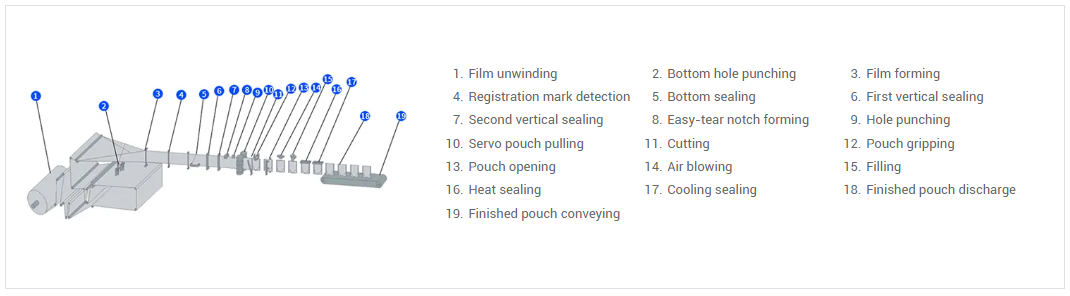

2. How the Automatic Spouted Pouch Packaging Process Works

I normally explain the working process to customers in five simple steps. The actual machine configuration can change according to the pouch design and product, but the basic production logic remains straightforward.

1. Film feeding: Roll film is loaded onto the machine. The film moves forward continuously under controlled tension.

2. Pouch forming: The film is shaped into the required pouch structure. The forming section is designed around the selected pouch dimensions and sealing layout.

3. Filling: The product enters the pouch through the 1-nozzle filling system. Filling parameters are adjusted according to the product and target quantity.

4. Heat sealing: The sealing system closes the pouch with controlled temperature and pressure. I pay close attention to sealing stability because a good-looking pouch is not enough; the seal also needs to match the application.

5. Cutting and discharge: The completed pouch is separated and discharged for the next packaging or inspection stage.

A color-mark tracking system can help the machine follow printed registration marks on suitable films. This is useful when artwork needs to remain correctly positioned from pouch to pouch. The intelligent temperature-control system also helps keep sealing conditions stable during continuous production.

For products that are sensitive to heat, viscosity or filling accuracy, I do not simply choose a filling setting from a standard chart. I look at the actual product behavior first and then select the suitable pump, nozzle, control logic and sealing parameters.

3. Main Features I Focus on During Machine Design

Continuous Roll-Film Operation

The machine uses roll film rather than requiring finished empty pouches. This can make the packaging workflow easier to organize, especially for factories running multiple pouch sizes or designs.

1-Nozzle Filling

The single-nozzle filling configuration is useful when the required filling range and product characteristics can be handled by one filling point. For liquid and semi-liquid applications, I pay attention to viscosity, foaming, dripping behavior and product temperature before confirming the final filling arrangement.

Intelligent Temperature Control

Heat sealing is one of the most important parts of pouch production. Film structure, sealant layer, temperature, pressure, dwell time and machine speed can all affect the final seal. The temperature-control system helps the operator maintain the selected sealing conditions during production.

Color-Mark Tracking

Printed flexible film often needs accurate registration. The color-mark tracking device helps the machine identify the printed mark and adjust film positioning so that the pouch is cut and formed in the correct location.

Flexible Film Compatibility

Depending on the product and packaging specification, the machine can be engineered to work with suitable PE films, laminated films and aluminum foil-based structures. I always recommend confirming the actual film construction through testing instead of treating every film as interchangeable.

Quick Format Adjustment

Factories rarely want to produce only one SKU forever. Pouch dimensions, filling volumes and printed designs can change. For that reason, I consider changeover time and adjustment simplicity when designing the machine configuration.

4. Choosing Film and Pouch Materials for the Application

One of the most common mistakes I see is choosing a pouch machine first and thinking about film later. I prefer the opposite approach. The product and required package performance should guide the film structure.

Source: Flexible Packaging Association for flexible packaging material categories and performance considerations; FDA for food-contact packaging considerations. Material suitability must be confirmed for the actual product, film structure and market requirements.

For food packaging, I also remind customers that the machine itself does not automatically make a film suitable for food contact. The packaging material and its components must meet the applicable requirements for the intended market and product. The U.S. FDA defines food-contact substances broadly to include food packaging and packaging components that come into contact with food.

This is why I treat film testing as part of the engineering process, not as an afterthought.

5. Where I Recommend This Spouted Stand-Up Pouch Machine

I see the strongest opportunities for this type of Automatic Spouted Pouch Filling Machine in factories that want a convenient, compact and easy-to-handle pouch format while keeping the production process highly automated.

• Food and sauces: ketchup, chili sauce, salad dressing, cooking sauces and similar products, subject to filling-system suitability.

• Snacks and convenience foods: selected liquid, semi-liquid or other suitable products that benefit from a stand-up pouch.

• Dairy and nutrition: suitable liquid or semi-liquid nutrition products where the filling and hygienic requirements match the machine configuration.

• Personal care: shampoo, shower products, creams, lotions and other compatible formulations.

• Medical nutrition and pharmaceutical packaging: suitable products requiring controlled filling and sealing processes.

• Agrochemical products: compatible formulations where the selected materials and machine construction meet the product requirements.

• Pet food: suitable liquid or semi-liquid pet food and related products.

For medical and pharmaceutical applications, I take an extra step before recommending a configuration. Packaging requirements may involve more than simply achieving a closed pouch. For terminally sterilized medical devices, ISO 11607-1 specifies requirements and test methods for materials, sterile barrier systems and packaging systems intended to maintain sterility until use. ISO 11607-2 addresses development and validation of forming, sealing and assembly processes.

In other words, I do not treat a general packaging machine as automatically compliant with a regulated medical packaging process. The machine, packaging material, process controls and validation work have to be considered together.

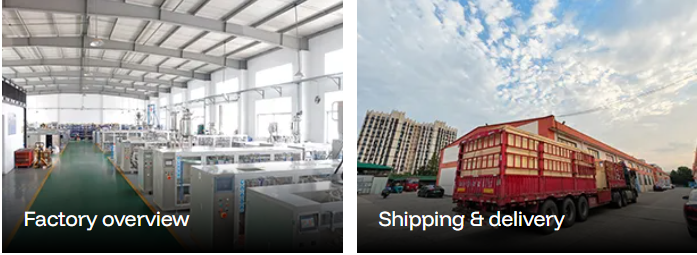

6. How I Build the Machine for Real Factory Production

At Shanghai Huacheng Packing Machinery Company, also known as Huapack, I work from the production requirement rather than selling a fixed machine configuration to every customer. Our company was established in 2015 in Songjiang District, Shanghai, and we bring R&D, manufacturing, sales and technical service together under one operation.

The manufacturing process starts with the customer's packaging requirement. I look at the product, target fill weight or volume, pouch dimensions, spout configuration, film type, sealing requirements and expected production rhythm. From there, our engineering team can determine the appropriate mechanical structure and control configuration.

During assembly, I pay attention to the alignment of film-handling components, forming parts, sealing components, filling parts and sensors. Small mechanical errors can become large production problems when a machine runs continuously, so proper assembly and adjustment matter.

I also believe that factory testing should be based on real production conditions wherever possible. A machine can look perfect during an empty run, but actual film, actual product and actual pouch dimensions tell us much more. This is particularly important for products with high viscosity, foaming behavior, particles or special sealing requirements.

Source: Huapack engineering approach described for this product; process-control considerations are also consistent with ISO guidance on forming, sealing and packaging process development for applicable medical-device packaging.

7. Why I Recommend Huapack for a Turnkey Pouch Packaging Project

A packaging machine is only one part of a successful production line. In many projects, the customer also needs feeding equipment, weighing or dosing equipment, filling systems, conveyors, coding, inspection, secondary packaging or other downstream equipment. That is where our broader experience becomes useful.

At Huapack, our focus is pouch packaging machinery. We have experience with pouch formats across food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals and pet food applications. I use that experience to look at the complete production flow rather than treating the machine as an isolated piece of equipment.

For a customer buying a spouted stand-up pouch packaging machine, I can discuss the pouch structure, filling method, sealing process and automation requirements together. If the project needs a larger line, we can also work toward a turnkey packaging solution based on the actual factory layout and production target.

I also avoid making a simple promise such as “higher speed is always better.” In real production, stable feeding, accurate filling, reliable sealing, manageable changeovers and easy maintenance can be more valuable than a high theoretical speed that cannot be maintained with the actual product.

PMMI research on packaging machinery highlights flexibility, automation, workforce considerations and flexible-packaging adoption as important factors in packaging equipment investment. That matches the way I approach machine selection: the best machine is the one that fits the production process, not simply the one with the biggest number on a specification sheet.

Frequently Asked Questions About the Spouted Stand-Up Pouch HFFS Machine

1. What is a spouted stand-up pouch HFFS packaging machine?

It is an automatic horizontal form-fill-seal packaging machine designed to produce stand-up pouches with a spout. It uses roll film and integrates pouch forming, product filling, heat sealing and cutting into one continuous production process.

2. What does 1-nozzle filling mean?

It means the standard configuration uses one filling nozzle to introduce the product into the pouch. Whether one nozzle is the best choice depends on the product, filling volume, viscosity and required production capacity.

3. Can the machine package liquid products?

Yes, it is intended for suitable liquid and semi-liquid applications. Before finalizing the filling system, I recommend checking viscosity, temperature, particles, foaming, dripping behavior and required filling accuracy.

4. What film materials can be used?

Depending on the machine configuration and product requirement, suitable PE film, laminated film and aluminum foil-based film structures can be considered. The actual film must be tested for forming and heat-sealing performance before production.

5. Can I change pouch sizes?

The 130SP, 180SP, 240SP and 280SP models provide different configuration options within the product family. I recommend selecting the exact model after confirming pouch width, pouch height, filling volume, spout arrangement, film structure and production target rather than choosing a model from the name alone.

6. Does the machine support printed film?

Yes. A color-mark tracking system can be used with suitable printed film to help control registration during pouch production. The final result depends on the film artwork, registration marks and machine setup.

7. Can Huapack design a complete pouch packaging line?

Yes. Our business is not limited to standalone pouch machines. We can develop complete packaging solutions around weighing, feeding, filling, sealing, pouch handling and other required processes. The final line is designed according to the product, pouch format, factory conditions and target capacity.

8. How do I select between 130SP, 180SP, 240SP and 280SP?

I would not select the model based only on the model number. Send us your pouch dimensions, filling volume, product sample or product information, film structure, spout size and expected output. We can then recommend the suitable configuration and identify what needs to be tested before production.

Final Thoughts: I Design the Pouch Machine Around Your Production

The Spouted Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling-130SP/180SP/240SP/280SP is designed for manufacturers that want an automated way to form, fill, seal and cut spouted stand-up pouches from roll film. Its value is not simply in putting several functions into one machine. The real value comes from making those functions work together as one stable production process.

I focus on practical details: film behavior, pouch dimensions, filling performance, heat-sealing conditions, registration accuracy, changeover requirements and integration with the rest of the factory line. That approach helps me build a packaging solution that is easier to operate today and easier to expand when production grows.

If you are looking for an automatic spouted stand-up pouch packaging machine, HFFS pouch filling and sealing machine, spouted pouch filling machine or a complete turnkey pouch packaging line, I recommend starting with the product and pouch specifications. Once I understand what you are actually packaging, I can work backward to the machine configuration instead of forcing your production into a standard solution.

Tell me your product, pouch size, filling volume, film material and target output. I will help you determine the most suitable 130SP, 180SP, 240SP or 280SP configuration for your project.
