When I choose a pouch packaging machine, I do not look at speed alone. I first look at the product, pouch size, filling weight, film structure, production target, and how the machine will connect with the rest of the factory. These details decide whether a machine will really work well day after day.

For manufacturers that need automatic stand-up pouch production from roll film, I developed the Servo Driven Rollstock Stand-Up Pouch Packaging Machine, 4-Nozzle Filling-400SQY. It combines rollstock feeding, pouch forming, product filling, sealing, cutting, coding, and finished pouch discharge in one automated system.

The machine uses a full servo control system and a four-nozzle filling configuration. This gives me better control over machine movement while providing an efficient filling solution for suitable products. Depending on the filling system, the machine can handle granules, powders, liquids, pastes, and other compatible materials.

At Shanghai Huacheng Packing Machinery Company (Huapack), I have focused on pouch packaging machinery since 2015. We are based in Songjiang District, Shanghai, and combine research and development, manufacturing, sales, and technical service under one operation.

Our pouch packaging solutions are used across food, dairy, nutrition, pharmaceutical, personal care, agrochemical, pet food, and industrial applications. I can supply the 400SQY as a standalone packaging machine, or build it into a complete automated pouch packaging line.

1. What Is the 400SQY Servo Driven Rollstock Stand-Up Pouch Machine?

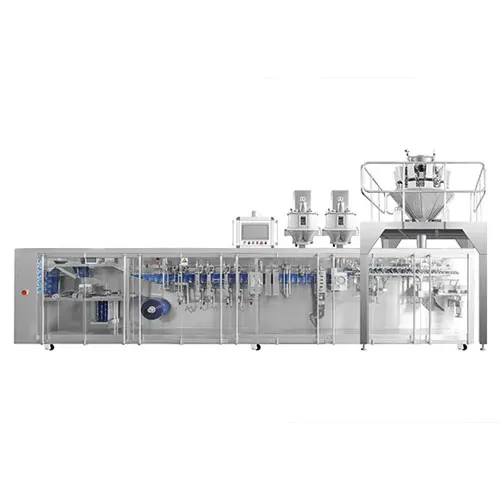

The Servo Driven Rollstock Stand-Up Pouch Packaging Machine is designed to produce flexible stand-up pouches directly from roll film. Instead of purchasing finished premade pouches, the machine feeds the rollstock, forms the pouch, fills the product, seals the package, cuts individual pouches, and sends the finished bags to the next stage.

For me, the biggest advantage of this type of machine is flexibility. A rollstock system gives manufacturers more control over pouch size, film design, package appearance, and production setup.

The stand-up pouch format is also very practical. Once filled, the pouch can stand upright on a shelf, which gives the package a useful retail appearance. Depending on the design, it can also include features such as a zipper, easy-open notch, hanging hole, or special sealing pattern.

The 400SQY is built around a full servo drive system. Servo motors control key machine movements and allow the operator to adjust important parameters digitally. In simple words, I can tell the machine how far to move, how fast to move, and when different movements need to work together.

This is especially important in flexible packaging because film is not a rigid material. If the film position changes too much, pouch dimensions, printing alignment, sealing, and cutting can all be affected.

Source: Huapack product information supplied for the 400SQY servo-driven rollstock stand-up pouch packaging machine. Final configuration depends on pouch design, filling system, film material, and production requirements.

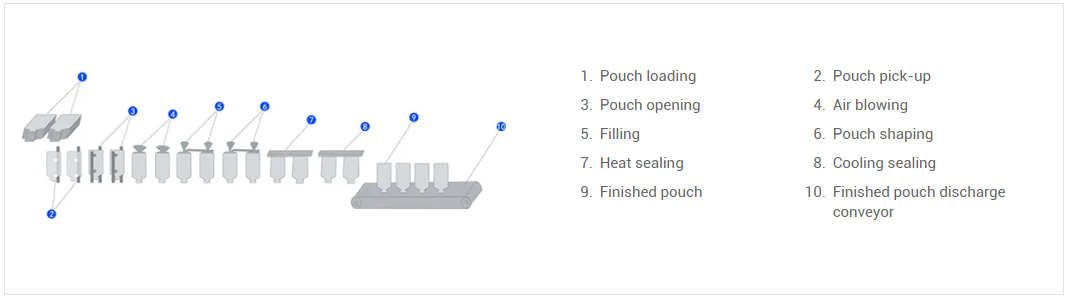

2. How I Run the Four-Nozzle Stand-Up Pouch Packaging Process

From the outside, the packaging process looks simple. The machine takes film in and finished pouches come out. Inside, however, many small movements have to happen in the correct order.

1. Film unwinding: The machine takes flexible packaging film from the rollstock supply.

2. Film guiding: The film is guided and aligned before it enters the pouch forming section.

3. Pouch forming: The film is shaped into the required stand-up pouch format.

4. Product positioning: The pouch is transferred into the correct position for filling.

5. Four-nozzle filling: Four filling nozzles operate according to the selected dosing system and production cycle.

6. Sealing: The filled pouch passes through the sealing section.

7. Cutting: The sealed pouch is separated from the film web.

8. Coding: Production information can be printed when a coding system is installed.

9. Discharge: Finished pouches move to a conveyor or collection area.

The four-nozzle configuration is one of the main features I consider when customers need efficient filling. Four filling points allow the filling process to be arranged efficiently within the machine cycle for suitable products.

Still, I want to make one thing clear: four nozzles do not automatically mean four times the final production speed. The real output depends on filling volume, product flow, dosing method, pouch size, sealing time, film characteristics, and the machine's overall cycle.

For example, a free-flowing granular product may fill quickly, while a thick sauce or sticky paste may need more time. A powder can also behave differently depending on density and dust level.

That is why I prefer to test the actual product and pouch material before finalizing the filling configuration.

3. Why Full Servo Control Matters in Real Production

The word “servo” sounds complicated, but the basic idea is easy to understand.

A servo motor uses feedback to control its position and speed. Instead of simply telling a motor to run, the control system can manage where the motor should be and how its movement should match other machine parts.

For a rollstock stand-up pouch machine, this is useful because the film, forming tools, filling system, sealing unit, and cutting system must stay synchronized.

If the film moves too far, the pouch may become longer than expected. If the film moves too little, the pouch can become too short. If the cutting position is wrong, printed graphics may not line up correctly. If the filling and pouch position are not synchronized, product can spill into the sealing area.

With full servo control, I can manage important movement parameters digitally and save suitable production settings for repeated orders.

Source: Huapack machine description and the stated full-servo control concept supplied for this product. Actual accuracy and production performance depend on the complete mechanical, electrical, film, and filling configuration.

For the operator, the benefit is simple: less mechanical guesswork and more digital control.

When a factory produces several pouch sizes, saved recipes can also make repeat production easier. Instead of setting every parameter from the beginning, the operator can call up the appropriate production settings and make the necessary checks before starting.

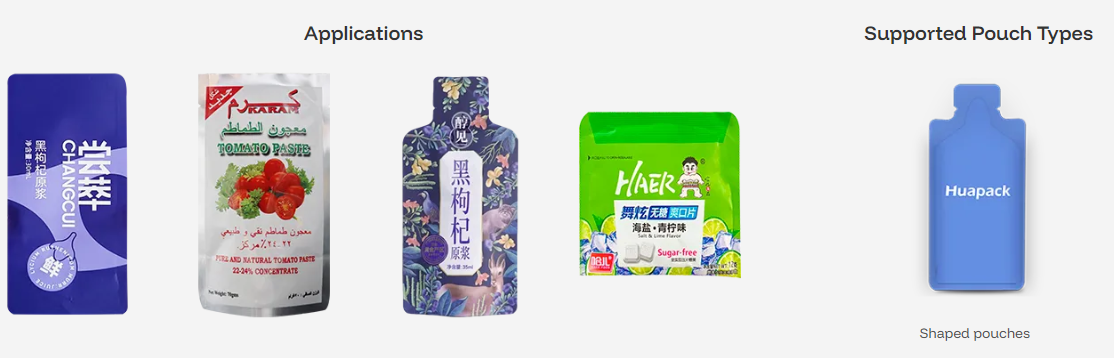

4. What Can I Package With the 400SQY?

I designed the system to support different filling applications, but the filling method must always match the product.

Granules and Solid Products

Products such as nuts, seeds, grains, snacks, coffee beans, pet food, and some plastic granules can be packed in stand-up pouches. A suitable weighing or dosing system can be integrated according to the product and required filling accuracy.

Powder Products

Seasoning, milk powder, protein powder, detergent powder, organic fertilizer, and other compatible powders can be packaged with a suitable powder filling system. I normally check powder density, flowability, particle size, and dust behavior before selecting the dosing method.

Liquid Products

Juice, liquid nutrition products, cleaning liquids, and other compatible liquids can be handled with an appropriate liquid filling system. The filling method depends heavily on viscosity and required filling accuracy.

Paste and Thick Materials

Thick sauces, pastes, creams, and similar products require more careful filling control. A suitable pump or piston-type dosing system can be selected after testing the actual product.

Food and Snacks

Stand-up pouches are widely useful for nuts, snacks, grains, seasoning, dried food, and similar products. The upright format gives the package a clear shelf presence and can be combined with zipper or other consumer-friendly features.

Pet Food

Pet food is another useful application. Depending on the package design, a zipper can allow the consumer to open and close the pouch several times after opening.

Agricultural and Industrial Products

Seeds, animal feed, organic fertilizer, chemical additives, plastic particles, and compatible building-material powders can also be considered. For industrial products, I always check material compatibility before confirming the final machine configuration.

Source: Huapack application information supplied for the company's pouch packaging solutions. Filling system selection must be confirmed according to the actual product's physical characteristics.

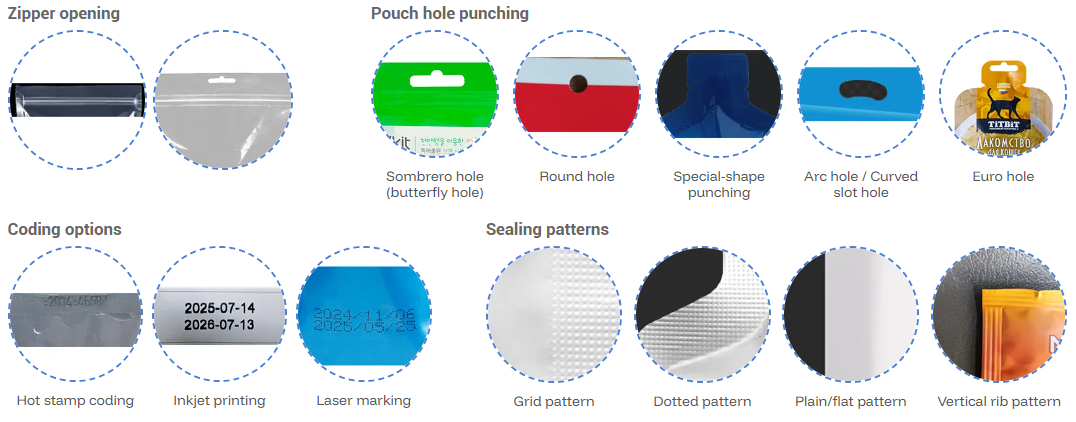

5. Stand-Up Pouch Features I Can Configure

One reason I like flexible pouches is that the same basic machine concept can support many package designs.

Zipper pouches are useful when the consumer may not finish the product in one use. This is common for snacks, nuts, pet food, coffee, and dry products.

Easy-open notches make the pouch easier to tear without using scissors.

Hanging holes can be added when the package needs to be displayed on retail hooks.

Different sealing patterns can be selected according to the film and appearance requirements. The seal is not just a cosmetic detail. It is one of the main barriers protecting the packaged product.

Film registration control can be used when printed artwork needs to remain in the correct position. This is especially important for retail products where the logo, product name, or graphics must look consistent from pouch to pouch.

Coding systems can add production date, expiration information, batch numbers, barcodes, or QR codes depending on the application.

Conveying systems can move finished pouches to inspection, secondary packaging, or case packing equipment.

Because every factory has different requirements, I treat these functions as configuration options rather than assuming every customer needs every feature.

6. How I Build the 400SQY Around a Customer's Production Line

I believe good machine customization starts with questions.

What product are you filling? What is its weight or volume? How does it flow? What is the pouch width and height? What film are you using? Does the pouch need a zipper? Is a hanging hole required? What is the target output per minute? What machines are already installed in the factory?

These questions may sound basic, but they can prevent expensive mistakes.

For example, a powder product with poor flow may need a different dosing system from a free-flowing granular product. A sticky product may require extra attention around the filling and sealing areas. A printed film may need registration control. A larger pouch may require additional support during filling and transport.

Once I understand the production conditions, I can configure the machine around them.

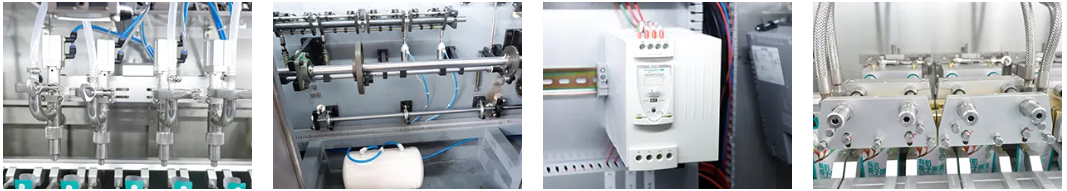

During manufacturing, I pay attention to the machine frame, film path, servo system, sensors, pouch forming components, filling equipment, sealing unit, cutting mechanism, control cabinet, HMI, and safety components.

I also think about maintenance. Operators need to clean the machine, inspect moving parts, change products, and replace wear components. Easy access to important areas can save time over the machine's working life.

For a larger project, I can integrate the 400SQY with upstream weighing and feeding equipment and downstream conveying, inspection, metal detection, cartoning, or case packing systems.

This allows the machine to become one part of a complete automatic stand-up pouch packaging line.

7. Why I Choose Huapack for Servo Stand-Up Pouch Packaging

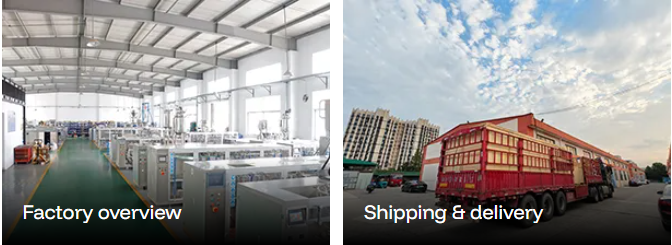

Huapack has been focused on pouch packaging machinery since 2015. Our factory is located in Songjiang District, Shanghai, and we integrate R&D, manufacturing, sales, and technical service within one operation.

That focus gives me a practical understanding of pouch packaging problems. Flexible film is not always easy to control. Different products flow differently. Sealing conditions depend on film structure. Pouch dimensions affect machine setup. And production speed means nothing if the finished pouch is unstable.

I therefore approach each project from the customer's production process.

If a food producer wants to pack nuts, I may recommend a weighing system matched to the product. If a factory packs powder, I need to consider the powder's flow and density. If a customer handles liquid or paste, the filling pump and product-contact parts become important.

For customers that need more than one machine, I can design the packaging system around automated weighing, filling, sealing, conveying, inspection, and secondary packaging.

My goal is not to make a project unnecessarily complicated. I want the final system to be stable, understandable, and suitable for the actual production environment.

I also recommend product testing whenever possible. A specification sheet tells me the machine's intended range, but a real product test tells me how the product behaves inside the filling system.

8. Frequently Asked Questions

What does “rollstock stand-up pouch packaging machine” mean?

It means the machine uses flexible packaging film supplied on a roll and forms the stand-up pouch during production. The machine then fills, seals, cuts, and discharges the finished pouch automatically.

What is the advantage of four filling nozzles?

The four-nozzle filling configuration provides multiple filling points within the packaging cycle. For suitable products and filling systems, this can improve filling efficiency and support higher production capacity. Actual output depends on product and machine conditions.

What products can the 400SQY package?

The machine can be configured for compatible granules, powders, liquids, pastes, and other materials. Typical applications include snacks, nuts, grains, seasoning, pet food, seeds, fertilizer, detergent powder, and compatible industrial materials.

Can I use the machine for liquid products?

Yes, when the machine is equipped with a suitable liquid filling system. Product viscosity, foaming behavior, filling volume, temperature, and material compatibility should be checked before final configuration.

Can I package powder with the 400SQY?

Yes. A suitable powder dosing system can be integrated according to the product. Powder density, particle size, flowability, and dust behavior all affect filling performance.

Can the machine produce zipper stand-up pouches?

The machine can be configured for applicable stand-up pouch formats, including zipper designs when the selected pouch structure and machine configuration support them. The exact format should be confirmed with pouch and film samples.

Can the pouch size be changed?

Yes, within the applicable machine range. Digital parameters can be adjusted through the control system, while some pouch formats may require mechanical adjustments or change parts.

Can printed roll film be used?

Yes. Printed roll film can be used when its material, thickness, dimensions, and registration requirements are compatible with the machine. Film registration control can be considered for accurate artwork positioning.

Can I add a coding machine?

Yes. Coding equipment can be integrated for production dates, batch information, barcodes, QR codes, and other required information.

Can Huapack build a complete packaging line?

Yes. We can develop packaging solutions covering automated weighing, filling, sealing, conveying, inspection, and other equipment. The final line is designed according to the product, pouch format, capacity target, and factory layout.

Build Your Stand-Up Pouch Packaging Solution With Huapack

The Servo Driven Rollstock Stand-Up Pouch Packaging Machine, 4-Nozzle Filling-400SQY is designed for manufacturers that want an automated and flexible way to produce stand-up pouches directly from roll film.

Its full servo control system provides precise management of key machine movements, while the four-nozzle filling configuration offers an efficient solution for suitable products. The machine can be configured for granules, powders, liquids, pastes, and other compatible materials.

More importantly, I can build the machine around the actual production requirement. Pouch dimensions, filling volume, product characteristics, film material, sealing requirements, coding, and line integration can all be considered before the final configuration is confirmed.

If you are searching for a servo driven rollstock stand-up pouch packaging machine, automatic stand-up pouch filling machine, Servo Stand-Up Pouch Filling and Sealing Machine, roll film stand-up pouch packing machine, four-nozzle pouch filling machine, or automatic flexible pouch packaging equipment, send me your product information, pouch dimensions, filling weight or volume, film details, and target production capacity.

I can help you evaluate the 400SQY configuration, select a suitable filling system, and design the equipment around your real production process.

Huapack — focused on pouch packaging machinery, from individual machines to complete automated packaging lines.

Product Information Source

Product-specific descriptions in this page are based on the Huapack company and product information supplied for this content. Final specifications, production speed, pouch dimensions, filling capacity, utility requirements, and optional functions should be confirmed with Huapack according to the customer's product, pouch material, and production conditions.
