When I work with a pouch packaging project, I always start with one simple question: what does the customer actually need to package every day? Machine speed is important, but it is only one part of the answer. Product flow, pouch size, filling weight, sealing requirements, film material, production volume, and factory layout all affect the final result.

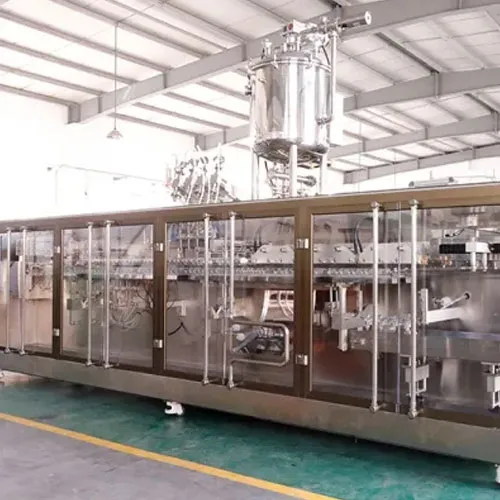

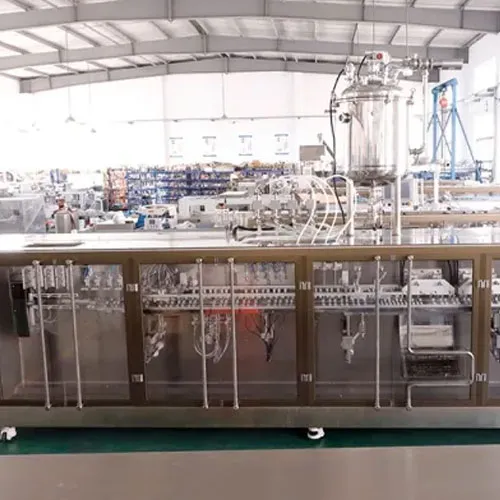

That is the thinking behind our Servo Driven Premade Pouch Packaging Machine, 4-Nozzle Filling-400QG. I designed this machine for manufacturers that already use premade pouches and want to automate the feeding, opening, filling, sealing, coding, and finished pouch discharge process.

Unlike a rollstock machine, the 400QG does not need to form the pouch from packaging film during the filling process. Instead, it works with finished pouches supplied in stacks. This gives manufacturers more freedom when using custom pouch shapes, printed designs, zipper pouches, stand-up pouches, and other compatible formats.

The machine uses a servo-driven control system and a four-nozzle filling configuration. Depending on the product, the filling section can be matched with suitable weighing, screw dosing, liquid pumping, piston filling, or other dosing technologies.

At Shanghai Huacheng Packing Machinery Company (Huapack), we have focused on pouch packaging machinery since 2015. We are based in Songjiang District, Shanghai, and integrate research and development, manufacturing, sales, and technical service under one operation.

Our experience covers automated weighing, pouch filling, sealing, and complete line integration for food, dairy, health nutrition, medical nutrition, pharmaceutical, personal care, agrochemical, pet food, and compatible industrial applications.

1. What Is the 400QG Premade Pouch Packaging Machine?

The Servo Driven Premade Pouch Packaging Machine is an automatic system designed to package products into premade flexible pouches. The pouch itself has already been manufactured before it reaches the machine.

My job is to make the next steps as stable and automatic as possible.

1. Pouch loading: Operators place premade pouches into the pouch magazine.

2. Pouch picking: The machine separates and picks individual pouches.

3. Pouch transfer: The pouch moves into the correct filling position.

4. Pouch opening: The pouch mouth is opened and prepared for filling.

5. Four-nozzle filling: The product is filled through four filling points using a suitable dosing system.

6. Sealing: The pouch is sealed after filling.

7. Coding: Optional coding equipment can print dates, batch numbers, barcodes, or other information.

8. Discharge: Finished pouches move to the next production stage.

This process reduces repetitive manual work and helps keep pouch handling more consistent.

The premade pouch format also gives me more packaging flexibility. A manufacturer can purchase pouches with printed graphics, zipper closures, special shapes, easy-open features, or other package details before they enter the filling line.

Source: Huapack product and application information supplied for this product page. The comparison describes general packaging process differences; actual equipment capabilities depend on final configuration.

2. How the Four-Nozzle Filling System Works

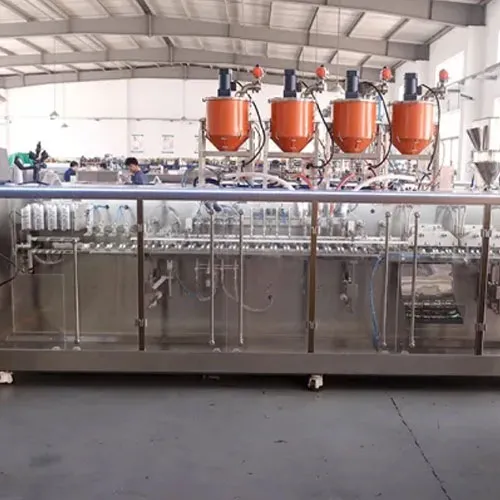

The four-nozzle configuration is one of the most important features of the 400QG.

In simple terms, four filling nozzles provide four filling points within the machine cycle. This allows the filling operation to be arranged for efficient production of suitable products.

However, I do not tell customers that four nozzles automatically mean four times the output. Real production capacity depends on many factors.

The product itself is one of the biggest factors.

A free-flowing granular product may be filled quickly. A fine powder may require more controlled dosing. A thin liquid can move easily through a filling pipe, while a thick sauce or paste may need a slower filling cycle and a stronger pump.

Pouch size matters as well. A small pouch with a small filling volume may have a different production cycle from a large pouch with a high filling volume.

That is why I select the filling system according to the actual material instead of using the same filling method for every project.

Source: Huapack application information. The filling methods listed are examples for engineering selection and must be confirmed through product characteristics and testing.

For me, this product-first approach is important. A machine can have excellent mechanical performance and still deliver poor results if the wrong dosing system is used.

3. Why Full Servo Control Matters

Flexible pouch packaging involves many repeated movements. The pouch needs to be picked, moved, opened, filled, sealed, and discharged in the correct order.

That is where the servo system becomes useful.

A servo motor uses feedback to control movement. Instead of simply telling a motor to run, the control system can manage its position and speed more accurately and coordinate its movement with other machine stations.

On the 400QG, servo control helps me manage important machine movements and production parameters digitally.

For example, pouch positioning needs to be consistent before the filling nozzles enter. After filling, the pouch must move into the sealing area at the correct time. If the pouch position changes too much, the sealing process can become unstable.

With digital parameter adjustment, operators can set suitable machine speed and other production parameters through the control interface.

Source: Huapack technical product information supplied for the 400QG. Actual machine accuracy and production performance depend on the complete mechanical, electrical, filling, and pouch configuration.

Servo control is not a magic solution for every packaging problem. The pouch material, filling system, sensors, sealing conditions, machine design, and operator settings still matter.

What servo control gives me is better control of repeated machine movement. When the same operation is performed thousands of times, that consistency becomes very useful.

4. What Can I Package With the 400QG?

I designed the 400QG to work with different product categories, provided that the filling system and pouch structure are suitable.

Food and Snacks

Nuts, snacks, grains, dried food, seasoning, coffee products, and other compatible food products can be packed in premade pouches.

For food applications, the pouch can be customized with printed graphics, zipper closures, easy-open features, and other consumer-friendly options.

Pet Food

Dry pet food and pet treats are another strong application for premade pouches. A zipper pouch can be useful when consumers need to open and close the package several times.

Nutrition Products

Powders and other compatible nutrition products can be filled using an appropriate dosing system. Product density and flow behavior should be checked before selecting the final filling equipment.

Personal Care

Suitable powders, liquids, creams, and other personal care products can be considered. The product-contact components and filling method should be selected according to the material.

Agricultural Products

Seeds, animal feed, organic fertilizer, and other compatible agricultural products can be packed in premade pouches. Different products may require different weighing or dosing systems.

Industrial Products

Plastic granules, chemical additives, compatible powders, and some building-material products can also be packaged. For industrial materials, I pay particular attention to product-contact materials, particle characteristics, dust, and pouch strength.

5. Main Features I Focus On in Production

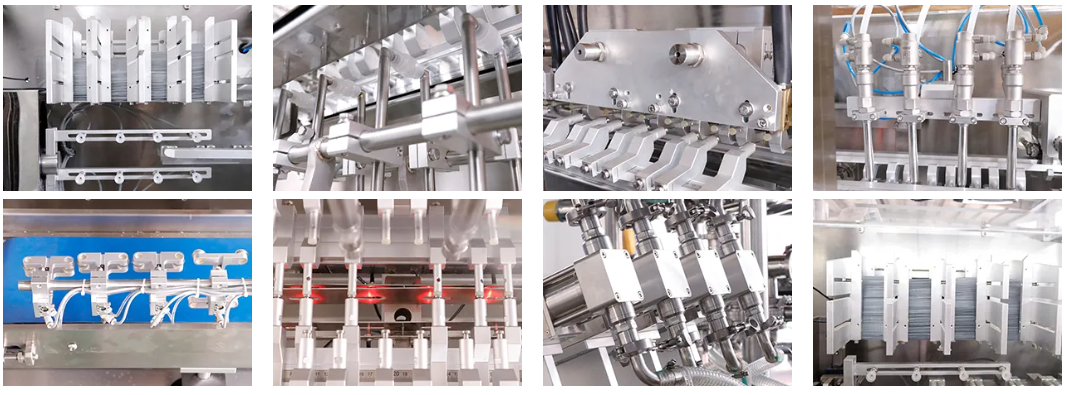

Automatic premade pouch handling: The machine automatically picks and transfers pouches, reducing repetitive manual handling.

Four-nozzle filling: Four filling nozzles provide an efficient filling arrangement for suitable products and target production conditions.

Full servo drive: Servo-controlled movement helps coordinate pouch handling, filling, sealing, and other machine operations.

Digital parameter adjustment: Operators can adjust important production parameters through the HMI rather than relying entirely on mechanical settings.

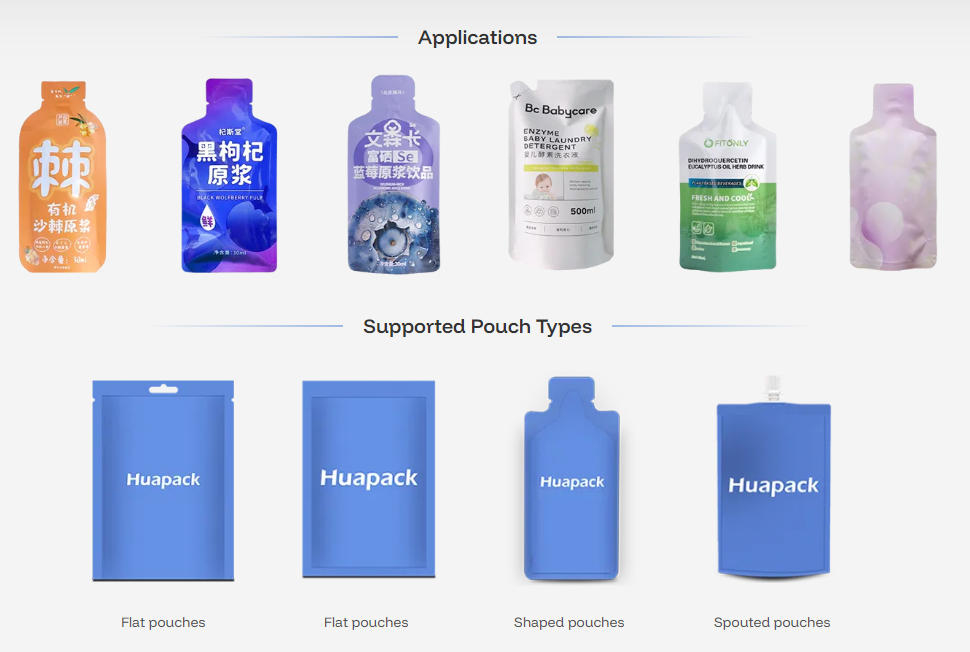

Flexible pouch compatibility: The machine can be configured for applicable stand-up pouches, flat pouches, zipper pouches, and other premade pouch formats.

Stable sealing: The sealing section is designed to produce a secure pouch closure when the selected film and process settings are appropriate.

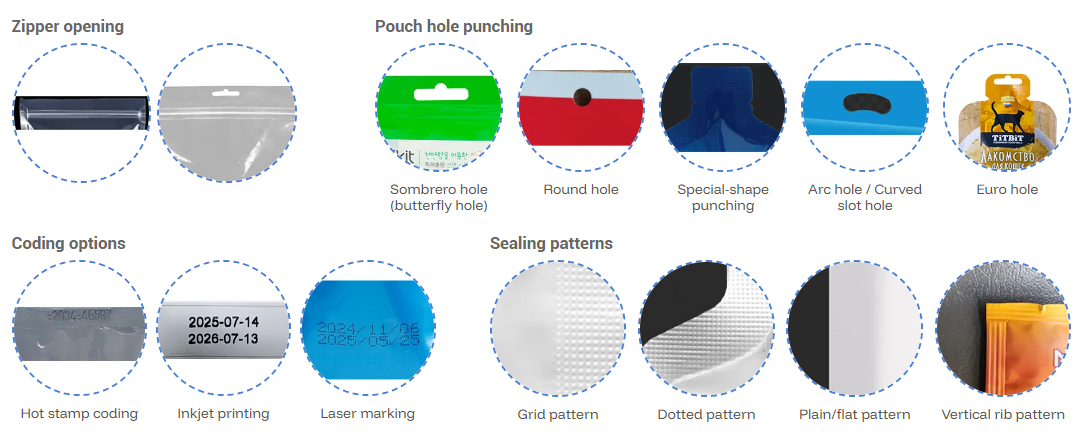

Optional coding: Date, batch number, barcode, QR code, and other information can be printed with a suitable coding system.

Reduced manual work: Automatic pouch handling and product filling can reduce repetitive labor and improve the organization of the production area.

Production line integration: The 400QG can be connected with feeding, weighing, conveying, inspection, cartoning, and other equipment according to the project requirements.

6. How I Select the Right Premade Pouch for the Machine

I always ask customers to provide pouch information before I finalize a premade pouch packaging solution.

The pouch width and height are important. So are the pouch thickness, material structure, opening size, zipper position, gusset design, and filling volume.

Why do these details matter?

Because the machine must pick the pouch correctly. The pouch must open without damage. The filling nozzle needs enough space to enter. The filled pouch must remain stable while moving toward the sealing station.

For example, a stiff laminated pouch may behave differently from a soft thin-film pouch. A zipper pouch has additional material around the opening. A gusseted pouch may need a different handling position.

Then I look at the product.

If it is a powder, I need to know its density and flowability. If it is a liquid, I check viscosity and foaming behavior. If it is a paste, I need to understand how easily it flows through the filling equipment.

Finally, I look at the target production capacity.

A factory producing a few thousand pouches per day has very different needs from a factory operating multiple shifts with a high-volume production target.

This is where Huapack's engineering approach becomes useful. I can configure the 400QG premade pouch filling machine around the actual product, pouch, and production target.

When required, I can also connect the machine with upstream product feeding and weighing systems and downstream conveyors, inspection equipment, cartoning machines, or case packing equipment.

7. How I Build and Support the 400QG

At Huapack, I look at machine manufacturing as more than assembling parts together.

The pouch feeding mechanism must work smoothly. Servo motors and sensors need to communicate correctly. The filling system needs to match the product. The sealing unit must work with the selected pouch film. The control system must be easy enough for operators to understand.

During machine development and assembly, I pay attention to the main mechanical frame, pouch handling system, servo drive components, filling equipment, sensors, sealing mechanism, electrical cabinet, HMI, safety devices, and product-contact components.

I also care about maintenance.

Operators need to clean the machine. They need to check moving parts. They may need to change products or pouch sizes. Wear components will eventually need replacement.

A machine that is difficult to inspect or clean can create unnecessary downtime. For that reason, I consider access to important operating areas during the equipment design process.

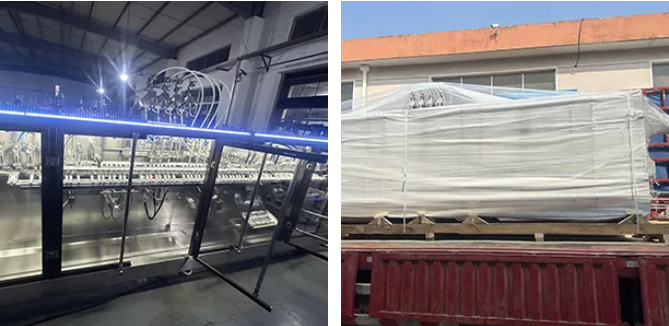

Before delivery, machine testing should focus on the actual production requirements. When possible, I recommend using the customer's product and pouch samples for testing because laboratory assumptions cannot always show how a real product behaves.

After installation, technical support can cover commissioning, operating guidance, parameter adjustment, maintenance advice, and production troubleshooting.

8. Why Choose Huapack for a Servo Driven Premade Pouch Packaging Machine?

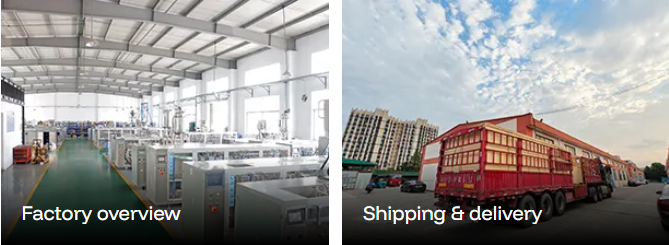

Shanghai Huacheng Packing Machinery Company was established in 2015, with a dedicated focus on pouch packaging machinery.

We integrate R&D, manufacturing, sales, and technical service under one operation. This allows us to understand the whole process instead of looking at the packaging machine as an isolated piece of equipment.

Our experience includes automated weighing, pouch filling, sealing, and complete line integration. This is important when a customer needs more than a standalone machine.

For example, a food producer may need a weighing system before the pouch filler and a metal detector or Checkweigher after sealing. A powder producer may need a dust-control solution and a suitable screw dosing system. A high-volume factory may need automatic pouch loading and downstream case packing.

I can design these systems according to the product, pouch format, production capacity, and factory layout.

My approach is straightforward: first understand the production problem, then select the equipment.

I do not recommend a filling system only because it looks good on a specification sheet. I want to know what the product actually does inside the machine.

The same principle applies to pouches. If possible, I prefer to test real pouch samples because opening behavior, stiffness, friction, zipper structure, and sealing performance can vary considerably between different pouch materials.

9. Frequently Asked Questions

What is a servo driven premade pouch packaging machine?

It is an automatic packaging machine that uses finished premade pouches rather than forming pouches from roll film. The machine automatically picks, opens, fills, seals, and discharges the pouches, while servo control manages key machine movements.

What does 4-nozzle filling mean?

It means the machine uses four filling nozzles as part of the filling configuration. This can improve filling efficiency for suitable products. Actual output depends on product characteristics, filling volume, dosing method, pouch size, and machine cycle.

What products can the 400QG package?

The machine can be configured for suitable granules, powders, liquids, pastes, and other products. Typical applications include snacks, nuts, grains, seasoning, pet food, nutrition products, personal care materials, seeds, fertilizer, and compatible industrial products.

Can I use stand-up pouches?

Yes, applicable premade stand-up pouches can be used when their dimensions and structure match the machine configuration.

Can I use zipper pouches?

Yes. The machine can be configured for suitable premade zipper pouches. Pouch dimensions, zipper structure, opening size, and film material should be confirmed before final configuration.

Can the machine fill powder?

Yes. A suitable powder dosing system can be integrated. Powder density, flowability, particle size, and dust behavior should be evaluated before selecting the final configuration.

Can the 400QG fill liquid or paste?

Yes, when the machine is equipped with an appropriate liquid or paste filling system. Viscosity, foaming, filling volume, temperature, and product-contact requirements should be considered.

Can I change the pouch size?

Yes, within the applicable machine range. Some changes can be completed through digital settings, while other formats may require mechanical adjustments or change parts.

Can I add date coding?

Yes. Coding equipment can be integrated to print production dates, batch numbers, barcodes, QR codes, and other required information.

Can the 400QG be integrated into a complete packaging line?

Yes. Huapack can integrate the machine with upstream feeding and weighing equipment and downstream conveying, inspection, cartoning, case packing, and other systems according to the production requirements.

Build Your Premade Pouch Packaging Line With Huapack

The Servo Driven Premade Pouch Packaging Machine, 4-Nozzle Filling-400QG is designed for manufacturers that want to automate premade pouch filling and sealing while keeping flexibility for different products and pouch formats.

Its servo-driven control system, automatic pouch handling, four-nozzle filling configuration, digital parameter adjustment, sealing process, coding options, and line integration capability make it suitable for a wide range of modern pouch packaging applications.

But I always recommend selecting the machine based on the actual production conditions. Product flow, pouch dimensions, filling volume, film structure, sealing requirements, and target capacity all matter.

If you are searching for a servo driven premade pouch packaging machine, automatic premade pouch filling machine, 4-nozzle premade pouch filling machine, premade pouch filling and sealing machine, Servo Premade Pouch Packing Machine, or automatic premade bag packaging equipment, send me your product information, pouch dimensions or samples, filling weight or volume, and target production capacity.

I can help you evaluate the 400QG configuration, select a suitable filling system, and develop a pouch packaging solution around your actual production process.

Huapack — focused on pouch packaging machinery, from individual machines to complete automated packaging lines.
