1. How I Look at Shaped Pouch Packaging

When I help a customer choose a pouch packaging machine, I do not look at the machine model alone. I first look at the product, pouch structure, filling weight, pouch size, production target, and the way the finished package will be handled after filling. These details usually tell me much more than a simple request for “a fast packaging machine.”

Our Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling-400SQY is designed for manufacturers that need automated filling and sealing for flexible shaped pouches. The machine brings several important operations together, including pouch handling, pouch opening, product filling, sealing, and finished pouch discharge.

The key feature of this model is its four-nozzle filling configuration. Compared with a single-nozzle or two-nozzle system, four filling nozzles give me more options when a customer needs higher filling capacity within the machine cycle. This can be especially useful when the filling process would otherwise become a production bottleneck.

Of course, I never describe four nozzles as an automatic “four times faster” solution. Real production speed depends on many things: product flow, filling weight, dosing method, pouch size, pouch handling, sealing time, and the overall machine cycle. A good packaging system has to balance all of these points.

The machine can be configured for different products, including compatible powders, granules, liquids, sauces, and pastes. The filling system is selected according to the product rather than using the same dosing method for every material.

This matters because a bag of rice, a fine powder, a liquid detergent, and a thick sauce behave completely differently during filling. One may flow freely, another may create dust, another may foam, and another may stick to the filling equipment.

At Shanghai Huacheng Packing Machinery Company, or Huapack, we have focused on pouch packaging machinery since 2015. From our manufacturing base in Songjiang District, Shanghai, we integrate research and development, manufacturing, sales, and technical service. Our work covers automated weighing, pouch filling, sealing, complete packaging lines, and turnkey packaging projects.

For me, the basic idea is simple: the machine should fit the product and production process. The customer should not have to force a good production process into a machine configuration that was never designed for it.

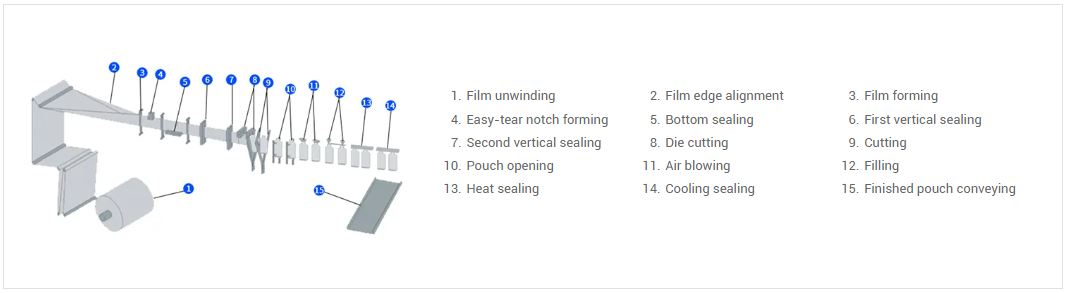

2. How the 4-Nozzle Shaped Pouch Packaging Process Works

The working process of the Rollstock Shaped Pouch Packaging Machine 400SQY is straightforward from an operator's point of view. The machine takes the pouches through a series of controlled steps and turns empty pouches into sealed finished packages.

1. Pouch supply: Finished pouches are loaded into the pouch feeding system.

2. Pouch picking: The machine separates individual pouches for the next operation.

3. Pouch transfer: Each pouch is moved into the correct working position.

4. Pouch opening: The pouch mouth is opened so that the filling system can enter correctly.

5. Four-nozzle filling: The filling system dispenses the selected product through four filling nozzles according to the configured process.

6. Sealing: The pouch moves to the sealing station, where the package is closed.

7. Finished pouch discharge: The sealed package is transferred to the following conveyor or production process.

It sounds simple, but stable synchronization between these steps is what makes an automatic pouch packaging machine useful in daily production.

If pouch feeding is unstable, the filling station cannot work smoothly. If the pouch is not opened correctly, the nozzle may not enter the pouch mouth properly. If product reaches the sealing area, seal quality can be affected. If finished pouches are not discharged smoothly, the machine may need unnecessary stops.

That is why I treat the machine as one complete system rather than a collection of separate mechanisms.

Source: Huapack product information supplied for the Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling-400SQY. Exact machine configuration may vary according to pouch type, product characteristics, and customer requirements.

3. Why Four Filling Nozzles Can Make a Difference

One of the most useful features of the 400SQY shaped pouch packaging machine is the four-nozzle filling arrangement.

In a packaging machine, filling is often one of the key operations that determines the total cycle time. If one filling point takes too long, the rest of the machine may have to wait. Adding more filling nozzles can help distribute the filling work within the same production cycle.

For example, a manufacturer producing a large number of small pouches may benefit from a multi-nozzle filling arrangement because the filling station can process multiple pouches as part of the machine cycle.

However, I always check the product before making a production estimate. The number of nozzles alone does not determine final output.

Source: Huapack application information supplied for pouch packaging machinery. Final filling technology must be selected according to actual product properties and required filling range.

When I evaluate a filling project, I normally want to know the product name, filling weight or volume, density, viscosity if it is a liquid, particle size if it is a solid, and the required production capacity.

I also want to know whether the product contains oil, sugar, fibers, large particles, or other ingredients that may affect filling behavior.

These details help us select the right filling mechanism and avoid a common mistake: choosing a machine because its headline specification looks impressive while the actual product is difficult to fill.

4. Flexible Shaped Pouches Need Careful Handling

Shaped pouches are popular because they give brands more freedom in package design. A pouch can stand upright, include a zipper, use a special contour, have a flat bottom, or include a spout.

But flexible packaging also creates a mechanical challenge. Unlike a rigid bottle, a pouch can bend and move. Its shape can change when it is empty, partially filled, or completely filled.

That is why I always recommend testing actual pouch samples before finalizing a machine configuration.

Source: Huapack supplied product and application information. Actual compatibility should be confirmed using customer pouch samples, drawings, dimensions, and material structures.

For a shaped pouch, the position of the pouch opening is especially important. The filling nozzle must enter the pouch cleanly, and the pouch must remain stable during filling.

The sealing station also needs to be considered carefully. The sealing area should be clean and properly aligned. Product trapped between sealing layers can reduce the quality of the finished package.

These are small details, but they can make a big difference after the machine runs for several hours.

5. Main Advantages I Focus On With the 400SQY

Four-Nozzle Filling Configuration

The four-nozzle filling arrangement is designed for applications that require more filling capacity within the machine cycle. It provides a practical way to support higher production requirements when matched with a suitable dosing system.

Automatic Pouch Handling

Automatic pouch feeding, opening, and transfer reduce repetitive manual operations. This can improve production consistency and reduce unnecessary operator contact with the product.

Flexible Product Compatibility

The machine can be configured for suitable powders, granules, liquids, sauces, and pastes. I select the filling method according to product behavior instead of using one universal system.

Stable Sealing

A pouch is only useful when it stays closed. I pay close attention to sealing temperature, pressure, sealing time, pouch material, and the cleanliness of the sealing area.

Compact Machine Structure

A compact design helps manufacturers make better use of workshop space. It also makes the equipment easier to place alongside upstream and downstream packaging equipment.

Flexible Changeover

Many customers do not package only one product. Convenient parameter adjustment and appropriate mechanical adjustment help support flexible production with different pouch sizes and products.

Reduced Manual Product Contact

Automating the filling process can reduce repeated manual handling of products. This is particularly useful for food, personal care, pharmaceutical, and other cleanliness-sensitive applications.

Complete Line Integration

The 400SQY can be considered as part of a larger packaging system. Depending on the project, weighing, feeding, coding, inspection, conveying, cartoning, and other equipment can be connected around the pouch packaging process.

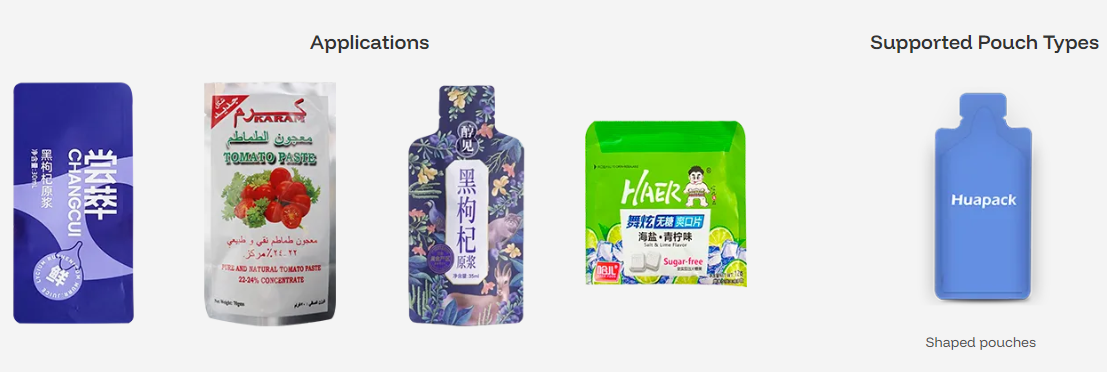

6. Where I See This Shaped Pouch Machine Being Used

The flexibility of pouch packaging allows the same basic machine concept to serve many industries. The important point is always product compatibility and the correct filling configuration.

Food and Snack Packaging

Food manufacturers can use suitable configurations for snacks, grains, seasonings, prepared foods, dry ingredients, and other compatible products. Stand-up and shaped pouches can provide strong shelf appeal while keeping the package flexible.

Condiments and Sauces

Jam, sauces, pastes, and similar products can be considered when the filling system is designed for the product's viscosity and flow characteristics.

Household Products

Detergents, cleaning products, and other compatible household materials can be packed into flexible pouches. The product-contact materials should be selected according to the formulation.

Personal Care Products

Suitable liquid, cream, and gel-type personal care products can be considered. Viscosity and cleaning requirements are important when selecting the filling equipment.

Pharmaceutical and Health Products

Suitable powders and liquids may be packaged in flexible pouches for pharmaceutical and health-related applications. For regulated products, the complete production system must meet applicable local requirements.

Agricultural Products

Seeds, feed, organic fertilizer, and similar agricultural materials can be considered with suitable weighing or dosing systems.

Chemical and Industrial Materials

Selected chemical additives, plastic particles, powders, and construction-related materials may also be packaged in suitable flexible pouches. For dusty, abrasive, or corrosive products, I pay special attention to product-contact materials, dust control, cleaning, and equipment protection.

Source: Huapack company and product application information supplied for this page. Actual application suitability depends on product formulation, pouch material, filling range, production environment, and final machine configuration.

7. How I Choose the Right 400SQY Configuration

I do not recommend a pouch packaging machine based only on a model number. Before confirming a machine, I want to understand the real production requirement.

For the Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling-400SQY, I would normally ask for the following information:

• Pouch width and height

• Pouch opening dimensions

• Pouch material and structure

• Pouch shape and bottom design

• Zipper or spout details, if applicable

• Product type and formulation

• Filling weight or volume

• Target production capacity

• Required dosing accuracy

• Existing upstream and downstream equipment

A pouch sample is even better than a list of dimensions. When I can see and handle the real pouch, I can better understand its stiffness, opening behavior, shape, and stability.

Source: Huapack engineering and product-selection methodology based on the company and product information supplied for this page. Exact technical specifications should be confirmed in the final quotation and technical agreement.

This approach is important because the same pouch machine can behave very differently with different products. A 50-gram free-flowing grain is not the same as a 50-gram sticky sauce. The filling weight may be identical, but the filling process is not.

So, before I confirm the final configuration, I prefer to test the product and pouch whenever practical.

8. How We Build, Test, and Integrate Pouch Packaging Equipment

At Huapack, manufacturing is only one part of our work. We also develop packaging systems, provide technical support, and integrate complete pouch packaging lines.

When we build a machine, I look at the complete process. Pouch feeding, opening, filling, sealing, electrical control, sensors, safety functions, product-contact parts, and finished pouch discharge all need to work together.

The mechanical movement needs to be smooth. Pouches should remain properly positioned. Sensors need to provide reliable feedback. The filling system needs to match the product. The sealing station needs to match the pouch material and package structure.

Testing is especially important for shaped pouches.

A shaped pouch may look fine when empty but behave differently after filling. Its center of gravity changes, the pouch may become more rigid, and the bottom may need to settle before discharge. These details are difficult to judge from a product photograph.

That is why I recommend running actual pouch and product tests whenever possible.

During testing, we can review pouch feeding, opening, filling, sealing, finished pouch appearance, and overall machine coordination. If the customer has a target production capacity, we can also use testing to evaluate whether the selected configuration is suitable for the required production process.

For customers who need more than a standalone machine, Huapack can also develop a complete packaging line. Depending on the project, this may include automatic weighing, product feeding, pouch packaging, coding, inspection, conveying, and downstream packing equipment.

This is one of the areas where our experience in pouch packaging machinery becomes useful. We are not only looking at how one machine works. We are looking at how the complete production process works from product feeding to final package.

9. Frequently Asked Questions About the 400SQY

What is the Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling-400SQY?

It is an automated shaped pouch packaging machine designed around pouch feeding, opening, multi-nozzle filling, sealing, and finished pouch discharge. The 400SQY model uses a four-nozzle filling configuration according to the supplied product information.

What does four-nozzle filling mean?

It means the filling station is equipped with four filling nozzles. This provides greater filling capacity within the machine cycle compared with a single-nozzle configuration when the product and machine process are properly matched.

Does four-nozzle filling mean four times the production speed?

No. I would not recommend making that assumption. Actual production output depends on product characteristics, filling time, pouch size, pouch handling, dosing method, sealing time, and the complete machine cycle.

What products can the 400SQY package?

The machine can be configured for compatible powders, granules, liquids, sauces, pastes, and other flexible-pouch products. The filling mechanism should be selected according to the actual material.

Can it package food products?

Yes. Suitable applications include snacks, grains, seasonings, prepared foods, and other compatible food products. The final equipment configuration should meet the applicable production and hygiene requirements.

Can it handle powder?

Yes. A suitable powder dosing system can be integrated. Before confirmation, I recommend checking powder density, particle size, flowability, dust generation, and filling range.

Can it fill liquid products?

Yes, with a suitable liquid filling system. Thin liquids, foaming liquids, and thick liquids have different filling requirements, so product testing is recommended.

Can it fill sauces and pastes?

Yes. Suitable viscous products can be considered with an appropriate piston or pump-based filling system. Viscosity, temperature, stickiness, and cleaning requirements should be evaluated.

What pouch types can be used?

Depending on the final configuration, the machine can be considered for stand-up pouches, zipper pouches, flat pouches, flat-bottom pouches, spouted pouches, and other compatible shaped flexible pouches.

Does this machine make pouches from film?

The product information supplied for this page describes a shaped pouch packaging machine using prepared packaging bags. If a customer needs a machine that forms pouches directly from rollstock film, the machine structure and technical specification need to be confirmed separately.

Can the machine be connected to a complete production line?

Yes. Huapack can integrate pouch packaging equipment with upstream weighing and feeding systems and downstream coding, inspection, conveying, cartoning, and other equipment according to the project requirements.

Should I send a pouch sample before requesting a quotation?

Yes. A pouch sample, product sample, pouch dimensions, filling weight, and target capacity allow us to give a much more practical machine recommendation.

10. Why I Choose Huapack for Flexible Pouch Packaging Projects

For me, choosing a packaging machine supplier is about more than buying a piece of equipment. The supplier needs to understand what happens before the filling station, what happens after sealing, and what the operator has to deal with every day.

Huapack was established in 2015 in Shanghai, with a dedicated focus on pouch packaging machinery. Our business combines research and development, manufacturing, sales, and technical service under one operation.

We work with different pouch formats and different products, including food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, and pet food. Our equipment approach covers automated weighing, pouch filling, sealing, and complete line integration.

When I discuss a project with a customer, I want to know the real production problem first. Maybe the customer wants to reduce manual pouch handling. Maybe the filling station is too slow. Maybe the factory needs a cleaner process. Maybe the existing equipment cannot handle several pouch sizes. Or perhaps the company is building a completely new packaging line.

Each situation requires a different solution.

Our Rollstock Shaped Pouch Packaging Machine, 4-Nozzle Filling-400SQY is designed for manufacturers looking for an automated flexible pouch packaging solution with a four-nozzle filling configuration.

It can be considered for food, household products, personal care, pharmaceutical, agricultural, chemical, and industrial applications when the product, pouch, and filling system are compatible.

If you are searching for a 4-nozzle pouch filling machine, shaped pouch packaging machine, automatic Shaped Pouch Filling and Sealing Machine, flexible pouch packaging machine, stand-up pouch filling machine, Premade Pouch Packaging Machine, or automatic pouch filling equipment, I recommend starting with your actual pouch and product specifications.

Send us your pouch sample or drawing, product information, filling weight, and target production capacity. We can then evaluate the 400SQY configuration and determine whether it is the right fit for your production line.

My goal is not simply to supply a machine. My goal is to help build a pouch packaging process that runs steadily, produces consistent packages, and can support your production as your business grows.

Technical source note: Product and company claims in this page are based on the Huapack company and product information supplied for this project. Exact specifications such as machine speed, pouch size range, filling range, machine dimensions, installed power, air consumption, and final production capacity should be confirmed in the official technical specification and validated through product and pouch testing.
