1. What Is the Spouted Pouch Filling and Capping Machine-ZGY-4000?

The Spouted Pouch Filling and Capping Machine-ZGY-4000 is an automatic packaging machine for pre-made spouted pouches. The pouch already has its flexible body, spout, and opening before it enters the machine. My system then takes over the filling and closing work.

This is different from a form-fill-seal machine. A form-fill-seal system starts with film rolls and creates the pouch during production. With the ZGY-4000, I work with ready-made pouches, so the machine can focus on accurate handling, product filling, cap placement, and final closure.

The basic process includes:

• Automatic feeding of pre-made spouted pouches

• Pouch separation and positioning

• Controlled product filling

• Cap supply and placement

• Automatic cap tightening

• Finished pouch discharge

• Connection with conveyors or downstream packaging equipment

I find this design particularly useful for liquid and semi-liquid products that need a convenient opening. A spouted pouch can be squeezed, poured, or consumed directly depending on the product design. The machine provides the automation needed to make this packaging format practical for continuous production.

One thing I always make clear to customers is that final machine performance depends on the actual pouch and product. Pouch width, height, spout location, cap design, material structure, filling volume, viscosity, and production speed all affect the final configuration.

2. How I Run the ZGY-4000 Filling and Capping Process

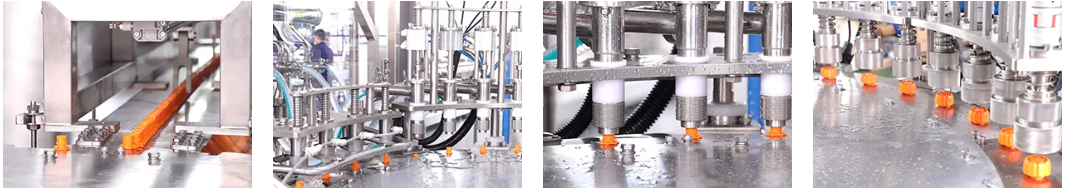

The working principle is easy to understand. The machine moves each pre-made pouch through a series of controlled stations. Each station has one clear job, and the pouch moves forward after that job is completed.

Step 1: Pouch Feeding

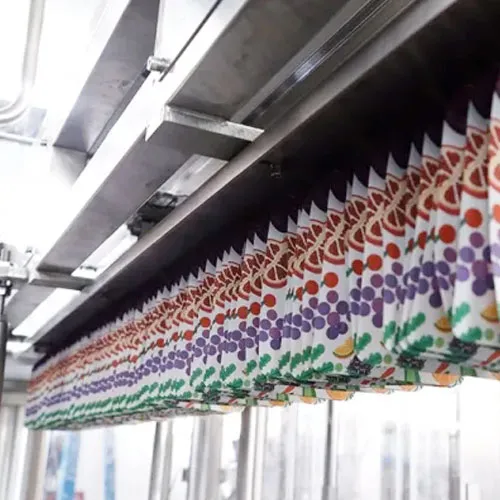

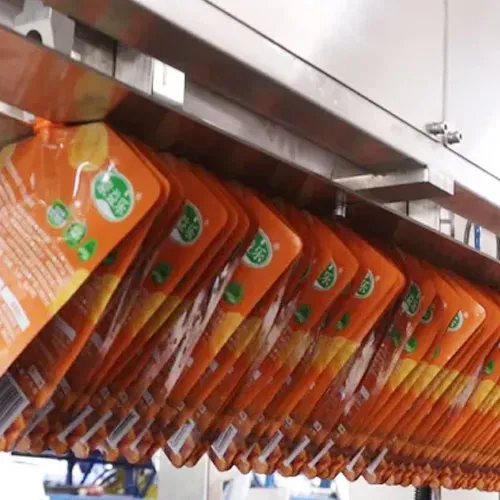

I first place the pre-made spouted pouches into the feeding section. The feeding mechanism separates the pouches and transfers them into the machine in an organized way.

Step 2: Pouch Positioning

The pouch must be held in the correct position before filling. The spout needs to line up with the filling system. Stable positioning helps reduce filling errors, splashing, and product contamination around the pouch opening.

Step 3: Product Filling

The filling system delivers the product through the spout. The correct filling method depends on whether I am working with a thin liquid, thick sauce, paste, or another fluid product.

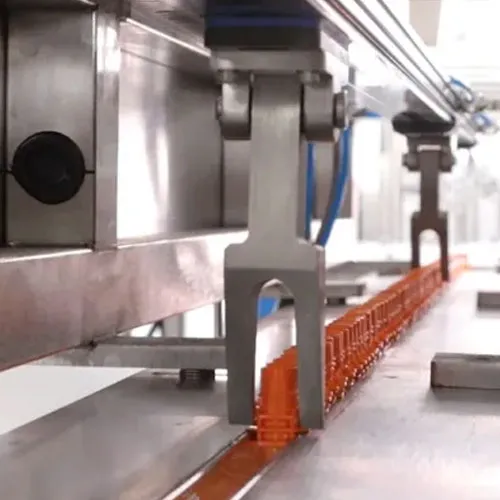

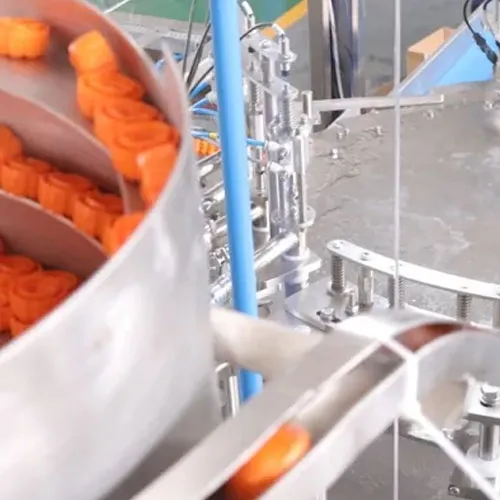

Step 4: Cap Placement

After the required amount of product has been filled, the cap is supplied and placed onto the spout. Correct alignment is important because the cap and spout need to engage properly.

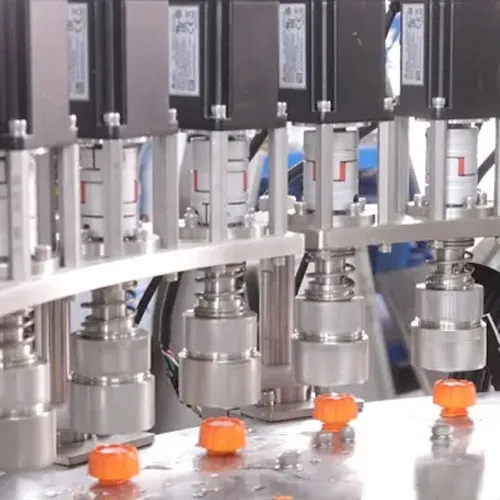

Step 5: Automatic Capping

The machine tightens the cap automatically. I pay attention to tightening conditions because both under-tightening and over-tightening can create problems. The correct cap torque depends on the cap and pouch specifications.

Step 6: Finished Pouch Discharge

After capping, the finished pouch is transferred out of the machine. From there, it can move to inspection, conveying, labeling, secondary packaging, or another process.

This simple flow is one of the reasons I like pre-made spouted pouch systems. The process is easy for operators to understand, while the automatic movement reduces the amount of repetitive manual handling.

3. Main Features I Build Around Real Production Needs

A good automatic spouted pouch filling and capping machine needs to do more than move quickly. I pay attention to stability, adjustment, cleaning, product compatibility, and the way the equipment fits into the customer's factory.

Flexible Pouch Handling

The ZGY-4000 is intended for different pre-made spouted pouch formats within its applicable working range. Before I finalize a project, I prefer to check pouch drawings or physical samples. Small differences in pouch dimensions and spout position can affect machine adjustment.

Adjustable Filling Parameters

Different products and pouch sizes may require different filling settings. Adjustable parameters allow the machine to be configured according to the actual production requirement rather than relying on one fixed setting.

Automatic Cap Tightening

The capping section removes a repetitive manual step. Proper cap tightening is especially important for liquid products because a weak closure can cause leakage during storage, transportation, or use.

Lower Manual Workload

Without automation, operators may need to feed pouches, position them, fill them, and tighten caps repeatedly throughout the shift. I use automation to take over these repetitive actions, allowing operators to focus more on monitoring and production control.

Easy Integration

The ZGY-4000 can be planned as part of a larger pouch packaging line. Depending on the project, the line may include conveyors, inspection equipment, labeling, secondary packaging, and other production systems.

Source: Huapack engineering and application planning. Final specifications should be confirmed using actual pouch and product samples.

4. Why I Recommend Spouted Pouches for Selected Liquid Products

From a packaging point of view, I see a clear reason why spouted pouches are attractive. They combine a flexible package with a convenient opening. For many products, this means easier pouring, squeezing, carrying, and storage.

The Flexible Packaging Association describes flexible packaging as a resource-efficient packaging format and reports that flexible pouches can use less material and have a lower package-to-product ratio than several rigid packaging formats. [Flexible Packaging Association – Sustainability](https://www.flexpack.org/sustainability?utm_source=chatgpt.com)

Source: Flexible Packaging Association, resource-efficiency information. These are general packaging-format observations and are not guaranteed performance figures for the ZGY-4000.

For my customers, the biggest benefit is often convenience. A spout makes it easier to control the flow of a liquid or paste. This can be useful for sauces, honey, beverages, cleaning products, and personal care products.

However, I never treat the machine as the only part of the package. Film structure, spout material, cap design, sealing performance, product compatibility, and filling conditions all need to work together.

For food applications, packaging materials also need to meet the applicable requirements of the destination market. The U.S. Food and Drug Administration explains that food-contact substances are evaluated according to their intended use and applicable authorization requirements. [FDA – Food Packaging and Food Contact Substances](https://www.fda.gov/food/food-ingredients-packaging/food-packaging-other-substances-come-contact-food-information-consumers?utm_source=chatgpt.com)

5. Applications of the ZGY-4000

I designed the application scope around liquid, semi-liquid, and paste products that can benefit from pre-made spouted pouch packaging. The actual product suitability should always be confirmed through testing.

Food and Beverage Packaging

Food products are one of the most natural applications. The machine can be considered for juice, yogurt, jam, honey, sauces, condiments, and similar products. The spout gives consumers a convenient way to pour or squeeze the contents.

Personal Care and Household Products

Liquid detergents, cleaning products, personal care liquids, and other household formulations can use spouted pouches where the pouch and product materials are compatible.

Nutrition and Healthcare Products

Nutritional liquids and selected healthcare products can also use flexible spouted packaging. For these projects, I pay special attention to hygiene, material compatibility, filling control, and the customer's applicable market regulations.

Agricultural Products

Agricultural nutrient liquids and selected liquid formulations may be suitable for this packaging format. Chemical compatibility should be checked carefully before finalizing pouch and machine materials.

Industrial Products

Some lubricants, pigment slurries, and other fluid industrial materials can also be considered. In these cases, viscosity, chemical compatibility, cleaning requirements, and closure performance become especially important.

Source: Huapack application engineering scope. Final application suitability depends on product properties, pouch materials, and customer requirements.

6. How I Manufacture and Customize the ZGY-4000

At Huapack, I do not think machine manufacturing starts with welding and ends with electrical wiring. The process starts much earlier, with the product and package.

Before I finalize a spouted pouch filling machine, I want to understand the actual pouch. I look at its width, height, spout position, spout diameter, cap structure, material, and opening characteristics. Then I look at the product.

For the product, I consider viscosity, flow behavior, temperature, solids content, foaming tendency, filling volume, and cleaning requirements. These factors help determine the right filling arrangement and operating conditions.

After the engineering requirements are confirmed, the machine goes through mechanical fabrication, component assembly, electrical installation, control-system integration, adjustment, and testing.

I also consider the factory environment. A machine that works well in isolation still needs to fit the customer's production floor. Operator access, material loading, finished pouch discharge, conveyor direction, inspection points, and maintenance space all affect the final installation.

This is particularly important for customers who want a complete packaging line. Huapack can develop systems around weighing, filling, pouch handling, sealing, conveying, and other packaging processes. The aim is to make the individual machines work together rather than creating a collection of disconnected machines.

For food-related projects, I also recommend confirming the required food-contact materials and regulatory requirements for the target market before production. The FDA provides specific guidance on determining the regulatory status of components used in food-contact materials. [FDA – Determining Regulatory Status of Components of Food Contact Materials](https://www.fda.gov/food/packaging-food-contact-substances-fcs/determining-regulatory-status-components-food-contact-material?utm_source=chatgpt.com)

7. Why I Choose Huapack for Spouted Pouch Packaging Projects

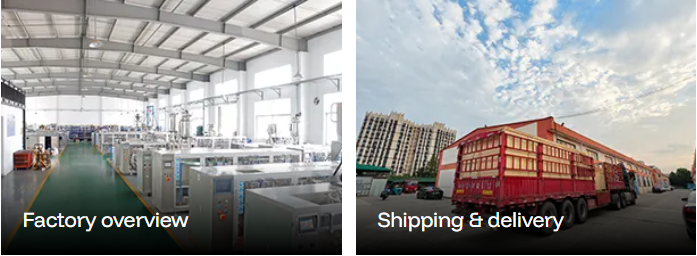

Shanghai Huacheng Packing Machinery Company was established in 2015 in Songjiang District, Shanghai. Our business combines research and development, manufacturing, sales, and technical service, with a dedicated focus on pouch packaging machinery.

What I think matters most is our experience with the complete packaging process. We are not limited to one type of machine. Our work covers automated weighing, pouch filling, sealing, pouch handling, and complete line integration.

That broader experience helps when a customer asks for a complete spouted pouch filling and capping line. I can consider how the ZGY-4000 should connect with other equipment rather than treating the machine as a standalone unit.

I also understand that production requirements are different from one factory to another. A small manufacturer may need a compact and practical solution. A larger factory may need automated conveyors, inspection, labeling, secondary packaging, and a higher level of line integration.

For this reason, I build the solution around product characteristics, pouch format, capacity requirements, and the customer's production environment.

If you are comparing spouted pouch filling machine manufacturers, I recommend looking beyond the basic machine name. Ask how the supplier handles pouch compatibility, product testing, filling method selection, cap tightening, line integration, installation, and technical support. These details often have a bigger effect on long-term production than a single headline specification.

8. Frequently Asked Questions

What type of pouch does the ZGY-4000 use?

The ZGY-4000 is designed for pre-made spouted pouches. The pouch is manufactured separately and enters the machine ready for filling and capping.

What products can this machine fill?

Typical applications include juice, yogurt, jam, honey, sauces, detergents, personal care liquids, nutritional liquids, agricultural nutrient liquids, lubricants, and selected paste products. Actual suitability depends on product properties.

Can the ZGY-4000 fill thick products?

It can be considered for thicker products such as honey, jam, and sauces, but viscosity has a direct effect on filling performance. I recommend product testing before confirming the final filling system.

Does the machine automatically tighten the cap?

Yes. The machine integrates automatic cap handling and tightening as part of the filling and capping process. The suitable tightening conditions depend on the cap and spout design.

Can I use different pouch sizes?

Different pouch sizes can be supported within the machine's applicable range. I recommend providing pouch samples or technical drawings so I can check the dimensions, spout position, and cap structure before final configuration.

Can the machine connect to a production line?

Yes. The ZGY-4000 can be integrated into a wider packaging line. Depending on the project, the system can connect with conveyors, inspection equipment, labeling machines, secondary packaging equipment, and other production units.

Can Huapack customize the machine?

Yes. We can develop the machine configuration according to the product, pouch format, filling volume, capacity, and production environment. Customization is confirmed after reviewing the actual project requirements.

What information should I provide for a quotation?

I recommend sending the pouch dimensions, pouch material, spout and cap details, product name, viscosity or product characteristics, target filling volume, desired production capacity, and pouch samples if available. This information allows me to evaluate the application more accurately.

Is the ZGY-4000 suitable for food packaging?

The machine can be configured for food packaging applications. However, food-contact materials and the complete packaging system must meet the applicable requirements of the destination market and intended use. I recommend confirming these requirements before final machine production.
