Servo Driven Rollstock Zipper Pouch Packaging Machine, 2-Nozzle Filling-240SDZ/280SDZ/330SDZ

When I plan a zipper pouch packaging project, I do not start by asking how many bags per minute a machine can make. I first look at the product, pouch size, filling weight, film structure, zipper design, and the production target. These details tell me what kind of packaging system will actually work on the factory floor.

For customers who need roll film zipper pouches, I developed the Servo Driven Rollstock Zipper Pouch Packaging Machine, 2-Nozzle Filling-240SDZ/280SDZ/330SDZ as a flexible solution for automatic pouch forming, filling, sealing, cutting, and coding. The machine uses full servo control and continuous pouch transport, while the two-nozzle filling configuration is designed to support products that require efficient and stable filling.

At Shanghai Huacheng Packing Machinery Company (Huapack), I have focused on pouch packaging machinery since 2015. Based in Songjiang, Shanghai, we combine research and development, manufacturing, sales, and technical service. I work with customers in food, dairy, nutrition, pharmaceutical, personal care, agrochemical, pet food, and industrial packaging.

My goal is straightforward: make the packaging process easier to control, easier to change, and easier to connect with the rest of the production line.

1. What Is a Servo Driven Rollstock Zipper Pouch Packaging Machine?

This machine starts with rollstock film rather than premade pouches. The film is unwound, formed into a pouch, filled with the selected product, sealed, cut, and discharged as a finished package.

The zipper is incorporated into the pouch structure, allowing the finished package to be opened and closed again. This format is especially useful when the customer does not need to use the entire package in one sitting. Snacks, nuts, pet food, coffee, powdered products, and many dry foods are common examples.

The machine uses a full servo drive system to control key movements. In simple terms, the servo system helps the machine control position and speed more precisely. Instead of depending mainly on mechanical adjustments, I can set many production parameters digitally through the HMI.

The continuous-motion design is another important part. The pouch transport follows a continuous one-direction working principle, helping the different stations operate in a coordinated production cycle. Published technical information for this machine family describes independent servo motors and synchronized motion as key parts of the design. ([etwinternational.com](https://etwinternational.com/servo-flexible-pouch-packaging-machine-4-7-751292.html?utm_source=chatgpt.com))

The three models—240SDZ, 280SDZ, and 330SDZ—are designed for different pouch widths and filling capacities. This gives me room to match the machine to the customer's actual package rather than forcing every project into one standard size.

Source: Huapack published specifications for the roll-film zipper pouch packaging machine family. Actual production speed and filling range depend on product characteristics, pouch construction, filling system, and operating conditions. ([huapackmachinery.com](https://huapackmachinery.com/packaging-styles/zipper-pouch-packing-machine/?utm_source=chatgpt.com))

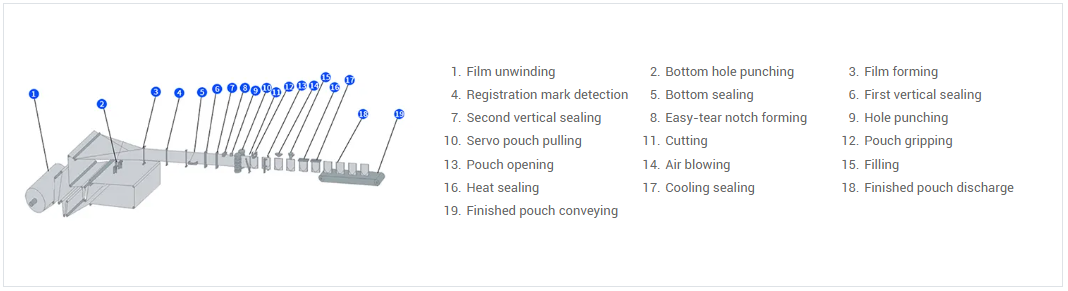

2. How the Two-Nozzle Rollstock Pouch Packaging Process Works

The complete process can look complicated from the outside, but I break it into a few simple steps.

1. Film unwinding: Rollstock film is fed into the machine through the film supply system.

2. Film alignment: Sensors and the servo-driven film system help keep the material in the correct position.

3. Pouch forming: The film is shaped into the required zipper pouch structure.

4. Zipper positioning: The zipper section is integrated into the pouch forming process according to the selected package design.

5. Pouch transfer: Grippers or a walking-beam mechanism move the pouch through the production stations.

6. Two-nozzle filling: Two filling nozzles work according to the selected filling configuration and product characteristics.

7. Sealing: The pouch passes through the sealing section to create the required closure.

8. Cutting: The finished pouch is separated from the film web.

9. Coding and discharge: Date, batch, barcode, QR code, or other information can be printed before the finished pouch is transferred to the next stage.

The two-nozzle design is useful when filling efficiency is important. Instead of using only one filling point, I can configure two nozzles to work within the same packaging cycle, depending on the filling method and product.

This does not mean every product automatically runs twice as fast. The actual output depends on the filling volume, dosing method, product flow, pouch size, sealing time, and other factors. I prefer to be clear about this because a real factory is not the same as a laboratory test.

The published machine information identifies modular filling systems and multiple filling options, allowing the filling section to be matched with different products. ([etwinternational.com](https://etwinternational.com/servo-flexible-pouch-packaging-machine-4-7-751292.html?utm_source=chatgpt.com))

3. Choosing Between 240SDZ, 280SDZ and 330SDZ

I often get asked which model is “the best.” My answer is usually: the best model is the one that fits your pouch.

The 240SDZ is suitable when the pouch width is within the smaller range and the customer wants a higher reference production speed. Its published maximum pouch width is 120 mm, with a maximum listed filling volume of 500 ml.

The 280SDZ gives more width, reaching a published maximum pouch width of 140 mm. It is a useful middle option when the pouch is wider but the filling volume remains within the 500 ml range.

The 330SDZ is designed for the largest pouch width of these three models, reaching 165 mm, with a published maximum filling volume of 700 ml.

Source: Huapack published model specifications. The “best starting point” description is an engineering interpretation based on the published pouch dimensions and filling capacity; final model selection should be confirmed using actual product and pouch samples. ([huapackmachinery.com](https://huapackmachinery.com/packaging-styles/zipper-pouch-packing-machine/?utm_source=chatgpt.com))

There is another factor that people sometimes forget: factory space. Published machine dimensions are approximately 7200 × 970 × 1460 mm for the 240SDZ, 8500 × 1100 × 1460 mm for the 280SDZ, and 9500 × 1100 × 1460 mm for the 330SDZ. ([huapackmachinery.com](https://huapackmachinery.com/packaging-styles/zipper-pouch-packing-machine/?utm_source=chatgpt.com))

So before choosing a model, I always recommend checking not only the pouch size but also the available floor space, operator access, material flow, and downstream equipment position.

4. Why I Use Full Servo Control for Rollstock Pouch Packaging

The word “servo” can sound technical, but the idea is actually quite simple.

A servo motor uses feedback to help the control system know the motor's position and speed. This makes it possible to control movement accurately and repeat the same motion cycle again and again.

For a pouch packaging machine, this matters because several movements must happen together. Film feeding, pouch forming, filling, sealing, and cutting cannot work independently. If the film moves too far, the pouch may be the wrong length. If the cutting position is wrong, the artwork may not line up. If the filling cycle is not synchronized, production becomes unstable.

With a full servo system, I can digitally manage important motion parameters and coordinate multiple axes. Siemens technical documentation describes servo systems as suitable for precise and highly dynamic motion sequences, including cyclic applications used in packaging machinery. ([cache.industry.siemens.com](https://cache.industry.siemens.com/dl/files/885/109751885/att_933312/v1/SIMOTION-Motion-Control-System-PM21-complete-English-2017.pdf?utm_source=chatgpt.com))

For the operator, the practical benefits are easier adjustment, repeatable settings, faster format changes, and better control of the production cycle.

Source: Comparison based on Huapack machine information and Siemens servo motion-control documentation. Actual results depend on the complete mechanical and control-system design. ([cache.industry.siemens.com](https://cache.industry.siemens.com/dl/files/381/109754381/att_1140293/v1/motion-control-drives-D32-complete-English-2023-04.pdf?utm_source=chatgpt.com))

5. What I Can Package With the 2-Nozzle System

The filling system is one of the most important parts of the machine. I do not use the same dosing method for every material because products behave differently.

Granular products such as nuts, seeds, grains, snacks, coffee beans, and plastic pellets may be paired with a multihead weigher, Linear Weigher, volumetric system, or another suitable dosing method.

Powders such as seasoning, protein powder, detergent powder, milk powder, and fertilizer usually need a dedicated powder filling system. Screw dosing is one common option when the product characteristics are suitable.

Liquids require a filling system designed around flow and viscosity. Water-like liquids and thick sauces can behave very differently, so I check the product before selecting the filling configuration.

Pastes can also be packaged when the machine is equipped with a suitable piston, pump, or other dosing solution.

The machine can therefore serve several industries, including food, pet food, agriculture, daily chemicals, nutrition, and compatible industrial materials.

For food packaging, the zipper pouch format is especially useful for products such as nuts, snacks, dried foods, coffee, grains, and pet food. The zipper provides a resealable opening, which can be convenient when the customer uses the product over several occasions.

6. Features I Pay Attention to During Production

Accurate film feeding: I use servo-driven film movement and alignment control to keep the film on the intended path.

Stable pouch forming: The forming system needs to work smoothly with the selected film thickness and pouch structure.

Two-nozzle filling: The two-nozzle configuration provides a practical way to increase filling efficiency within the machine cycle when the product and dosing system are suitable.

Strong heat sealing: The seal must match the film structure. Temperature, pressure, sealing time, and film type all matter. A machine cannot create a good seal if the packaging material is not suitable.

Flexible pouch options: The system can support zipper pouches and can be configured with options such as easy-open notches, hanging holes, different sealing patterns, and coding systems.

Digital operation: Operators can adjust production parameters from the HMI and use stored recipes for repeated products.

Line integration: The machine can connect with weighing, feeding, inspection, conveying, cartoning, and other equipment according to the complete production process.

Published Huapack information lists optional features including round holes, Euro holes, easy-open notches, zipper-related configurations, product conveyors, coding systems, and different sealing patterns. ([etwinternational.com](https://etwinternational.com/servo-flexible-pouch-packaging-machine-4-7-751292.html?utm_source=chatgpt.com))

7. Manufacturing and Customization: How I Build the Machine Around Your Factory

I do not want a packaging machine to look good only in a showroom. It needs to work in a real production environment.

When I receive a new project, I start with the product and pouch. I need to know the product type, filling weight, bulk density, particle size, viscosity, moisture, temperature, and flow behavior. For the pouch, I check width, height, film structure, zipper position, material thickness, and print registration requirements.

Then I look at the production target. Is the customer running one shift or three? Does the machine need to produce 30 bags per minute or 100? Is the goal to replace manual labor, increase capacity, or connect several machines into one automated line?

These questions determine the final configuration.

During manufacturing, I pay attention to the machine frame, film path, servo system, pouch transport, filling mechanism, sealing unit, sensors, electrical cabinet, HMI, safety functions, and maintenance access.

I also think about cleaning. In food and nutrition applications, product residue around the filling and sealing areas can become a serious production problem. The machine should therefore be designed so operators can inspect and clean important areas without unnecessary difficulty.

For larger projects, I can integrate the pouch machine with automatic weighing and feeding equipment upstream and check weighing, metal detection, conveying, or secondary packaging equipment downstream.

The result is not just a zipper pouch packaging machine. It can become part of a complete production system.

8. Why I Choose Huapack for Servo Driven Rollstock Packaging

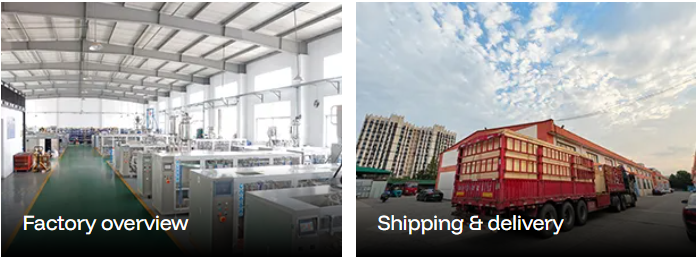

Huapack has been focused on pouch packaging machinery since 2015. We are based in Songjiang District, Shanghai, and integrate R&D, manufacturing, sales, and technical service within one operation.

That focus matters because pouch packaging has its own challenges. Flexible film behaves differently from rigid containers. Zippers need correct positioning. Products have different flow characteristics. Sealing conditions change with film structure. And a high-speed machine needs all of these functions to stay synchronized.

I also do not believe that every customer needs the same machine.

A snack manufacturer may need a zipper pouch with a multihead weigher. A fertilizer manufacturer may need a powder dosing system. A pet food producer may need a larger pouch and strong sealing. A chemical manufacturer may need special contact materials.

My job is to connect those requirements with the machine configuration.

That is why I encourage customers to provide product samples, pouch samples, film information, target filling weight, and required output before I finalize the recommendation.

With Huapack, the project can start with a single 2-nozzle zipper pouch packaging machine and grow into a complete turnkey packaging line when production requirements increase.

9. Frequently Asked Questions

What does “rollstock zipper pouch” mean?

It means the machine starts with packaging film supplied on a roll and forms the zipper pouch during the packaging process. The customer does not need to purchase finished premade zipper pouches for the machine to operate.

What is the purpose of the two filling nozzles?

The two-nozzle system provides two filling points within the packaging cycle. Depending on the product, filling volume, and dosing method, this can improve filling efficiency. Actual production speed must be confirmed through testing.

Which model should I choose: 240SDZ, 280SDZ, or 330SDZ?

I normally choose based on pouch width and filling volume first. The 240SDZ has a published maximum width of 120 mm, the 280SDZ reaches 140 mm, and the 330SDZ reaches 165 mm. The 330SDZ also has the highest listed maximum filling volume at 700 ml. ([huapackmachinery.com](https://huapackmachinery.com/packaging-styles/zipper-pouch-packing-machine/?utm_source=chatgpt.com))

Can I package nuts and snacks?

Yes. Nuts, snacks, grains, coffee beans, and similar granular products are suitable candidates. A suitable weighing or dosing system can be integrated according to the required filling accuracy.

Can the machine package powder?

Yes. Powder products can be packaged when the machine is equipped with a suitable powder filling system. I need to check the powder's density, flow, dust level, and target weight before selecting the dosing configuration.

Can the machine use printed roll film?

Yes. Printed film can be used when its material, dimensions, registration marks, and structure are compatible with the machine. Film registration control can be considered when the artwork needs precise alignment.

Can the machine make different pouch sizes?

Yes, within the applicable model range. Format changeover requires the correct machine parameters and, depending on the pouch format, possible mechanical adjustments or change parts.

What is the maximum speed?

The published reference speed is up to 120 bags per minute for the 240SDZ, 100 bags per minute for the 280SDZ, and 90 bags per minute for the 330SDZ. These figures are reference values. Actual output depends on product, pouch, filling volume, sealing requirements, and operating conditions. ([huapackmachinery.com](https://huapackmachinery.com/packaging-styles/zipper-pouch-packing-machine/?utm_source=chatgpt.com))

Can Huapack provide a complete pouch packaging line?

Yes. I can work with customers on automated weighing, feeding, pouch forming, filling, sealing, coding, conveying, inspection, and secondary packaging. The exact line is designed around the product, pouch format, capacity target, and factory layout.

Let's Talk About Your Rollstock Zipper Pouch Project

The Servo Driven Rollstock Zipper Pouch Packaging Machine, 2-Nozzle Filling-240SDZ/280SDZ/330SDZ is designed for manufacturers who want automated zipper pouch production with better motion control and flexible product handling.

The full servo system manages the key machine movements. Continuous pouch transport keeps the packaging process coordinated. The two-nozzle filling configuration supports efficient filling, while the 240SDZ, 280SDZ, and 330SDZ models give me different options for pouch width and filling volume.

But I do not want you to choose a machine only because a specification sheet looks impressive.

If you are searching for a servo driven rollstock zipper pouch packaging machine, 2-nozzle zipper pouch packing machine, automatic zipper pouch filling and sealing machine, continuous motion pouch packaging machine, or servo controlled doypack machine, send me your product details, pouch dimensions, film information, filling weight, and target output.

I can then help you compare the 240SDZ vs 280SDZ vs 330SDZ, select the right filling system, and design a pouch packaging solution that fits your real production line.

Huapack — focused on pouch packaging machinery, from rollstock pouch forming to complete automated packaging lines.

Product and Technical References

• Huapack, “Zipper Pouch Packing Machine,” including model specifications for 240SDZ, 280SDZ, and 330SDZ. ([huapackmachinery.com](https://huapackmachinery.com/packaging-styles/zipper-pouch-packing-machine/?utm_source=chatgpt.com))

• Huapack, “Zipper Doypack Pouch Packing Machine,” including walking-beam pouch transport, servo control, sealing, and packaging functions. ([hcpackgroup.com](https://hcpackgroup.com/packing-machine/doypack/158.html?utm_source=chatgpt.com))

• ETW International, “Servo Driven Flexible Pouch Packaging Machine, Continuous Motion,” including continuous-motion operation, independent servo motors, modular filling systems, recipe control, and optional functions. ([etwinternational.com](https://etwinternational.com/servo-flexible-pouch-packaging-machine-4-7-751292.html?utm_source=chatgpt.com))

• Siemens Motion Control documentation, covering servo motion, feedback, precise positioning, and dynamic response in cyclic industrial applications. ([cache.industry.siemens.com](https://cache.industry.siemens.com/dl/files/885/109751885/att_933312/v1/SIMOTION-Motion-Control-System-PM21-complete-English-2017.pdf?utm_source=chatgpt.com))

• Huapack published product information, including optional zipper pouch features, coding, sealing patterns, and production-line integration. ([hcpackgroup.com](https://hcpackgroup.com/packing-machine/doypack/158.html?utm_source=chatgpt.com))
