1. Why I Recommend Premade Shaped Pouch Packaging for Flexible Production

When I discuss pouch packaging with a manufacturer, I usually start with one simple question: What kind of pouch and product are you planning to run? This sounds basic, but it tells me a lot about what the packaging machine really needs to do.

Our Premade Shaped Pouch Packaging Machine, 2-Nozzle Filling-180DG/210DG is designed for companies that already use finished packaging bags and want to automate the filling and sealing process. Instead of forming a pouch from film on the machine, the equipment works directly with premade pouches. It automatically completes pouch loading, opening, filling, sealing, and finished pouch discharge.

I find this type of machine especially useful when a company wants attractive pouch designs without making the packaging process unnecessarily complicated. A premade pouch can have a stand-up structure, zipper, flat bottom, special shape, or other customized features. The packaging machine then takes over the repetitive work that would otherwise require several manual operations.

The 180DG/210DG configuration uses two filling nozzles. This gives the filling station two product delivery points within the machine cycle. It can be useful when filling is an important part of the production cycle and the customer needs a more efficient automated process.

At the same time, I do not simply tell customers that two nozzles mean twice the output. That would be misleading. Actual production capacity depends on the product, filling weight, pouch size, filling method, sealing time, pouch handling, and the complete machine cycle.

Our equipment can be configured for suitable powders, granules, liquids, sauces, pastes, and other compatible products. The filling system must be selected according to the actual product. A free-flowing grain, a fine powder, a thin liquid, and a thick sauce all behave differently.

At Shanghai Huacheng Packing Machinery Company, known as Huapack, we have focused on pouch packaging machinery since 2015. Based in Songjiang District, Shanghai, we integrate research and development, manufacturing, sales, and technical service under one operation.

Our experience covers automated weighing, pouch filling, sealing, and complete packaging line integration. For me, this means we can look at the whole production process rather than treating the packaging machine as an isolated piece of equipment.

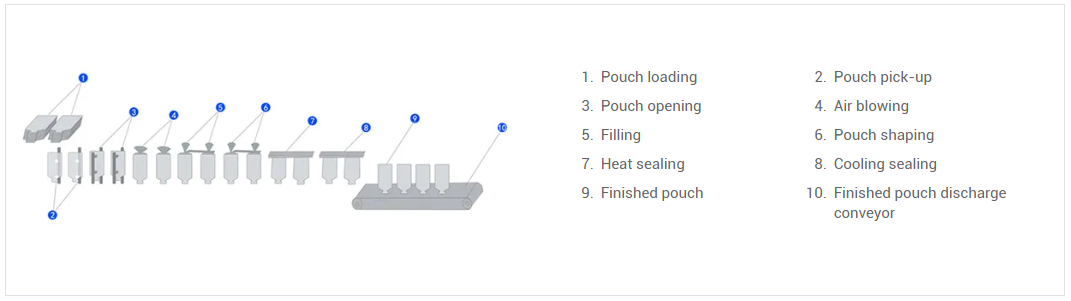

2. How the Premade Shaped Pouch Packaging Machine Works

The working principle of the Premade Shaped Pouch Packaging Machine 180DG/210DG is easy to understand. The machine takes a finished empty pouch, prepares it for filling, adds the required product, seals the pouch, and transfers the finished package to the next stage.

1. Premade pouch loading: Finished pouches are placed into the pouch magazine.

2. Pouch picking: The machine separates individual pouches from the supply.

3. Pouch transfer: Each pouch is moved into the correct working position.

4. Pouch opening: The pouch mouth is opened and prepared for filling.

5. Two-nozzle filling: The selected filling system dispenses the product through two filling nozzles.

6. Sealing: The filled pouch moves to the sealing station and is securely closed.

7. Finished pouch discharge: The sealed pouch is released for conveying, inspection, secondary packing, or other downstream operations.

On paper, this looks like a simple sequence. In real production, however, every step needs to stay synchronized.

If the pouch is not picked correctly, the next station has nothing to work with. If the pouch is not opened completely, filling can become unstable. If the product reaches the sealing area, the seal may not be clean. If the finished pouch is not discharged smoothly, the machine may need unnecessary stops.

That is why I evaluate pouch handling, filling, and sealing as one complete process.

Source: Huapack product information supplied for the Premade Shaped Pouch Packaging Machine, 2-Nozzle Filling-180DG/210DG. The final process configuration may vary according to product, pouch type, and production requirements.

3. Two-Nozzle Filling: A Practical Choice for Automated Pouch Production

One of the main features of the 180DG/210DG Premade Pouch Packaging Machine is the two-nozzle filling configuration.

Why use two nozzles? In simple terms, two filling points allow the machine to distribute the filling operation across two nozzles within the packaging cycle. This can help when filling is one of the slower parts of the process.

However, I always make one point clear to customers: the number of nozzles is only one part of production capacity.

Suppose one product is a free-flowing granular material. It may move quickly through the dosing system. Another product may be a thick sauce that needs controlled filling to prevent splashing or product buildup. Even if both products use the same pouch size, their filling times may be completely different.

For this reason, I look at product properties before recommending a filling system.

Source: Huapack product application information supplied for pouch packaging equipment. The actual filling system should be confirmed after reviewing the product properties and required filling range.

This product-focused approach helps avoid a common problem in packaging projects: buying a machine based only on a headline specification and discovering later that the product needs a completely different dosing method.

Before I confirm the final configuration, I prefer to understand the product's density, viscosity, particle size, flowability, filling weight or volume, and target output.

When possible, I also recommend product testing. A real test tells us much more than a product description on paper.

4. Premade Shaped Pouches Give Me More Packaging Options

One of the biggest advantages of a premade shaped pouch packaging machine is that the customer can start with a finished pouch design.

This is different from a traditional form-fill-seal process where packaging film enters the machine and the machine forms the pouch before filling it. With a premade pouch system, the pouch has already been produced. The packaging machine focuses on handling, filling, and sealing it.

This can be a good choice for manufacturers that want several pouch designs or need a package with a strong visual identity.

Depending on the final machine configuration, compatible pouch formats can include stand-up pouches, zipper pouches, flat pouches, flat-bottom pouches, spouted pouches, and special shaped pouches.

Source: Huapack product application information supplied for this page. Actual pouch compatibility should be confirmed using pouch samples, drawings, dimensions, and material structure.

In my experience, the physical pouch sample is particularly valuable. A drawing gives us measurements, but a real pouch shows us how flexible it is, how easily it opens, how it behaves when transferred, and how the sealing area responds to the filling process.

This is especially important with unusual pouch shapes. A special contour may look excellent on a shelf but require more careful mechanical handling than a standard rectangular pouch.

5. Main Features I Focus On in the 180DG/210DG

Automatic Premade Pouch Handling

The machine automates the main pouch handling steps, including pouch picking, opening, transfer, and discharge. This reduces repetitive manual work and helps keep the packaging process more consistent.

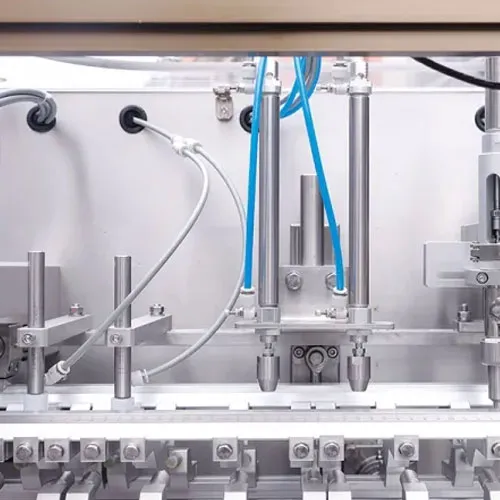

Two-Nozzle Filling System

The two-nozzle configuration provides two filling points within the machine cycle. It is a practical option for manufacturers that want an automated filling process without moving immediately to a larger multi-nozzle system.

Multiple Product Applications

With the correct dosing equipment, the machine can be adapted to suitable powders, granules, liquids, sauces, and pastes. This gives manufacturers more flexibility when packaging different types of products.

Secure Pouch Sealing

The final package needs more than a filled pouch. It needs a reliable seal. I pay attention to sealing temperature, pressure, sealing time, pouch material, and product contamination around the seal.

Flexible Pouch Compatibility

The equipment can be considered for multiple premade pouch formats. The exact working range depends on the final mechanical configuration and pouch specifications.

Easy Parameter Adjustment

Different products and pouch sizes often require different settings. Convenient parameter adjustment helps operators manage flexible production and reduce unnecessary setup time.

Reduced Manual Contact

Automatic filling and sealing reduce repeated operator contact with the product. This can help improve workshop cleanliness and create a more controlled packaging process.

Compact and Line-Friendly Design

The machine can be integrated into a wider packaging system. Depending on the project, upstream weighing and feeding equipment or downstream coding, inspection, conveying, and secondary packing equipment can be connected.

6. Where I Apply This Premade Pouch Packaging Solution

The automatic premade shaped pouch packaging machine can serve a wide range of industries. The key is matching the filling system and pouch structure to the product.

Food and Snack Packaging

Food manufacturers can use suitable configurations for snacks, seasonings, grains, prepared foods, dry ingredients, and other compatible products.

For products sold directly to consumers, shaped and stand-up pouches can also provide useful shelf presentation. The package can be designed around the brand while the machine takes care of repetitive filling and sealing work.

Condiments, Sauces, and Pastes

Products such as sauces, jams, and other viscous food materials can be considered when an appropriate pump or piston filling system is selected.

For these products, I pay special attention to viscosity, temperature, filling speed, product dripping, and cleaning. These factors can directly affect the final package.

Daily Chemical and Household Products

Suitable detergents, cleaning products, washing products, and other household materials can be packed in flexible pouches. The filling system should be selected according to whether the material is a powder, liquid, or another form.

Personal Care Products

Liquid, cream, and gel-type personal care products may be suitable for pouch packaging. For thicker products, the filling system needs to provide enough control to achieve stable dosing.

Pharmaceutical and Health Products

Suitable pharmaceutical and health-related powders or liquids can be considered for flexible pouch packaging. For regulated applications, the complete packaging system must meet the applicable requirements of the target market.

Agricultural Products

Seeds, animal feed, organic fertilizer, and other compatible agricultural materials can be packaged using appropriate weighing or dosing equipment.

Chemical and Industrial Materials

Selected chemical additives, plastic particles, industrial powders, construction materials, and other compatible products can also be packaged in premade pouches.

For dusty, abrasive, or corrosive materials, I recommend paying additional attention to product-contact components, dust control, equipment protection, and cleaning procedures.

Source: Huapack company and product application information supplied for this product page. Actual application suitability depends on product formulation, pouch material, filling range, production environment, and final machine configuration.

7. How I Select the Right 180DG/210DG Configuration

I do not recommend a packaging machine based only on a product name or model number. Before confirming the Premade Shaped Pouch Packaging Machine 180DG/210DG, I want to understand the actual production requirement.

Here is the information I normally request from a customer:

• Pouch width and height

• Pouch opening dimensions

• Pouch material and thickness

• Pouch shape and bottom structure

• Zipper or spout details, if applicable

• Product name and physical properties

• Filling weight or volume

• Target production capacity

• Required filling accuracy

• Existing upstream and downstream equipment

A pouch sample is even better. When I can inspect the actual bag, I can evaluate its stiffness, opening behavior, surface condition, dimensions, and transfer characteristics.

The product sample is equally important. A product that looks like a simple liquid may foam during filling. A powder may bridge inside the hopper. A sauce may stick to the nozzle. These small details can change the correct equipment choice.

Source: Huapack product-selection methodology based on the company and product information supplied for this page. Exact technical specifications should be confirmed in the final quotation and technical agreement.

This is also why I prefer to test actual materials whenever possible. A machine may look perfect on a specification sheet, but packaging is a physical process. Real pouches and real products tell us how the machine will behave in production.

8. How We Manufacture, Test, and Integrate Pouch Packaging Equipment

At Huapack, I see machine manufacturing as a complete process rather than simple assembly.

Our company integrates research and development, manufacturing, sales, and technical service. This allows us to keep communication between engineering, production, and customer service more direct.

For a premade pouch filling and sealing machine, the mechanical structure is only one part of the job. The pouch feeding system, opening mechanism, filling system, sensors, electrical control, sealing unit, safety functions, and finished pouch discharge all need to work together.

Testing is especially important for shaped pouches.

A special-shaped pouch may look attractive but behave differently from a standard pouch during automatic feeding. It may be soft, slippery, stiff, curved, or fitted with a zipper or spout.

The product itself can also create challenges. Powders may create dust. Granules may flow unevenly. Liquids may foam. Thick sauces may drip or stick.

For this reason, I prefer to conduct product and pouch tests before finalizing a project whenever practical.

During testing, we can examine pouch feeding, opening, filling stability, sealing performance, finished package appearance, and machine synchronization. If the customer has a specific production target, testing can also help us determine whether the selected filling system and machine configuration are appropriate.

For customers who need a complete production solution, Huapack can also integrate upstream and downstream equipment. Depending on the project, this may include automatic weighing, product feeding, pouch filling, sealing, coding, inspection, conveying, cartoning, and other packaging equipment.

This gives us the ability to design around the customer's complete production process rather than selling a machine that works well only by itself.

9. Frequently Asked Questions About the 180DG/210DG

What is a premade shaped pouch packaging machine?

A premade shaped pouch packaging machine uses finished pouches instead of forming the pouch from roll film during the packaging process. The machine automatically handles pouch feeding, opening, filling, sealing, and discharge.

What is the 180DG/210DG designed for?

The 180DG/210DG is a premade shaped pouch packaging machine with a two-nozzle filling configuration. It is designed for suitable flexible pouch applications across different product categories. Exact specifications should be confirmed according to the final technical configuration.

Does the machine make the pouch?

No. This is a premade pouch packaging machine. It uses finished bags supplied by the customer or pouch manufacturer. There is no need to form the pouch from packaging film on the filling machine.

What products can the machine fill?

With suitable filling equipment, it can be configured for compatible powders, granules, liquids, sauces, pastes, and other products suitable for flexible pouch packaging.

Can it package food products?

Yes. Suitable food applications include snacks, seasonings, grains, prepared foods, dry ingredients, and other compatible products. The final configuration should meet the applicable food production requirements.

Can it fill liquids?

Yes. A suitable liquid filling system can be integrated. Before selecting the final system, I recommend checking viscosity, foaming, temperature, filling volume, and product flow.

Can it fill thick sauces?

Yes, suitable sauces and pastes can be considered with an appropriate piston or pump-based filling system. Product viscosity and cleaning requirements are important factors.

Can it package powders?

Yes. A suitable powder dosing system can be selected. Powder density, particle size, flowability, and dust generation should be evaluated before confirming the equipment.

Can I use zipper pouches?

Compatible zipper pouches may be used when their dimensions, zipper position, material structure, and opening design match the machine configuration.

Can I use stand-up or special-shaped pouches?

Yes, compatible stand-up and special-shaped pouches can be considered. Actual samples should be tested because pouch stiffness, shape, opening, and bottom structure affect automatic handling.

Does two-nozzle filling mean twice the production speed?

No. Two nozzles provide two filling points, but production capacity depends on the entire machine cycle, including pouch handling, filling time, sealing time, product characteristics, pouch dimensions, and dosing method.

Can the machine be connected to a complete packaging line?

Yes. Huapack can develop and integrate complete pouch packaging lines according to the customer's production requirements. Upstream weighing and feeding systems and downstream coding, inspection, conveying, and secondary packing equipment can be considered.

What information should I send before requesting a quotation?

I recommend sending pouch samples or drawings, pouch dimensions, product information, filling weight or volume, target production capacity, and any special requirements. Actual samples make the technical evaluation more accurate.

10. Why I Choose Huapack for Premade Pouch Packaging Projects

When I evaluate a packaging machine supplier, I look beyond the machine price. A good packaging project needs the right equipment, the right filling method, suitable pouch handling, reliable sealing, and technical support after installation.

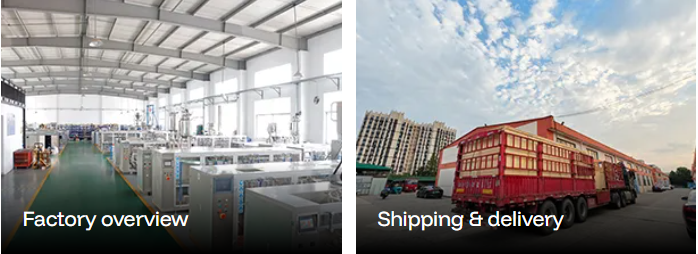

Huapack was established in 2015 and is based in Songjiang District, Shanghai. We integrate R&D, manufacturing, sales, and technical service under one operation, with a clear focus on pouch packaging machinery.

Our experience covers multiple pouch formats and applications in food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, pet food, and other industries.

We work with automated weighing, pouch filling, sealing, complete line integration, and turnkey packaging projects. This allows us to consider not only the pouch packaging machine itself but also how it connects with the rest of the production line.

For the Premade Shaped Pouch Packaging Machine, 2-Nozzle Filling-180DG/210DG, our focus is practical automation. The machine is designed to reduce repetitive manual operations, improve packaging consistency, support flexible pouch formats, and provide a controlled filling and sealing process.

If you are searching for an automatic premade pouch filling machine, premade shaped pouch packaging machine, two-nozzle pouch filling machine, Shaped Pouch Filling and Sealing Machine, automatic premade pouch packaging equipment, or flexible pouch packaging machine, the 180DG/210DG can be evaluated according to your actual production needs.

I always recommend starting with the real product and real pouch. Send us the pouch dimensions or samples, product details, filling range, and target production capacity. From there, we can determine whether the 180DG/210DG is the right fit and what filling system should be used.

For me, a successful pouch packaging project is not simply about getting a machine to run. It is about building a stable packaging process that works with the product, handles the pouch correctly, produces a clean and reliable seal, and gives the customer room to grow.

Technical source note: Company and product claims in this article are based on the Huapack information supplied for this project. Exact machine speed, pouch size range, filling range, installed power, air consumption, dimensions, production capacity, and other technical specifications should be confirmed in the final technical specification and quotation. Where no fixed numerical specification was provided, this article intentionally avoids inventing performance figures.
