When I help a manufacturer choose a pouch packaging machine, I always start with the product and the final package. Machine speed is important, but it is not the only thing that matters. I need to know what the product is, how it flows, what pouch size is required, what film will be used, and how many finished pouches the factory needs to produce.

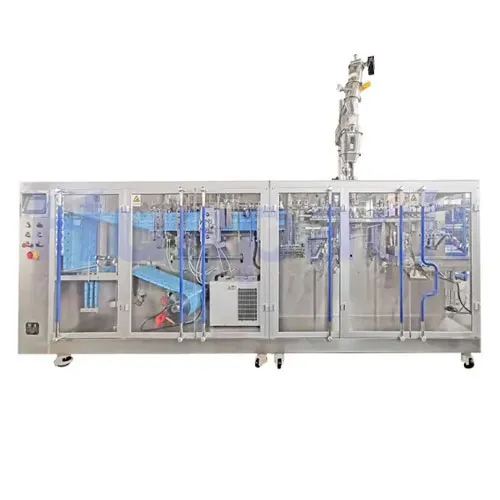

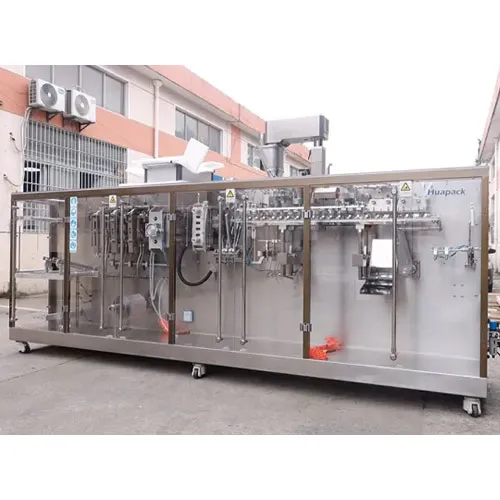

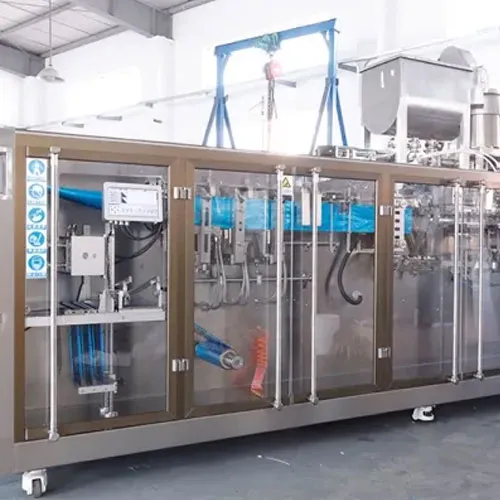

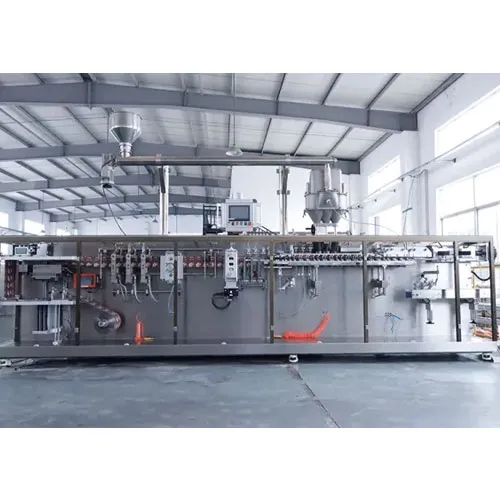

That is exactly how I approach the Flat Pouch HFFS Packaging Machine, 2-Nozzle Filling – 180ND/240ND/280ND/330ND. This machine is designed for automatic roll-film packaging. It can continuously form a flat pouch, fill the product through two nozzles, heat seal the package, and cut the finished pouch.

At Shanghai Huacheng Packing Machinery Company, or Huapack, we have focused on pouch packaging machinery since 2015. We are based in Songjiang District, Shanghai, and bring R&D, manufacturing, sales, and technical service together. This allows me to look at a packaging project as a complete process rather than treating the machine as an isolated piece of equipment.

The 180ND, 240ND, 280ND, and 330ND configurations give customers different options for pouch dimensions and production requirements. I do not suggest choosing a model only from the number in its name. Instead, we look at pouch size, filling volume, product characteristics, film structure, sealing requirements, target output, and the customer's existing production line.

1. What Is a Flat Pouch HFFS Packaging Machine?

HFFS stands for Horizontal Form Fill Seal. In simple terms, the machine starts with packaging film on a roll and turns that film into finished pouches automatically.

The basic production process is:

1. Feed roll film into the machine.

2. Form the film into the required flat pouch.

3. Fill the product through two filling nozzles.

4. Heat seal the pouch.

5. Track the printed film when color marks are used.

6. Cut and discharge the finished pouch.

This is different from using pre-made empty pouches. With a traditional pre-made pouch system, the factory needs to purchase empty bags first and then feed those bags into the filling machine. With an HFFS system, I can start directly from roll film and complete pouch making and filling in one production process.

For manufacturers producing large numbers of small or medium flat pouches, this can simplify material handling and support continuous automated production.

A flat pouch is also a very flexible package format. Depending on the product and film, it can be used for powders, granules, sauces, snacks, dry food, samples, small industrial products, and other suitable materials.

Source: Huapack product and process information supplied for this product page. Actual production flow depends on pouch design, product characteristics, film structure, filling system, and machine configuration.

For companies searching for an automatic flat pouch packaging machine, flat pouch HFFS machine, or horizontal form fill seal packaging machine with dual filling nozzles, this type of integrated system can be a practical choice.

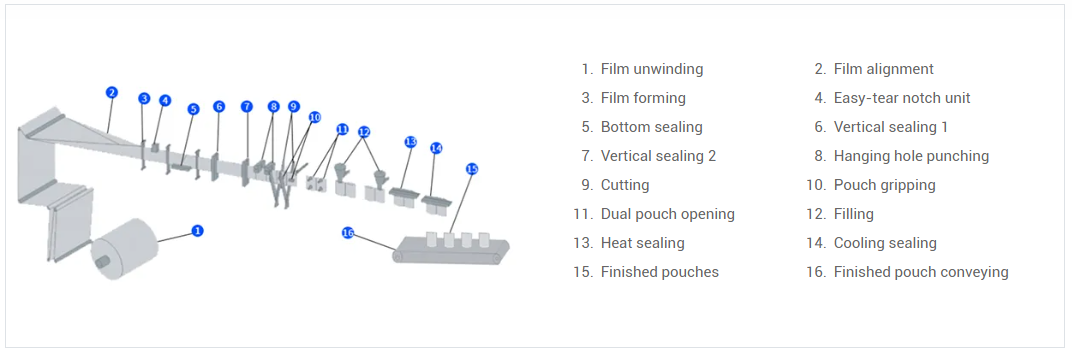

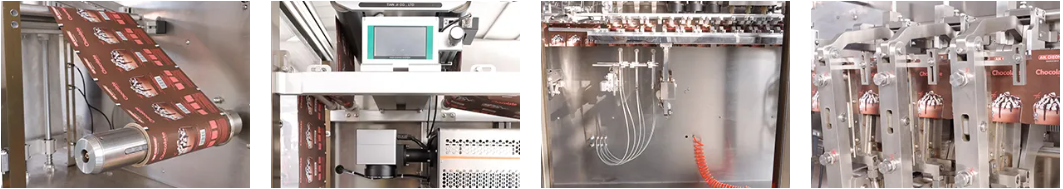

2. How the 2-Nozzle Filling Process Works

I like to explain the working principle in simple steps because it makes it easier to understand where the machine creates value.

Film Feeding Comes First

The packaging material is supplied from a film roll. Depending on the application, suitable PE film, laminated film, aluminum foil-based film, or other compatible flexible packaging structures can be considered.

The film is guided through the machine at a controlled speed. Stable film movement is important because it affects pouch dimensions, artwork positioning, sealing, and cutting accuracy.

The Machine Forms the Flat Pouch

After entering the forming section, the film is shaped according to the selected pouch design. The exact pouch dimensions depend on the machine model, tooling, film width, and required package format.

Flat pouches can be designed in different dimensions depending on the customer's product and packaging needs. We confirm the pouch drawing before finalizing the machine configuration.

Two Nozzles Fill the Product

The key difference in this configuration is the 2-nozzle filling system. Two filling points can work together to improve the packaging process when the product and filling method are suitable.

This does not mean that every product will automatically run twice as fast. Actual production output depends on filling volume, product flow, pouch dimensions, machine cycle time, filling method, and operating conditions.

For example, a free-flowing liquid behaves differently from a thick sauce. A fine powder behaves differently from a large granule. That is why I always recommend testing the actual product before confirming the filling system.

Heat Sealing Creates the Finished Package

After filling, the pouch moves into the heat-sealing section. The machine uses controlled heating to create the required seal.

We equip the system with intelligent temperature control to help maintain stable sealing conditions. In real production, however, sealing performance also depends on the film structure, sealing layer, pressure, dwell time, product contamination, and other factors.

For this reason, I never recommend selecting a film only because it is common in the market. The actual film needs to be tested with the machine and product.

Color-Mark Tracking Helps Printed Film Stay in Position

When a customer uses printed film, the graphics need to line up correctly on every pouch. The color-mark tracking system detects the registration mark on the film and helps control the cutting position.

This is particularly useful for branded packaging where logos, barcodes, product names, or other printed information need to stay in a consistent position.

Cutting and Discharge Complete the Cycle

After sealing, the machine cuts the connected pouches and discharges the finished packages. The pouches can then move to inspection, secondary packing, carton packing, or another downstream process.

The entire process is designed to reduce unnecessary manual handling and create a continuous packaging workflow.

3. Main Features I Consider Important

When I discuss a 2-nozzle flat pouch packaging machine with a customer, I focus on practical production results. A long feature list is not useful if the machine does not match the product.

Direct Roll-Film Operation

The machine starts with film from a roll rather than pre-made empty bags. This means pouch forming and product filling are combined in the same automated process.

For manufacturers producing regular volumes, this can make material management easier. The factory does not have to manage large quantities of finished empty pouches as a separate packaging material.

Two Filling Nozzles

The dual-nozzle design is useful when two filling points can meet the customer's production requirements. It can be particularly helpful when the goal is to increase output without simply increasing the size of one filling nozzle.

Still, I always make one point clear: advertised machine capability and real production output are not necessarily the same thing. The product, filling volume, pouch size, and filling method all affect actual performance.

Stable Temperature Control

Heat sealing needs consistent temperature. If the temperature is too low, the seal may not be strong enough. If it is too high, the film can deform or become damaged.

The intelligent temperature control system helps the operator maintain the required working conditions and supports stable pouch sealing during continuous production.

Color-Mark Tracking

Printed film needs accurate registration. The color-mark sensor helps the machine detect the printed reference mark and adjust the cutting position accordingly.

This small function can make a noticeable difference to the final appearance of the package.

Flexible Film Compatibility

The machine can be configured for suitable PE film, laminated film, and aluminum foil-based film. The correct material depends on the product and packaging requirements.

Source: Huapack product information supplied for this page. Film compatibility must be confirmed by actual application testing because film structures vary in thickness, sealing layer, stiffness, and barrier performance.

4. Flat Pouch Applications Across Different Industries

One reason I like the flat pouch format is its flexibility. It can be adapted to many different products, from food to small industrial components. The machine configuration, however, must always follow the product.

Food Packaging

Food is one of the most common application areas. The machine can be considered for suitable snacks, seasonings, sauces, instant food components, dry ingredients, and other products.

For powders and granules, the filling system needs to match the flow behavior. For pastes and sauces, viscosity becomes a much more important factor.

Personal Care and Cosmetics

Flat pouches are also useful for personal care and cosmetic applications. Potential products include skincare samples, wash-care samples, wet wipes, and other suitable small-volume products.

For these applications, I pay attention to package appearance as well as filling and sealing performance. A pouch may be technically sealed, but if the printed artwork is poorly positioned or the pouch shape is inconsistent, the finished product may still look unprofessional.

Pharmaceutical and Medical Packaging

Selected pharmaceutical powders and disposable medical products can be considered for flexible pouch packaging.

These applications require more careful planning. The product, packaging material, production environment, sealing integrity, and applicable regulatory requirements all need to be reviewed before production.

Hardware and Electronics

Small hardware components, electronic accessories, cables, and similar products can benefit from individual pouch packaging.

For these products, the main goal may be protection, organization, identification, and easy handling rather than food-style barrier performance.

Chemical and Industrial Consumables

Suitable drying agents, granules, pastes, and other industrial consumables can also be considered. Here, material compatibility becomes especially important.

I always recommend checking whether the product could affect the packaging film or sealing layer during storage. The pouch is only useful if it remains stable throughout the required product life.

Source: Huapack application information supplied for this product page. The listed applications are potential uses; final suitability depends on product characteristics, film, pouch design, filling method, and production conditions.

5. How I Approach Machine Manufacturing and Customization

At Huapack, we do not treat machine manufacturing as simply assembling standard parts. The machine has to work with the product, film, pouch, and production line.

Our company was established in 2015, and our focus has remained pouch packaging machinery. We integrate R&D, manufacturing, sales, and technical service. This gives us a direct connection between engineering decisions and customer production requirements.

Before confirming a flat pouch HFFS packaging machine, I normally want to understand the complete application.

• Product type and physical characteristics

• Target filling weight or volume

• Required pouch width and length

• Film type and film structure

• Required sealing format

• Target production capacity

• Required filling accuracy

• Existing upstream and downstream equipment

• Factory layout and available space

• Future production expansion plans

For example, a powder packaging project may need a different filling solution from a liquid project. A small snack pouch may require a different film and sealing setup from an industrial chemical pouch.

The same principle applies to line integration. If the customer already has an Automatic Weighing System, feeder, conveyor, inspection unit, or secondary packaging machine, we can look at how the HFFS machine should connect with it.

For larger projects, Huapack can provide complete pouch packaging line integration and turnkey solutions. The line can be developed according to product characteristics, pouch format, required capacity, and factory conditions.

I also believe that testing should be part of the decision process. If a customer can provide actual product and film samples, we can use them to evaluate filling, sealing, film movement, and final pouch quality. This gives both sides a much clearer picture before the machine enters mass production.

6. Why I Recommend Huapack for a Flat Pouch Packaging Project

When I compare packaging equipment suppliers, I look beyond the machine price. The machine needs to run reliably, but the supplier also needs to understand the production process.

Huapack specializes in pouch packaging machinery. Our experience covers pouch filling, sealing, automated weighing, and complete packaging-line integration.

We serve a wide range of applications, including food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, and pet food. Because the products are different, we build the packaging solution around actual requirements rather than assuming that one standard setup is suitable for every customer.

For a customer searching for a 2-nozzle flat pouch filling machine, we can evaluate whether the dual-nozzle configuration is appropriate for the product and required capacity.

For a customer searching for a flat pouch HFFS packaging machine manufacturer, we can also discuss the complete process, including film feeding, pouch forming, filling, heat sealing, cutting, and downstream integration.

I also recommend paying attention to after-sales support. A packaging machine is a production asset. Installation, commissioning, operator training, troubleshooting, spare parts, and technical communication all matter after the machine arrives at the factory.

Our technical service is therefore part of the overall solution. We aim to help customers build a packaging operation that is stable, practical, and ready for future production needs.

7. FAQ About the 180ND/240ND/280ND/330ND Flat Pouch HFFS Machine

What does HFFS stand for?

HFFS means Horizontal Form Fill Seal. The machine forms pouches from roll film, fills the product, seals the package, and cuts the finished pouch automatically.

What does 2-nozzle filling mean?

It means the filling system is configured with two filling nozzles. Two nozzles can support suitable applications that require multiple filling points, but actual production output depends on product properties, pouch size, filling volume, and machine settings.

What products can be packed in flat pouches?

Potential products include snacks, seasonings, sauces, dry food, nutrition products, personal care products, pharmaceutical powders, small hardware parts, electronic accessories, drying agents, granules, and suitable pastes.

Can the machine package both liquids and solids?

Different filling systems are required for different products. Suitable liquids, pastes, powders, and granules can be evaluated, but the filling method must be selected according to the actual product characteristics.

What films can be used?

Suitable PE film, laminated film, and aluminum foil-based film can be considered. The final film structure should be selected according to product protection, pouch design, forming behavior, and heat-sealing requirements.

Can the machine work with printed film?

Yes. The color-mark tracking system can detect registration marks on suitable printed film and help control pouch positioning and cutting accuracy.

Can I produce different pouch sizes?

Different pouch sizes can be supported within the applicable machine and tooling range. The actual range depends on the selected model, film width, pouch dimensions, and production requirements.

How should I select 180ND, 240ND, 280ND, or 330ND?

I recommend selecting the model after reviewing the required pouch dimensions, filling range, product characteristics, film structure, production capacity, and line layout. The model number alone is not enough to make the right decision.

Can Huapack provide a complete packaging line?

Yes. In addition to standalone pouch packaging machines, Huapack can develop complete solutions covering automated weighing, feeding, pouch filling, sealing, and downstream line integration.

Is this machine suitable for small-batch production?

It can be considered for small-batch production, but the final configuration depends on the product, pouch size, changeover frequency, filling volume, and required output. For a specific project, I recommend evaluating the real production schedule before selecting the machine.

From Roll Film to a Finished Flat Pouch

For me, the value of the Flat Pouch HFFS Packaging Machine, 2-Nozzle Filling – 180ND/240ND/280ND/330ND is not just the fact that it combines several operations in one machine.

The real value comes from making those operations work together. Film feeding must be stable. Pouch forming must be consistent. The two filling nozzles must match the product. The sealing system must maintain the correct conditions. Printed film needs accurate tracking. Cutting needs to remain consistent. And the finished pouch must be ready for the next production step.

That is how I approach packaging machinery at Huapack. We start with the customer's product and work backward toward the right pouch format, filling method, machine configuration, and production line.

Whether you are looking for an automatic flat pouch packaging machine, a 2-nozzle HFFS filling machine, a horizontal form fill seal pouch machine, or a complete turnkey pouch packaging line, we can develop the solution around your actual production requirements.

If you are comparing the 180ND, 240ND, 280ND, and 330ND configurations, I recommend preparing your product sample, pouch drawing, film information, filling range, target output, and existing line details. These materials allow our engineering team to evaluate the application more accurately and avoid unnecessary assumptions.

Huapack focuses on pouch packaging machinery and complete packaging solutions—from standalone equipment to customized automated production lines.

Technical note: Machine configuration, pouch dimensions, filling capacity, production output, film compatibility, sealing conditions, and other parameters may vary according to the actual application. Final specifications should be confirmed with Huapack engineering after evaluation of the product, film, pouch design, and production requirements.
