When I work with a customer who needs flexible packaging with a convenient dispensing spout, I usually start with one simple question: what does the complete production process need to look like from film roll to finished pouch?

For many manufacturers, the answer is an automated system that can form the pouch, add the spout, fill the product, seal the package, and cut the finished pouch with as little manual handling as possible. That is the purpose behind our Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling – 240NDP/280NDP/330NDP.

At Shanghai Huacheng Packing Machinery Company, or Huapack, we focus specifically on pouch packaging machinery. Since our establishment in 2015, we have combined research and development, manufacturing, sales, and technical service in one operation. This gives us a practical view of packaging projects, from a single machine to a complete automated production line.

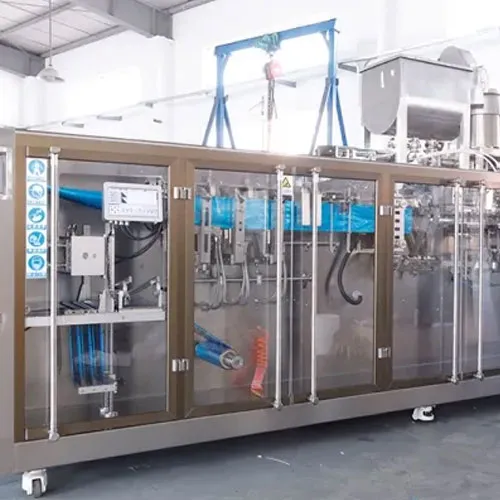

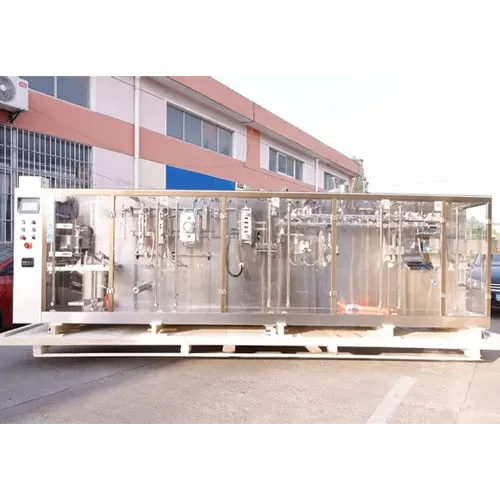

Our spouted pouch HFFS machine uses roll film as the starting material. During operation, the packaging material is formed into the required pouch, the product is filled through the configured filling system, and the package is sealed and cut automatically. The two-nozzle filling configuration gives us a flexible starting point for products that need controlled filling and efficient production.

More importantly, I do not treat the 240NDP, 280NDP, and 330NDP as simple "one-size-fits-all" machines. The right configuration depends on the product, pouch dimensions, filling volume, film structure, spout design, and required production capacity. We use these details to determine the practical machine configuration.

1. What Is a Spouted Pouch HFFS Packaging Machine?

HFFS stands for Horizontal Form Fill Seal. In plain English, it means that the machine takes flexible packaging film from a roll and processes it horizontally to make, fill, seal, and cut the pouch.

A spouted pouch adds another useful feature: a dispensing spout. Instead of opening the entire top of the package, the user can dispense the product through the spout. This format is especially useful for products such as sauces, liquid foods, personal care products, detergents, nutrition products, and selected industrial materials.

Our spouted pouch packaging machine combines this pouch format with an automated HFFS production process. The machine is designed around continuous film feeding rather than requiring the customer to purchase finished empty pouches in advance.

That difference can be quite important in day-to-day production. With pre-made bags, the manufacturer has to purchase the bags separately, store them, transport them internally, and then feed them into the filling machine. With an HFFS solution, the roll film becomes part of the production process itself.

I see this as one of the practical strengths of HFFS packaging. It gives manufacturers more control over the pouch-making process and can make it easier to develop packaging around different product and film requirements.

Source: Huapack product and engineering information supplied for this product page. The exact process configuration depends on pouch design, product characteristics, film structure, and spout requirements.

For customers searching for an Automatic Spouted Pouch Filling Machine, this integrated approach can be especially useful when production volume is growing and manual pouch handling is becoming a bottleneck.

2. How Our 2-Nozzle Spouted Pouch Machine Works

I like to explain the working process step by step because it makes the machine much easier to understand.

Step 1: Film Roll Feeding

The process starts with a roll of suitable packaging film. Depending on the product and packaging design, we can consider PE film, laminated film, aluminum foil-based film, and other suitable flexible structures.

The film is guided into the machine and moved at a controlled speed. Stable film feeding is important because every following operation depends on the film staying in the correct position.

Step 2: Pouch Forming

The machine forms the flexible film into the required pouch structure. The exact pouch shape and dimensions depend on the selected machine configuration and tooling.

For customers who require different sealing formats, the system can be configured around suitable pouch designs. Three-side seal and four-side seal formats are among the pouch structures that can be considered, depending on the project.

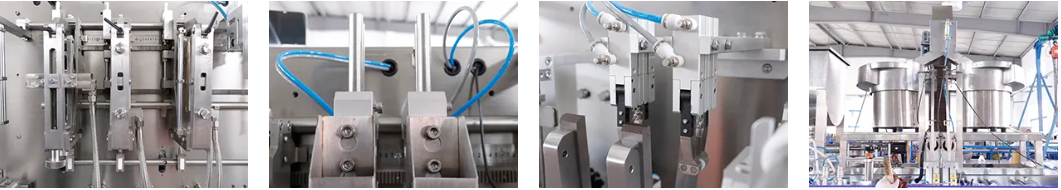

Step 3: Spout Processing

The spout is an important part of the package because it affects how the consumer or operator uses the product. The machine configuration needs to match the selected spout, pouch design, sealing method, and product.

Rather than treating the spout as an isolated accessory, we look at the complete relationship between the pouch film, spout position, filling point, sealing area, and final package.

Step 4: Two-Nozzle Filling

The product is introduced through the two-nozzle filling system. The actual filling method should be selected according to the material being packed.

A thin liquid flows differently from a thick sauce. A powder behaves differently from a granular product. This is why we do not recommend selecting a filling system based only on the product name. We consider viscosity, particle size, flow behavior, filling range, target accuracy, and production requirements.

Step 5: Heat Sealing

After filling, the pouch moves to the sealing section. Our intelligent temperature control system helps keep the sealing temperature stable.

Good sealing is not simply about using a high temperature. The actual result depends on the film structure, sealing layer, pressure, dwell time, temperature, and product conditions. We therefore recommend testing the actual packaging material before commercial production.

Step 6: Cutting and Discharge

Once the pouch has been sealed, the machine completes the cutting process and discharges the finished package. The result is a ready-to-handle spouted pouch that can move to the next stage of production, such as inspection, secondary packaging, or carton packing.

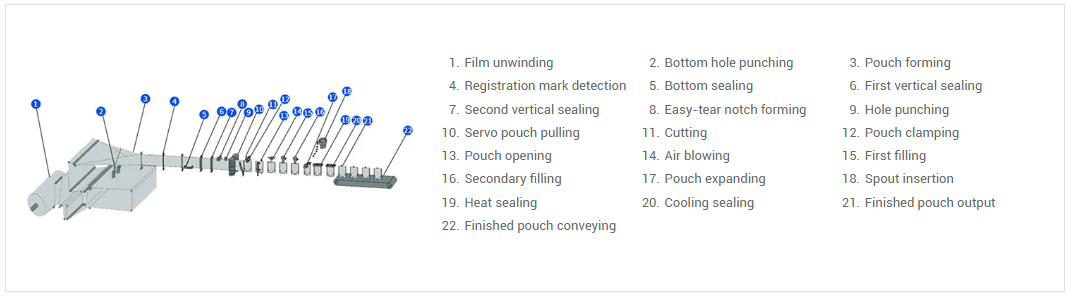

In short, the complete process can be described as:

1. Roll film feeding

2. Pouch forming

3. Spout positioning and processing

4. Two-nozzle product filling

5. Heat sealing

6. Cutting

7. Finished pouch discharge

3. Main Features I Would Look at Before Buying

When a customer asks me what to check before buying a spouted pouch HFFS machine, I normally suggest looking beyond the machine's appearance or advertised speed. The real question is whether the machine fits the product and the factory process.

Direct Roll-Film Operation

Our machine starts with packaging film on a roll instead of requiring pre-made empty pouches. This allows pouch forming and packaging to be integrated into one process.

For manufacturers handling several products or packaging sizes, roll-film operation can also provide useful flexibility. The exact benefit depends on the film structure, pouch design, and production schedule.

Two-Nozzle Filling System

The two-nozzle configuration is designed for automated filling. It gives us a practical foundation for building the filling process around the product rather than forcing every application into one fixed filling method.

During project discussions, I normally ask for product samples and filling information whenever possible. A machine that works well with one liquid or paste may require a different setup for another material.

Intelligent Temperature Control

Stable heat sealing is one of the most important parts of flexible packaging. The temperature control system helps maintain the required sealing conditions during continuous operation.

This is especially important when the package needs a clean appearance as well as a reliable seal. The final result should always be checked with the actual film and product.

Color-Mark Tracking

For printed packaging film, color-mark tracking helps the machine identify the registration mark. In simple terms, it helps keep the artwork and cutting position aligned.

This can be useful for branded pouches where a logo, product name, barcode, or other printed information needs to stay in a consistent position.

Flexible Packaging Material Options

The machine can be designed around suitable PE film, laminated film, and aluminum foil-based film structures. The correct choice depends on the product, barrier requirements, sealing layer, storage conditions, and package design.

Source: Huapack product information supplied for this page. Film selection must be confirmed by application testing because different film structures can have different forming and sealing requirements.

4. Applications Across Food, Personal Care, Nutrition, and More

A major reason I like the spouted pouch format is its wide range of possible applications. The package can be designed around products that benefit from controlled pouring, squeezing, or dispensing.

Food and Sauce Packaging

Sauces are a natural application for spouted pouches. Ketchup, cooking sauces, seasoning sauces, concentrates, and similar products can benefit from a package that allows controlled dispensing.

Compared with opening a conventional pouch or larger package, the spout gives the user a more convenient way to pour the product. The actual filling system, however, must be selected according to viscosity and product behavior.

Dairy and Nutrition Products

Selected dairy and nutrition products can also use flexible spouted packaging. Nutrition products may include liquid or semi-liquid formulations where convenient dispensing is important.

For these applications, we pay close attention to product characteristics, package material, filling accuracy, sealing, and the required production environment.

Personal Care and Cosmetics

Personal care products such as liquid cleansers, skincare products, shampoo-related products, and other suitable formulations may be packaged in spouted pouches.

The flexible format can work well for travel sizes, refill products, samples, and consumer packages where controlled dispensing is useful.

Pharmaceutical and Medical Applications

Pharmaceutical and medical packaging requires careful consideration of the product, packaging material, hygiene requirements, and applicable production standards. Selected products may be suitable for flexible pouch packaging after the complete application has been evaluated.

Agrochemical and Industrial Products

Some liquid, paste, or granular chemical products can also be packaged in flexible pouches. In these cases, material compatibility and sealing performance become particularly important.

Pet Food

Pet food and pet nutrition products are another potential application. A spouted pouch can provide convenient dispensing for liquid or semi-liquid pet products, while the flexible packaging structure supports automated production.

Source: Huapack application information supplied for this product page. Application suitability must be confirmed according to the specific product, formulation, packaging material, and production requirements.

5. How We Approach Machine Manufacturing and Customization

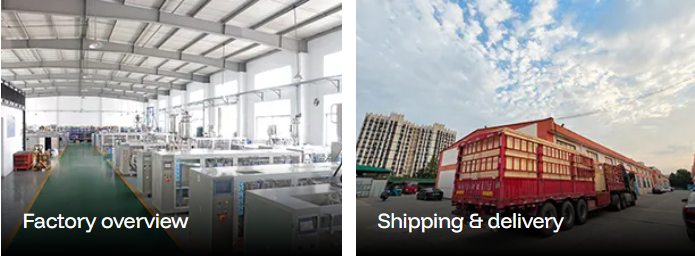

We have been focused on pouch packaging machinery since Huapack was established in 2015. Our work covers research and development, manufacturing, sales, and technical service. I believe this integrated structure matters because packaging equipment is not just about assembling mechanical parts.

When we build a machine, we need to think about how the film travels through the system, how the pouch is formed, how the filling system behaves, how the spout is handled, how the seal is created, and how the finished pouch connects with the next process.

For that reason, customization starts with questions about the product. What is the product? Is it liquid, paste, powder, or granule? What is the filling range? What pouch size is required? What type of film will be used? What type of spout is needed? What production capacity is expected?

These questions may sound basic, but they are important. A packaging machine should be designed around the real production task.

We also consider the customer's existing line. If the machine needs to connect with automatic weighing, feeding, conveying, inspection, or secondary packaging equipment, we can work on the complete line concept instead of treating the HFFS machine as a separate unit.

This is particularly useful for manufacturers planning a turnkey pouch packaging line. We can work from pouch handling and filling through to final sealing and line integration, depending on the project scope.

6. Why I Recommend Huapack for Spouted Pouch Packaging Projects

Choosing a packaging machine supplier is not only about finding a machine that can complete the basic packaging steps. I believe the supplier also needs to understand what happens before and after the machine.

At Huapack, our focus is pouch packaging. We are not trying to cover every kind of industrial machinery. Our experience is concentrated on pouch formats, automated weighing, pouch filling, sealing, and complete packaging-line integration.

This specialization helps us approach a project from the actual pouch backward. Instead of starting with a fixed machine and asking the customer to adapt the product, we first look at the product and packaging target.

For example, if a customer needs a 2-nozzle spouted pouch filling machine, we want to know the product viscosity, filling volume, pouch dimensions, film structure, spout design, and target output. If the customer needs a complete line, we also consider how feeding and downstream processes will connect.

Our solutions cover food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, and pet food. That does not mean every machine is suitable for every product. Instead, it means we have experience designing pouch packaging systems for different production situations.

I also encourage customers to test the actual product and film before making a final purchasing decision. A good packaging machine should be evaluated with the materials that will really run on the production floor, not only with generic test materials.

For manufacturers comparing a spouted pouch HFFS packaging machine supplier, I suggest checking several practical points:

• Can the machine handle the actual product?

• Is the filling system suitable for the product's flow behavior?

• Does the machine match the selected film?

• Can the spout and pouch design be produced consistently?

• Is the sealing process stable?

• Can the machine connect with the existing production line?

• Can the supplier provide technical support and customization?

• Can the system be expanded if production requirements increase later?

These questions often tell me more about the suitability of a packaging solution than a single advertised machine-speed number.

7. Frequently Asked Questions About the 240NDP/280NDP/330NDP

What does NDP mean in this machine model?

The 240NDP, 280NDP, and 330NDP are model configurations within our spouted pouch HFFS packaging machine range. The exact technical configuration should be confirmed according to the customer's pouch dimensions, product, filling requirements, and production capacity.

What products can this spouted pouch machine package?

Potential applications include sauces, liquid or semi-liquid food products, selected nutrition products, personal care products, pet food, and suitable industrial or chemical materials. Product compatibility must be evaluated before final machine selection.

Can it package thick sauces or pastes?

It can be considered for suitable liquid and paste products, but viscosity is an important factor. Thick products may require a different filling setup from low-viscosity liquids. We recommend testing the actual product before confirming the filling system.

Can I use laminated film?

Yes, suitable laminated film can be considered. The exact film structure must match the forming and heat-sealing requirements of the machine and the product. We recommend sample testing before commercial production.

Does the machine support printed packaging film?

Yes. The color-mark tracking system can be used with suitable printed film that has registration marks. This helps maintain the relationship between the printed design and the pouch cutting position.

Why use a spouted pouch instead of a normal pouch?

The main advantage is controlled dispensing. The user can pour or squeeze the product through the spout without opening the entire pouch. This can be useful for sauces, liquid products, personal care products, and other suitable applications.

Can the machine be integrated into a complete production line?

Yes. Huapack provides more than standalone pouch machines. We can develop packaging-line solutions involving weighing, feeding, pouch filling, sealing, and other connected processes according to the customer's production requirements.

How do I select between 240NDP, 280NDP, and 330NDP?

I recommend starting with the pouch rather than the model number. Please provide the pouch width and length, filling volume, product sample, film material, spout specification, and expected production capacity. Our engineering team can then evaluate which configuration is appropriate.

Can the machine be used for small-batch production?

The HFFS platform can be used across different production situations, but the practical suitability depends on the selected configuration and production target. For sample production or smaller batches, we normally review the required changeover, pouch size, filling range, and expected operating schedule.

Build the Packaging Process Around the Product

When I look at a Spouted Pouch HFFS Packaging Machine, 2-Nozzle Filling – 240NDP/280NDP/330NDP, I do not see it as only a pouch-making machine. I see it as one part of a complete packaging process.

The film needs to feed correctly. The pouch needs to form consistently. The spout needs to be positioned correctly. The filling system needs to match the product. The sealing temperature needs to remain stable. The printed film needs accurate registration. Finally, the finished pouch needs to leave the machine in a condition suitable for the next production step.

That is the approach we take at Huapack. We design pouch packaging solutions around product characteristics, packaging formats, and capacity requirements. Whether you need a standalone automatic spouted pouch filling machine, a Horizontal Form Fill Seal Machine, a 2-nozzle pouch packaging machine, or a complete turnkey packaging line, we can begin with the actual production requirement and develop the equipment around it.

If you are currently comparing spouted pouch HFFS packaging machines, I recommend preparing a product sample, film sample, pouch drawing, spout specification, filling range, and target output before contacting a machine supplier. These details make technical evaluation much more useful and help avoid choosing equipment based only on general specifications.

Huapack focuses on pouch packaging machinery—from individual filling and sealing machines to customized, integrated packaging lines.

Technical note: Machine configuration, pouch dimensions, filling performance, output, film compatibility, spout specifications, and other technical parameters may vary according to the customer's actual application. Final specifications should be confirmed with Huapack engineering after product, film, and pouch testing.
