1. What Is a Vibratory Bowl Feeder?

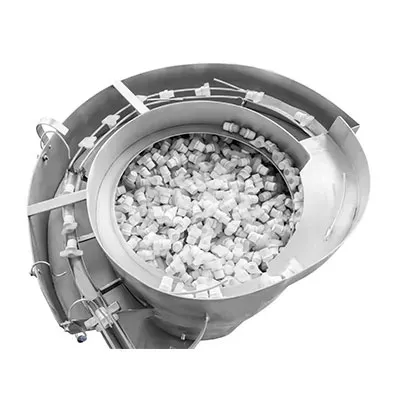

A vibratory bowl feeder is an automatic parts feeding system that uses controlled vibration to move small components along a specially designed track. The bowl is not just a container. Its internal track is carefully shaped so that parts can move upward, separate from each other, and finally reach the outlet in a controlled position.

In simple words, I would describe it as a smart vibrating bowl. I put a large number of loose parts into the bowl, and the machine gradually moves them around the spiral track. Parts that are facing the wrong way are rejected or returned to the bowl. Parts in the correct position continue forward.

This makes the equipment different from a normal hopper or conveyor. A conveyor mainly moves products from one point to another. A vibratory parts feeder can do something more useful: it can help separate and orient parts before they reach a packaging or assembly machine.

According to RNA Automation, a typical vibratory bowl feeder consists of a tooled bowl, a vibrating drive unit, and a variable-amplitude control system. The track geometry is designed around the shape, size, and material of the component being fed.

That point is important in real production. There is no single bowl design that works equally well for every product. When I design or integrate a feeder, I pay close attention to the part's weight, dimensions, center of gravity, surface finish, friction, shape, and required orientation.

Vibratory Bowl Feeder vs. Simple Conveyor

   Source: General functional comparison based on the operating principles described by RNA Automation for vibratory bowl feeding systems. Actual performance depends on feeder design and application.

2. How Does a Vibratory Bowl Feeder Work?

The working principle is actually easier to understand than the finished machine looks. The feeder uses controlled vibration to create small movements in the bowl. Because the bowl track is inclined and shaped in a particular way, parts slowly move upward and toward the discharge point.

The drive unit is the heart of the system. Depending on the design, an electromagnetic or other vibration drive creates the movement. A controller adjusts the vibration level so that the feeding speed can be matched with the machine receiving the components.

As the parts move around the bowl, special tooling acts like a set of simple mechanical filters. If a part is lying in the correct position, it stays on the track. If it is upside down, sideways, or otherwise incorrect, the tooling can allow it to fall back into the bowl.

The process normally follows this sequence:

1. Loading: Loose parts are placed into the bowl or supplied from a bulk hopper.

2. Vibration: The drive unit creates controlled movement.

3. Track movement: Parts travel along the spiral track.

4. Sorting: Incorrectly positioned parts are rejected by the tooling.

5. Orientation: Parts are guided into the required position.

6. Linear transfer: Parts may move onto a linear feeder for additional distance or buffering.

7. Escapement: The parts can be separated and presented to a robot or packaging machine.

In a complete automatic system, I often add a linear vibratory feeder after the bowl. This gives the parts a controlled path from the bowl to the final pickup point. Sensors can monitor the level of components and communicate with the main machine controller.

The result is a much more stable process than manual feeding. The operator does not need to stand beside the machine and repeatedly pick up small components. Instead, the feeder handles the repetitive movement while the operator focuses on material supply, quality checks, and production management.

3. What Makes a Good Automatic Vibratory Bowl Feeder?

From my experience, a good automatic vibratory bowl feeder is not simply a machine that vibrates strongly. Too much vibration can create noise, unstable movement, or product damage. Too little vibration may cause parts to stop moving.

The real goal is controlled movement.

Custom Bowl Tooling

The internal tooling is one of the most important parts of the feeder. I design it according to the component. A screw needs a different track arrangement from a round plastic cap. A rubber ring may need a completely different solution again.

This is why I usually ask customers to provide product samples or detailed drawings before confirming the feeder design. Physical testing is often much more useful than simply looking at a product name.

Stable Feeding Speed

The feeder should supply parts at a rate that matches the next machine. If the packaging machine needs 100 components per minute but the feeder supplies 40, the feeder becomes the bottleneck. If it supplies far more than the machine can accept, the outlet may become overloaded.

Gentle Product Handling

Not every component can tolerate aggressive vibration. Plastic parts may be scratched. Coated parts may need special handling. Medical components may require cleaner contact surfaces. For these applications, bowl coatings and track design become important.

Easy Adjustment

I also look for a control system that allows operators to adjust the feed rate without making complicated mechanical changes. Modern vibratory feeder systems can use variable-amplitude control to regulate the flow of components.

RNA Automation notes that bowl feeders can use different bowl materials and coatings, including stainless steel, aluminum, polyamide, polyurethane, brush, flock, and other surface treatments selected according to the application.

4. Real-World Feeding Speed: Why One Number Does Not Tell the Whole Story

Customers often ask me, “How many parts per minute can this vibratory bowl feeder handle?” It is a reasonable question, but I would not give a universal number without seeing the component.

Published industry examples show just how much application conditions can change the result. RNA Automation, for example, reports an EcoType bowl feeder series with feed rates up to 200 parts per minute for suitable simple components. Its case studies also show examples ranging from 15 parts per minute for certain plastic bases to 400 parts per minute for specific rivet pins.

   Source: Published RNA Automation product information and application case studies. These are examples for specific components and feeder configurations, not universal performance specifications.

This is exactly why I avoid promising a fixed output based only on bowl size. Component geometry, weight, surface friction, orientation requirements, number of lanes, tooling, and the receiving machine all affect the final rate.

Key Factors I Check Before Selecting a Feeder

   Source: Engineering selection factors derived from standard vibratory feeding practice and RNA Automation's published guidance that feeder selection should consider industry, application, material properties, component geometry, and required volume.

5. Vibratory Bowl Feeder Applications Across Different Industries

I do not see the vibratory bowl feeder as a machine limited to one industry. Its basic job is to automatically orient and supply components, so it can be used anywhere small parts must repeatedly arrive at a fixed position.

Packaging Industry

In packaging automation, bowl feeders can handle caps, closures, lids, valves, small containers, accessories, and other components. A feeder can supply the parts to a pouch packaging machine, capping machine, filling line, labeling machine, or robotic station.

For example, RNA has published a packaging application in which a vibratory bowl feeding system sorts and orients plastic cover caps and delivers them through a six-lane linear outfeed. The reported system reached 200 components per minute in that particular application.

Food and Consumer Products

Food packaging lines may require automatic feeding of small components such as clips, closures, spoons, lids, or other packaging accessories. In these applications, I pay special attention to cleanable surfaces and appropriate material selection.

Pharmaceutical and Medical Automation

Medical and pharmaceutical automation often involves small plastic components, caps, tubes, connectors, and other parts. The feeding system needs to be designed carefully because the required orientation can be very specific.

Published RNA examples include vibratory bowl systems for pharmaceutical caps, medical tubes, Luer lock components, and reagent wedges. Some systems use stainless steel construction and FDA-approved polyurethane coatings depending on the application.

Electronics

Electronics manufacturing often uses small connectors, terminals, clips, pins, and other delicate components. A properly designed vibratory parts feeder can supply these parts in a repeatable orientation for robotic assembly or inspection.

Automotive and Hardware

Screws, nuts, bolts, washers, rivets, clips, and inserts are classic vibratory feeder applications. These components are usually manufactured in large quantities, making manual sorting and orientation inefficient.

For example, RNA has documented a system for M3 × 8 mm screws that sorts and feeds the screws into a single-file vertical orientation before an escapement presents them to a robot.

6. How I Build a Vibratory Bowl Feeder System Around the Packaging Process

I prefer to think about the feeder as part of a complete automation system. The bowl itself is important, but the parts still need to travel from bulk storage to the exact point where the next machine needs them.

A typical system can include:

• Bulk parts hopper

• Vibratory bowl feeder

• Custom sorting and orientation tooling

• Linear vibratory feeder

• Part sensors

• Escapement or separation device

• Pick-and-place robot or packaging machine

• PLC and control system

The hopper provides a larger reserve of parts so that the bowl does not need to be manually refilled every few minutes. The bowl then performs the main sorting and orientation work. The linear feeder provides a controlled route to the next station.

If the next machine needs one component at a time, I may add an escapement. This device separates the parts and presents them in a controlled position. If a robot is being used, the feeder can be synchronized with the robot's pickup cycle.

Sensors also play a simple but important role. A sensor can detect whether the outlet is full or empty. The controller can then adjust the feeder operation. This prevents the system from continuously feeding parts into a blocked outlet.

When a vibratory bowl feeder is connected to pouch packaging equipment, I also look at the entire timing sequence. The feeder needs to supply components at the right moment without interfering with pouch forming, filling, sealing, coding, or product discharge.

This whole-line approach is especially useful when customers want to move from semi-automatic production to a fully automated packaging process. The goal is not simply to add a feeder. The goal is to remove unnecessary manual steps while keeping the production line stable.

7. Why I Choose Huapack for Packaging Automation Projects

Shanghai Huacheng Packing Machinery Company, known as Huapack, was established in 2015 and is based in Songjiang District, Shanghai. Our work is focused on pouch packaging machinery, with R&D, manufacturing, sales, and technical service operating under one organization.

My approach is simple: I do not want to sell a machine first and ask questions later. I want to understand the production process before recommending equipment.

For a packaging project involving a vibratory bowl feeder, I look at the component size, material, weight, shape, orientation, required speed, pouch format, packaging process, and final machine interface. If the feeder is being used to supply caps or other packaging components, I also consider how those parts will be transferred, detected, positioned, and finally used by the packaging system.

Huapack has experience with pouch packaging applications for food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, and pet food. Our machines can cover automated weighing, pouch filling, sealing, coding, conveying, and complete line integration.

This means I can look beyond the individual feeder. If a customer needs a complete packaging line, the feeding system can be planned as part of the larger project rather than added as an afterthought.

I also understand that every factory has a different production target. One customer may need a compact semi-automatic system, while another may need a high-speed automated line with multiple feeding lanes, sensors, robotic handling, and centralized control.

That is why customization matters. The right vibratory bowl feeder system should fit the customer's product and production process, not force the production process to fit a standard machine.

8. Vibratory Bowl Feeder FAQ

What does a vibratory bowl feeder do?

A vibratory bowl feeder automatically moves, separates, sorts, and orients loose components. It then sends the correctly positioned parts to a packaging, assembly, inspection, or robotic system.

Can a vibratory bowl feeder handle different parts?

Yes, but each part normally needs suitable tooling. Screws, caps, pins, rubber rings, tubes, and irregular components have different shapes and movement characteristics. A feeder designed for one part should not automatically be assumed to work well with another.

Can the feeding speed be adjusted?

Yes. A controller can regulate the vibration level and therefore influence the feeding rate. However, the maximum practical speed still depends on the component, bowl tooling, track design, number of lanes, and receiving machine.

Is a vibratory bowl feeder noisy?

Vibration naturally creates some sound, but the system can be designed to reduce unnecessary noise. Bowl coatings, drive selection, mechanical mounting, vibration isolation, and sound covers can all affect the final noise level. RNA specifically lists low noise and minimal vibration transmission among the benefits of its drive systems.

Can it feed fragile plastic components?

Yes, in suitable applications. I would select the bowl coating, track geometry, vibration level, and transfer method according to the product. For delicate parts, the goal is controlled movement rather than maximum vibration.

Can it be used for pharmaceutical and medical components?

Yes. Vibratory bowl feeders are used in medical and pharmaceutical automation for suitable components. However, the complete system must be designed around the required cleanliness, materials, surface finish, validation, and regulatory conditions. Published industry examples include bowl feeders for Luer lock components, tubes, caps, and reagent parts.

How do I choose the right vibratory bowl feeder?

I recommend starting with the actual component rather than the machine model. Provide the part drawing or samples, dimensions, weight, material, required orientation, target parts per minute, and the interface with the next machine. With this information, the bowl size, drive, tooling, coating, linear feeder, and control system can be evaluated more accurately.

Can Huapack integrate a vibratory bowl feeder into a pouch packaging line?

Yes. Huapack specializes in pouch packaging machinery and complete line integration. When a project requires automatic component feeding, we can evaluate the feeder as part of the complete packaging process, including pouch handling, filling, sealing, coding, conveying, and other automation requirements.

Final Thoughts on Vibratory Bowl Feeders

A vibratory bowl feeder may look like a simple vibrating bowl, but its real value comes from the engineering behind the track, tooling, drive, control system, and product orientation. When everything is matched correctly, it can turn a messy pile of loose parts into a steady, organized stream that an automatic machine can use.

For me, the most important lesson is that feeder selection should start with the part, not with a standard catalog specification. The same bowl feeder may perform very differently when handling a small metal screw, a lightweight plastic cap, or a delicate medical component.

If you are planning an automatic vibratory bowl feeder, vibratory parts feeder system, or a complete packaging automation project, I recommend providing the component drawing or samples, target feeding speed, required orientation, and the machine that will receive the parts. From there, I can evaluate the feeding method and develop a practical system around the real production requirement.
