1. What Is a Multi-head Weigher?

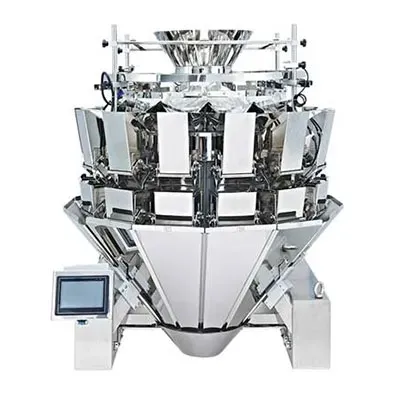

A multi-head weigher is an automatic weighing machine with several weighing heads arranged around a central distribution area. Each head contains a small quantity of product and measures its weight independently. The controller looks at the available measurements and chooses a combination that is close to the required target.

The idea is quite clever but easy to understand. Imagine that I need to make a 100-gram pack. Instead of trying to measure exactly 100 grams in one step, the machine may have several smaller portions available, such as 24 g, 25 g, 27 g, 23 g, and 26 g. The computer checks the possible combinations and selects the combination that gets closest to 100 g.

This method is commonly called combination weighing. It is one of the main reasons multihead weighers can achieve high weighing speed while keeping product giveaway under control.

Ishida, one of the major manufacturers of multihead weighing equipment, states that its multihead weighers use multiple weighing heads and combination calculations to achieve high-speed and accurate portion weighing. Its current range covers different head counts, hopper sizes, and specialized configurations for products ranging from snacks and cereals to fresh produce and pet food.

Multi-head Weigher vs. Single-head Weighing

   Source: General comparison based on the operating principles of multihead combination weighing described by Ishida. Actual performance depends on machine configuration, product characteristics, and production conditions.

2. How Does a Multi-head Weigher Work?

The working process starts when bulk product enters the machine from an upper infeed system. The product is spread across the distribution area and then moved toward individual feeding channels.

Each channel sends product into a small weighing hopper. Once the product reaches the required preliminary amount, the machine measures the weight in that hopper. The controller now has several weight values to work with.

Instead of opening one hopper and hoping it contains exactly the target amount, the system calculates different combinations. It selects a group of hoppers whose combined weight is closest to the programmed target.

The selected hoppers open and discharge their product into a collection or timing hopper. From there, the product is released into the pouch or transferred to the next packaging stage.

The basic process looks like this:

1. Product infeed: Bulk product enters the multi-head weigher.

2. Distribution: Product is spread toward individual feeding channels.

3. Feeding: Each feeder moves product into a weighing hopper.

4. Weighing: Load cells measure the product in each hopper.

5. Combination calculation: The controller checks possible weight combinations.

6. Selection: The best combination is selected according to the target weight.

7. Discharge: Selected hoppers release product into the collection area.

8. Packaging: The weighed portion enters the pouch for filling and sealing.

The important point is that these steps happen continuously. While one group of hoppers is discharging, other hoppers can already be receiving and weighing the next product portions. This parallel operation is what makes a high-speed multi-head weigher so useful for automatic packaging.

Why Combination Weighing Matters

In my experience, customers often care about two things at the same time: speed and product giveaway. Giving every customer slightly more product may seem harmless, but across millions of packages, those small extra grams can become a real production cost.

Combination weighing gives the control system more choices. More weighing heads generally mean more possible combinations, although the best machine configuration still depends on the product and required pack size.

Ishida's published RV range, for example, offers configurations from 10 to 32 heads, with hopper capacities from 0.05 to 7 liters depending on the model. Its published specifications also include triple combination calculations on certain configurations.

3. What I Look for in an Automatic Multi-head Weigher

I do not choose a multi-head weighing machine simply because it has more heads or a higher advertised speed. The product must come first. A machine that works beautifully with dry snacks may not be the right solution for sticky food, fragile products, or very small target weights.

Accurate Portion Weighing

The first requirement is obvious: the machine needs to produce a consistent target weight. Load cells measure the individual hopper weights, while the control system uses those values to calculate a suitable combination.

Good weighing accuracy helps reduce overfilling. This matters especially for expensive products such as nuts, seeds, specialty foods, nutritional products, and other high-value materials.

Fast Product Feeding

The weighing heads cannot work efficiently if product feeding is unstable. The feeder needs to provide a controlled amount of product to each hopper without creating large fluctuations.

This is why I pay attention to the relationship between the distribution table, radial feeders, pool hoppers, and weigh hoppers. Product flow is not a small detail. It directly affects weighing stability.

Suitable Hopper Size

Hopper size should match the product and target pack weight. A small hopper may be suitable for lightweight products, while larger products require more volume.

A good example is Ishida's current RV range, which lists hopper capacities from 0.05 to 7 liters across different configurations. This shows why there is no single “standard” hopper size for every application.

Easy Cleaning

For food production, I always consider cleaning and maintenance from the beginning. Product can collect around hoppers, feeder surfaces, corners, and joints. A practical machine should allow operators to access contact parts without unnecessary difficulty.

Flexible Product Settings

Different products may need different feeder speeds, vibration levels, target weights, and discharge timing. A good control interface lets operators save and recall recipes rather than manually setting every parameter each time.

4. Multi-head Weigher Performance: What the Published Data Tells Me

When comparing weighing machines, I always recommend looking at published data carefully. A headline speed is not enough. The actual production rate depends on target weight, product flow, number of heads, hopper size, product shape, feeding behavior, and the complete packaging cycle.

The following figures are published specifications from Ishida equipment and are included only as industry reference data. They are not specifications for Huapack machines.

   Source: Ishida Europe published product specifications for the SE3 Series, RV Series, and Micro/Mini weighers. Values vary by model and application and should not be treated as universal multihead weigher specifications.

Another useful example comes from specialized weighing. Ishida's published mix weigher range states that some configurations can handle up to eight separate products, with models available up to 32 heads and published maximum speeds of 440 packs per minute for certain applications. Again, this is a specific product range rather than a general industry standard.

   Source: Application categories and specialized configurations based on Ishida's published multihead and specialized weigher range. Actual machine selection requires product testing.

5. Which Products Can a Multi-head Weigher Handle?

I normally recommend a multi-head weigher for products that can be fed in reasonably controlled portions. Free-flowing solid products are the most common starting point, but specialized designs can extend the range considerably.

Snacks and Confectionery

Potato chips, crackers, candy, biscuits, nuts, chocolate pieces, and similar products are common applications. These products can often move through vibratory feeders and weigh hoppers at high speed.

Grains, Seeds, and Cereals

Rice, beans, cereal, seeds, lentils, and similar granular products can be weighed automatically before entering premade pouches or a vertical form-fill-seal machine.

Frozen Food

Frozen vegetables, frozen fruit, seafood, and other frozen products may need specialized feeding and hopper designs because their surfaces can be wet, irregular, or sticky.

Pet Food

Dry pet food is another strong application. Kibble is generally free-flowing and can be portioned into different bag sizes. The weighing system can be connected to a pouch or bag packaging machine according to the required format.

Fresh Produce

Some fruits and vegetables can also be weighed automatically, although gentle handling becomes more important. The product should not be thrown from one hopper to another unnecessarily.

Mixed Products

If a customer wants a pouch containing several products, I may recommend a specialized multi-head mix weigher. Different sections can be assigned to different products, allowing the system to create a controlled mix in one package.

Ishida currently describes mix weighing solutions for applications such as confectionery, ready meals, mixed vegetables and fruits, and cereals, with specialized configurations designed to handle multiple products in one weighing cycle.

Small and High-Value Products

For very small target weights, I would not automatically use a standard large machine. Specialized micro and mini multihead weighers are designed for products such as seeds, herbs, spices, tea leaves, and tablets. Ishida's published Micro range, for example, lists target weights from 0.5 g to 200 g for suitable applications.

6. Integrating the Multi-head Weigher With a Complete Pouch Packaging Line

A weighing machine works best when the equipment around it is properly matched. At Huapack, I therefore look at the complete production line rather than treating the multi-head weigher as a standalone machine.

A typical automatic pouch packaging process can look like this:

Product loading → product feeding → multi-head weighing → pouch forming or pouch feeding → product discharge → pouch sealing → date coding → cutting → finished pouch conveying.

The multi-head weigher must communicate with the packaging machine. When the pouch is ready, the weighing system releases the selected product portion. The timing needs to be synchronized so that product does not fall before the pouch is in position.

I also pay attention to the discharge height. If the product is fragile, a large drop can cause breakage or damage. For delicate products, I may recommend a gentler transfer design. Ishida's specialized gentle-slope systems, for example, are designed around reduced drop heights and impact control for fragile products.

The feeding system is equally important. If product arrives too quickly, the weighing hoppers may become overloaded. If it arrives too slowly, the machine may wait for product and lose production capacity.

This is why I consider the entire product flow:

• How the product enters the weigher

• How evenly it is distributed

• How much product each feeder delivers

• How the weighing heads are calibrated

• How selected hoppers discharge

• How the product enters the pouch

• How quickly the pouch is sealed and discharged

When these stages are synchronized, the weighing system can become a reliable part of a high-speed packaging line instead of becoming the bottleneck.

7. Why I Work With Huapack for Automated Weighing and Packaging

Shanghai Huacheng Packing Machinery Company, known as Huapack, was established in 2015 in Songjiang District, Shanghai. We integrate R&D, manufacturing, sales, and technical service under one operation, with a clear focus on pouch packaging machinery.

For me, the main value of this structure is that I can approach packaging from the complete production process. I do not see the multi-head weigher as an isolated weighing device. I see it as one part of an automatic pouch packaging system.

Our experience covers automated weighing, pouch filling, sealing, and complete line integration. Depending on the product, we can build a packaging solution around food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, pet food, and other suitable applications.

Before recommending a multi-head weighing machine, I want to understand the product and production target. Useful information includes:

• Product type and physical condition

• Target package weight

• Minimum and maximum package size

• Required production capacity

• Product shape and average piece size

• Product density and flow behavior

• Whether the product is fragile or sticky

• Pouch style and pouch dimensions

• Required filling and sealing method

• Factory space and available utilities

With this information, I can determine whether a standard multi-head weigher is appropriate or whether a specialized solution is more suitable. For example, sticky products may need screw feeding, while fragile products may need a gentler transfer route. Ishida's specialized range similarly includes screwfeeder, gentle-slope, micro, mix, and other configurations designed around different product behaviors.

This is also where our full-line capability becomes useful. If the customer needs more than weighing, we can consider the relationship between weighing, pouch forming, filling, sealing, coding, conveying, and other line equipment.

My goal is simple: build a packaging system that fits the actual factory, not force the factory to adapt to a machine that was never designed for its product.

8. Multi-head Weigher FAQ

What is the difference between a multi-head weigher and a Linear Weigher?

A multi-head weigher normally uses several individual weighing hoppers and combination calculations to reach the target weight. A linear weigher generally measures product through a smaller number of weighing channels in a more direct sequence. The best choice depends on product type, target weight, required speed, accuracy, and budget.

What products are suitable for a multi-head weigher?

Free-flowing products such as snacks, nuts, seeds, grains, cereals, candy, frozen foods, dry pet food, and similar products are common applications. Specialized multihead systems can also be designed for sticky, fragile, very small, or mixed products.

Can a multi-head weigher reduce product giveaway?

Yes, combination weighing is designed to select a combination of hopper weights that is close to the target. This can help reduce unnecessary overfilling. However, actual giveaway depends on the product, machine configuration, calibration, feeder settings, target weight, and operating conditions.

How many heads does a multi-head weigher need?

There is no universal answer. Commercial machines are available with different head counts. Ishida's published range, for example, includes configurations from 10 to 32 heads, while its specialized models cover other arrangements. The correct number depends on the product, target weight, hopper volume, required speed, and desired weighing flexibility.

Can a multi-head weigher handle mixed products?

Yes. A specialized mix weigher can control different product streams and combine them into one package. Published Ishida solutions can handle mixes involving two to eight separate products in suitable configurations.

Can it weigh very small amounts?

Yes, but very small target weights usually require a specialized configuration. Micro and mini multihead weighers are designed for low target weights and small products. For example, Ishida's published Micro range covers suitable target weights from 0.5 g to 200 g.

Is a multi-head weigher suitable for pet food?

Yes. Dry pet food is a common application for automatic weighing and pouch packaging. The appropriate hopper volume and feeder configuration depend on kibble size, density, target package weight, and required production rate.

Can the multi-head weigher be connected to a pouch packaging machine?

Yes. A multi-head weigher can be integrated with vertical form-fill-seal machines, premade pouch machines, and other suitable packaging systems. The weighing controller and packaging machine need to be synchronized so that each weighed portion is discharged at the correct time.

What information should I provide before buying a multi-head weigher?

I recommend providing the product name, product sample if possible, target weight, product dimensions, density, pouch size, required production speed, packaging material, and desired pouch format. Product samples are especially useful when the material is sticky, fragile, irregular, or difficult to flow.

Final Thoughts: Choosing the Right Multi-head Weigher

A multi-head weigher is more than a fast scale. It is a combination of product feeding, multiple weighing points, load-cell measurement, computer calculation, controlled discharge, and packaging synchronization. When these parts work together, the system can deliver accurate portions at a much higher production rate than manual weighing.

But I would not choose a multi-head weigher based on speed alone. The right solution depends on the product. A free-flowing snack, sticky food, frozen vegetable, fragile biscuit, seed, or dry pet food may require very different feeder and hopper designs.

At Huapack, I start with the real production requirement: product, target weight, pouch format, output, product behavior, and level of automation. From there, I can evaluate the appropriate automatic multi-head weigher and connect it with the pouch filling, sealing, coding, conveying, and other equipment needed for a complete packaging line.

If you are looking for a multi-head weigher for packaging or planning a complete automatic pouch packaging line, send us your product details, target pack weight, pouch size, and required output. These details give me a much better starting point than simply choosing a machine from a catalog.
