When I talk with packaging manufacturers about a new pouch line, one question comes up again and again: can we make the pouch, fill it, and seal it in one continuous process without making the line too complicated? That is exactly where our Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling – 240NDZ/280NDZ/330NDZ comes in.

At Huapack, we design pouch packaging machinery around real production needs rather than simply putting more functions onto a machine. Our horizontal form fill seal technology allows us to feed packaging film from a roll, form the pouch, fill the product, heat seal the package, and cut the finished pouch automatically. With the two-nozzle filling configuration, the machine can be adapted to different product and output requirements while keeping the overall process simple.

For manufacturers working with food, sauces, snacks, nutrition products, personal care samples, pharmaceutical products, chemicals, pet food, or small industrial parts, this type of HFFS Zipper Pouch Packaging Machine can be a practical way to move from manual or semi-automatic packaging to a more stable automated process.

1. What Makes Our Zipper Pouch HFFS Packaging Machine Different?

We build this machine around one straightforward idea: start with a roll of packaging film and finish with a properly filled and sealed pouch. Instead of purchasing empty finished bags first, our machine creates the pouch during production.

This matters because buying pre-made pouches adds another purchasing step, another storage requirement, and another packaging cost. With an HFFS system, we can use suitable roll film directly. Depending on the product and final pouch requirements, the packaging material can include PE film, laminated film, or aluminum foil-based film structures.

The machine is especially useful when a manufacturer needs a Horizontal Form Fill Seal Machine for zipper pouches. The zipper feature gives the finished package a convenient resealable function, while the HFFS process keeps pouch making and filling connected in one automated system.

Our 240NDZ, 280NDZ, and 330NDZ configurations are developed for different machine and pouch requirements. Rather than claiming that one model is ideal for every product, we normally look at the material, pouch size, filling volume, sealing requirements, film structure, and expected production capacity before confirming the final configuration.

Source: Huapack product and process description supplied for this product page. Final packaging configuration depends on product characteristics, film structure, pouch design, and customer requirements.

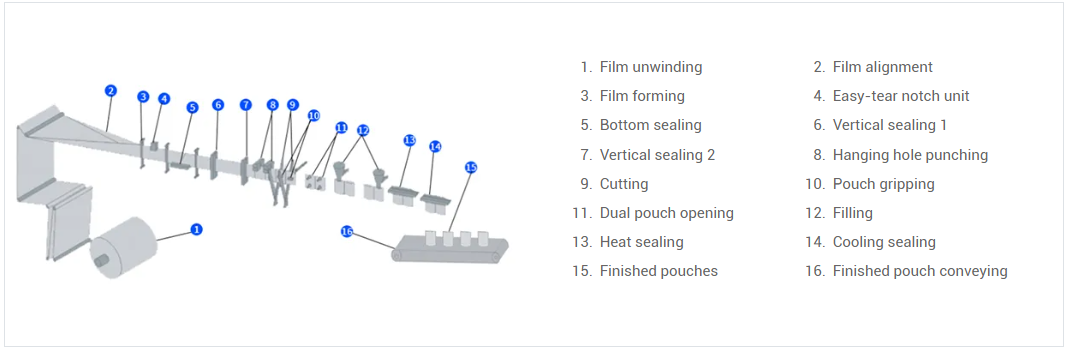

2. How the 2-Nozzle HFFS Packaging Process Works

I prefer to explain the working principle in plain language because the basic idea is actually quite easy to understand.

First, the packaging film roll is loaded onto the machine. The film moves through the forming section, where it is shaped according to the selected pouch design. The machine then creates the required pouch structure before the filling stage.

Next comes the two-nozzle filling system. Two filling nozzles work with the product feeding system to introduce the material into the pouch. The exact filling method is selected according to whether the product is liquid, paste, powder, granule, or another material. This is important because a sauce and a dry snack do not behave in the same way during filling.

After filling, the machine moves the pouch into the heat-sealing section. Our intelligent temperature control system helps maintain the required sealing temperature. This gives us better control over seal quality and helps produce a clean and even sealing line.

The color-mark tracking system is also useful when printed film is used. It helps the machine identify the printed registration mark so that the pouch can be positioned and cut more accurately. In simple terms, it helps keep the printed design in the right place instead of allowing the artwork to gradually move away from the intended cutting position.

Finally, the finished pouch is cut and discharged. The complete sequence can therefore be summarized as:

1. Roll film feeding

2. Pouch forming

3. Zipper pouch processing

4. Two-nozzle product filling

5. Heat sealing

6. Film registration and cutting

7. Finished pouch discharge

This continuous structure is one of the main reasons we recommend an automatic zipper pouch filling and sealing machine when a customer wants to reduce manual handling.

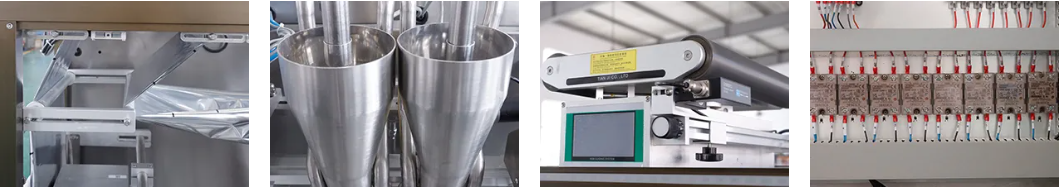

3. Main Features I Focus on During Machine Design

For us, a packaging machine is not useful just because it has a long list of functions. It has to work reliably on the factory floor. That is why we focus on several practical points.

Roll-Film Packaging Instead of Pre-Made Bags

The machine works directly with roll film, allowing us to form the pouch during production. This can reduce the need to purchase and store large quantities of empty finished pouches. It also gives manufacturers more flexibility when changing packaging designs.

Two-Nozzle Filling Configuration

The two-nozzle filling arrangement is designed for automated product filling and can be configured around the product being packed. During a project, we consider factors such as product flow, filling range, viscosity, particle size, and required accuracy before selecting the appropriate filling solution.

Intelligent Temperature Control

Heat sealing may look simple, but it is one of the most important parts of pouch packaging. Too little heat may produce a weak seal. Too much heat may damage the film or create an unattractive sealing area. Our temperature control system helps maintain stable sealing conditions during operation.

Color-Mark Tracking

When printed film is used, the color-mark tracking function helps control pouch position and cutting accuracy. This is particularly helpful for products where the brand name, product information, barcode, or graphic design needs to stay in a consistent position.

Multiple Film Options

We can design the packaging system around different film structures, including PE film, laminated film, and aluminum foil-based film. The correct film should always be selected according to the product, required barrier performance, sealing characteristics, and intended storage conditions.

Source: Huapack machine application and packaging-material information supplied for this product page. Actual film compatibility should be verified through sample testing before commercial production.

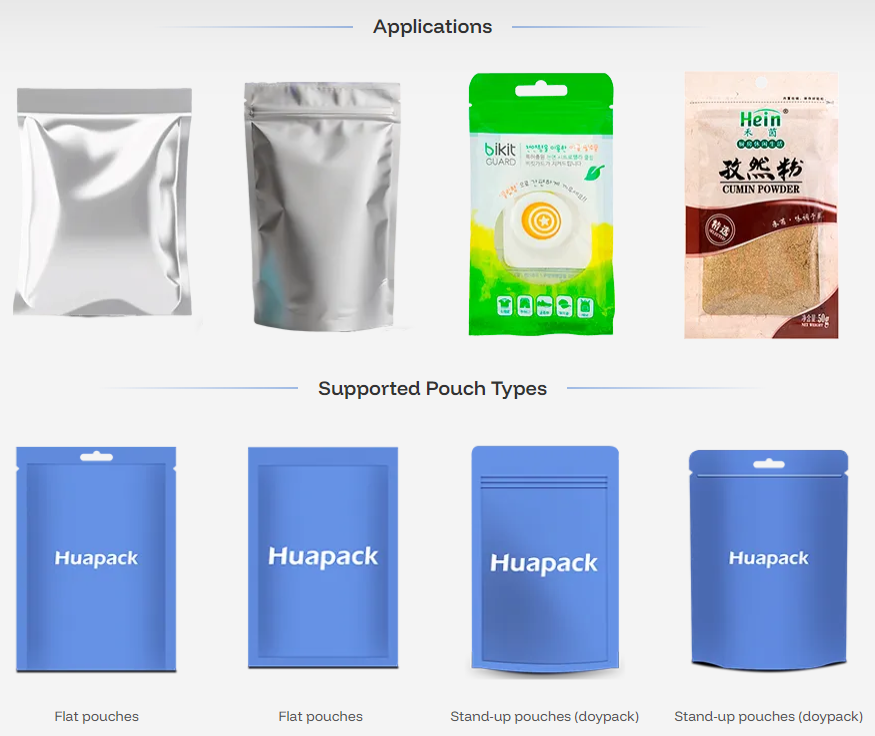

4. Where We See This Machine Being Used

One advantage of a flexible HFFS packaging platform is that it is not limited to one industry. We have designed pouch packaging solutions for a broad range of products, but the filling system must always match the material.

Food and Snacks

Food manufacturers can use zipper pouch packaging for snacks, seasoning products, sauces, instant food components, and other flexible-packaging products. A resealable zipper can be useful when consumers do not use the entire package at once.

Dairy and Nutrition Products

Nutrition and dairy-related applications may require controlled filling and suitable barrier packaging. We look at the powder, granule, liquid, or paste characteristics before deciding on the filling system and pouch material.

Personal Care and Cosmetics

Face mask products, shampoo samples, skincare samples, wet wipes, and other personal care products can use flexible pouch formats. Small pouches are especially useful for trial packs, travel products, promotional samples, and single-use applications.

Pharmaceutical and Medical Products

For pharmaceutical or medical packaging, the packaging system needs to be designed around the specific product and applicable production requirements. Possible applications include certain powders and disposable medical products, subject to material compatibility and customer validation.

Chemical and Industrial Products

Drying agents, granules, pastes, and selected chemical consumables can also be packaged in flexible pouches. For these applications, we pay particular attention to material compatibility, sealing performance, dust control, and filling behavior.

Pet Food

Pet food and pet treats are another natural application for zipper pouches. The resealable format can help users close the package after opening, while the HFFS process provides an automated way to produce the pouch.

5. Why We Pay Attention to Manufacturing and Testing

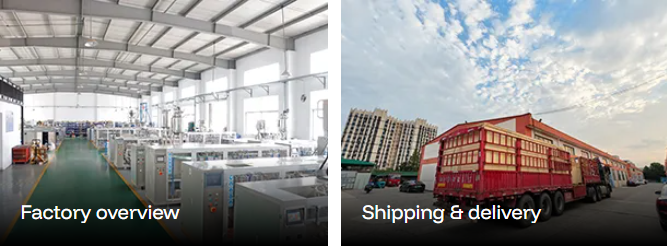

We started Huapack in 2015 in Songjiang District, Shanghai, with a clear focus on pouch packaging machinery. Since then, we have built our operation around research and development, manufacturing, sales, and technical service rather than treating the machine as a simple piece of equipment.

When we manufacture a packaging machine, we do not only look at whether the machine can run. We also consider how the film moves, how the pouch is formed, how the filling system behaves, how the seal reacts to temperature, and how the machine connects with the rest of the production line.

For example, a machine may perform well with one type of powder but struggle with another powder that has different flow characteristics. A liquid with low viscosity behaves differently from a thick sauce. A laminated film may require different sealing conditions from another film structure. These details are why we prefer testing before finalizing a packaging solution.

Our normal engineering approach is based on the customer's actual product and packaging requirements. We can consider pouch format, product characteristics, filling quantity, film structure, production capacity, upstream feeding, downstream equipment, and available factory space.

For customers with more complicated requirements, we can also provide complete pouch packaging lines and turnkey project solutions. In that case, the HFFS machine becomes part of a larger system instead of operating as an isolated machine.

6. Why Choose Huapack for a Zipper Pouch Packaging Machine?

I believe the biggest reason to work with a specialized pouch machinery manufacturer is that packaging problems are rarely solved by a single standard machine.

Our experience covers a full range of pouch packaging machines and multiple pouch formats. We work with customers in food, dairy, health nutrition, medical nutrition, pharmaceuticals, personal care, agrochemicals, and pet food. That gives us a practical understanding of how different products behave during filling and sealing.

We also provide more than standalone equipment. If a customer needs automatic weighing, product feeding, pouch handling, filling, sealing, inspection, or other connected processes, we can develop the packaging line around the complete workflow.

Another point I consider important is customization. We do not want a customer to change the whole production process just to fit a machine. Instead, we study the production requirement first and then configure the equipment around it.

That approach is particularly useful for manufacturers who are planning to increase production gradually. A packaging line should be stable today but also leave room for future expansion. By considering the complete process during the initial engineering stage, we can make the system easier to upgrade or integrate later.

For customers evaluating a zipper pouch HFFS packaging machine manufacturer, I recommend looking beyond the machine price. Film compatibility, filling accuracy, sealing quality, maintenance access, automation level, spare parts, technical support, and future line integration can have a much bigger impact on the real cost of ownership.

7. Frequently Asked Questions About Our 240NDZ/280NDZ/330NDZ

What does HFFS mean?

HFFS means Horizontal Form Fill Seal. The machine forms the pouch from a roll of flexible film, fills the product, seals the package, and cuts the finished pouch in a continuous horizontal process.

Can the machine make zipper pouches?

Yes. This product is designed for zipper pouch packaging. The final zipper structure, pouch dimensions, film construction, and sealing arrangement should be confirmed according to the customer's actual pouch design.

Why use two filling nozzles?

The two-nozzle configuration provides two filling points within the automated packaging process. The exact filling performance depends on the selected filling system and the characteristics of the product. We normally test the actual material before confirming the final filling configuration.

What products can be packed?

Potential applications include snacks, seasonings, sauces, instant food products, nutrition products, personal care products, selected pharmaceutical products, drying agents, chemical consumables, pet food, and small industrial components. The machine configuration must be matched to the product.

Can I use different packaging films?

The machine can be designed to work with suitable PE film, laminated film, and aluminum foil-based film structures. However, not every film is interchangeable. We recommend testing the actual film before production to confirm forming, filling, sealing, and cutting performance.

Can I use printed film?

Yes. The machine includes a color-mark tracking system for applications using registration marks on printed packaging film. This helps maintain the correct pouch position during forming and cutting.

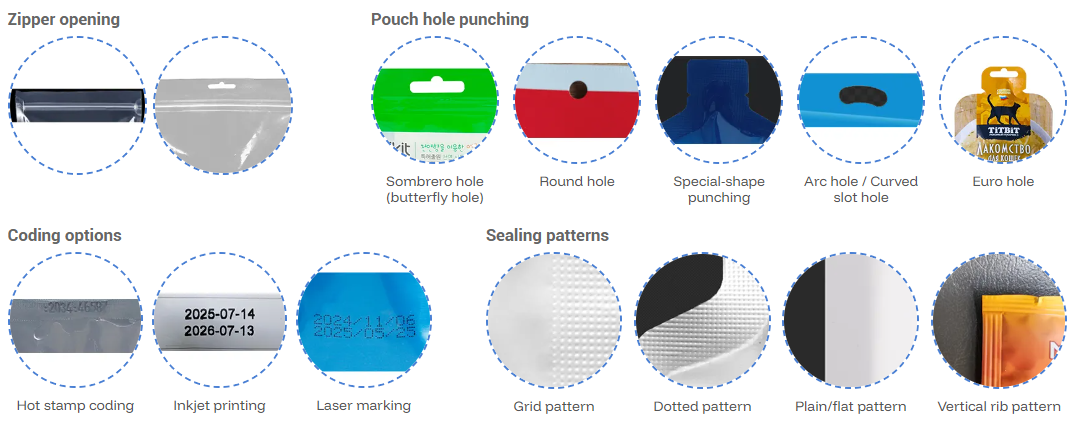

Can the machine produce different pouch formats?

The system can be configured for different pouch specifications and sealing formats. Depending on the project, we can consider three-side seal, four-side seal, zipper pouch, and other required formats. The exact range depends on the selected model and tooling.

How do I choose between 240NDZ, 280NDZ, and 330NDZ?

I would not recommend choosing a model based only on the model number. We first need to know the pouch width, pouch length, filling volume, product type, film structure, required output, and packaging style. Once these details are clear, our engineering team can recommend the most suitable configuration.

Can Huapack provide a complete packaging line?

Yes. In addition to standalone pouch packaging machines, we can develop complete packaging solutions covering weighing, feeding, pouch filling, sealing, and line integration. The final system is designed around the product and production requirements.

From Film Roll to Finished Zipper Pouch

When we design a Zipper Pouch HFFS Packaging Machine, 2-Nozzle Filling – 240NDZ/280NDZ/330NDZ, our goal is not simply to automate one step. We want the complete packaging process to make sense.

The film needs to run smoothly. The pouch needs to form correctly. The filling system needs to match the product. The sealing temperature needs to remain stable. Printed film needs accurate registration. And the finished pouch needs to leave the machine ready for the next production step.

That is why we treat pouch packaging as a complete engineering project. Whether you are looking for an automatic zipper pouch machine, a horizontal form fill seal packaging machine, a 2-nozzle pouch filling machine, or a complete automated pouch packaging line, we can start from your actual product and work backward to the right machine configuration.

If you are currently comparing HFFS Zipper Pouch Machines, we recommend preparing your product sample, packaging film, pouch drawing, filling range, and target production capacity. With these details, we can evaluate the application more accurately and develop a practical packaging solution instead of simply recommending a standard machine.

Huapack — focused on pouch packaging machinery, from individual machines to complete automated packaging lines.

Technical note: Product configurations, pouch dimensions, filling systems, output, film compatibility, and other specifications may vary according to the customer's product and packaging requirements. Final technical data should be confirmed with Huapack engineering before purchase.
